3.8.2 Technical data for the SIPLACE SmartFeeder E
In general, the tape feeder modules from the SIPLACE E are approx. 587 mm long and approx.
200 mm high. The technical data are listed in the following table.
3
The maximum height of the interference contours above the upper edge of the tape pocket is ≤ 3
mm. As the feeder modules do not show any flaps projecting upwards and are also fixed to the
changeover tables, the risk of a head crash is reduced to a minimum.
Tape feeder module Item no. L x H
[mm]
Width
[mm]
Location Transport
increment
[mm]
Max. tape
height
[mm]
SIPLACE SmartFeeder 2x8 mm E 00141569 587x200 22.9 2 1/2/4/8 3.5
SIPLACE SmartFeeder 8 mm E 00141570 587x200 10.8 1 1/2/4/8 3.5
SIPLACE SmartFeeder 12 mm E 00141571 587x200 22.6 2 4 - 16
a
16
SIPLACE SmartFeeder 16 mm E 00141572 587x200 22.6 2 4 - 20
a
16
SIPLACE SmartFeeder 24 mm E 00141573 587x200 34.4 3 4 - 32
a
25
SIPLACE SmartFeeder 32 mm E 00141574 587x200 46.2 4 4 - 40
a
25
SIPLACE SmartFeeder 44 mm E 00141575 587x200 58.0 5 4 - 52
a
25
SIPLACE SmartFeeder 56 mm E 00141576 587x200 69.8 6 4 - 64
a
25
Tape reels 178 to 432 mm in diameter (7“ - 17“)
Changeover time ≤ 8 s
3 Technical data and assemblies User manual SIPLACE E
3.9 Alternative SIPLACE E feeder modules From software version SC 708.0 12/2014 Edition
150
3.9 Alternative SIPLACE E feeder modules
3.9.1 SIPLACE StickFeeder E
Item no. 00288207-xx SIPLACE StickFeeder E
The SIPLACE StickFeeder E for SIPLACE E can be used on any SIPLACE E feeder table and
can setup any number of stick / tube, with a combined stick width up to 100mm. The StickFeeder
for SIPLACE E will occupy 10 tracks on the feeder table.
3

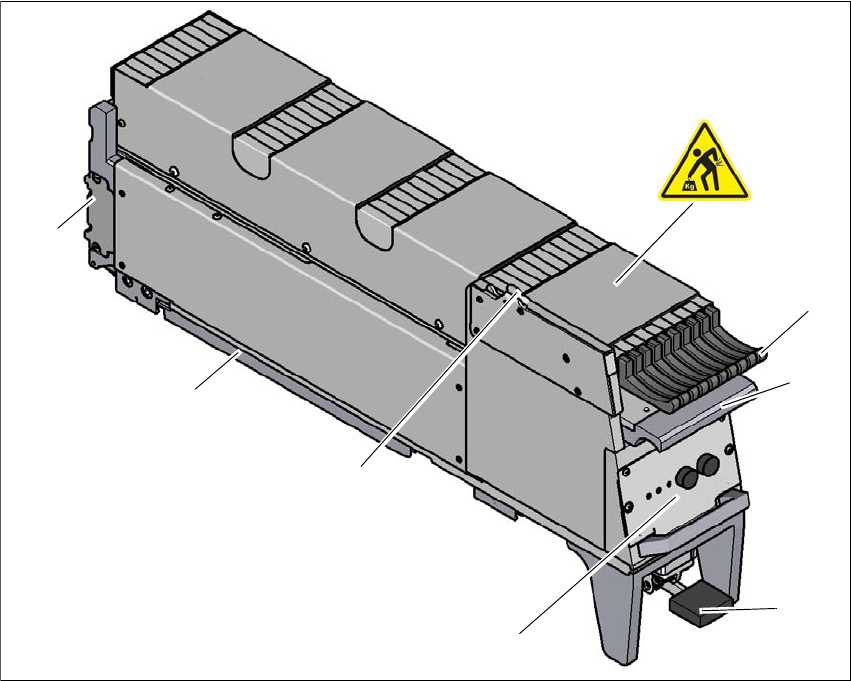

Fig. 3.9 - 1 SIPLACE StickFeeder E
(1) Control panel
(2) Fixing lever
(3) Lower level
(4) Upper level
(5) Pogo-pin interface
(6) Slider guide
(7) Locking latch
(7)
(1)
(2)
(3)
(4)
(5)
(6)
User manual SIPLACE E 3 Technical data and assemblies
From software version SC 708.0 12/2014 Edition 3.9 Alternative SIPLACE E feeder modules
151
3.9.2 Safety instructions for the SIPLACE StickFeeder E
3
3.9.3 Technical data
3
3
3
3
Heavy weight of the SIPLACE StickFeeder E!
The heavy weight of the SIPLACE StickFeeder E (14 kg) could
cause injuries if the module is not handled correctly.
Do not lift or carry the module alone.
Use lifting aids and proper lifting techniques when removing
or replacing.
You might need to enlist the help of a second person.
Length x Height x Width 615 mm x 282 mm x 117 mm
Occupied feeder module locations on table 10
Max. clamping height 25 mm
Max. clamping width
Sticks per module 3
100 mm
e.g. 10 sticks with 10 mm width
Weight 14 kg
Vibrating time Variable setting with SIPLACE Pro
