3 Technical data and assemblies User manual SIPLACE E 3.9 Alternative SIPLACE E feeder modules From software version S C 708.0 12/2014 Edition 152 3.9.4 SIPLACE Pow erAdaptor E Item no. 03113102 -xx SIPLACE PowerAdaptor …
User manual SIPLACE E 3 Technical data and assemblies
From software version SC 708.0 12/2014 Edition 3.9 Alternative SIPLACE E feeder modules
151
3.9.2 Safety instructions for the SIPLACE StickFeeder E
3
3.9.3 Technical data
3
3
3
3
Heavy weight of the SIPLACE StickFeeder E!
The heavy weight of the SIPLACE StickFeeder E (14 kg) could
cause injuries if the module is not handled correctly.
Do not lift or carry the module alone.
Use lifting aids and proper lifting techniques when removing
or replacing.
You might need to enlist the help of a second person.
Length x Height x Width 615 mm x 282 mm x 117 mm
Occupied feeder module locations on table 10
Max. clamping height 25 mm
Max. clamping width
Sticks per module 3
100 mm
e.g. 10 sticks with 10 mm width
Weight 14 kg
Vibrating time Variable setting with SIPLACE Pro
3 Technical data and assemblies User manual SIPLACE E
3.9 Alternative SIPLACE E feeder modules From software version SC 708.0 12/2014 Edition
152
3.9.4 SIPLACE PowerAdaptor E
Item no. 03113102-xx SIPLACE PowerAdaptor E
The SIPLACE PowerAdaptor E provides power to a single feeder for offline setup. This device can
either be put on any flat table or can be attached to SIPLACE Preparation Table E (see Section
6.7 on page 297).
3

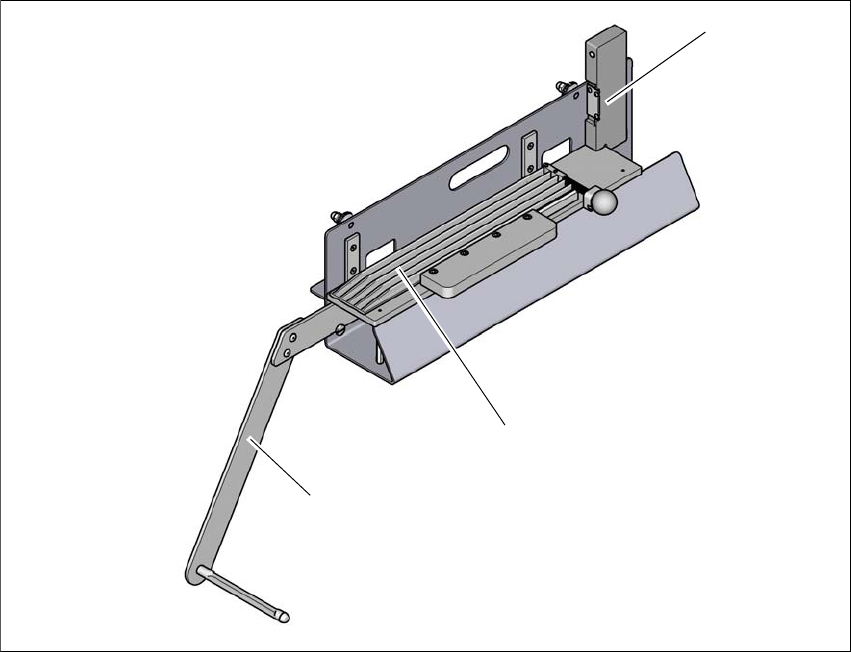

Fig. 3.9 - 2 SIPLACE Power Adaptor E
(1) Tape reel holder
(2) Guide profile for guiding feeder modules
(3) Pogo-pin interface
3.9.4.1 Description
The SIPLACE PowerAdaptor E allows SIPLACE SmartFeeder E to be used outside the machine
and setup area. The SIPLACE PowerAdaptor E consists of an aluminum frame with guide profile
for holding and guiding the feeder modules. As with the changeover table, the feeder module is
placed on the guide profile, with the slider guides, and is pushed forwards until the front centering
pin of the feeder module is fully inserted.
(3)
(2)
(1)
User manual SIPLACE E 3 Technical data and assemblies
From software version SC 708.0 12/2014 Edition 3.9 Alternative SIPLACE E feeder modules
153
3.9.4.2 Usage
The SIPLACE PowerAdaptor E is used to check, maintain and repair SIPLACE SmartFeeder E.
It can also be used for setting up in advance for PCB production. The tape reel holder is also
mounted on the base plate. When a component tape is inserted, you can check or reset the incre-
ment, pick-up position and conveyor speed. The detailed user manual describes how to use the
SIPLACE PowerAdaptor E and the necessary servicing work.
3.9.4.3 Scope of delivery
– SIPLACE PowerAdaptor E
– Power supply, 100 - 120 / 200 - 240 VAC, +24VDC, 3.0 A
– Base plate with tape reel arm
