User manual SIPLACE E 1 Introduction From software version SC 708.0 12/2014 Edition 1.1 Single sided SIPLACE E 17 The SIPLACE E placement machines dem onstrate – High precision – Placement p erformance up to the high end…
1 Introduction User manual SIPLACE E
1.1 Single sided SIPLACE E From software version SC 708.0 12/2014 Edition
16
1.1.2 SIPLACE E with fixed table on location 1
1

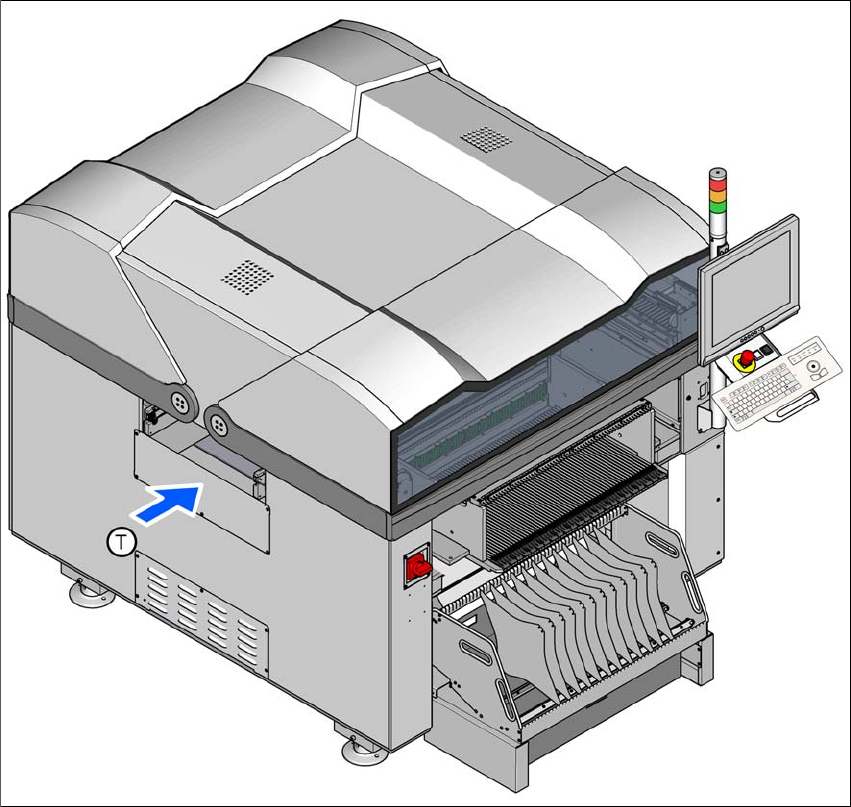

Fig. 1.1 - 2 Single sided SIPLACE E placement machine with fixed table on location 1
(T) Direction of PCB transport
User manual SIPLACE E 1 Introduction
From software version SC 708.0 12/2014 Edition 1.1 Single sided SIPLACE E
17
The SIPLACE E placement machines demonstrate
– High precision
– Placement performance up to the high end process range
– A wide ranging component range from 01005 components to a size of 200 mm x 110 mm.
Following placement methods are possible for processing the components:
– Collect&Place and
– Pick&Place
The SIPLACE E placement machine consists one gantry. For an overview of the placement head
configuration, refer to section 3.1.1
from page 99.
These can be quickly and accurately positioned by linear motors, moving independently of one
another in the X and Y directions.
The SIPLACE E machine supports the SIPLACE single conveyor.
There is a fixed table available on location 1 for supplying components. On location 2 is no table
for supplying components.
1 Introduction User manual SIPLACE E
1.2 Double sided SIPLACE E From software version SC 708.0 12/2014 Edition
18
1.2 Double sided SIPLACE E
1.2.1 SIPLACE E with fixed table on location 1
1
Fig. 1.2 - 1 Double sided SIPLACE E placement machine with fixed table on location 1
(T) Direction of PCB transport
