4 Setting up and commissioning User manual SIPLACE E 4.2 Infrastructure at the installation location From software ve rsion SC 708.0 12/2014 Edition 178 4.2.3.5 Connecting the power supply cable Crimp a ferrule onto ea…
User manual SIPLACE E 4 Setting up and commissioning
From software version SC 708.0 12/2014 Edition 4.2 Infrastructure at the installation location
177
4.2.3.4 Mains connection - delivery configuration
The main power connection is configured according to the power supply of the country concerned.
– The machine is configured for voltages 3 x 200 V~ up to 3 x 415 V~.
The machine has a mains power cable WITHOUT plug or WITH Cekon plug. 4
4
Fig. 4.2 - 3 Description of wires in the mains power cable without Cekon plug
4
Fig. 4.2 - 4 Assignment in the Cekon plug
1 = (L1): three-phase
2 = (L2): three-phase
3 = (L3): three-phase
green/yellow = (PE): conductor
PE
L1
L2
L3
4 Setting up and commissioning User manual SIPLACE E
4.2 Infrastructure at the installation location From software version SC 708.0 12/2014 Edition
178
4.2.3.5 Connecting the power supply cable
Crimp a ferrule onto each end of the wire.
Loosen the nuts on the cable fixture.
Run the mains power cable through the cable fixture to the terminal panel X100:1.
Connect L1/L2/L3 to Q1:1 / Q1:3 / Q1:5 respectively. PE connect to terminal block X100:1
Make sure that the bending radius is adequate. The wires must not be kinked.
Manually tighten the cable fixture.
4.2.3.6 Checking the micro-fuses
Low voltages (24 V and 42 V) and the intermediate circuit voltage of the head motors are fused
by micro-fuses.
4

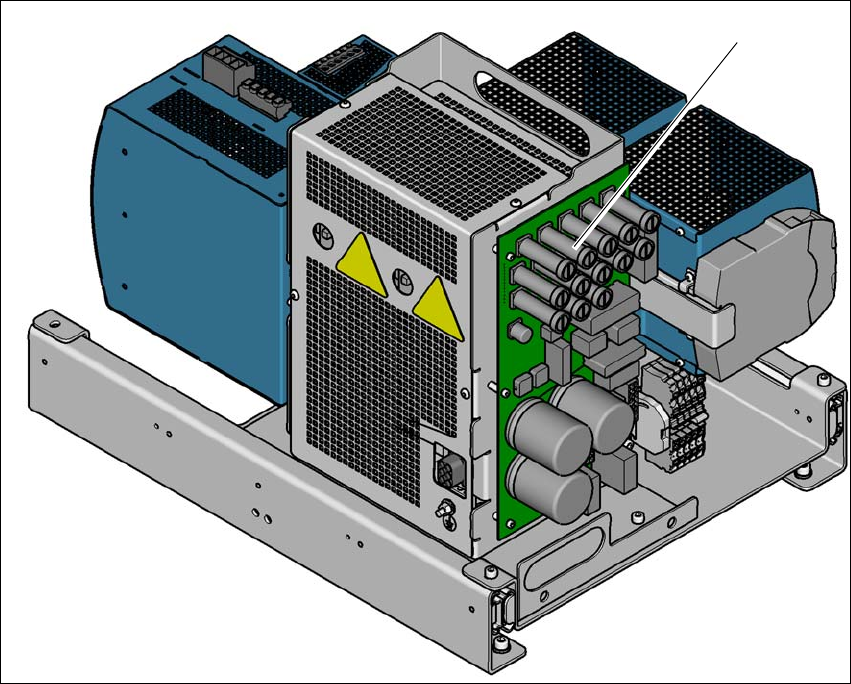

Fig. 4.2 - 5 Micro-fuses on the distribution board of the power supply
(1) Micro-fuses on the distribution board of the power supply
(1)
User manual SIPLACE E 4 Setting up and commissioning
From software version SC 708.0 12/2014 Edition 4.2 Infrastructure at the installation location
179
Overview of the fuses 4
4

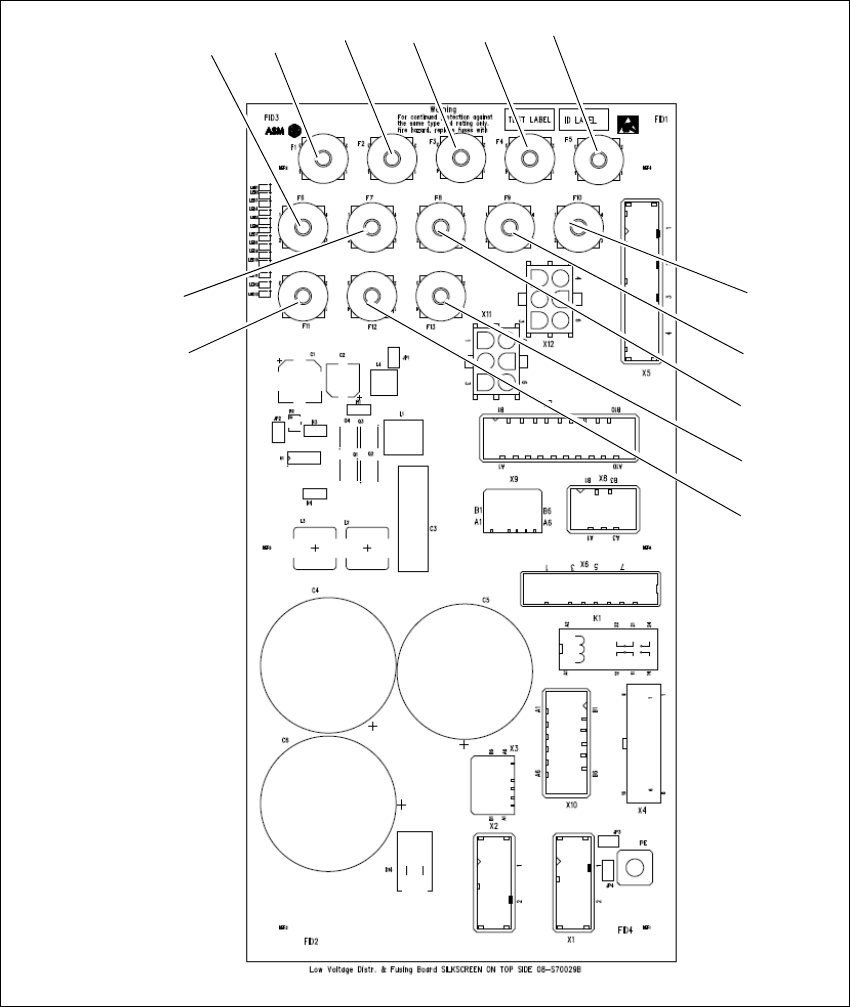

Fig. 4.2 - 6 Overview of the fuses
– F1: not used
– F2: PC1 supply (24 V)
– F3: Conveyor supply (24V)
– F4: Safety Relays supply (24 V)
F1 F2 F3 F4 F5
F6
F7
F8
F9
F10
F11
F12
F13
