User manual SIPLACE E 4 Setting up and commissioning From software version SC 708.0 12/2014 Edition 4.3 Setting up th e machine 181 4.3 Setting up the machine 4.3.1 Warning instructions 4 4 4 4 4 WARNING Observe the appl…
4 Setting up and commissioning User manual SIPLACE E
4.2 Infrastructure at the installation location From software version SC 708.0 12/2014 Edition
180
– F5: Safety contactors supply (24V)
– F6: Power fail signal (24 V)
– F7: MGCU supply (24V)
– F8: Distributor supply (24 V)
– F9: FCU1 supply (24V)
– F10: FCU 2 supply (24V)
– F11: Vision flash voltage (42 V)
– F12: Head drives supply(42V)
– F13: Conveyor supply (42V)
User manual SIPLACE E 4 Setting up and commissioning
From software version SC 708.0 12/2014 Edition 4.3 Setting up the machine
181
4.3 Setting up the machine
4.3.1 Warning instructions
4
4
4
4
4
WARNING
Observe the applicable accident prevention regulations!
Only SIPLACE engineers or qualified people are permitted to set up and commission the
machine.
The applicable accident prevention regulations concerning the transportation of
heavy goods must be followed.
WARNING
Risk of injury during assembly work to the underside of the machine!
There is a risk of injury during assembly work to the underside of the machine!
Secure the machine using suitable measures. The pallet jack must not be used as
the only support.
WARNING
Risk of injury during assembly work!
Incorrect positioning of gantries during assembly restricts the head clearance and can
lead to injuries.
Take care that the gantry is positioned over the board conveyor area.
WARNING
Height adjustment of machine!
Two people will be needed to adjust the height of the machine:
– One person completes the required assembly work
– The other person watches the stability of the raised machine during assembly.
WARNING
DANGER OF CRUSHING!
Risk of crushing feet when transporting the machine.
Wear specially reinforced shoes.
4 Setting up and commissioning User manual SIPLACE E
4.3 Setting up the machine From software version SC 708.0 12/2014 Edition
182
4.3.2 Lifting and transporting the machine with the pallet jack
4

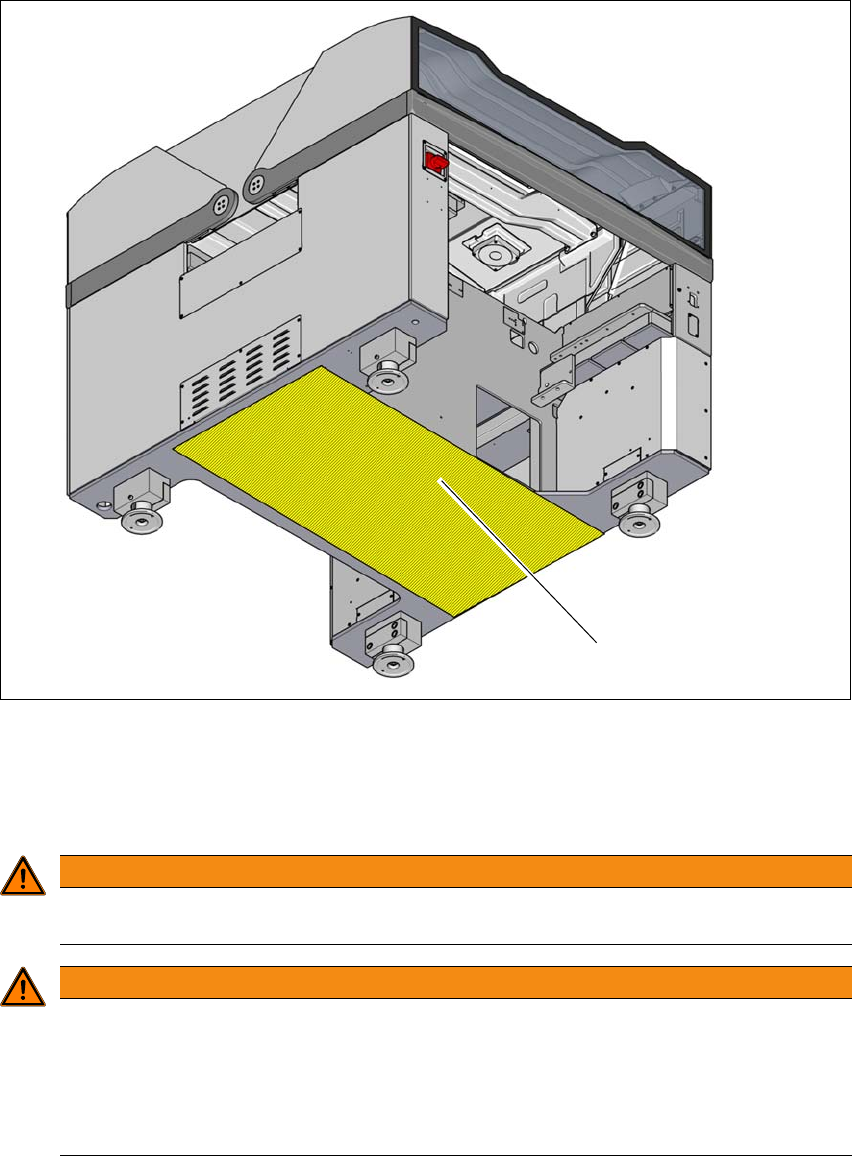

Fig. 4.3 - 1 Contact surface - forks at right angles to the direction of PCB transport
(1) Contact surface for pallet jack forks
Position the pallet jack at right angles to the PCB conveyor and open the forks until the con-
tact surfaces of the machine lie evenly on the forks.
WARNING
Please note the following points
before
you raise the machine in order to avoid irreversible
damage to the machine:
WARNING
Aligning the forks!
Please note the following points
before
you raise the machine in order to avoid irreversible
damage to the machine:
– The forks must be aligned parallel to the PCB conveyor.
– The forks must be aligned to the center of the machine.
(1)
