5 Working with the machine User manual SIPLACE E 5.6 The user interface From software version SC 708.0 12/2014 Ed ition 210 Test bench in - spection Only available from operator level Machine service . For a detailed des…
User manual SIPLACE E 5 Working with the machine
From software version SC 708.0 12/2014 Edition 5.6 The user interface
209
Locations The setup can be individually opened for each of the 2 locations.
Allows you to check and configure feeder modules, components
and nozzles.
Allows you to teach component shapes and component pocket
shapes.
Shows the component level indicator.
Filling level Check state of feeders filling level.
Board Shows the boards and placement positions list.
Allows you to check and configure boards and components.
Allows you to teach fiducials.
Messages Shows notifications about current and previous events. The notifi-
cations vary according to their type. Individual tables can be viewed
for track errors, conveyor errors, machine errors, general errors and
linked error messages (see section 5.7
, page 214).
Statistics Shows the statistics for performance, quality and rejected material.
Shows the machine and board performance.
Starts the OIS (Operator Information System), for more information
refer to the OIS documentation.
SIPLACE Vision
live images
Shows the individual live camera images.
Allows you to view and save the Vision dump.
Maintenance Contains information about the maintenance status of the machine.
Refer to the maintenance guide for further information.
Settings Contains all the settings and options.
Allows you to set the operator level and the user interface language.
Allows you to display and edit the machine settings, user settings,
machine options and software options, see section 5.6.5
, page 212.
Manual opera-
tions
Contains information and functions for tests and diagnoses.
Allows you to set the action performed when you press the start
button.
Allows you to test the complete reference run and head functions.
Single functions and continuous runs. Each gantry is addressed
individually.
Service Service tools.
Only available from operator level Machine service.
Allows you to set up and calibrate the SIPLACE placement ma-
chines, download embedded software versions, calibrate and con-
figure the entire machine.
Icon View Description
5 Working with the machine User manual SIPLACE E
5.6 The user interface From software version SC 708.0 12/2014 Edition
210
Test bench in-
spection
Only available from operator level Machine service.
For a detailed description of the test bench inspection functions
refer to the Online Help.
Icon View Description
User manual SIPLACE E 5 Working with the machine
From software version SC 708.0 12/2014 Edition 5.6 The user interface
211
5.6.4 Operating the station software in the views
Most views which can be accessed via the toolbar (see section 5.6.3, page 208) have an addi-
tional vertical toolbar with subviews and functions, on the right-hand side of the user interface.
5
Example: View: "Job editor
Click on "Job editor" in the toolbar .
The following view will open:
5

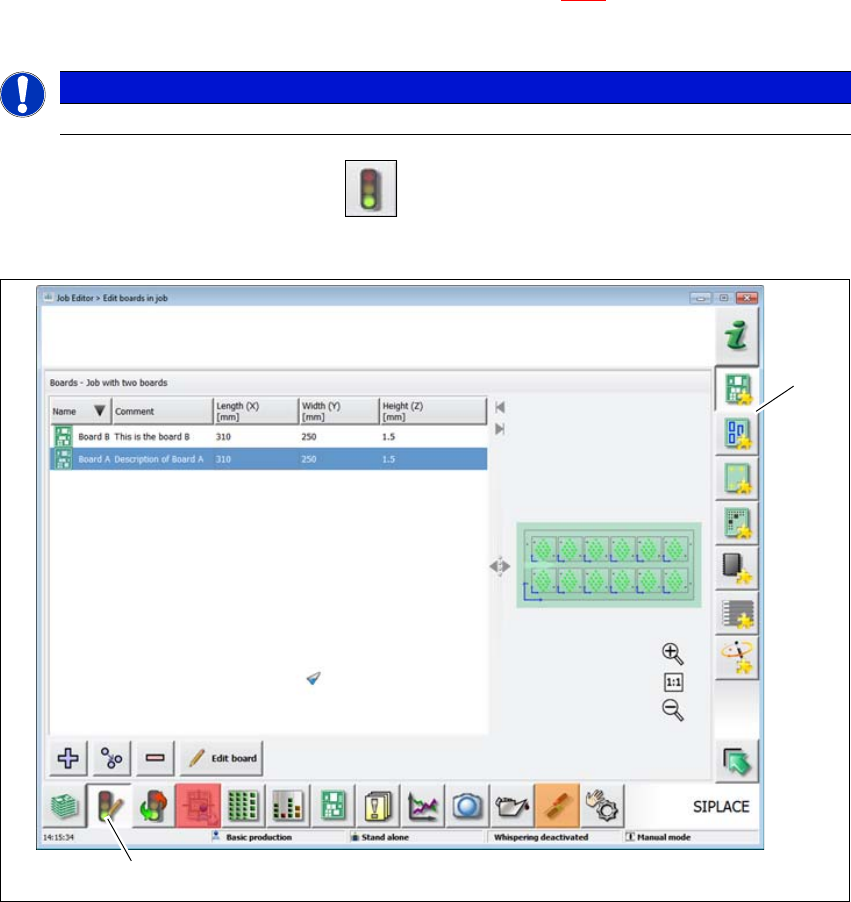

Fig. 5.6 - 3 User interface in the "Job editor" view (example)
Legend
(1) Toolbar ("Job editor" button)
(2) Vertical toolbar in "Job editor" view
PLEASE NOTE
For a detailed description of the individual functions refer to the Online Help.
(1)
(2)
