User manual SIPLACE E 5 Working with the machine From software version SC 708.0 12/2014 Edition 5.16 Docking the changeover tab le in or out 249 5.16.4 Docking the changeover table 5 Fig. 5.16 - 3 Docking the changeover …
5 Working with the machine User manual SIPLACE E
5.16 Docking the changeover table in or out From software version SC 708.0 12/2014 Edition
248
5.16.3 Safety instructions for moving the changeover table
5
Always hold the handles with both hands when you want to move the changeover table.
Remember that a changeover table with the full complement of feeder modules can tip over
sideways or forward on gradients of 20° or more.
Make sure that the surface on which the trolley is moved has a significantly smaller gradient.
The floor underneath the machine may not exceed an incline of 0.63%. This corresponds to
an incline of 5 mm over a distance of 800 mm (e.g. the width of a changeover table).
Be careful not to collide with obstacles. The trolley could tip forward if it is traveling fast
enough.
WARNING
Avoid accidents!
To prevent accidents, ALWAYS follow the rules listed below when you move the change-
over table.
User manual SIPLACE E 5 Working with the machine
From software version SC 708.0 12/2014 Edition 5.16 Docking the changeover table in or out
249
5.16.4 Docking the changeover table
5

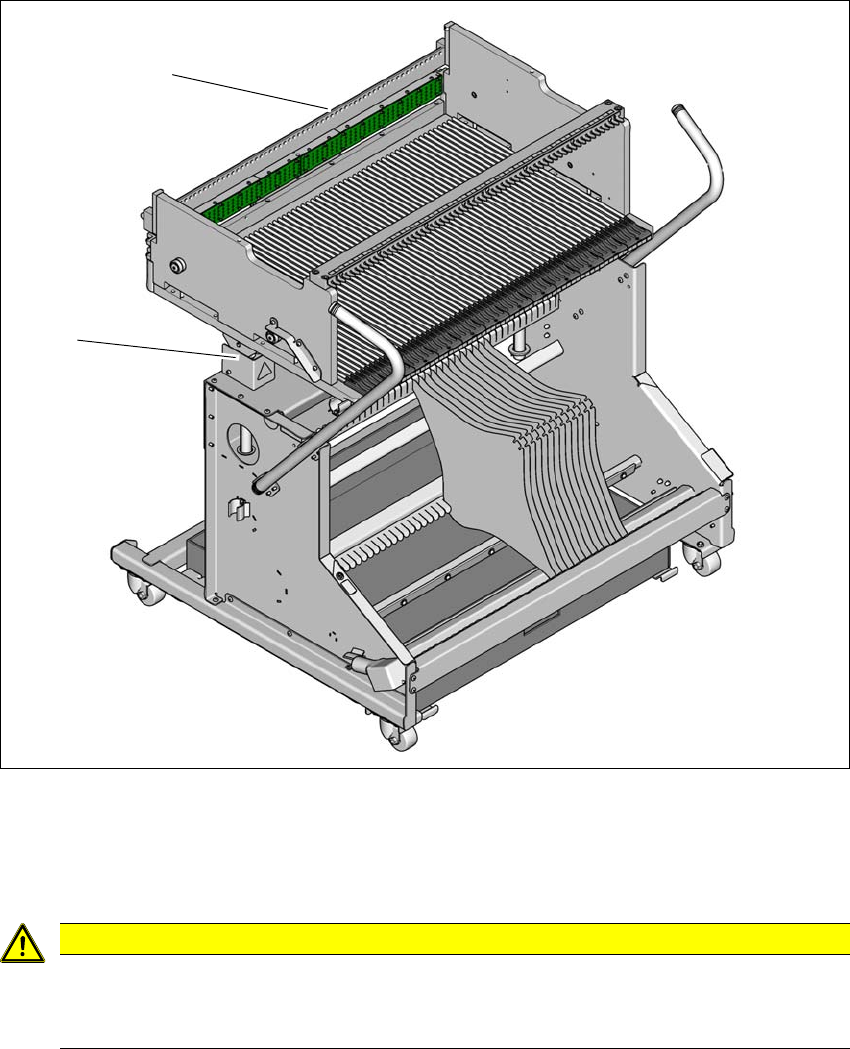

Fig. 5.16 - 3 Docking the changeover table
(1) Centering bar
(2) Height setting to the machine height
5
CAUTION
Pushing in changeover table!
When pushing the changeover table into the machine, make sure that you do not hit
obstacles with the centering bar.
(2)
(1)
5 Working with the machine User manual SIPLACE E
5.16 Docking the changeover table in or out From software version SC 708.0 12/2014 Edition
250
I 5
5
Connect the power cable and the D-sub connection cable of the changeover table to the ma-
chine
Carefully push the changeover table into machine as far as the stop.
5
5
5
5
Go to the main view of the station software and select the Feeder module... icon and
then the
Locations icon.
Click on the icon to lock the respective location and wait until the trolley has docked
completely. For further information, refer to the station software Online Help.
PLEASE NOTE
Cut tapes flush
If you do not cut tapes off flush at the front end of the SIPLACE SmartFeeder E, the emp-
tied tapes will not enter the empty tape duct.
Cut the tapes off flush, before you dock the changeover table into place.
CAUTION
Position of placement head!
Check that the placement head is outside the range of the changeover table.
CAUTION
Risk of head crash!
When dismantling one of the two brackets (left and right side) for the table height check,
there is a risk of a head crash due to changeover tables being too high.
Do not dismantle the brackets.
PLEASE NOTE
Close the protective covers since the changeover table can only be docked in if the
covers are closed.
