User manual SIPLACE E 6 Station extensions From software version SC 708.0 12/2014 Edition 6.5 Stationary Ca meras 295 6.5.2 Stationary compon ent camera, type 33 GigE Item no. 03112784-xx Stationary componen t camera, ty…
6 Station extensions User manual SIPLACE E
6.5 Stationary Cameras From software version SC 708.0 12/2014 Edition
294
6.5.1.1 Technical data
6
Component dimensions 0.2 mm x 0.2 mm up to 16 mm x 16 mm for single component
measurement
Component range 0402 to SO, PLCC, QFP, sockets, plugs, BGA, special components,
bare dies, flip-chips, shields
Min. lead pitch 0.25 mm
Min. lead width 0.1 mm
Min. ball pitch 0.14 mm
Min. ball diameter 0.08 mm
Field of vision 19.4 mm x 19.4 mm
Illumination type Front-illumination (6 levels, programmable as required)
User manual SIPLACE E 6 Station extensions
From software version SC 708.0 12/2014 Edition 6.5 Stationary Cameras
295
6.5.2 Stationary component camera, type 33 GigE
Item no. 03112784-xx Stationary component camera, type 33 GigE
6.5.2.1 Structure
6

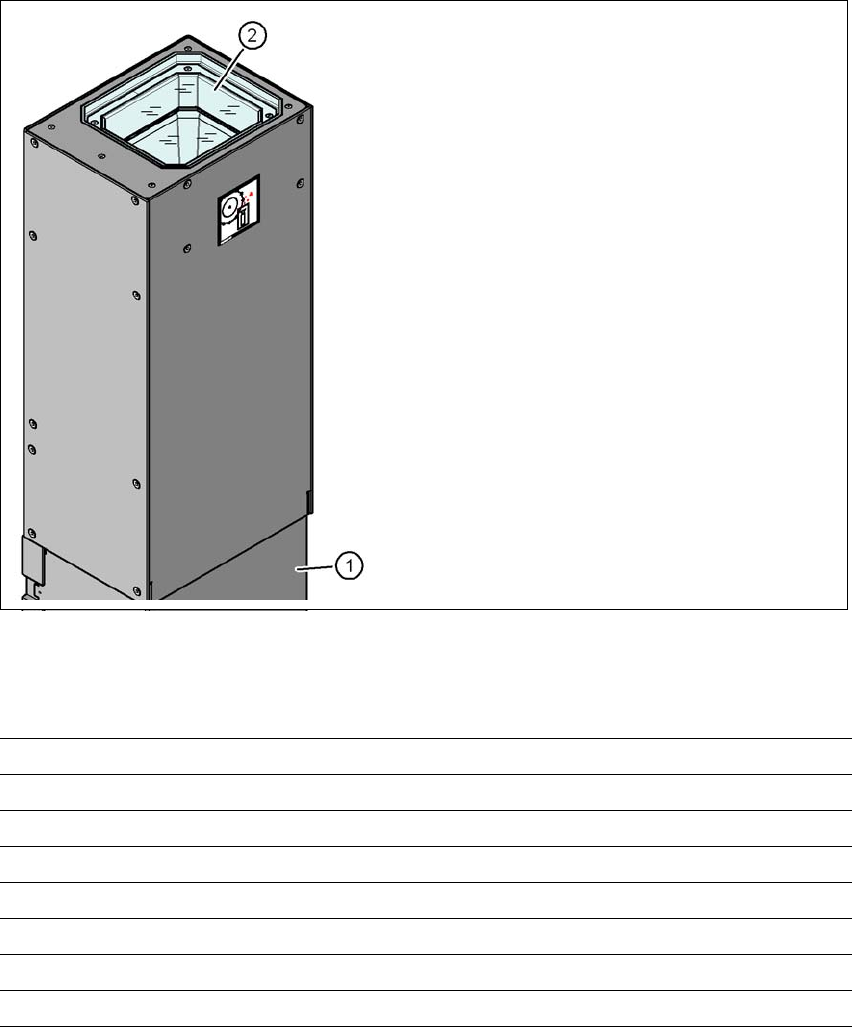

Fig. 6.5 - 2 Structure for the stationary P&P component camera, type 33 GigE
6.5.2.2 Technical data
6
(1) Camera housing with integral camera
and camera amplifier
(2) Glass plate - illumination and lens levels
below
Component dimensions 1.0 mm x 0.5 mm to 55 mm x 45 mm
Component range 0402, MELF, SO, PLCC, QFP, electrolytic capacitors, BGA
Min. lead pitch 0.3 mm
Min. lead width 0.15 mm
Min. ball pitch 0.35 mm
Min. ball diameter 0.2 mm
Field of vision 65 mm x 50 mm
Illumination type Front-illumination (6 levels, programmable as required)
6 Station extensions User manual SIPLACE E
6.6 Long board option (LBO) From software version SC 708.0 12/2014 Edition
296
6.6 Long board option (LBO)
The "Long board" option allows you to place boards which exceed the specified board length.
Item no. 03108019-xx LBO E, 1030 Right
Item no. 03110518-xx LBO E, 1200 Right
Item no. 03110458-xx LBO E, 1030Left
Item no. 03110459-xx LBO E, 1200 Left
