User manual SIPLACE E 6 Station extensions
From software version SC 708.0 12/2014 Edition 6.5 Stationary Cameras
295
6.5.2 Stationary component camera, type 33 GigE
Item no. 03112784-xx Stationary component camera, type 33 GigE
6.5.2.1 Structure
6
Fig. 6.5 - 2 Structure for the stationary P&P component camera, type 33 GigE
6.5.2.2 Technical data
6
(1) Camera housing with integral camera
and camera amplifier
(2) Glass plate - illumination and lens levels
below
Component dimensions 1.0 mm x 0.5 mm to 55 mm x 45 mm
Component range 0402, MELF, SO, PLCC, QFP, electrolytic capacitors, BGA
Min. lead pitch 0.3 mm
Min. lead width 0.15 mm
Min. ball pitch 0.35 mm
Min. ball diameter 0.2 mm
Field of vision 65 mm x 50 mm
Illumination type Front-illumination (6 levels, programmable as required)
6 Station extensions User manual SIPLACE E
6.6 Long board option (LBO) From software version SC 708.0 12/2014 Edition
296
6.6 Long board option (LBO)
The "Long board" option allows you to place boards which exceed the specified board length.
Item no. 03108019-xx LBO E, 1030 Right
Item no. 03110518-xx LBO E, 1200 Right
Item no. 03110458-xx LBO E, 1030Left
Item no. 03110459-xx LBO E, 1200 Left
User manual SIPLACE E 6 Station extensions
From software version SC 708.0 12/2014 Edition 6.7 SIPLACE Preparation Table E
297
6.7 SIPLACE Preparation Table E
Item no. 03112358-xx SIPLACE Preparation Table E
The SIPLACE Preparation Table E can hold a maximum of 60x SIPLACE SmartFeeder 8 mm E-
with component reel (size 7”, 10”, 13”, 15” & 17”). Feeders can be placed from the top or slid along
the extruded guide profiles. Align each feeder by inserting feeder stop pin into the slots of the
guide plate. SIPLACE Preparation Table E allows SIPLACE PowerAdaptor E to be attached and
detached without tools.
6

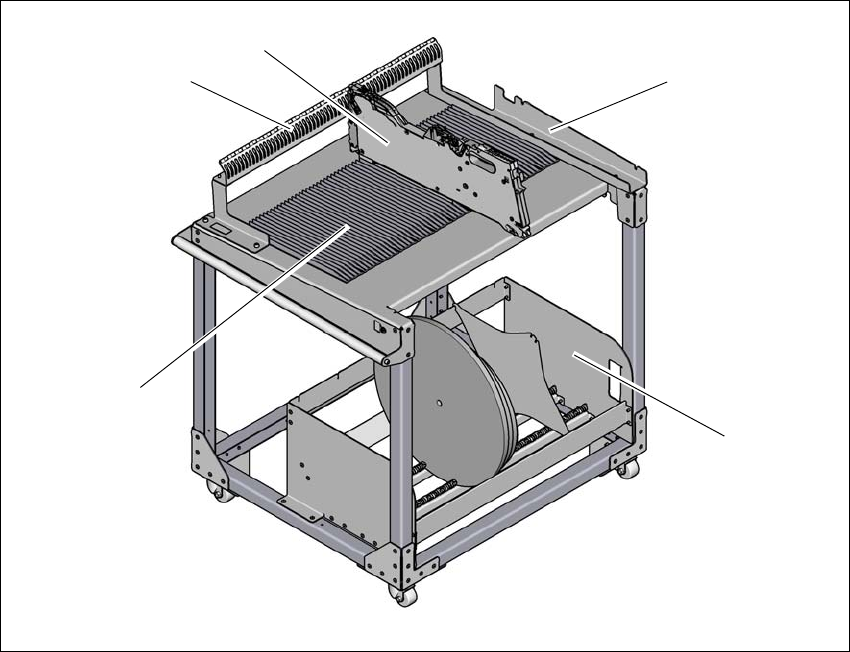

Fig. 6.7 - 1 SIPLACE Preparation Table E
(1) Guide profile
(2) Feeder parking unit
(3) SIPLACE SmartFeeder E
(4) Mounting interface for SIPLACE PowerAdaptor E
(5) Tape reel container
(4)
(3)
(2)
(5)
(1)
