2 Operational safety User manual SIPLACE E 2.2 Warning labels From software version SC 708.0 12/2014 Editio n 50 Fig. 2.2 - 6 Warning labels in the machine - part 2 – W206, on the cover of the MHCU – W206, on the cover o…
User manual SIPLACE E 2 Operational safety
From software version SC 708.0 12/2014 Edition 2.2 Warning labels
49
2.2.2 Warning labels in the machine

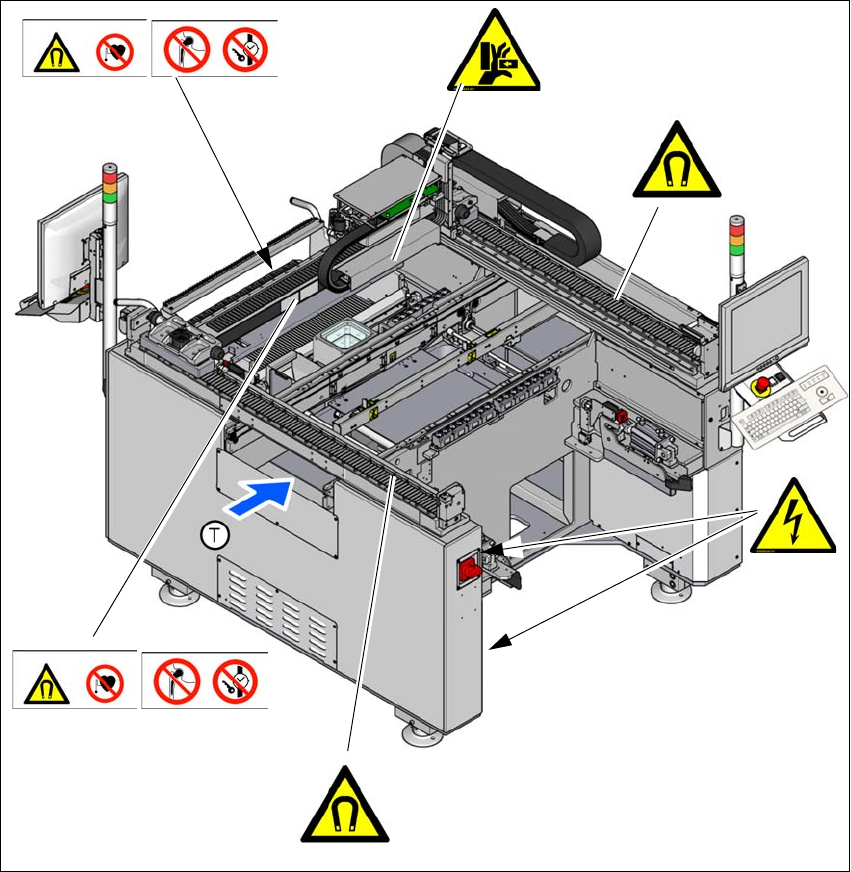

Fig. 2.2 - 5 Warning labels in the machine - part 1
2
– W202 Shared, item no. 03012700-01 (on both sides of the gantry)
– W-Magnetic field, on Y axis
– W204, item no. 03009343-01 on the cover of the trailing IF/VBI
– W206, on the side cover of the main switch
– W206, on the cover of the MGCU
W-Magnetic field
W 202 Shared
W-Magnetic field
W 202 Shared
W206
W204
2 Operational safety User manual SIPLACE E
2.2 Warning labels From software version SC 708.0 12/2014 Edition
50

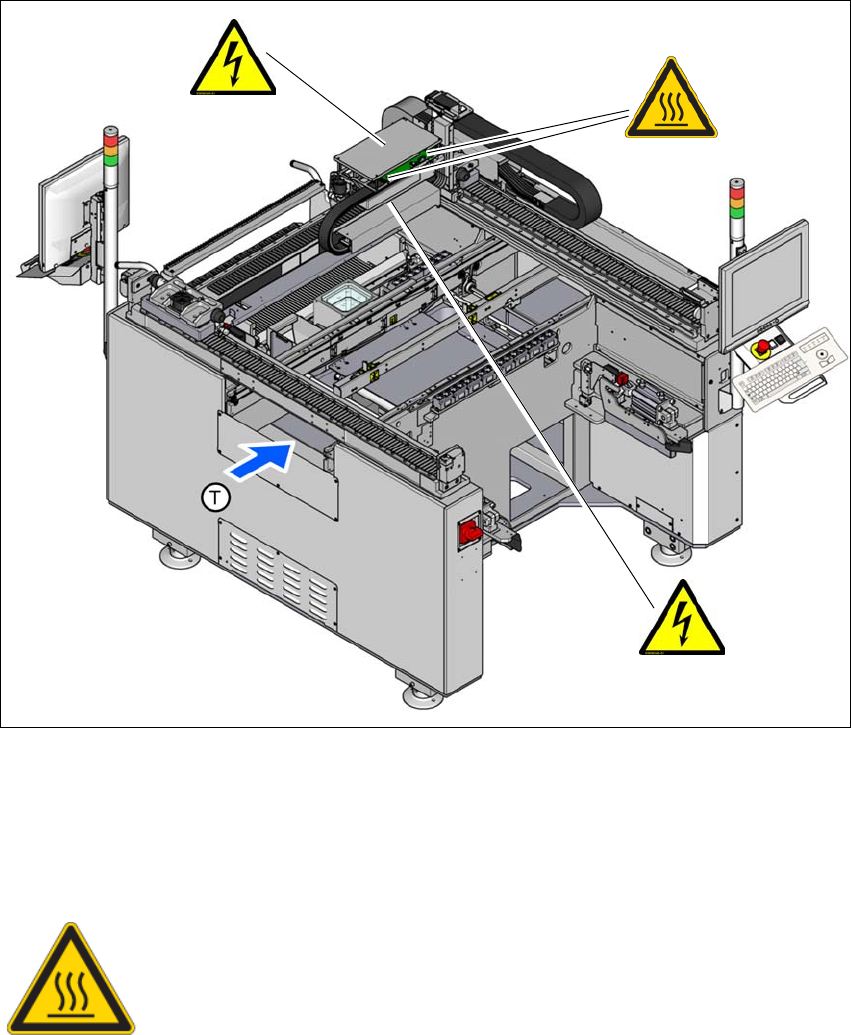

Fig. 2.2 - 6 Warning labels in the machine - part 2
– W206, on the cover of the MHCU
– W206, on the cover of the trailing IF/VBI
– W-Hot surface, on the MHCU (under the cover)
Hot surface label in fig. 2.2 - 6, page 50, item no. 03031926-01 (2 labels on the MHCU)
W206
W206
(W-Hot surface
2
RISK OF BURNS FROM HOT SURFACE!
The housing of the Head Control Unit (MHCU) can become hot during con-
tinuous operation.
Take care when touching the Head Control Unit (MHCU).
User manual SIPLACE E 2 Operational safety
From software version SC 708.0 12/2014 Edition 2.2 Warning labels
51
2
W206 in fig. 2.2 - 5, page 49 and fig. 2.2 - 6, page 50, item no. 03009345-01.

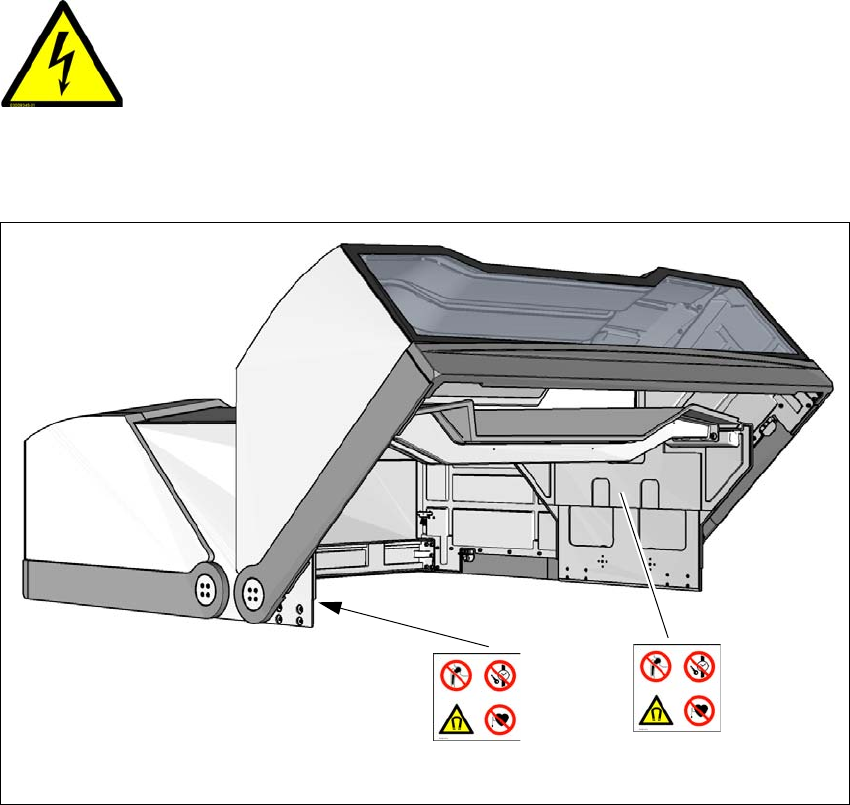

Fig. 2.2 - 7 Warning label W202 inside the protective covers
2
– W202, item no. 03009341-01
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
W 202
W 202
