User manual SIPLACE E 2 Operational safety From software version SC 708.0 12/2014 Edition 2.2 Warning label s 57 2.2.4.1 Warning label W205 on the used tape chute 2 Fig. 2.2 - 10 Warning label W205 on the used tape chute…

100%1 / 308
2 Operational safety User manual SIPLACE E
2.2 Warning labels From software version SC 708.0 12/2014 Edition
56
2.2.4 Warning label W205 on the tape cutter
2

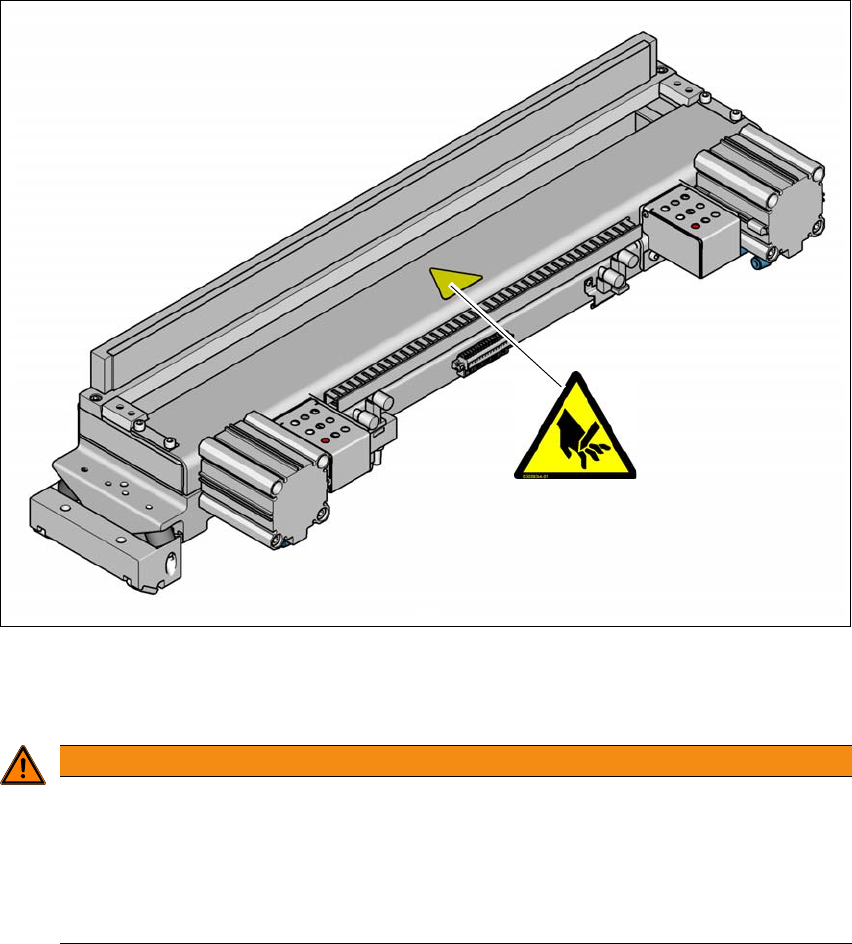

Fig. 2.2 - 9 Warning label W205 on the top of the tape cutter
– W205, item no. 03009344-01
2
WARNING
Risk of cuts!
Risk of cutting when working on the cutter!
Disconnect the machine from the power and compressed air supply.
Wait until the operating pressure has dropped to 0 MPa.
Wear robust protective gloves when working on the tape cutter.
W205
User manual SIPLACE E 2 Operational safety
From software version SC 708.0 12/2014 Edition 2.2 Warning labels
57
2.2.4.1 Warning label W205 on the used tape chute
2

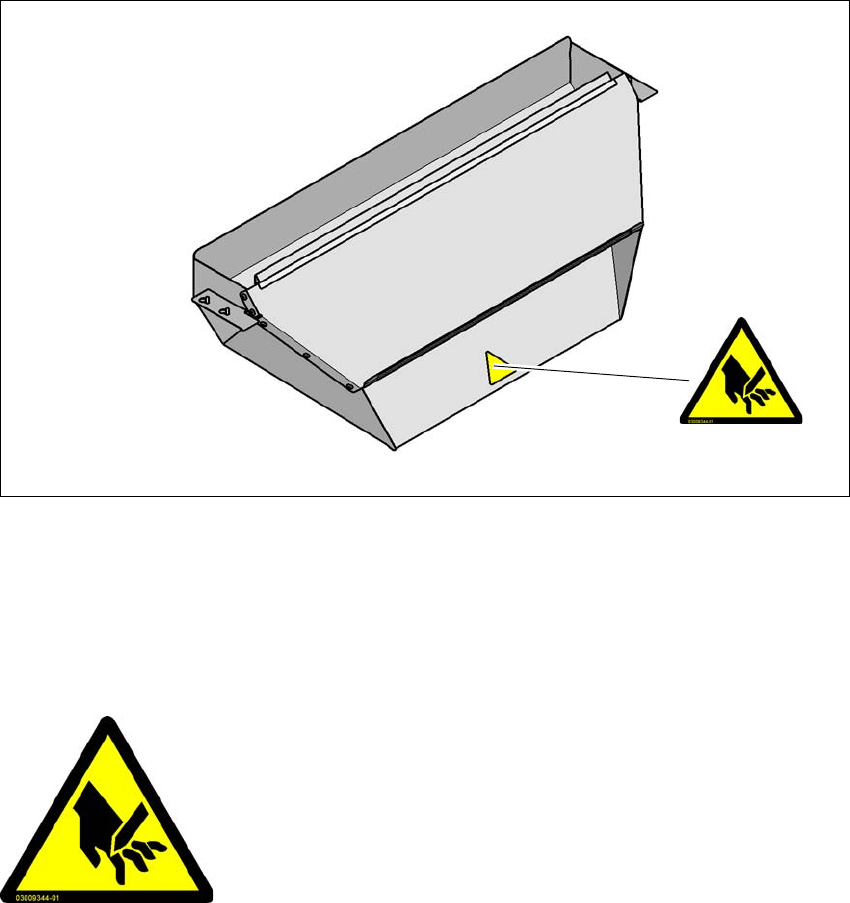

Fig. 2.2 - 10 Warning label W205 on the used tape chute
– W205, item no. 03009344-01
2.2.4.2 Warning label 205
Warning labels on tape cutter and used tape chute
2
W205 in fig. 2.2 - 9, page 56 and 2.2 - 10, page 57, item no. 03009344-01
Quantity per machine:
SIPLACE E double sided: 4 2
SIPLACE E single sided: 2 2
W205
2 Operational safety User manual SIPLACE E
2.2 Warning labels From software version SC 708.0 12/2014 Edition
58
2.2.5 Warning label on the vacuum pump

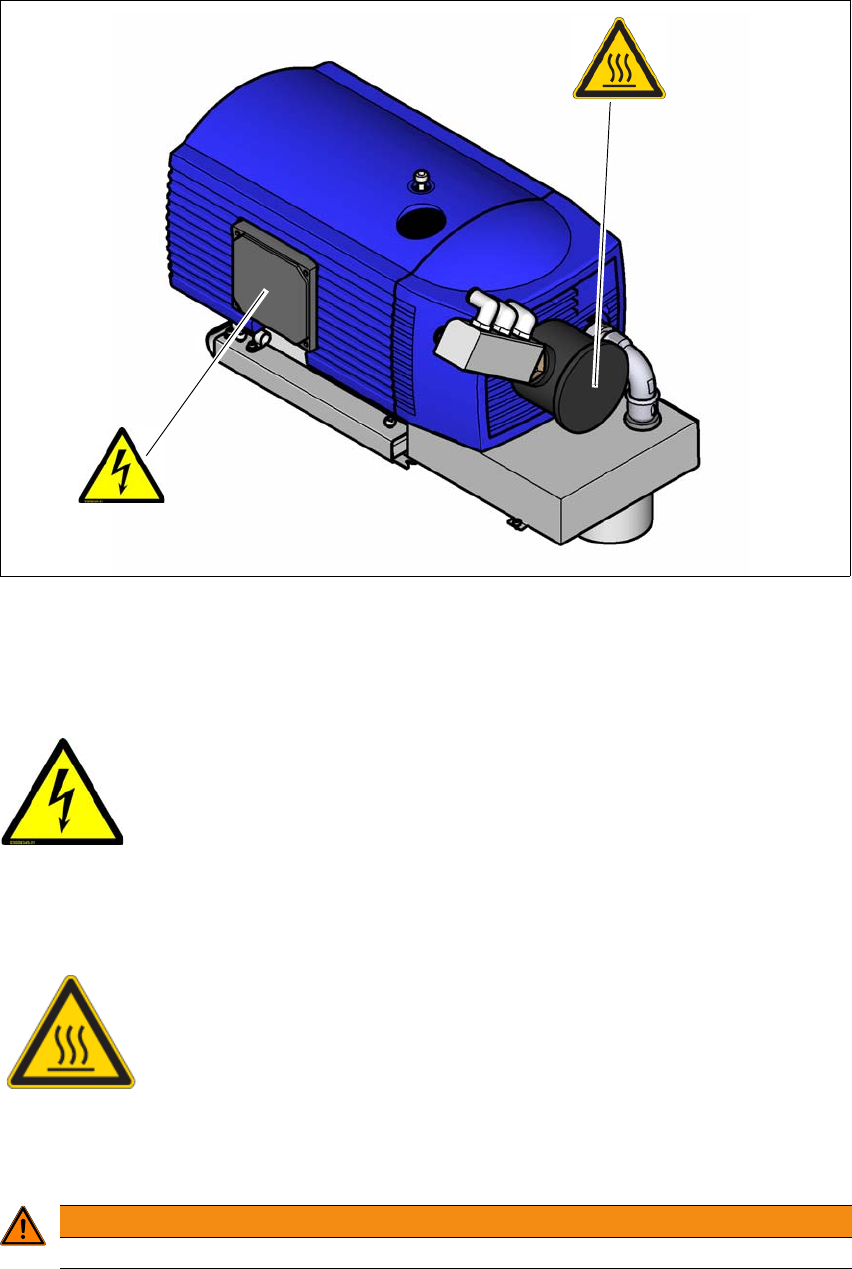

Fig. 2.2 - 11 Warning labels on the vacuum pump
– W206 on the vacuum pump
– W-Hot surface
2
W206 in fig. 2.2 - 11, page 58, item no. 03009345-01 (1 label on the vacuum pump).
Hot surface label in fig. 2.2 - 11, page 58, item no. 03031926-01 (1 label on the vacuum pump)
2
WARNING
Please observe the safety instructions in the user manual supplied.
W206
(W-Hot surface
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
