2 Operational safety User manual SIPLACE E 2.2 Warning labels From software version SC 708.0 12/2014 Editio n 66 2.2.9 Warning label on the changeover table 2 Fig. 2.2 - 16 Warning labels on the changeover table In fig. …
User manual SIPLACE E 2 Operational safety
From software version SC 708.0 12/2014 Edition 2.2 Warning labels
65
2.2.8.1 Warning label "Sensitive conveyor sides"
2
Item no. 03110412-01 (1 on each conveyor side and placement area)
Sensitive conveyor sides!
The conveyor sides are highly sensitive and may not be moved
unless the brakes have been released.
Moving the sides without releasing the brakes can cause irrepa-
rable damage to the conveyor sides.
2 Operational safety User manual SIPLACE E
2.2 Warning labels From software version SC 708.0 12/2014 Edition
66
2.2.9 Warning label on the changeover table
2

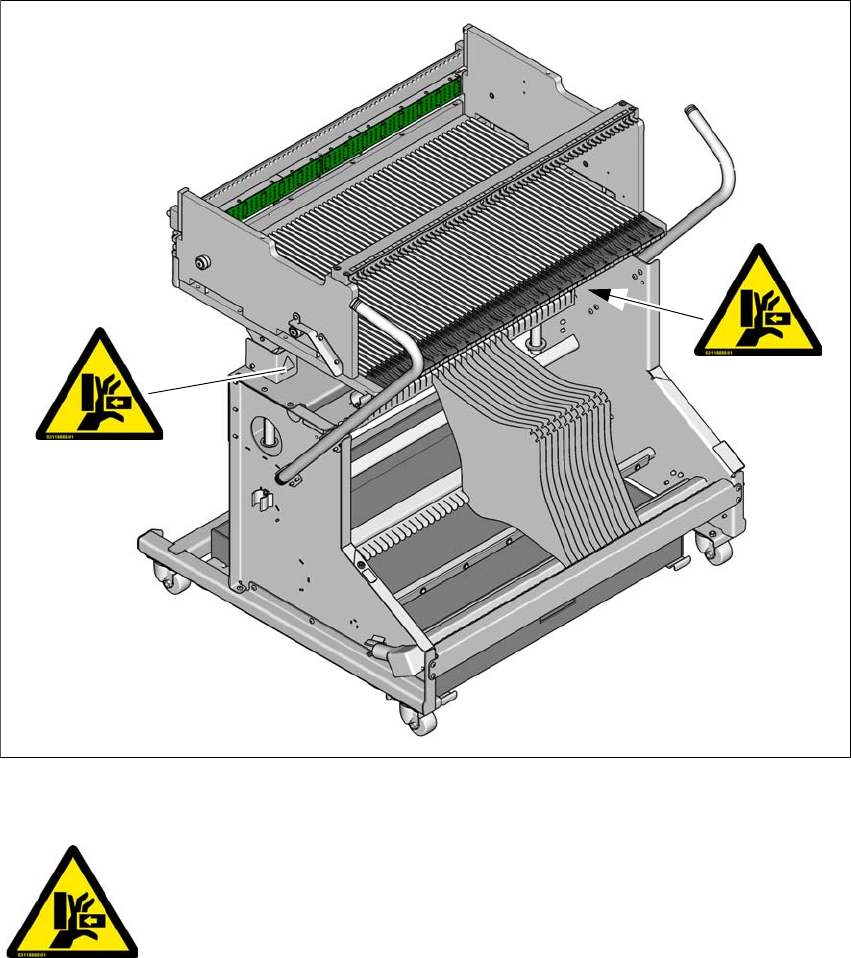

Fig. 2.2 - 16 Warning labels on the changeover table
In fig. 2.2 - 16, page 66, hand crushing label, item no. 03118888-01 (1 label on the left side and 1
label on the right side)
Hand crushing
Hand crushing
2
RISK OF HAND CRUSHING!
Lifting and lowering the changeover table can crushing the hands.
Take care when lifting and lowering the changeover table.
Observe the description in Section 4.4 on page 191.
User manual SIPLACE E 2 Operational safety
From software version SC 708.0 12/2014 Edition 2.3 Laser classification
67
2.3 Laser classification
2.3.1 Laser class 1
2.3.1.1 Classification of the whole machine
2
2
2.3.1.2 Classification of the camera systems
2
2.3.2 Laser class 1M
Do not look directly at this with optical instruments!
2
2
All installed camera systems and the whole machine when ready
for operation are assigned to laser class 1.
The laser classes are determined according to DIN EN 60825-1.
PLEASE NOTE
Modules in laser classes 1 and 1M are not identified.
2
The following camera systems are assigned to laser class 1:
– Stationary cameras
– Stationary component camera, type 33 GigE
– Stationary component camera, type 25 GigE
– Stationary component camera, type 36 GigE
2
The following camera systems are assigned to laser class 1M:
– Component camera C&P, type 23 GigE on SIPLACE CP14
– Component camera C&P, type 30 GigE on SIPLACE CP12/6
