Teilekatalog (Parts Catalog) Bebilderte Teileliste (Illustrated Parts) Bildtafel (Figure) 6 Ausgabe (Edition) 11-03 Stamm Nr. Master Code Bezeichnung / Designation Stck. Qty. Pos.-Nr. Pos. No. Seiten-Nr. Page No. A rtike…
Teilekatalog (Parts Catalog) Bebilderte Teileliste (Illustrated Parts)
Bildtafel (Figure) 6
A
usgabe (Edition) 11-03
Stamm Nr.
Master Code
Bezeichnung / Designation
Stck.
Qty.
Pos.-Nr.
Pos. No.
Seiten-Nr.
Page No.
A
rtikel-Nr.
Item No.
FS
FS
Revolverkopf SP12 / DLM1 / Collect & place head SP12 / DLM1
Order
206
00350975-01
1
6-10
VERLAENG. SCHLAUCH VAKUUM HALTEKEIS_S23
EXTENSION VACUUM SLEEVE CIRCLE S23
207
00351031-01
1
6-10
VERLAENG. SCHLAUCH VAKUUM BESTUECKKEIS_S23
EXTENSION VACUUM SLEEVE PLACEMENT CIRCLE S23
208
00351032-01
1
6-10
VERLAENG.SCHLAUCH ABFRAGE BESTUECKKEIS_S23
EXTENSION TUBE DETECTOR PLACEMENT CIRCLE S23
209
00345010-01
4
6-10
SCHWINGMETALLPUFFER M4 15*30 55 SHORE
RUBBER METAL BUFFER M4 15*30 55 SHORE
210
00095105-01
4
6-10
DIN 6912-M4 X 6-8.8 ZYLINDERSCHRAUBE
DIN 6912-M4 X 6-8.8 HEXAGON SOCKET HEAD CAP SCREW
211
00351063-01
1
6-2
EKABEL: BE-BELEUCHTUNG MODULAR
CABLE: COMPONENTS ILLUMINATION MODULAR
212
00354432-02
1
6-1
EPORTAL-KOPFVERTEILER KOMPLETT F5-HM
GANTRY-HEAD DISTRIBUTOR COMPL. F5HM ONLY
213
00354430-01
1
6-19
PORTAL-KOPFVERTEILER F5-HM
PORTAL HEAD BOARD F5-HM
214
00344485-02
1
6-19
PROZESSORBOARD 80C515C
PROCESSOR BOARD 80C515C
215
00344488-02
1
6-19
ESM-BOARD MODULAR
SM-BOARD MODULAR
216
00344489-02
1
6-19
VISION-BOARD MODULAR
VISION BOARD MODULAR
217
00322256S01
1
6-20
EPORTALKABEL OPTIK
CABLE FOR PORTAL
218
00322257-01
1
6-20
EPORTALKABEL KOPFACHSEN
CABLE FOR PORTAL HEAD AXIS
219
00322258-01
1
6-20
EPORTALKABEL X-SPUR / CAN-BUS
CABLE FOR PORTAL CAN BUS
220
00322259-01
1
6-20
EPORTALKABEL DP1-ACHSE
CABLE FOR PORTAL DP1-AXIS
221
00322261-01
1
6-20
EPORTALKABEL STERN/Z-ACHSEN
CABLE FOR PORTAL STAR/Z-AXIS
222
00322265-01
1
6-20
EPORTALKABEL IC2-KOPF
GANTRY CABLE IC2-HEAD
223
00321469-05
1
6-20
BE-BELEUCHTUNG
COMPONENTS ILLUMINATION
224
00347857S02
1
6-20
EVAKUUMPLATINE II
VACUUM MEASURMENT BOARD II
225
00321523S04
1
6-20
EIC-KOPF PLATINE F. CAN-BUS
IC-HEAD PCB FOR CAN-BUS
226
00349845-01
1
6-20
INKREMENTALGEBER X-ACHSE DIG.
INCREMENTAL SHAFT ENCODER X-AXIS DIG.
227
00300609-04
1
6-20
EBERO: ENDLAGE X-ACHSE
PROXIMITY SWITCH: END POSITION X-AXIS
629 -
Teilekatalog (Parts Catalog) Bebilderte Teileliste (Illustrated Parts)
Bildtafel (Figure) 6
Ausgabe (Edition) 11-03
Stamm Nr.
Master Code
Bezeichnung / Designation
Stck.
Qty.
Pos.-Nr.
Pos. No.
Seiten-Nr.
Page No.
A
rtikel-Nr.
Item No.
FS
FS
Revolverkopf SP12 / DLM1 / Collect & place head SP12 / DLM1
Order
228
00321217-01
1
6-20
ZUSTELLEINHEIT
FEED UNIT
229
00321218-03
1
6-20
MOTOR/TACHO DP-ACHSE
MOTOR / TACHO DP-AXIS
230
00344065S03
1
6-20
RLP-OPTIKMODUL KST
PCB OPTICAL MODULE KST
00116113S01
1RSATZ KUGELRAST PINOLEN 12 -SEG. REV.KOPF
SET BALL SLEEVES FOR 12 NOZZLE REV.-HEAD
00116114S01
1RSATZ KUGELRAST PINOLEN 6-SEG. REV.KOPF
SET BALL SLEEVES FOR 6-NOZZLE REV. HEAD
630 -
Teilekatalog (Parts Catalog) Bebilderte Teileliste (Illustrated Parts)
Bildtafel (Figure) 7
A
usgabe (Edition) 11-03

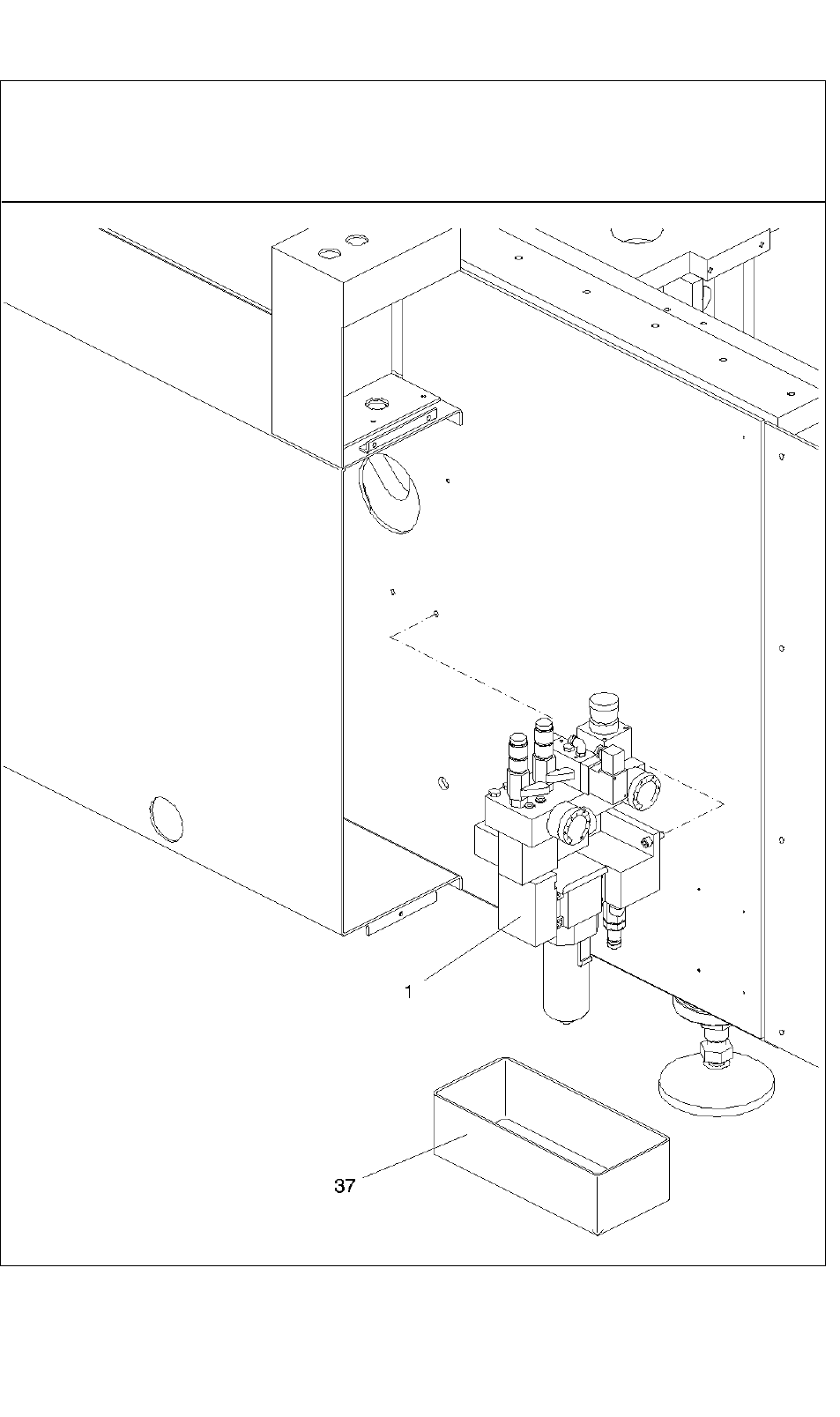

Pneumatik-Wartungseinheit
Pneumatic system maintenance unit
71 -
