Teilekatalog (Parts Catalog) Bebilderte Teileliste (Illustrated Parts) Bildtafel (Figure) 5 Ausgabe (Edition) 11-03 Revolverkopf SP6 / DLM1 Collect & place head SP6/DLM1 52 0 -

100%1 / 596

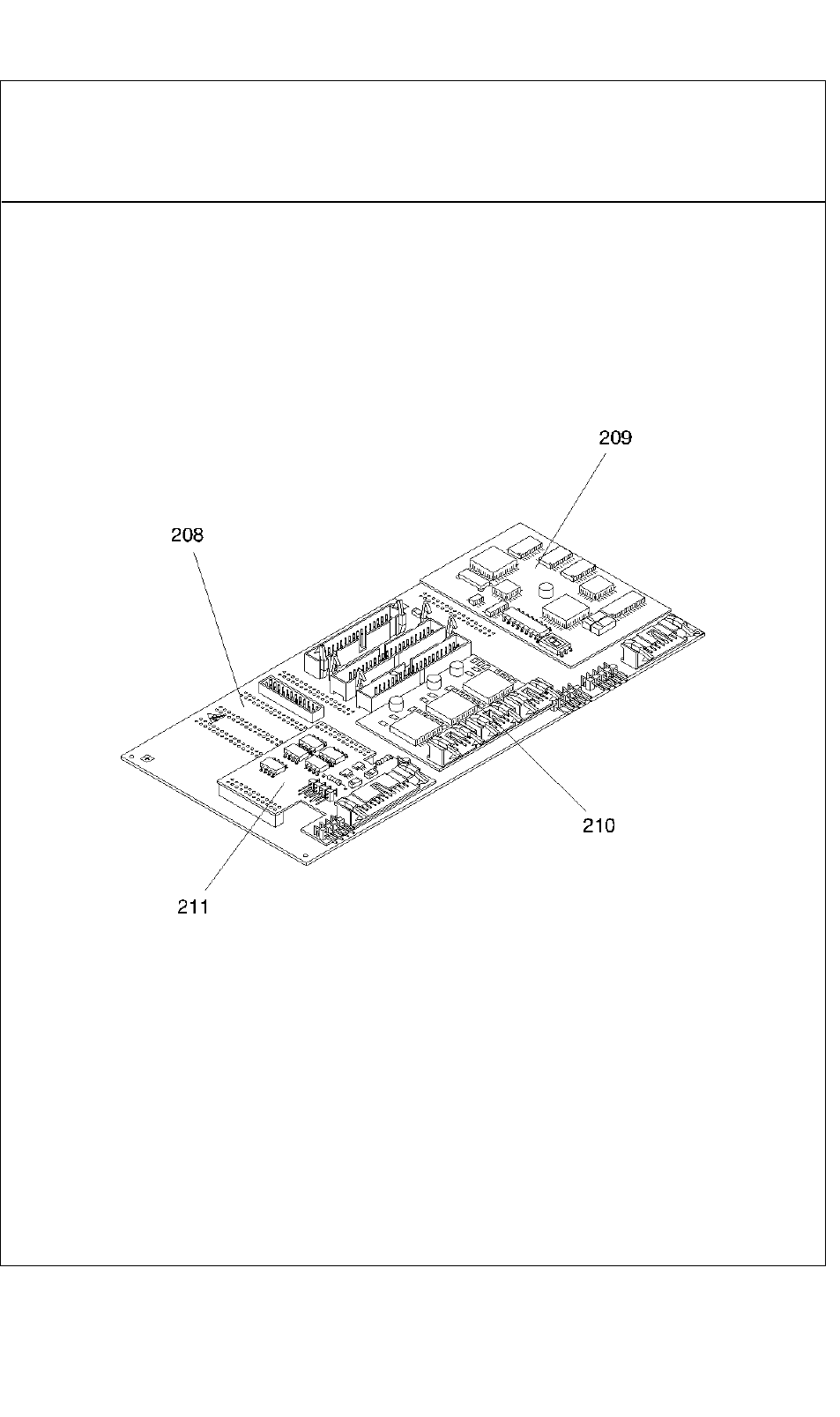

Teilekatalog (Parts Catalog) Bebilderte Teileliste (Illustrated Parts)
Bildtafel (Figure) 5
A
usgabe (Edition) 11-03
Revolverkopf SP6 / DLM1
Collect & place head SP6/DLM1
519 -

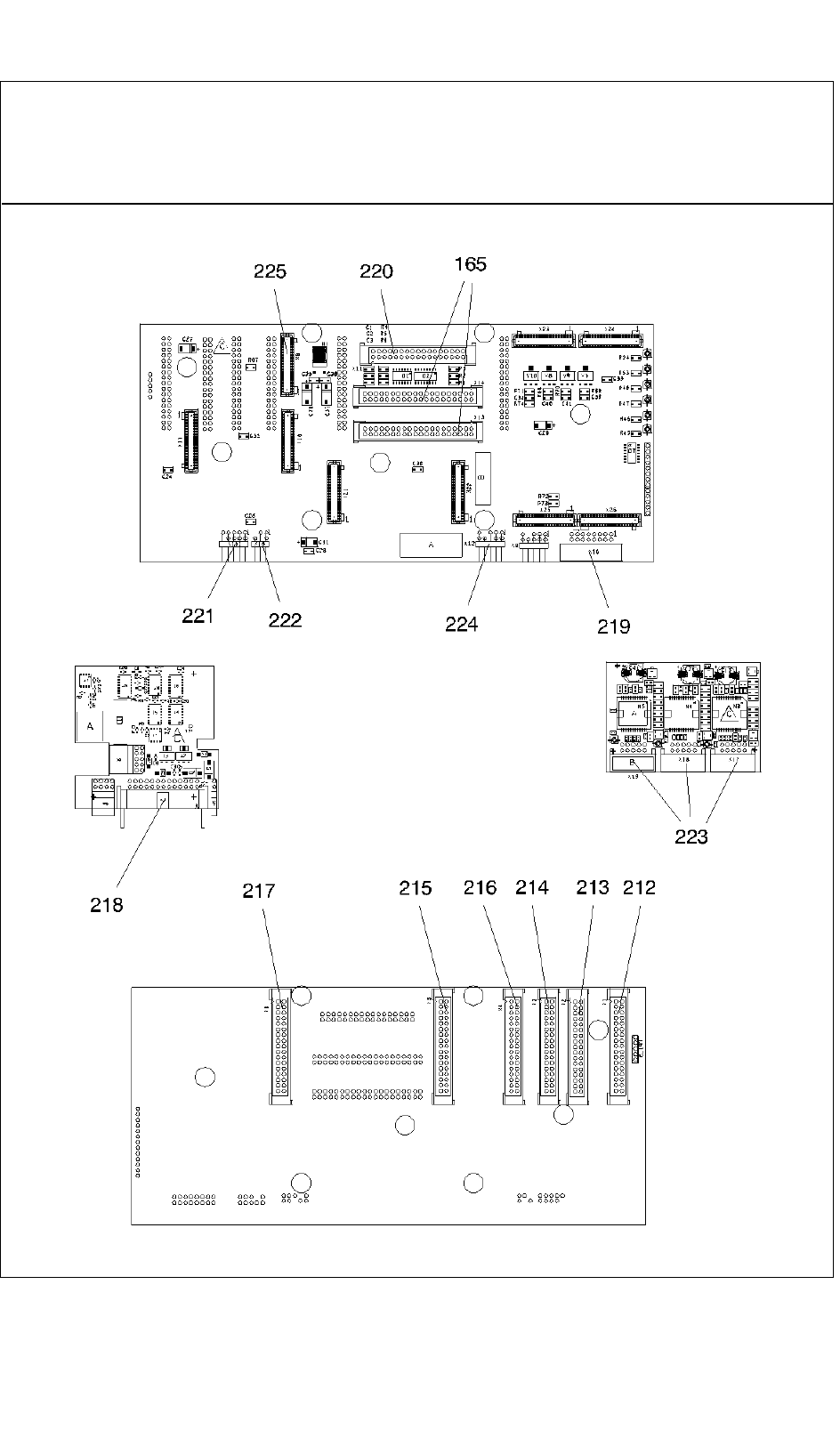

Teilekatalog (Parts Catalog) Bebilderte Teileliste (Illustrated Parts)
Bildtafel (Figure) 5
Ausgabe (Edition) 11-03
Revolverkopf SP6 / DLM1
Collect & place head SP6/DLM1
520 -
Teilekatalog (Parts Catalog) Bebilderte Teileliste (Illustrated Parts)
Bildtafel (Figure) 5
A
usgabe (Edition) 11-03
Stamm Nr.
Master Code
Bezeichnung / Designation
Stck.
Qty.
Pos.-Nr.
Pos. No.
Seiten-Nr.
Page No.
A
rtikel-Nr.
Item No.
FS
FS
Revolverkopf SP6 / DLM1 / Collect & place head SP6/DLM1
Order
1
00354246-01
1
5-1
REVOLVERKOPF / DLM1 / 6A
REVOLVER HEAD / DLM1 /6A
2
00345515S02
1
5-2
RREVOLVERKOPF SP6/DLM1
TURRET HEAD SP6/DLM1 (WITHOUT CAMERA)
3
00335981-01
1
5-3
VORDERTEIL KOMPL. /DLM1
FRONT PANEL COMPLETE /DLM1
4
00335982-01
1
5-5
GEHAEUSE /DLM1
HOUSING /DLM1
5
00319327-06
1
5-5
LAUFRING
BEARING RACE
6
00328906-01
3
5-5
DIN912-M3 X 5-A2 ZYLINDERSCHRAUBE
DIN912-M3 X 5-A2 HEXAGON SOCKET HEAD CAP SCREW
7
00320965S02
1
5-5
EANSCHLAGSTUECK
STOP
8
00845001-01
1
5-5
DIN912-M2 X 4-A2 ZYLINDERSCHRAUBE
DIN912-M2 X 4-A2 HEXAGON SOCKET HEAD CAP SCREW
9
00329280-01
2
5-5
ROHR 2X0,2
TUBE 2X0.2
10
00320045-01
2
5-5
DIN 916 - M 1.6 X 2.5-A2-70 GEWINDESTIFT
DIN 916 - M 1.6 X 2.5-A2-70 SET SCREW
11
00337640-01
2
5-7
UMLENKZAHNRAD /DLM1
DEFLECTION TOOTHED WHEEL /DLM1
12
00334937-01
2
5-7
ZAHNRAD /DLM1
TOOTHED WHEEL /DLM1
13
00319348-01
2
5-7
DISTANZRING 2
DISTANCE RING 2
14
00619845-01
2
5-7
DIN 6325 - 3M5 X 16-ST ZYLINDERSTIFT
DIN 6325 - 3M5 X 16-ST PARALLEL PIN
15
00317349-01
4
5-7
MINIATURKUGELLAGER 3*8*3 RV 308X
MINIATURE BALL BEARING
16
00319332-02
2
5-7
DISTANZRING 1
DISTANCE RING 1
17
00341011S01
1
5-7
EZ-ACHSENANTRIEB / DLM1
Z-AXIS-DRIVE, DLM1
18
00845012-01
4
5-7
ZYLINDERSCHRAUBE M3*5 DIN912
HEXAGON SOCKET HEAD CAP SCREW
19
00337715-01
1
5-7
MOTORSCHELLE/ DLM1
MOTOR CLIP/ DLM1
20
00329135-01
2
5-7
DIN912-M3 X 14-A2 ZYLINDERSCHRAUBE
DIN912-M3 X 14-A2 HEXAGON SOCKET HEAD CAP SCREW
21
00343111-01
1
5-7
MOTORSCHELLE 2/DLM1
MOTOR CLIP 2/DLM1
22
00304134-01
2
5-7
DIN912-M2,5 X 12-A2 ZYLINDERSCHRAUBE
DIN912-M2,5 X 12-A2 HEXAGON SOCKET HEAD CAP
