(4) Component Recognition Section (5) Main Section of Machine Intermediate Base/Component Receiving Box Fig. 4A14 1.3 Maintenance Spots 01 10-003 1-13 AFO01ETRP Use a suction force (a vacuum cleaner) for cleaning. Do not…

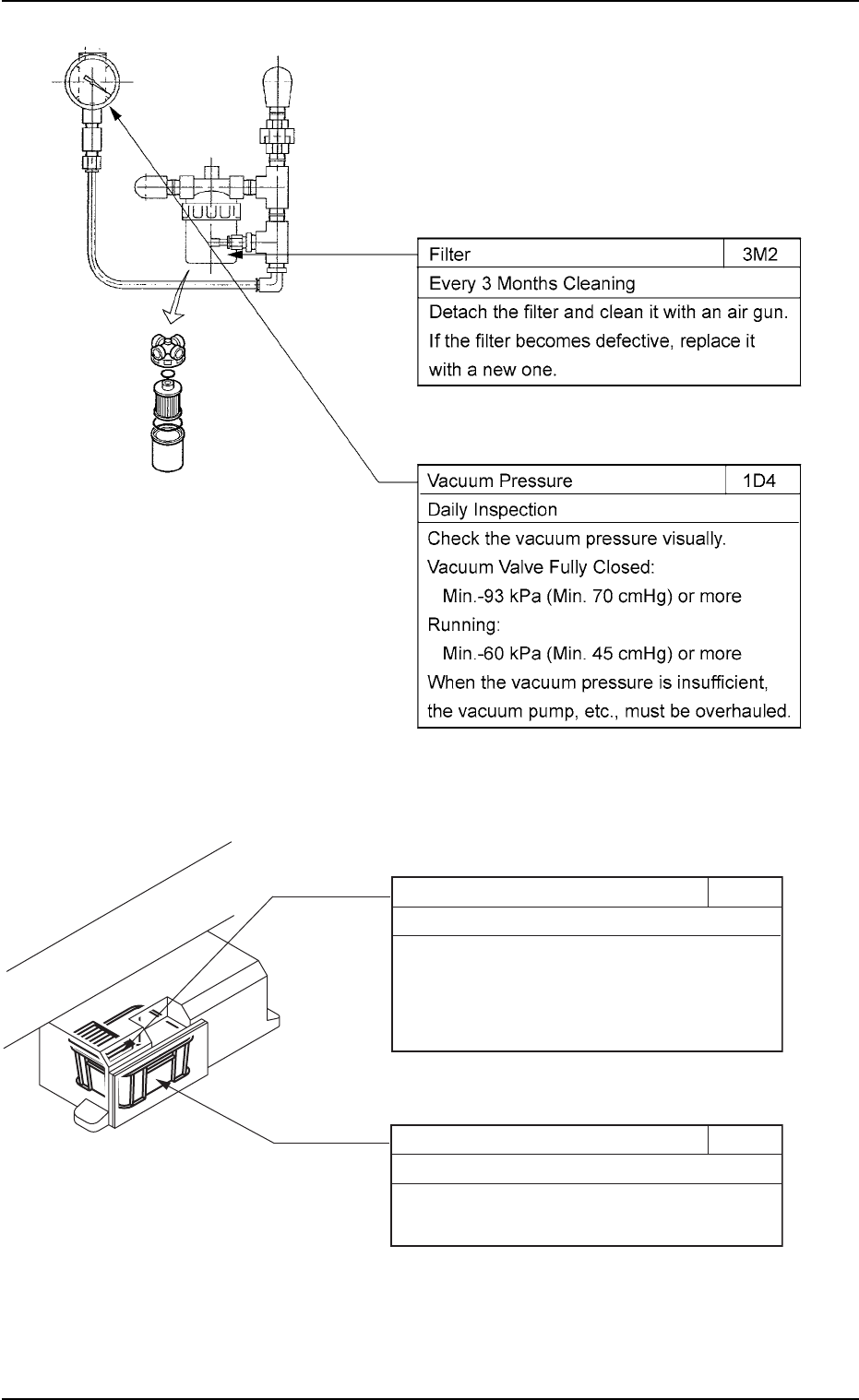

(2) Vacuum System
(3) Dust Collector and Waste Tape Box
Waste Tape Box 1D5
Daily Cleaning
Remove the tape chips.
* Tape chips must be removed every 8 hours.
Filter of Dust Collectorޓޓޓޓޓ1W2
Weekly Cleaning
Detach the air filter and clean it with a vacuum
cleaner or an air gun.
If the filter becomes defective, replace it with a
new one.
0110-003 1-12 AFO01ETRP
1.3 Maintenance Spots
Fig. 4A11
Fig. 4A12
(4) Component Recognition Section
(5) Main Section of Machine Intermediate Base/Component Receiving Box
Fig. 4A14
1.3 Maintenance Spots
0110-003 1-13 AFO01ETRP
Use a suction force (a vacuum cleaner) for cleaning.
Do not blow air with an air gun.
If the component recognition section is dirty or
dusty, incorrect recognition will result.
CAUTION
Fig. 4A13
Fig. 4A14-1 Front View of Machine
Component Receiving Box 1D8
Daily Cleaning
Clean with a vacuum cleaner.
1.3 Maintenance Spots
01 10-003 1-14 AFO01ETRP
