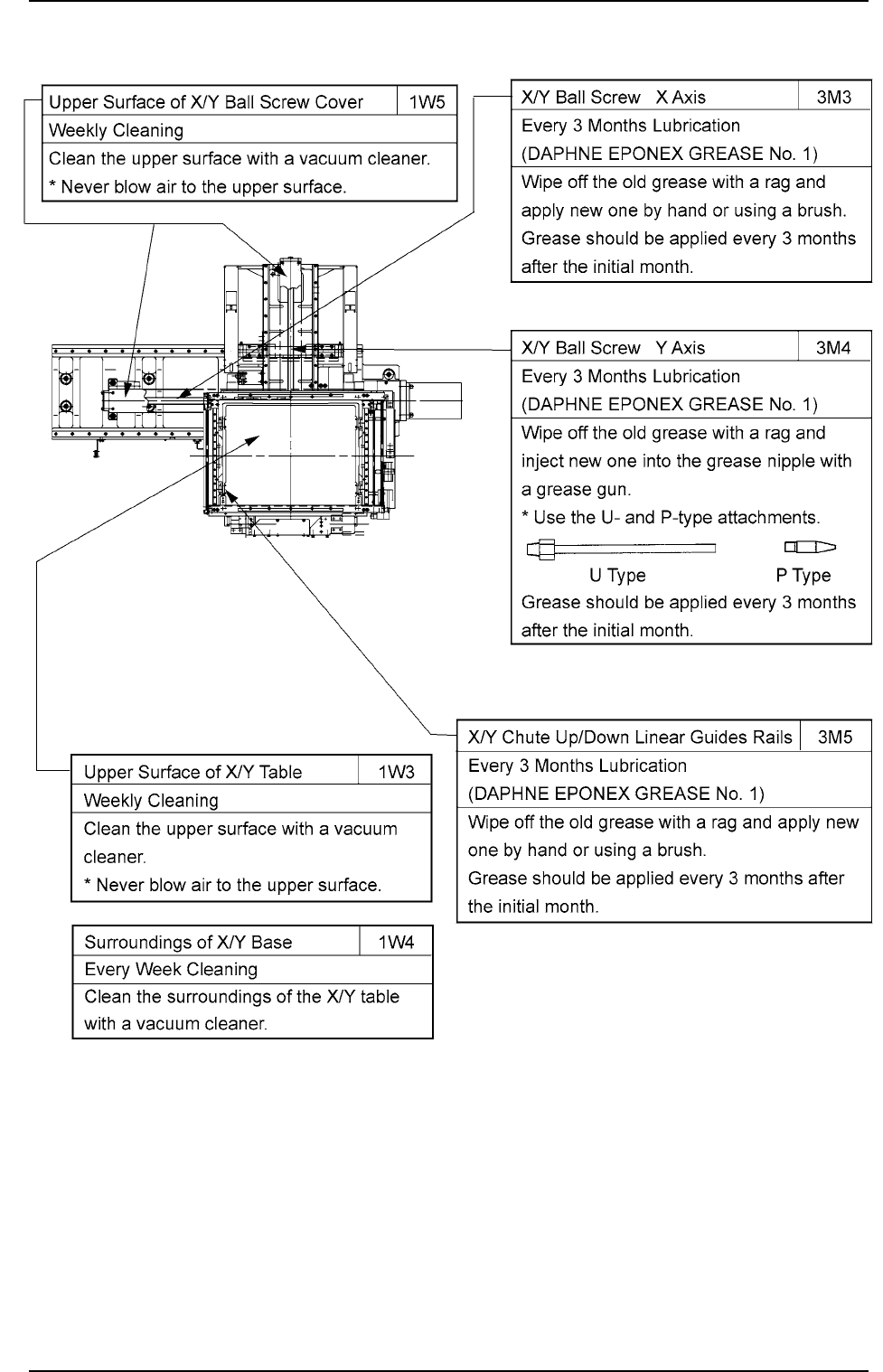

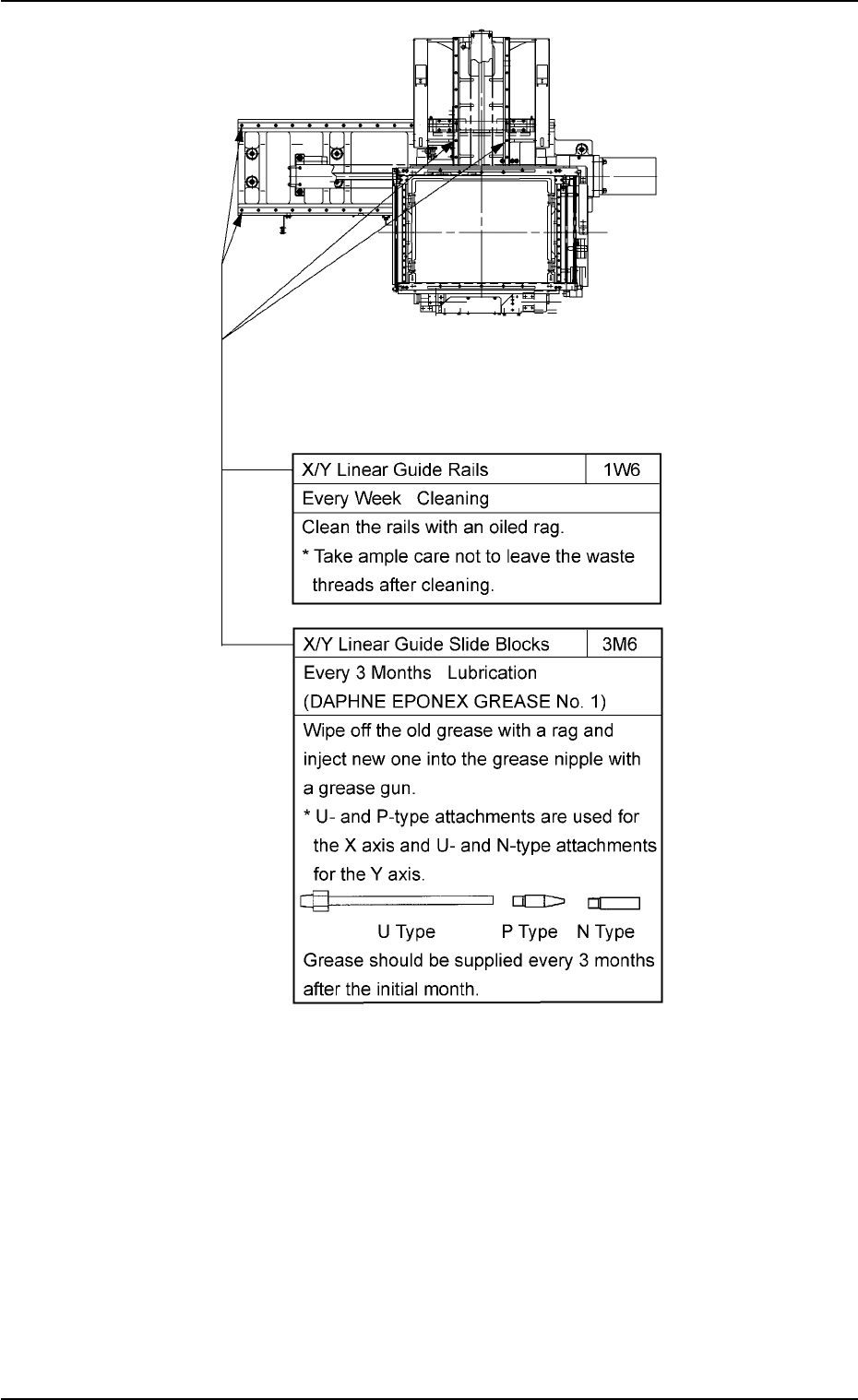

(7) X/Y T able Section 1.3 Maintenance Spots 01 10-003 1-16 AFO01ETRP Fig. 4A16

(6) Cutter Section Component Drop Prevention Cover

1.3 Maintenance Spots

0110-003 1-15 AFO01ETRP

Component Drop Prevention Cover 1D9

Daily Cleaning

When components are scattered over the

cover, follow the steps below to remove them.

1. Set the timing angle of the rotary turret to

approx. 200 degrees and turn off the power

supply before cleaning work.

2. Remove the three screws and pull out the

cover toward the rear side of the machine.

3. Clean the cover with a vacuum cleaner, etc.

4. Attach the cover to the machine such that

the rail section of the cover is correctly

inserted into the guide section of the machine.

5. Attach the three screws.

Pull out.

Guide Section

Screws

Rail Section

Fig. 4A15 Rear View of Machine

(7) X/Y Table Section

1.3 Maintenance Spots

01 10-003 1-16 AFO01ETRP

Fig. 4A16

Fig. 4A17 X/Y Table Section

1.3 Maintenance Spots

0110-003 1-17 AFO01ETRP
