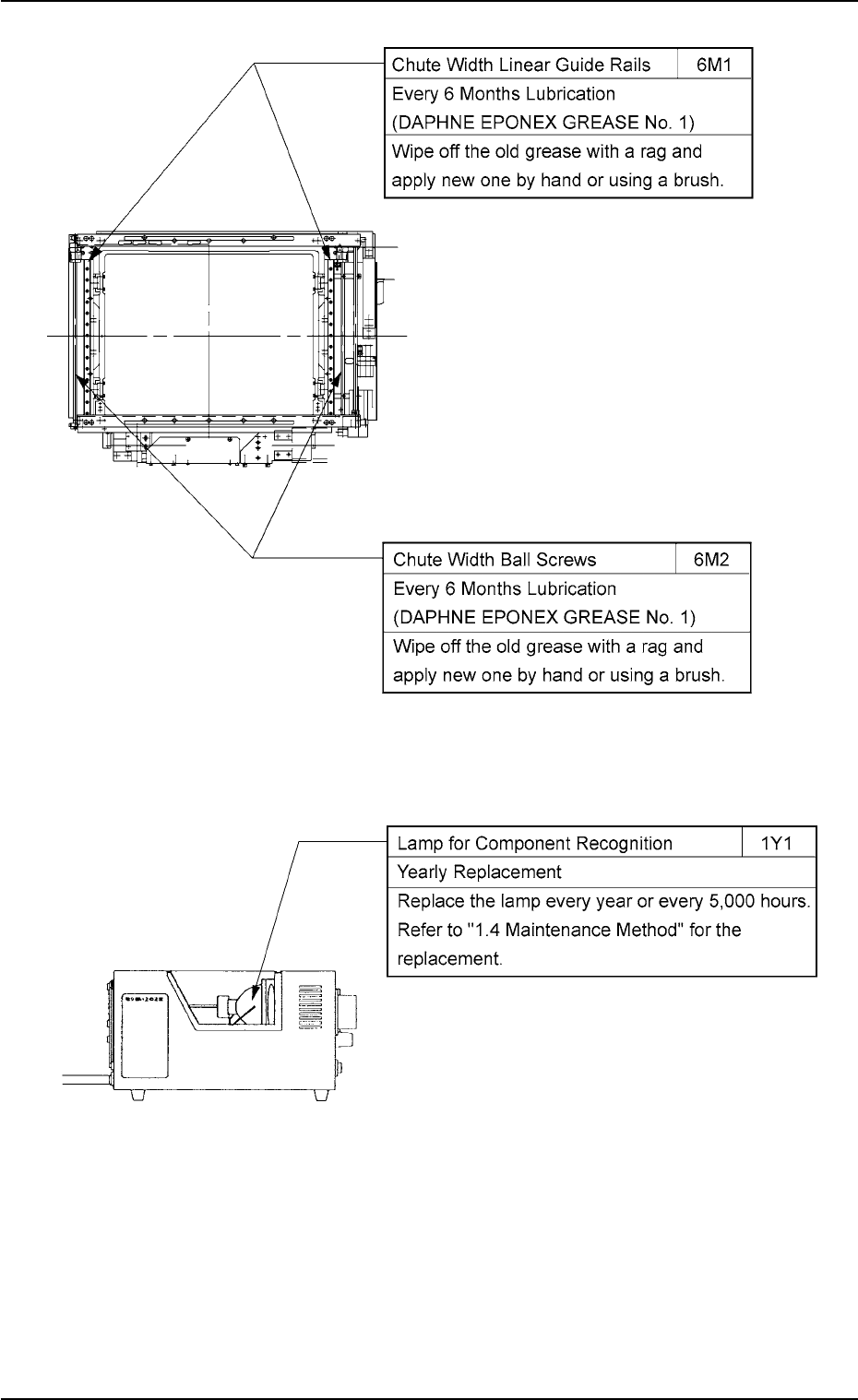

(8) Light Source Device for Component Recognition 1.3 Maintenance Spots 01 10-003 1-18 AFO01ETRP Fig. 4A18 Fig. 4A19

100%1 / 299
Fig. 4A17 X/Y Table Section
1.3 Maintenance Spots
0110-003 1-17 AFO01ETRP
(8) Light Source Device for Component Recognition
1.3 Maintenance Spots
0110-003 1-18 AFO01ETRP
Fig. 4A18
Fig. 4A19
(9) Head Section
1.3 Maintenance Spots
0110-003 1-19 AFO01ETRP
Fig. 4A20
