CX200-4(Maint) - 第31页

Fig. 4A21 Fig. 4A22 01 10-003 1-20 AFO01ETRP 1.3 Maintenance Spots

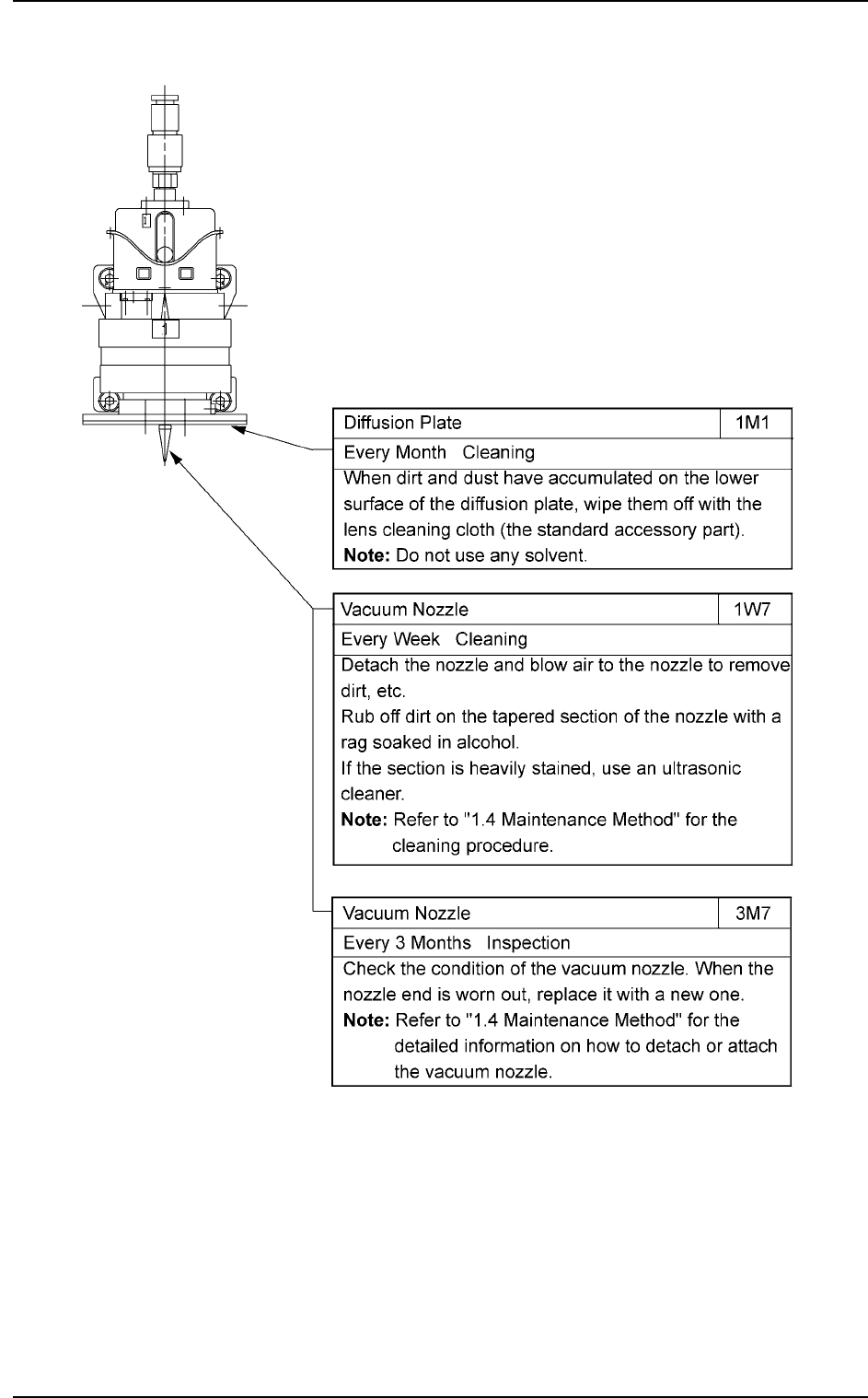

(9) Head Section

1.3 Maintenance Spots

0110-003 1-19 AFO01ETRP

Fig. 4A20

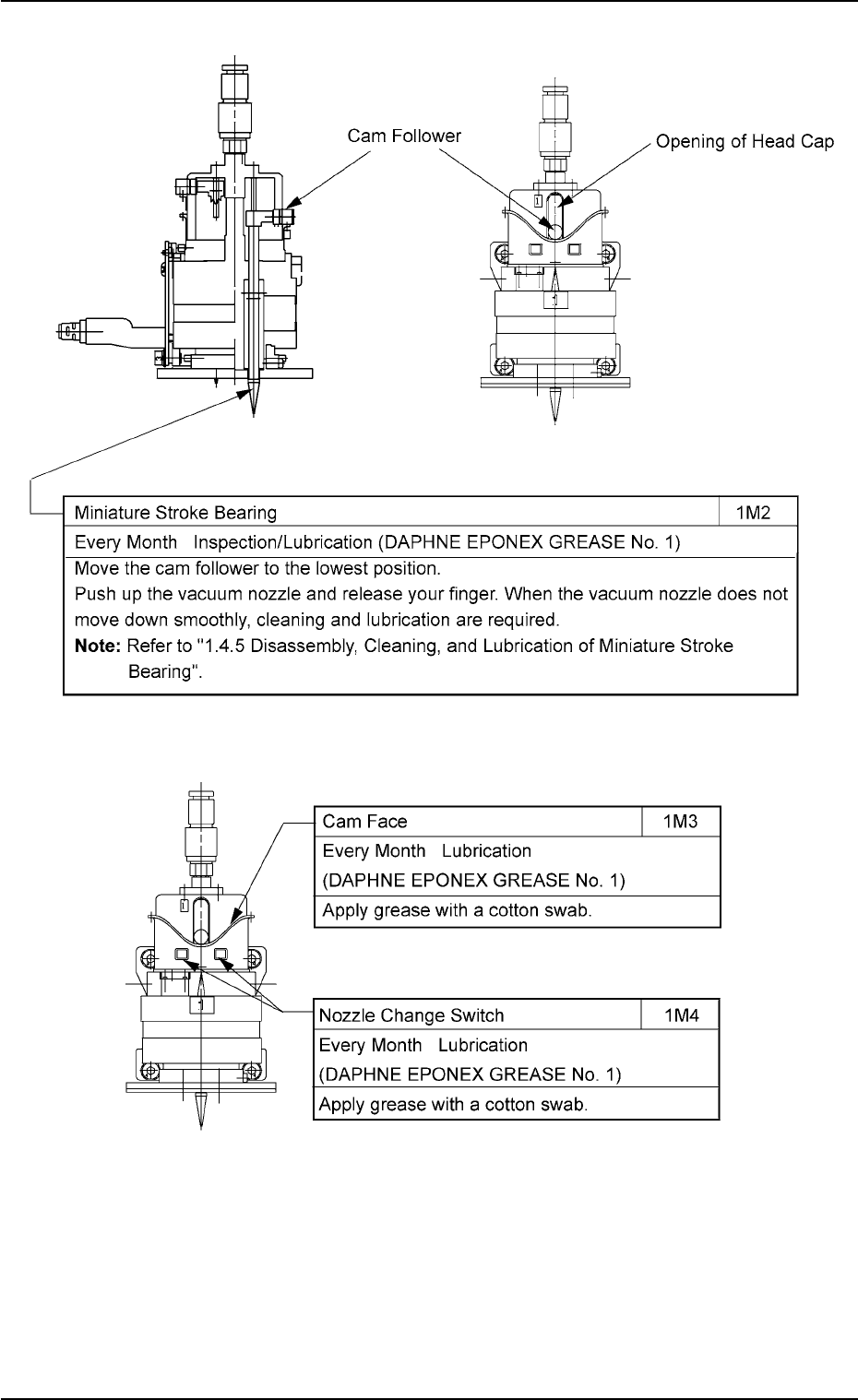

Fig. 4A21

Fig. 4A22

0110-003 1-20

AFO01ETRP

1.3 Maintenance Spots

0110-003 1-21 AFO01ETRP

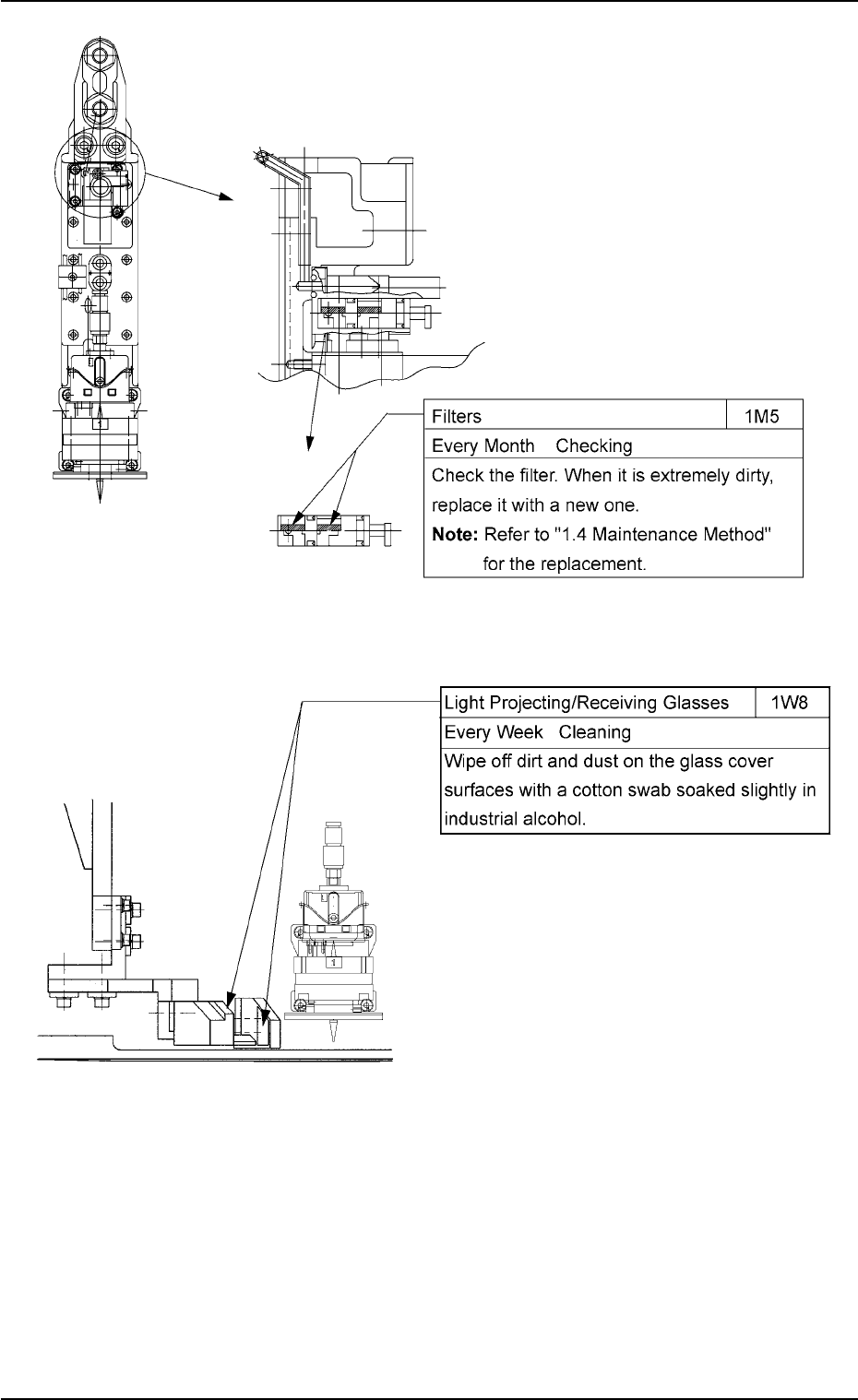

(10) Linear Measure Detection Section

Fig. 4A23

Fig. 4A24
