1.3 Maintenance Spots 01 10-003 1-23 AFO01ETRP Fig. 4A26

100%1 / 299

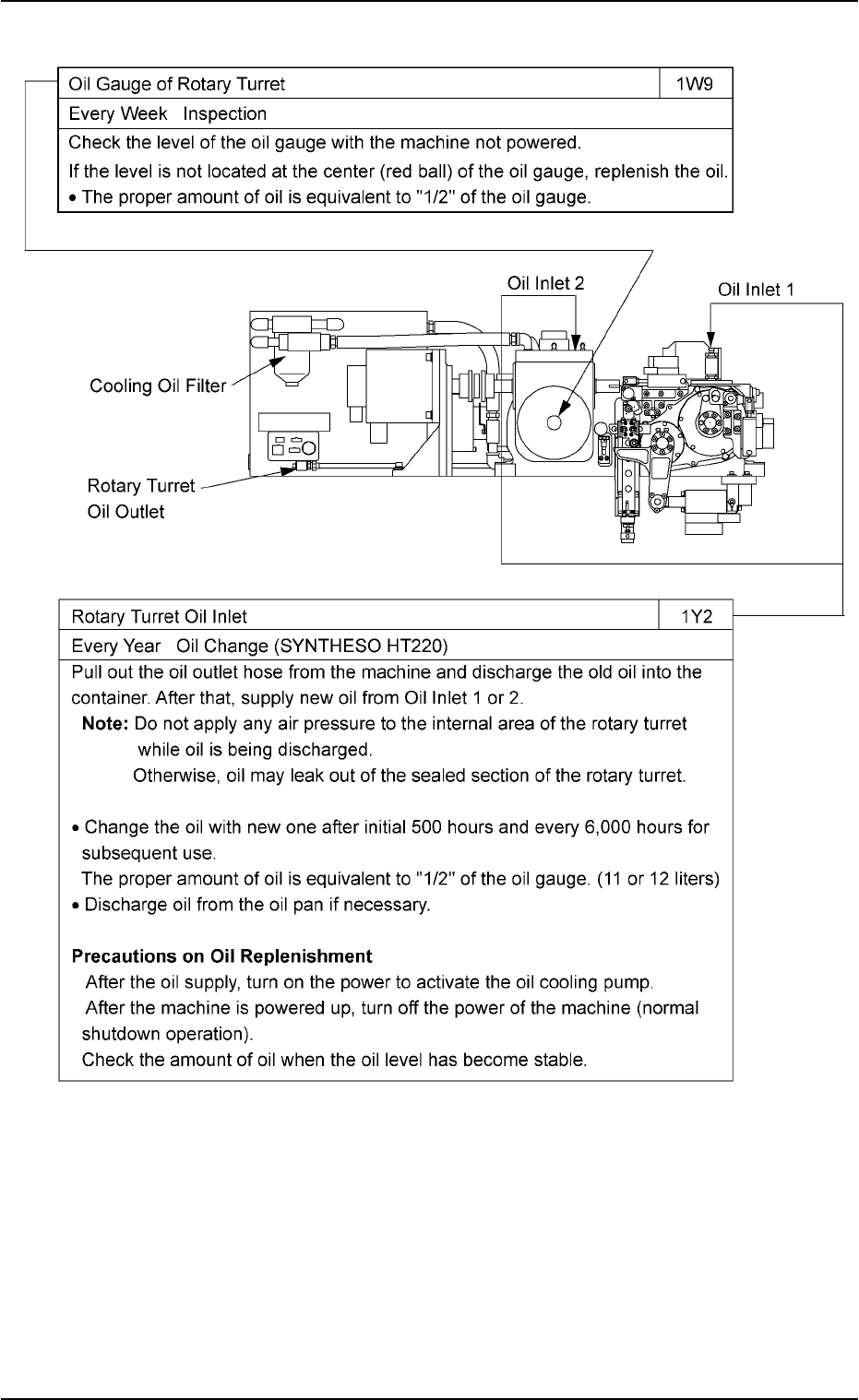

(11) Main Body Driving Section
1.3 Maintenance Spots
0110-003 1-22 AFO01ETRP
Fig. 4A25

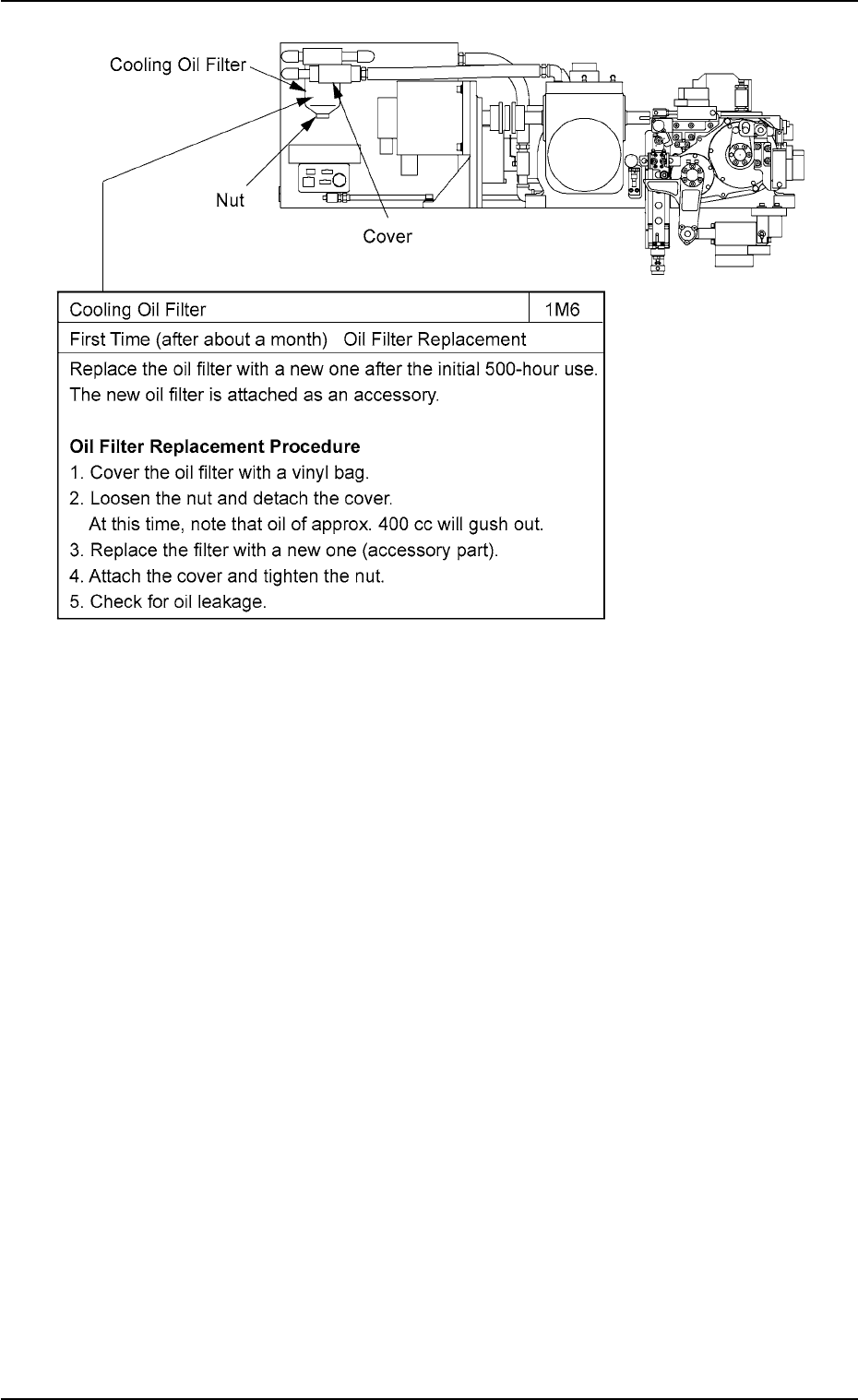

1.3 Maintenance Spots
0110-003 1-23 AFO01ETRP
Fig. 4A26
1.3 Maintenance Spots
0110-003 1-24 AFO01ETRP

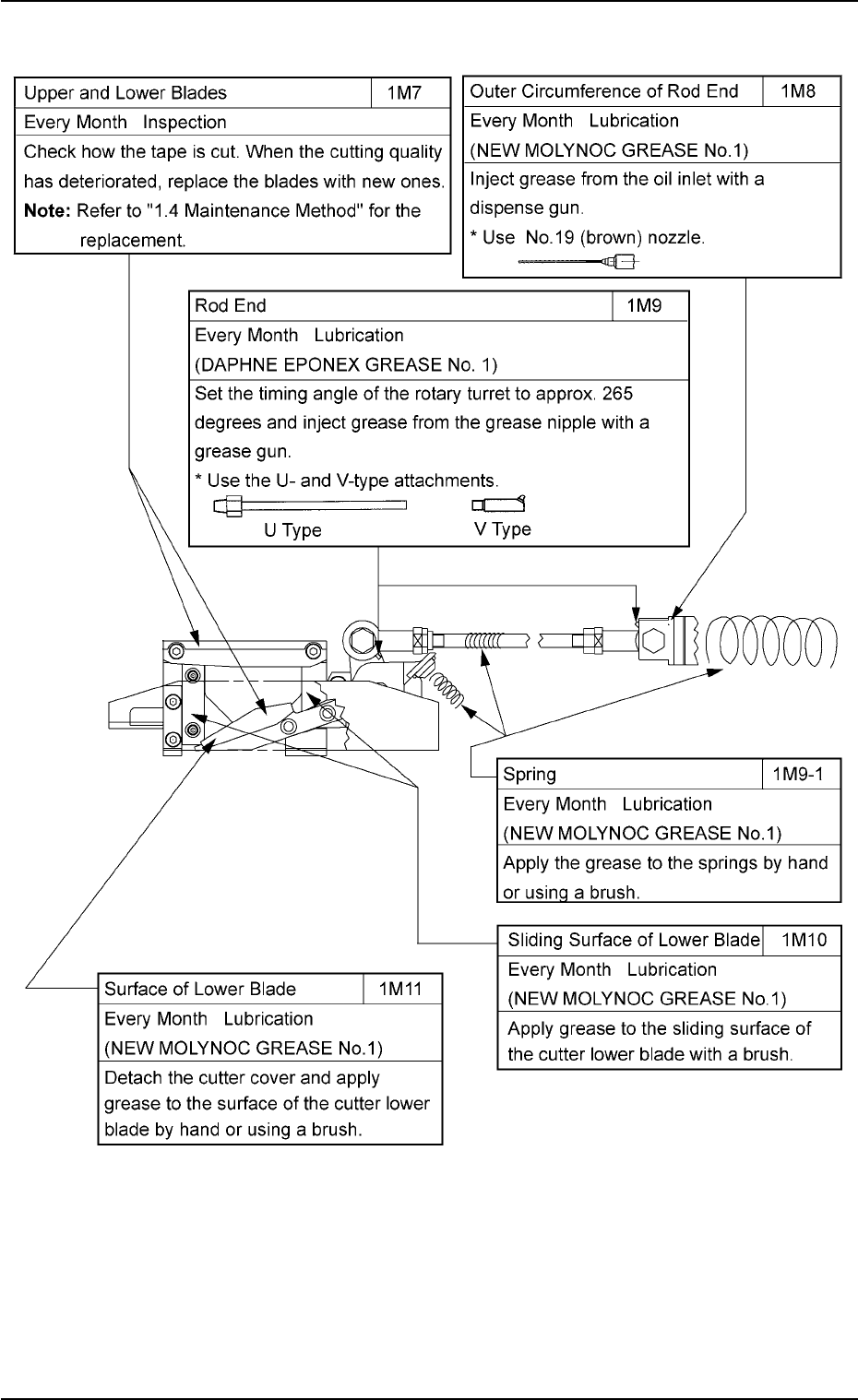

(12) Cutter Section
Fig. 4A27
