CX200-4(Maint) - 第45页

(20) Placement Height Correction Section 1.3 Maintenance Spots 01 10-003 1-34 AFO01ETRP Fig. 4A42 Front View of Machine

Oil inlet and Ball Surface of 3M15

Linear Guide Slide Block

Every 3 Months Lubrication

(DAPHNE EPONEX GREASE No. 1)

Wipe off the old grease and inject grease into the

oil inlet and the ball surface with a dispense gun.

* Use No. 19 (brown) nozzle.

Grease should be applied every 3 months after

the initial month.

Roller Rests 3M16

Every 3 Months Lubrication (DAPHNE EPONEX GREASE No. 3)

Apply grease with a dispense gun.

*Use RR-Type attachment.

Every 3 Months Lubrication (DAPHNE EPONEX GREASE No. 1)

Apply grease with a dispense gun.

* Use No. 14 (olive) nozzle.

Cam Follower 3M14

1.3 Maintenance Spots

0110-003 1-33 AFO01ETRP

Fig. 4A41 Pick-Up Up/Down Section

(20) Placement Height Correction Section

1.3 Maintenance Spots

0110-003 1-34 AFO01ETRP

Fig. 4A42 Front View of Machine

1.3 Maintenance Spots

0110-003 1-35 AFO01ETRP

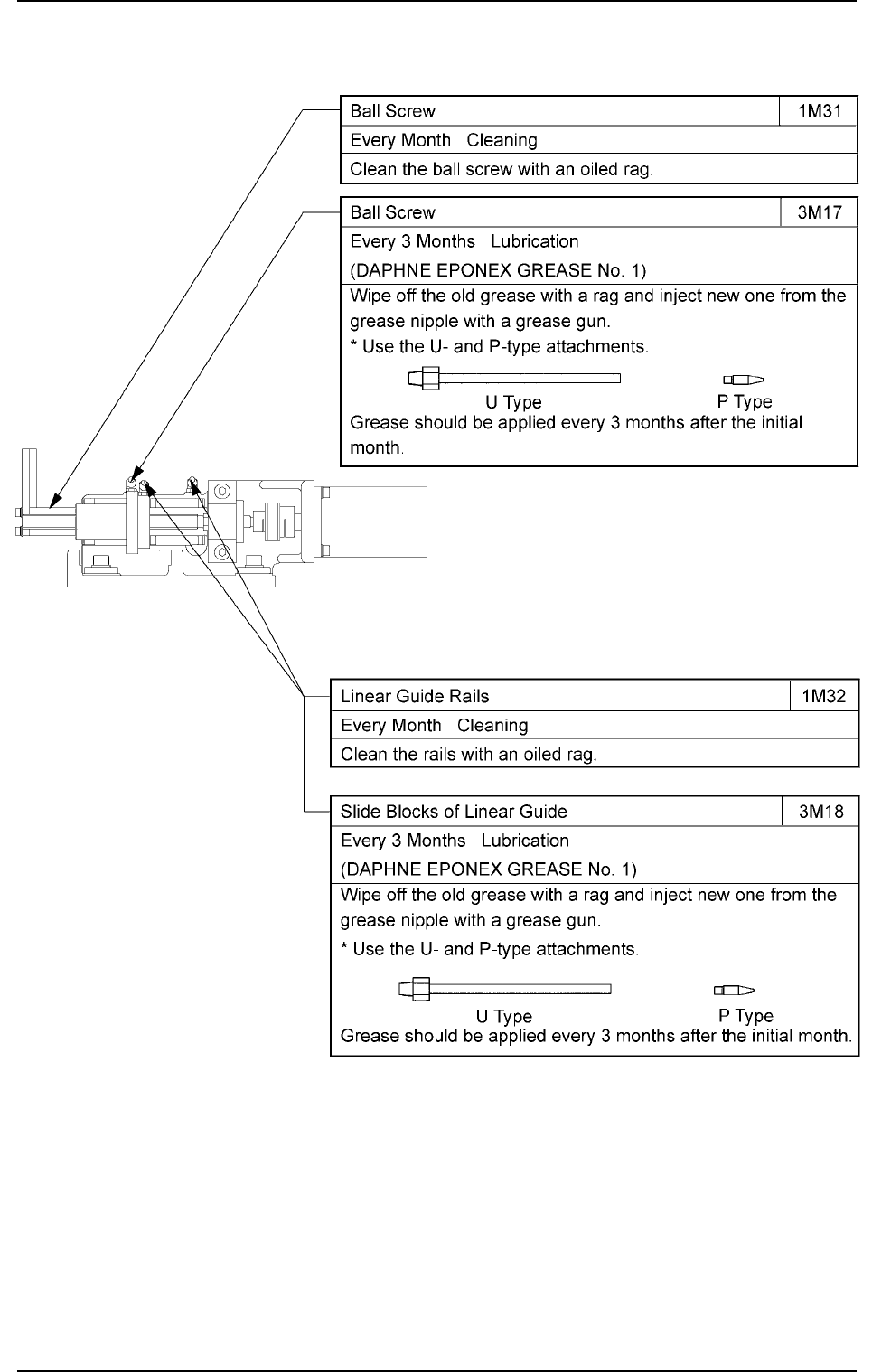

Fig. 4A43 Placement Height Correction Section
