CX200-4(Maint) - 第49页
(22) T ape Feed Unit Section 1.3 Maintenance Spots 01 10-003 1-38 AFO01ETRP Fig. 4A46
Cam Follower 3M20
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Apply grease with a dispense gun.
* Use No. 18 (green) nozzle.
Linear Guide (Horizontal Plane) 3M21
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Wipe off the old grease with a rag and inject
new one into the oil inlet with a dispense gun.
Grease must also be applied to the ball
surfaces.
A. Oil Inlet
* Use No. 18 (green) nozzle.
B. Ball Surface
* Use No. 19 (brown) nozzle.
Grease should be applied every 3 months after
the initial month.
Linear Guide (Horizontal Plane) 3M22
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Wipe off the old grease with a rag and inject
new one into the oil inlet with a dispense gun.
Grease must also be applied to the ball
surfaces.
A. Oil Inlet
* Use No. 18 (green) nozzle.
B. Ball Surface
* Use No. 19 (brown) nozzle.
Grease should be applied every 3 months after
the initial month.
Roller Rests 3M23
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 3)
Apply grease with a dispense gun.
* Use RR-Type nozzle.
Fulcrum 3M24
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Apply grease with a grease gun.
* Use the U- and N-type attachments.
Grease should be applied every 3 months after
the initial month.
U Type
N Type

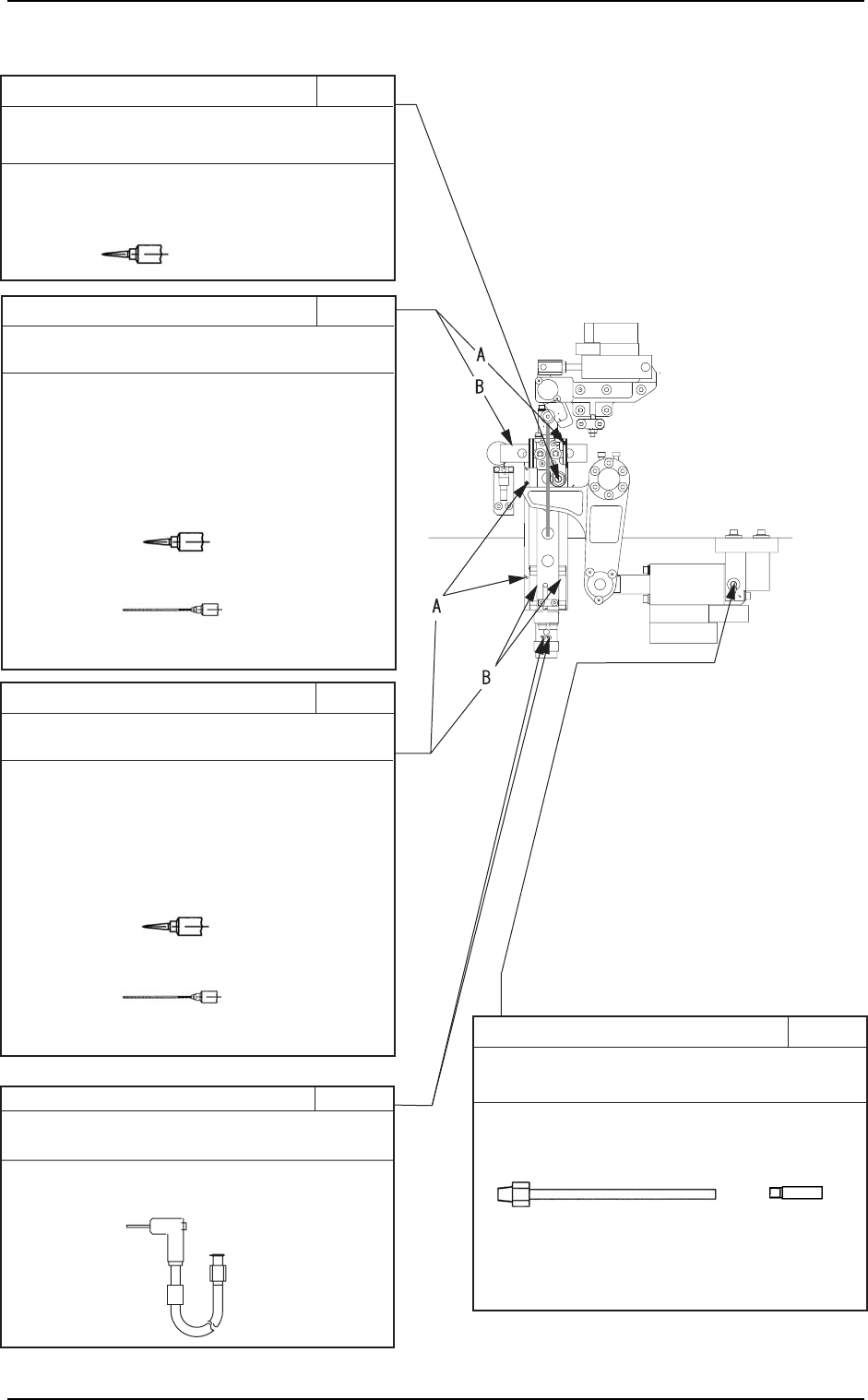

Fig. 4A45
Placement Up/Down Section
1.3 Maintenance Spots
0110-003 1-37 AFO01ETRP

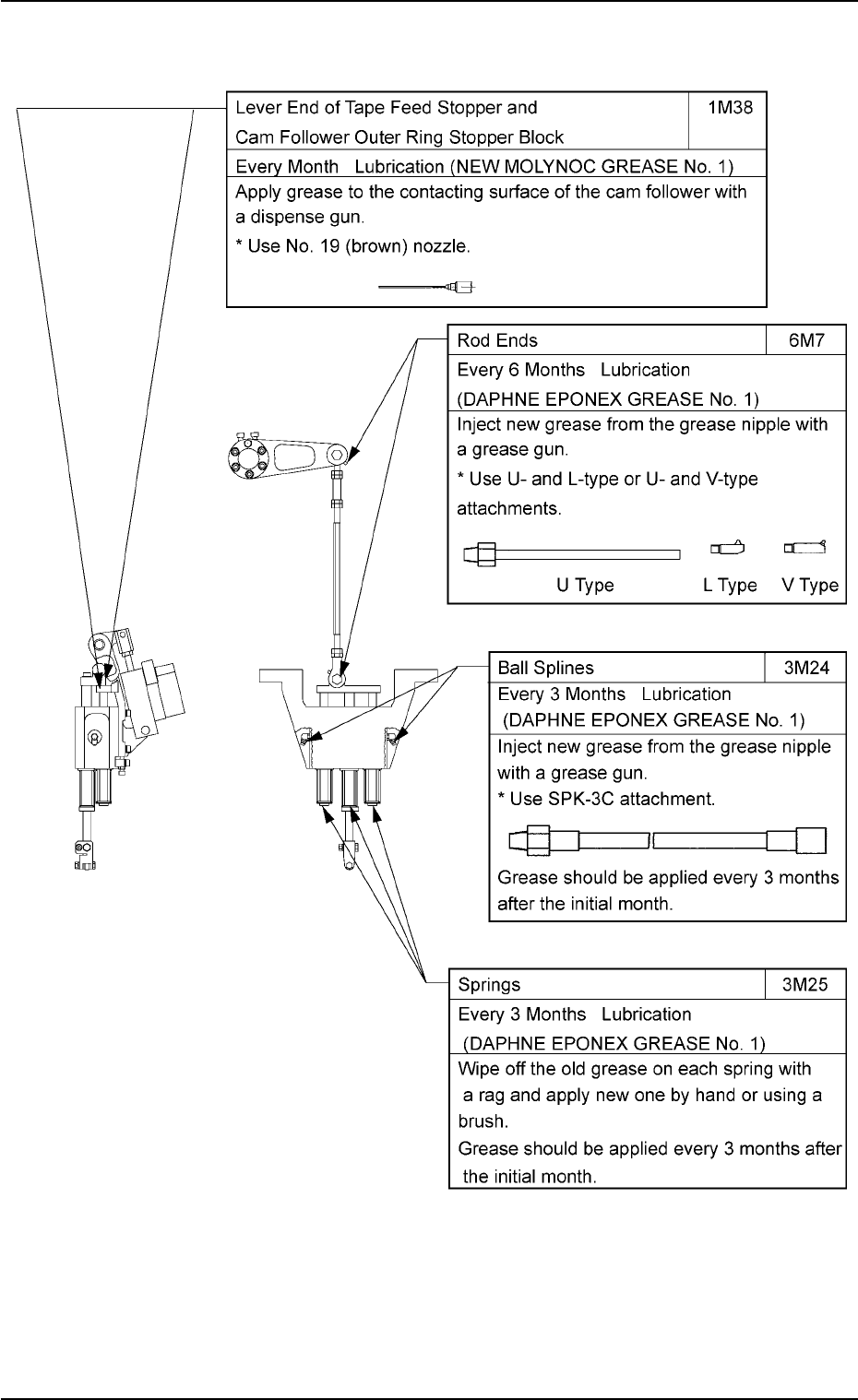

(22) Tape Feed Unit Section
1.3 Maintenance Spots
0110-003 1-38 AFO01ETRP
Fig. 4A46
(23) Nozzle Guide Section
1.3 Maintenance Spots
0110-003 1-39 AFO01ETRP
Fig. 4A47
