G -S015-22,29 1004-004 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE F A-2 F A-2 list-1 151 6301237558 CORD 1 845F A-100-351 4W202696 152 6301548722 CORD(VGA) 1 845F A-100-352 4W204075 153 6301513430 CORD(LAN…
G -S015-22,29
0805-002
186
172
172
179
173
157
178
181
180
180
180
181
181
187
See Fig. G-3
Key No.248
See Fig. G-3
Key No.248
-B79
-U78
U77
-B79
X7901
X7801
X7901
178
-U78
X7801
X7802
X17802
X17901
X7703
X7701
X7702
X7401
X7106
Special Specifications
G -S015-22,29
188
操作
PC
部
OPERATION PC SECTION

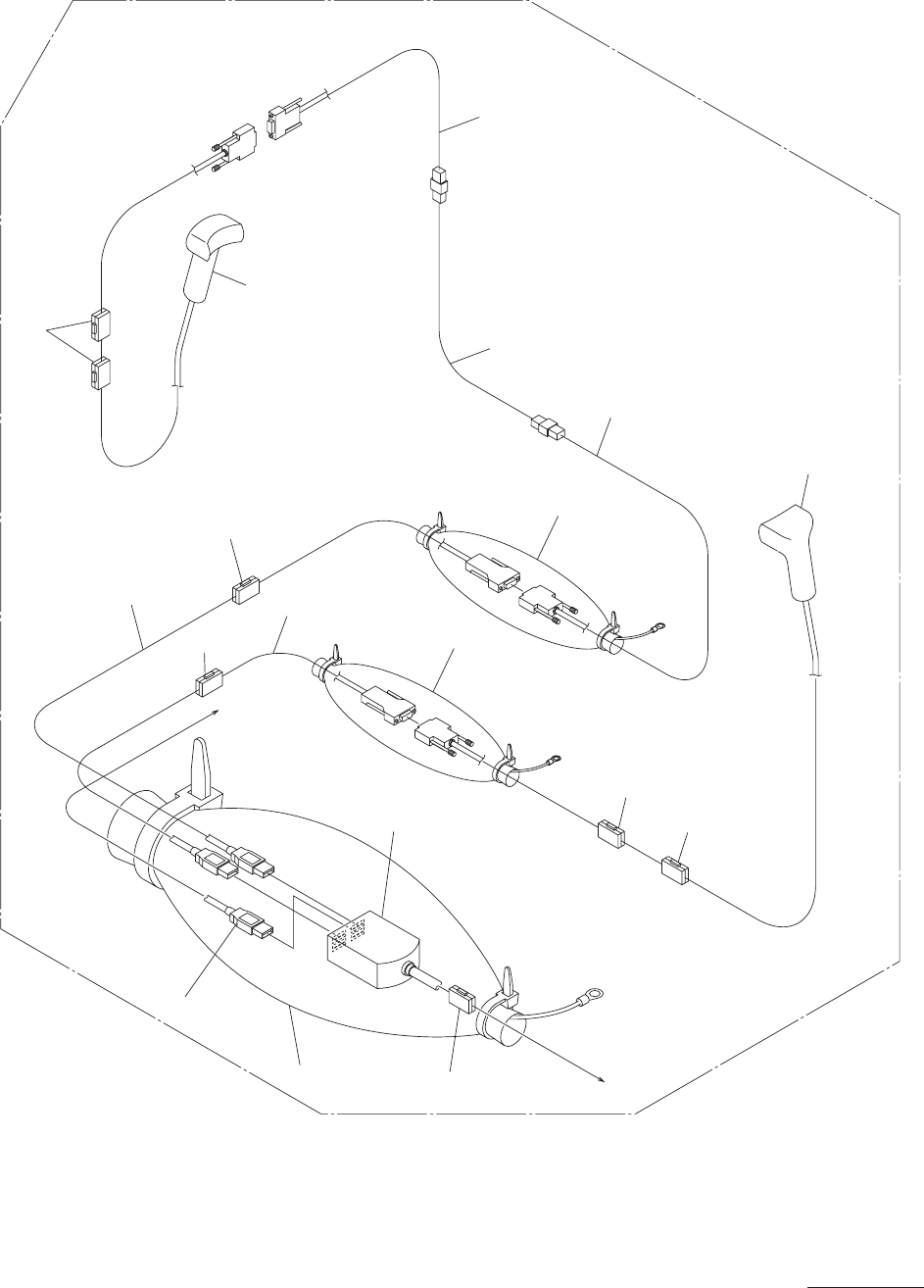

Fig. FA-2
ケーブル
Cable
FA-2 illust-2
G -S015-22,29
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FA-2
FA-2 list-1
151 6301237558 CORD 1 845FA-100-351 4W202696
152 6301548722 CORD(VGA) 1 845FA-100-352 4W204075
153 6301513430 CORD(LAN) 1 845FA-100-353 4W203835
154 6301116327 CORD(LAN 1M) 1 845FA-100-354 4W202216
155 6301116334 CORD(LAN 3M) 3 845FA-100-355 4W202217
156 6301252186 CORD 1 845FA-100-356 4W202784
157 6301245294 CORD 1 845FA-100-357 4W202730
161 6301533254 CORD 1 845FA-100-361 4W203900
162 6301505497 CORD(X7108-) 1 845FA-100-362 4W203715
163 6301359830 CORD 2 858FA-100-363 4W203134
172 6301619552 UNIT,I/O 2 U78
845GAA100010-A062
4U250238
172 6301619552 UNIT,I/O 2 U78
845GAA100060-A062
4U250238
173 6301300030 UNIT,I/O(DISTRIBUTOR HUB) 1 U77
845GAA100010-A063
4U250165
173 6301300030 UNIT,I/O(DISTRIBUTOR HUB) 1 U77
845GAA100060-A063
4U250165
178 6301356181 ASSY,CORD 2
845GAA100010-A078
0W200963
178 6301356181 ASSY,CORD 2
845GAA100060-A078
0W200963
179 6301356198 ASSY,CORD 1
845GAA100010-A079
0W200964
179 6301356198 ASSY,CORD 1
845GAA100060-A079
0W200964
180 6300606409 ACCESSORY,WIRING 3
845GAA100010-A080
23N30173
180 6300606409 ACCESSORY,WIRING 3
845GAA100060-A080
23N30173
181 6300617566 ACCESSORY,WIRING 4
845GAA100010-A081
23N30181
181 6300617566 ACCESSORY,WIRING 4
845GAA100060-A081
23N30181
186 6301453118 ASSY,CORD 1
845GAA100010-A151
0W201150
186 6301593739 ASSY,CORD 1
845GAA100060-A151
0W201759
187 6301593449 ASSY,CORD 1
845GAA100010-A152
0W201757
187 6301593746 ASSY,CORD 1
845GAA100060-A152
0W201760
188 0845J2A2 CORD_ACV 1 0845J2A2
188 0845J2A2 CORD_ACV 1 0845J2A2
GXH-3PH
