MODEL FP-G100L 0801-002 エレベータ部 ELEV A TOR SECTION Fig. EL-7 マガジン搭載部２ Magagine Mounter 2 See Fig. EL-6 Key No.502 674 673 . 655 . 678 677 . 660 . 680 679 . 663 . 677 676 . 658 . 623 614 601 601 622 614 657 673 675 633 634…
MODEL FP-G100L
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
502 6301310244 BASE 1 806EL-110-002 210A2248
507 6301291550 ROTOR 1 806EL-110-007 213G0200
508 6301281902 BRACKET 1 806EL-110-008 211F8492
511 6301291628 BLOCK 1 806EL-110-011 211G3646
512 6301291635 SHAFT 1 806EL-110-012 213A1090
513 6301281964 SHAFT 1 806EL-110-013 213A1068
514 6301291642 BRACKET 1 806EL-110-014 211F8648
518 6301474878 BRACKET 1 806EL-110-018 211FB070
524 6301620565 COVER 1 806EL-110-324 211AC663
525 6301292267 COVER 1 806EL-110-325 211A8875
531 6301280622 MOTOR,AC-SERVO 1 -M02 806EL-110-201 4M150212
535 6301280660 PULLEY,TIMING 1 806EL-110-205 223Q0575
536 6301280677 PULLEY,TIMING 1 806EL-110-206 223Q0576
537 6301280684 BELT,TIMING 1 806EL-110-207 223L0274
538 6300960808 COUPLING 1 806EL-110-208 223C0165
543 6300690545 SENSOR,PHOTO 1 -B0202 806EL-110-213 23G10056
544 6301282213 BOLT 2 806EL-110-214 221E0305
545 6301129679 BEARING,RADIAL 3 806EL-110-215 222D0380
546 6301501413 MECH PARTS(CABLEVEYOR) 1 806EL-110-216 226J2305
551 6300007503 BOLT,HEX-SCT 2 M3X6 221A0005
552 6300007527 BOLT,HEX-SCT 2 M3X10 221A0007
553 6300007589 BOLT,HEX-SCT 4 M3X30 221A0013
554 6300007619 BOLT,HEX-SCT 1 M4X8 221A0016
555 6300007633 BOLT,HEX-SCT 2 M4X12 221A0018
556 6300007640 BOLT,HEX-SCT 1 M4X14 221A0019
557 6300007657 BOLT,HEX-SCT 6 M4X16 221A0020
558 6300007664 BOLT,HEX-SCT 2 M4X20 221A0021
559 6300007763 BOLT,HEX-SCT 15 M5X16 221A0031
560 6300007770 BOLT,HEX-SCT 4 M5X20 221A0032
561 6300007794 BOLT,HEX-SCT 4 M5X30 221A0034
562 6300007909 BOLT,HEX-SCT 16 M6X25 221A0045
563 4110024307 SCR FLT 5X10 4 M5X10 FLT 221D0226
564 4111410604 NUT HEX 5 4 M5 221F0107
566 4111412806 WASHER SPR 3 8 SW3 221H0281
567 4111415807 WASHER F 3X6X0.5 6 FWS3 221H0338
568 4111413902 WASHER V 3X7X0.5 2 FW3 221H0312
569 4111412905 WASHER SPR 4 12 SW4 221H0284
570 4111414008 WASHER V 4X9X0.8 12 FW4 221H0315
571 4111416705 WASHER SPR 5 19 SW5 221H0287
572 4111414107 WASHER V 5X10X1 19 FW5 221H0318
573 4111413209 WASHER SPR 10 2 SW10 221H0293
574 4111414701 WASHER V 10X21X2 2 FW10 221H0325
EL-6
EL-6 list-1

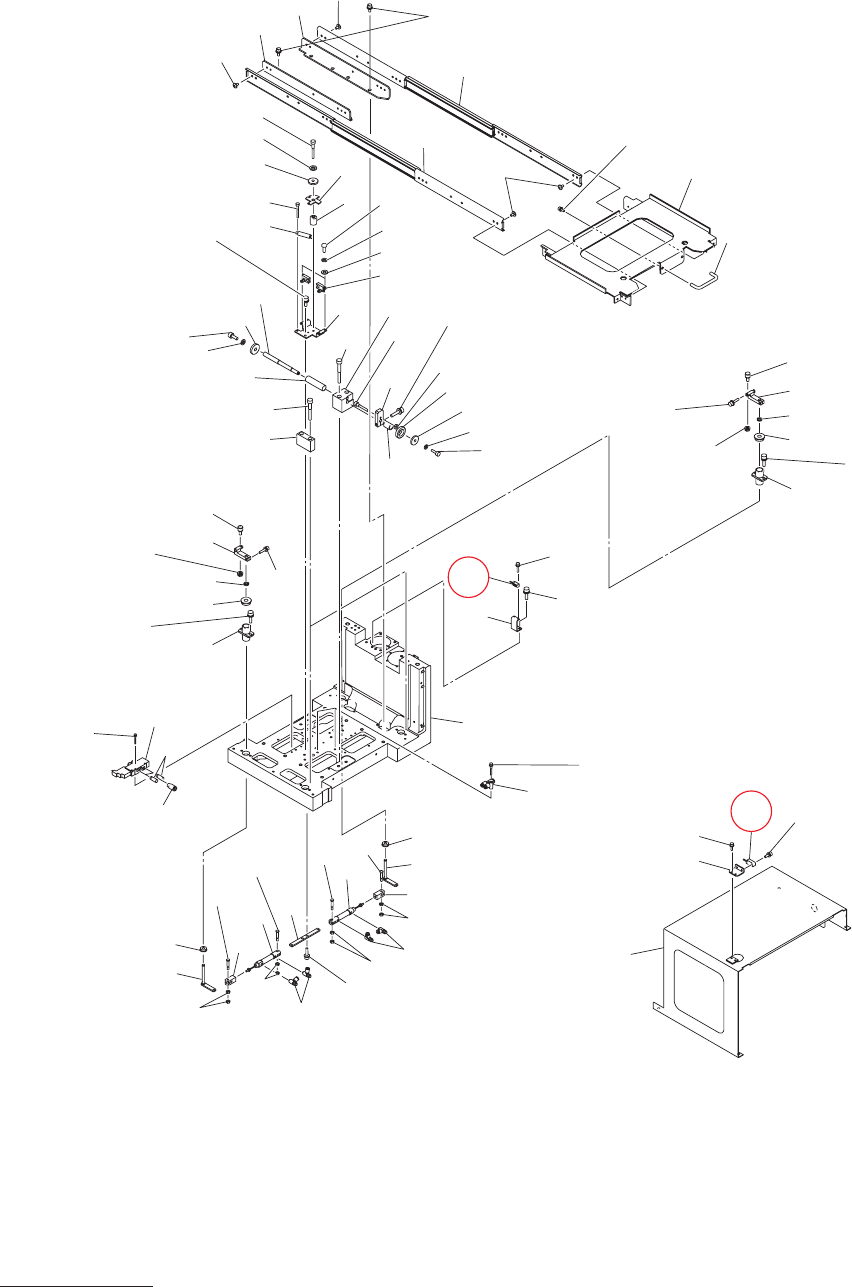

MODEL FP-G100L
0801-002
エレベータ部
ELEVATOR SECTION
Fig. EL-7
マガジン搭載部２
Magagine Mounter 2
See Fig. EL-6
Key No.502
674
673
.
655
.
678
677
.
660
.
680
679
.
663
.
677
676
.
658
.
623
614
601
601
622
614
657
673
675
633
634
652
613
677
676
.
658
.
664
671
672
612
632
640
662
637
656
675
636
661
631
639
603
666
638
673
654
635
678
676
658
621
615
602
628
665
625
625
604
665
605
624
665
605
625
604
625
665
610
628
602
610
614
674
673
.
655
.
629
602
630
626
677
676
.
659
.
602
629
630
627
603
674
673
.
655
.
611
643
674
673
.
654
.
672
671
.
651
.
674
673
.
657
.
609
606
607
608
672
671
.
652
.
674
673
.
666
.
677
676
.
659
.
674
673
.
666
.
672
671
.
651
.
674
673
.
653
.
611
641
See Fig. EL-6
Key No.524
注) Key No.611(○印)は重要保守部品となっております。交換方法については高度な
技術を要しますので、当社サービス員にご相談下さい。
Notice) The Key No. 611 (with a circle) is an important maintenance component.
Because high-grade technique is required for the replacement of this component,
consult our service personnel.
EL-7 illust-1
MODEL FP-G100L
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
601 6301292571 GUIDE,LINEAR 2 806EL-110-401 222L0717
602 6300011401 BEARING,RADIAL 4 806EL-110-402 222D0019
603 6300963717 CAM FOLLOWER 2 806EL-110-403 222H0118
604 6301282497 CYLINDER 2 -B0422,-B0423,-B0424,-B0425
806EL-110-404 224C0549
605 6301282510 AIR LINE EQPT 4 806EL-110-405 225B0514
606 6301292151 SOLENOID VALVE 1 -Y0532 806EL-110-406 4L810336
607 6300969221 AIR LINE EQPT 2 806EL-110-407 225B0374
608 6301282527 PIPE FITTINGS 1 806EL-110-408 225F0603
609 6300955026 AIR LINE EQPT 2 806EL-110-409 225B0367
610 6300363012 LINK 2 806EL-110-410 214B0010
611 6301165882 SENSOR,PELEC 2 -B0421,-B0512
806EL-110-411 23G00227
612 6300325287 SENSOR,PHOTO 2 -B0426,-B0513
806EL-110-412 23G10029
613 6300018332 SPRING,TENSION 1 806EL-110-413 222N0109
614 6300725803 MACHINE SCREW 24 806EL-110-414 221D0107
615 6300725797 HANDLE 1 806EL-110-415 226C0111
621 6301292274 PLATE 1 806EL-110-301 211D9801
622 6301292311 PLATE 1 806EL-110-302 211D9805
623 6301292328 PLATE 1 806EL-110-303 211D9806
624 6301283302 HINGE 1 806EL-110-304 226F0151
625 6301283296 PIN,HINGE 4 806EL-110-305 216D0465
626 6301283326 LEVER 1 806EL-110-306 216S2678
627 6301283333 LEVER 1 806EL-110-307 216S2679
628 6301283357 LEVER 2 806EL-110-308 216S2680
629 6301283319 HOLDER 2 806EL-110-309 216B1432
630 6301283340 COLLAR 2 806EL-110-310 216A1159
631 6301283500 BLOCK 2 806EL-110-311 211G3588
632 6301283777 BRACKET 1 806EL-110-312 211F8534
633 6301299662 DISK 1 806EL-110-313 213D1172
634 6301302263 SHAFT 1 806EL-110-314 213A1116
635 6301292434 BLOCK 1 806EL-110-315 211G3659
636 6301292687 SHAFT 1 806EL-110-316 213A1094
637 6301292281 PLATE 1 806EL-110-317 211D9802
638 6301283876 GRIP 1 806EL-110-318 226D0110
639 6301283883 COLLAR 1 806EL-110-319 216A1161
640 6301294810 SPRING,COMP 1 806EL-110-320 222M1342
641 6301294759 BRACKET 1 806EL-110-321 211F8702
643 6301294742 BRACKET 1 806EL-110-323 211F8701
651 6300007541 BOLT,HEX-SCT 4 M3X14 221A0009
652 6300007572 BOLT,HEX-SCT 3 M3X25 221A0012
653 6300007602 BOLT,HEX-SCT 2 M4X6 221A0015
654 6300007633 BOLT,HEX-SCT 1 M4X12 221A0018
655 6300007657 BOLT,HEX-SCT 4 M4X16 221A0020
656 6300007671 BOLT,HEX-SCT 1 M4X25 221A0022
657 6300007688 BOLT,HEX-SCT 3 M4X30 221A0023
658 6300007756 BOLT,HEX-SCT 5 M5X12 221A0030
659 6300007763 BOLT,HEX-SCT 4 M5X16 221A0031
660 6300007770 BOLT,HEX-SCT 1 M5X20 221A0032
EL-7
EL-7 list-1
