1 10 Side V iew Unit SectionSide V iew Unit (Op.) KGS-081 112 5 6 7 10 10 11 9 9 8 12 13 14 15 16 17 18 19 19 20 21 25 24 27 26 20 22 23 11 4 1 1 2 3 No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK …
28
8
21
18
11
12
18
23
16
17
15
9
29
24
26
25
30
19
14
13
10
29
2
2
31
1
32
3
31
27
27
6
20
7
9
16
17
15
34
44
43
41
47
39
40
36
52
45
37
50
48
38
35
51
42
46
33
48
49
4
5
22
1
9

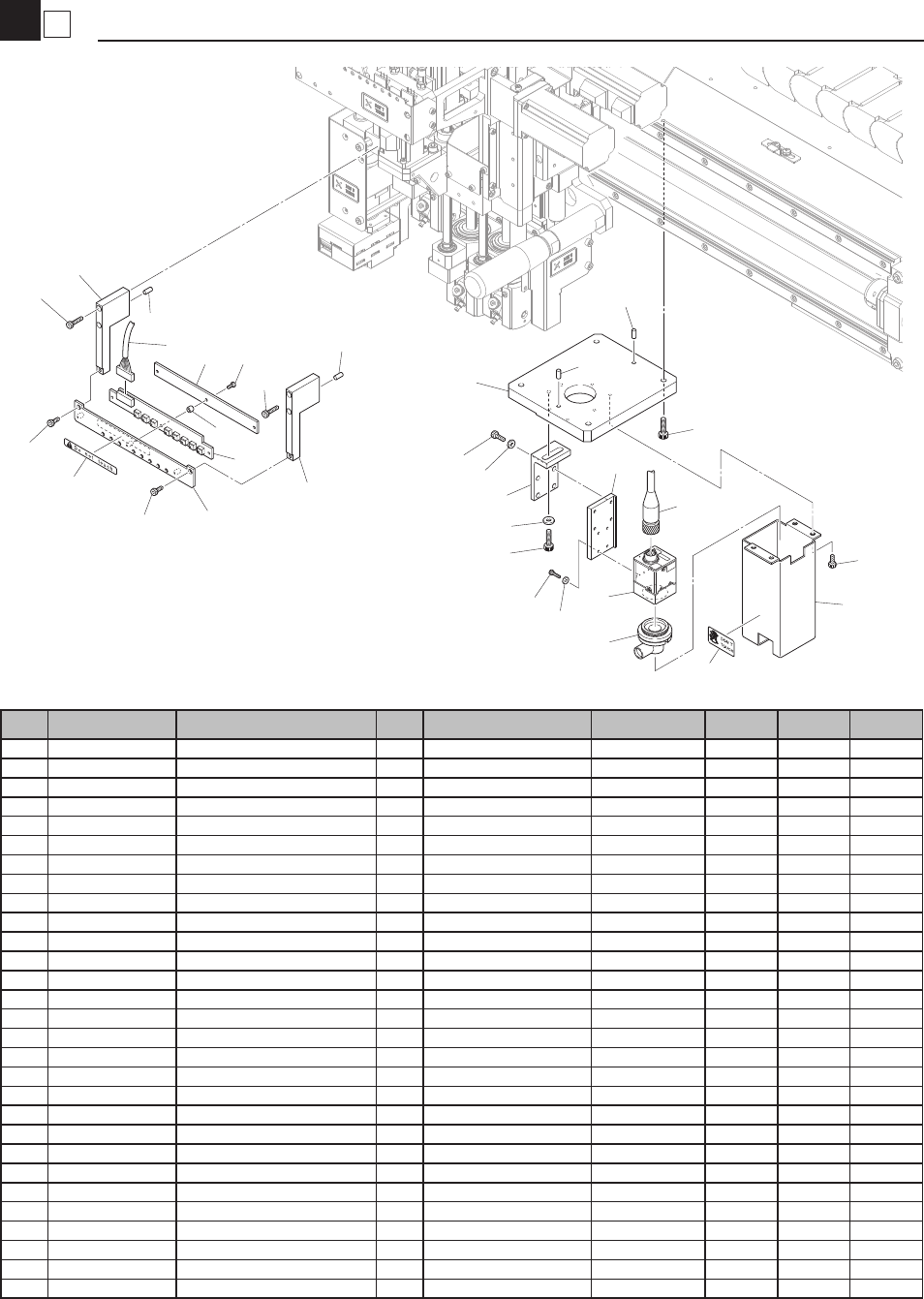

Blow Station Sel.
Blow Station
KGS-1109
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGS-M9901-01X BASE1, BLOW ST. 1 /
2 KGS-M9902-01X BASE2, BLOW ST. 2 /
3 KGS-M9903-01X BASE3, BLOW ST. 1 /
4 KGS-M9904-01X CYLINDER, BLOW ST. 1 B
5 KGS-M9905-01X BLOCK BLOW ST. 1 /
6 KGS-M9906-01X PLATE, BLOW ST. 1 /
7 KGS-M9907-01X TOP. BLOW ST 1 FNC A
8 KGS-M9907-51X TOP. BLOW ST 1 SF A
9 KGS-M9908-01X BLOCK, SENSOR 2 /
10 KGS-M9914-01X COVER, BLOW ST. 1 /
11 KGS-M9919-00X COLLER S, BLOW ST. 2 /
12 KGS-M9920-00X COLLER L, BLOW ST. 2 /
13 KGS-M9916-A1X SENSOR UPPER 1 B
14 KGS-M9916-B1X SENSOR LOWER 1 B
15 KGS-M9918-A1X SENSOR ASSY. 1 B
16
KV8-M71VS-00X COLLAR,SENSOR 4 /
16-1 90990-41J066 COLLAR 4 (2008/4/17) OK /
17 90115-02J008 BOLT HEX. SOCKET HEAD 4 /
18 90200-00J100 O-RING 4 /
18-1 90990-17J039 O-RING 4 (2006/12/18) OK /
19 $SC4-M5A SPEED CONTROLLER 2 /
20 $US10 JOINT 4 /
21 $TS6-01 JOINT
1 /
22 K40-M8598-10X PULUG 1 1 /
23 $PF-M3 PULUG 2 4 /
24 KGS-M99D0-00X DUMP BOX ASSY. 1 /
25 KGS-M99D1-00X DUMP BOX 1 /
26 KGS-M99D2-00X DEFFUSE PLATE 1 /
27 91317-03006 BOLT HEX. SOCKET HEAD 4 /
28 91317-03016 BOLT HEX. SOCKET HEAD 5 /
29 91317-04006 BOLT HEX. SOCKET HEAD 6 /
29-1 91317-04006 BOLT HEX.SOCKET HEAD 4 (2007/4/17) OK /
30 91317-04008 BOLT HEX. SOCKET HEAD 2 /
31 91317-04014 BOLT HEX. SOCKET HEAD 8 /
32 91317-04016 BOLT HEX. SOCKET HEAD 4 /
33 KGR-M9931-00X BRACKET, MUFFLER 1 /
34 KGR-M9932-00X COVER, MUFFLER 1 /
35 KGR-M9933-00X INLINE FILTER 3 A
36 KGR-M9934-01X INLINE FILTER 1 A
37 KGR-M9935-01X SPACER 1 /
38 KGS-M111U-02X PLATE, AMP 1 /
39 KGS-M9917-A0X VALVE ASSY. 1 B
39-1 KHW-M9906-A0X VALVE ASSY. 1 (2007/6/15) OK B
40 K40-M8598-00X PLUG 1 1 /
40-1 K40-M8598-10X PLUG 1 1 (2007/4/16) OK /
41 $TL6-02 JOINT 1 /
42 $AN10 JOINT 4 /
43 $UKM10-02
JOINT 4 /
44 $KM-2 MUFFLER 4 /
45 90563-24J550 SPACER 4 /
46 91317-03005 BOLT HEX. SOCKET HEAD 2 /
47 91317-03020 BOLT HEX. SOCKET HEAD 2 /
48 91317-04006 BOLT HEX. SOCKET HEAD 6 /
49 92907-04200 WASHER PLAIN 2 /
50 98904-04005 SCREW,BINDING HEAD 3 /
50-1 98902-04005 SCREW BINDING HEAD 3 (2006/1/9) OK /
51 KGR-M9933-F0X FILTER,SPARE 1 E
52 KGR-M9934-F0X FILTER,SPARE 1 E
1
10
Side View Unit
SectionSide View Unit (Op.)
KGS-081112
5
6
7
10
10
11
9
9
8
12
13
14
15
16
17
18
19
19
20
21
25
24
27
26
20
22
23
11
4
1
1
2
3
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGS-M7901-00X BRACKET, SV LIGHT 2 /
2 KGS-M7902-01X PLATES, S,VIEW LIGHT 1 /
3 KGS-M7903-00X DIFFUSER, SV. LIGHT 1 /
4 KGS-M7905-02X SV.LIGHT BOARD ASSY 1 B
5 KGS-M66K2-00X HNS,SV LIGHT 1 A
5-1 KGS-M66K2-01X HNS,SV LIGHT 1 2006/9/13 NG A
6 90K41-000240 SEAL, DON'T TOUCH 1 A
7 90563-0AJ040 SPACER, BOLT 3 /
8 90166-04JA04 SCREW,PAN HEAD 3 /
8-1 90166-02JA04 SCREW PAN HEAD 3 (2006/1/10) OK /
9 99480-04008 PIN PARALLEL: 4X10 2 /
10 91317-04008 BOLT HEX. SOCKET HEAD 2 /
11 91317-04025 BOLT HEX. SOCKET HEAD 4 /
12 KGS-M7910-00X BASE, S.VIEW CAMERA 1 /
13 KGS-M7911-00X STAY 1, S.VIEW CAMERA 1 /
14 KGS-M7912-01X STAY 2, S.VIEW CAMERA 1 /
15 KGS-M7913-01X CCD CAMERA 1 B
16 KGS-M7914-00X LENS, S.VIEW 1 B
17 KGS-M7915-00X COVER, S.VIEW CAMERA 1 /
18 KGA-M66F2-00X C. CABLE ASSY:L6M 1 A
19 99480-04008 PIN, PARALLEL 2 /
20 91317-05012 BOLT HEX. SOCKET HEAD 6 /
21 91317-04010 BOLT HEX. SOCKET HEAD 4
/
22 90115-02J008 BOLT HEX. SOCKET HEAD 4 /
23 90990-28J002 WASHER PLAIN 4 /
24 92907-05200 WASHER PLAIN 2 /
25 92907-04200 WASHER PLAIN 4 /
26 91317-04006 BOLT HEX. SOCKET HEAD 4 /
27 KV7-M7165-00X SEAL DON'T TOUCH 2 A
1
11

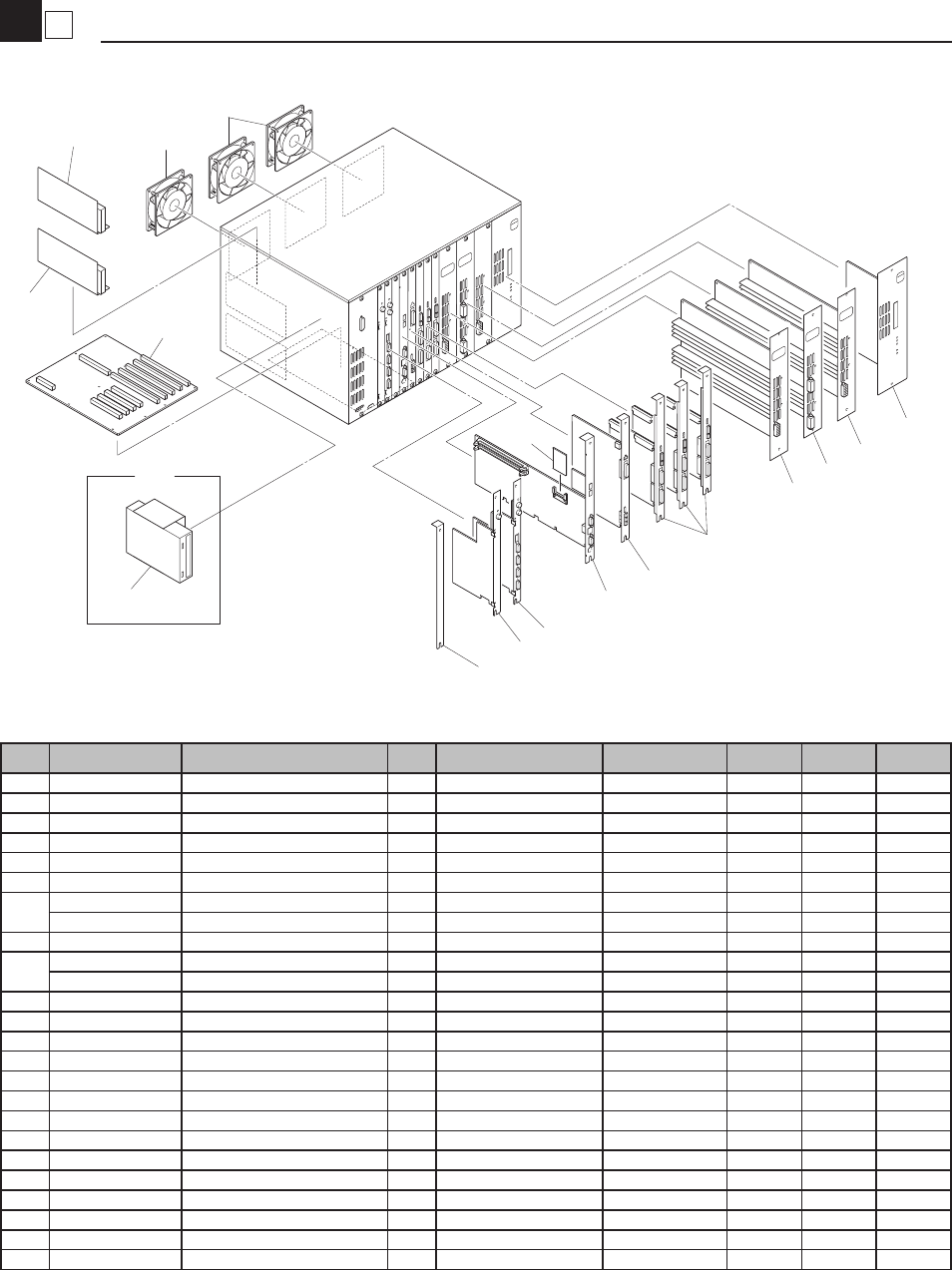

Control Box
Controller
KGS-1109
4
5
6
1
12
10
2
3
7
8
9
11
13
16
16
15
14
OLD
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGK-M4510-00X MOTHER BOARD ASSY 1 B
2 KGN-M5840-03X SERVO BOARD ASSY 1 B
2-1 KGN-M5840-04X SERVO BOARD ASSY 1 (2006/3/13) OK B
3 KGS-M4200-00X SYSTEM UNIT ASSY 1 B
3-1 KGS-M4200-01X SYSTEM UNIT ASSY 1 (2006/4/24) OK B
3-2 KGS-M4209-A0X SPARE SYSTEM UNIT 1 (2009/1/7) OK B
4
KGK-M5810-31X DRIVER BOARD ASSY 1 S.T.D WATS SATS B
KGK-M5810-01X DRIVER BOARD ASSY 1 DYTF DYTF+SATS B
5 KGN-M5810-40X DRIVER BOARD ASSY 1 DYTF DYTF+SATS B
6
KGN-M5810-30X DRIVER BOARD ASSY 1 WATS B
KGK-M5810-41X DRIVER BOARD ASSY 1 SATS DYTF+SATS B
7 KGJ-M441H-03X VISION BOARD ASSY 1 B
7-1 KGJ-M441H-40X VISION BOARD ASSY 1 (2005/12/2) OK B
8 KGJ-M441H-30X VISION BOARD ASSY 1 B
9 KGS-M4530-11X REMOTE IF BOARD ASSY 1 B
10 KGN-M5880-00X D.POWER BOARD ASSY 1 B
11 KGK-M4136-10X PANEL NO VISION 1 /
12 KW3-M4256-00X DVD-ROM DRIVE 1 B
12-1 Delete : Spare only (2012/4/10)
13 KGK-M4255-00X FLASH DISK 1
B
13-1 KGK-M4255-20X FLASH DISK 1 (2005/11/10) OK B
13-2 KHL-M4255-00X FLASH DISK 1 (2007/6/20) OK B
14 KGS-M5303-00X SW POWER DC5 1 B
15 KGS-M5303-10X SW POWER DC12 1 B
16 KGK-M4185-10X FAN MOTOR ASSY 3 B
