2 3 Feeder Holder 24(CLI/IND) Feeder Holder KGS-1 109 IND TYPE 6 44,45 7 5 34 17 36 24 16 37 37 37 17 14 15 37 28 33 28 32 8 30 31 31 11 12 43 4 9>8 2 3 13 33 32 28 18 1 42 31 27 10 30 31 33 33 32 18 28 29 29 20 40 34…
1
3

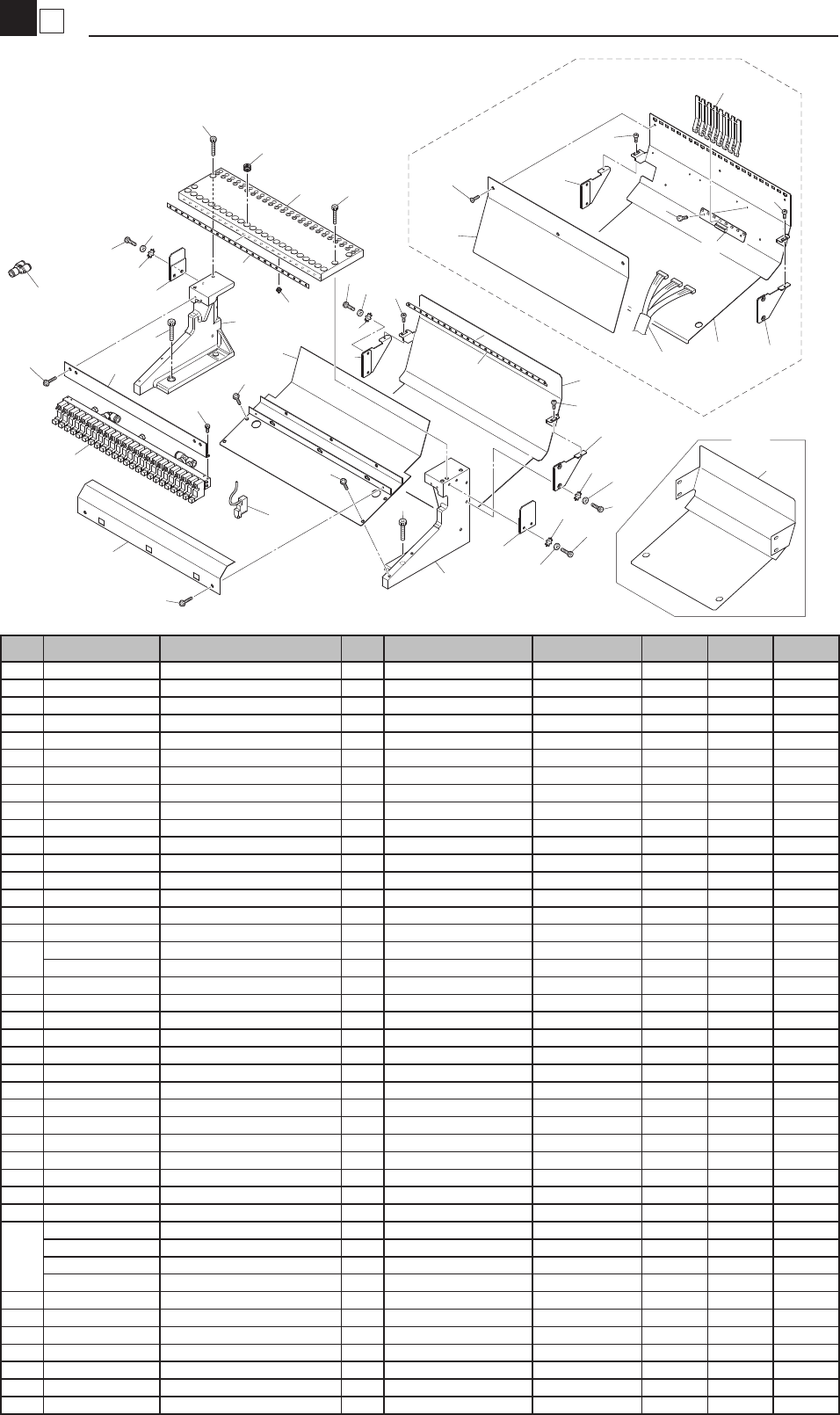

Feeder Holder 24(STD/IND)
Feeder Holder
KGS-1109
6
32,33
7
5
28
17
29
18
16
16
30
30
17
30
30
14
21
24
13
8
22
23
31
23
11
12
4
9>8
2
3
13
25
24
21
26
1
27
23
19
10
22
23
25
25
24
26
21
20
20
IND TYPE
21
24
25
OLD
5
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGS-M3401-M0X PLATE M, FEEDER 1 /
2 $BF4BU JOINT 24 /
3 KG2-M3407-A0X AIR JOINT 24 A
4 KGS-M3402-M0X GUIDE M-1, TAPE 1 /
5 KGS-M3403-M0X GUIDE M-2,TAPE 1 /
5-1 KGS-M3403-M1X GUIDE M-2,TAPE 1 2006/2/17 NG /
6 KGS-M3E03-00X GUIDE E-2, TAPE 1 /
7 KGS-M3E04-00X GUIDE E-3, TAPE 1 /
8 KM0-M3405-02X STAND,1 1 /
8-1 KM0-M3405-03X STAND,1 1 2005/3/31 NG /
8-2 KM0-M3405-S0X STAND,1/2 SET 1 8 and 9 Set parts (2010/4/5) /
9 KM0-M3406-01X STAND,2 1 /
9-1 KM0-M3406-02X STAND,2 1 2005/3/31 NG /
9-2 Delete (2010/4/5)
10 KGS-M3408-M0X BRACKET M VALVE 1 /
11 KGS-M3409-M0X COVER M VALVE 1 /
12
KGS-M3410-80X VALVE ASSY, 24-R 1 R TYPE B
KGS-M3410-70X VALVE ASSY, 24-L 1 L TYPE B
13 KM0-M3417-00X GUIDE, 4 2 /
14 KGS-M3E01-00X LIGHT GUIDE 3 /
15
16 KGS-M3E10-00X GUIDE TAPE BRACKET, R 1 /
17 KGS-M3E11-00X GUIDE TAPE BRACKET, L 1 /
18 KGS-M4576-01X FDR LED BOARD ASSY 3
C
19 91317-03006 BOLT HEX. SOCKET HEAD 4 /
20 91317-06020 BOLT HEX. SOCKET HEAD 4 /
21 91317-04010 BOLT HEX. SOCKET HEAD 8 /
22 91317-08020 BOLT HEX. SOCKET HEAD 4 /
23 90990-12J005 SCREW BINDING HEAD 10 /
24 92907-04200 WASHER PLAIN 8 /
25 92990-04400 WASHER EXTL. TOOTHED 8 /
25-1 90172-00J040 WASHER EXTL. TOOTHED 8 (2008/4/14) OK /
26
KGS-M3430-01X LABEL,FEEDER 24 1 1-24/25-48 /
KGS-M3430-11X LABEL,FEEDER 24 1 2-23/26-48 /
KGS-M3430-20X LABEL,FEEDER 24 1 101-124/125-148 /
KGS-M3430-30X LABEL,FEEDER 24 1 101-123/126-147 /
27 $UY8 JOINT 1 /
28 98707-03008 SCREW, FLAT HEAD (+) 3 /
29 98907-03008 SCREW BINDING HEAD 6 /
30 98907-04006 SCREW BINDING HEAD 2 /
31 KGA-M37P0-00X VALVE KIT 1 SPARE C
32 KGS-M66W0-00X HNS , INDI , BANK1,4 1 LEFT TYPE /
33 KGS-M66W1-00X HNS , INDI , BANK2,3 1 RIGHT TYPE /
2
3
Feeder Holder 24(CLI/IND)
Feeder Holder
KGS-1109
IND TYPE
6
44,45
7
5
34
17
36
24
16
37
37
37
17
14
15
37
28
33
28
32
8
30
31
31
11
12
43
4
9>8
2
3
13
33
32
28
18
1
42
31
27
10
30
31
33
33
32
18
28
29
29
20
40
34
26
21
22
25
23
35
35
35
19
39
38
41
32
16
OLD
5
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGS-M3C01-M0X PLATE M, FEEDER 1 /
2 $BF4BU JOINT 24 /
3 KG2-M3407-A0X AIR JOINT 24 A
4 KGS-M3402-M0X GUIDE M-1, TAPE 1 /
5
KGS-M3403-M0X GUIDE M-2,TAPE 1
/
5-1
KGS-M3403-M1X GUIDE M-2,TAPE 1 (2005/10/24) NG
/
6 KGS-M3E03-00X GUIDE E-2, TAPE 1 /
7 KGS-M3E04-00X GUIDE E-3, TAPE 1 /
8 KGA-M3C05-01X STAND, 1 1 /
8-1 KGA-M3C05-S0X STAND, 1/2 SET 1
8 and 9 Set parts (2010/4/5)
/
9 KGA-M3C06-01X STAND, 2 1 /
9-1
Delete (2010/4/5)
10 KGS-M3408-M0X BRACKET M VALVE 1 /
11 KGS-M3409-M0X COVER M VALVE 1 /
12
KGS-M3410-80X VALVE ASSY, 24-R 1 R TYPE B
KGS-M3410-70X VALVE ASSY, 24-L 1 L TYPE B
13 KM0-M3417-00X GUIDE, 4 1 /
14 KGS-M3E01-00X LIGHT GUIDE 3 /
15
16 KGS-M3E10-00X GUIDE TAPE BRACKET, R 1 /
17 KGS-M3E11-00X GUIDE TAPE BRACKET, L 1 /
18
KGS-M3430-01X LABEL,FEEDER 24 1 1-24/25-48
/
KGS-M3430-11X LABEL,FEEDER 24 1 2-23/26-48
/
KGS-M3430-20X LABEL,FEEDER 24 1 101-124/125-148
/
KGS-M3430-30X LABEL,FEEDER 24
1 101-123/126-147
/
19 KGR-M4452-12X ID READER BOARD ASSY 3 C
20 KGA-M3C20-10X PLATE 3 /
21 KGA-M3C21-00X BOX R 1 /
22 KGA-M3C22-00X COVER R 1 /
23
KGR-M4476-05X READER CTRL BD. ASSY 1
C
23-1 KGR-M4476-06X READER CTRL BD. ASSY 1 (2006/2/6) OK
C
24 KGS-M4576-01X FDR LED BOARD ASSY 3 C
25 KGA-M3C23-00X WINDOW 1 /
26 KGA-M3C24-00X SEAL, CAUTION 3 /
27 91317-03006 BOLT HEX. SOCKET HEAD 4 /
28 91317-04010 BOLT HEX. SOCKET HEAD 4 /
29 91317-06020 BOLT HEX. SOCKET HEAD 4 /
30 91317-08020 BOLT HEX. SOCKET HEAD 4 /
31 90990-12J005 SCREW BINDING HEAD 10 /
32 92907-04200 WASHER PLAIN 8 /
33 92990-04400 WASHER EXTL. TOOTHED 8 /
33-1 90172-00J040 WASHER EXTL. TOOTHED 8
(2008/4/14) OK
/
34 98707-03008 SCREW, FLAT HEAD (+) 12 /
35 98907-03006 SCREW BINDING HEAD 11 /
36 98907-03008 SCREW BINDING HEAD 6 /
37 98907-04006 SCREW BINDING HEAD 2 /
38 90562-03J100 SPACER 4 /
39 99480-03008 PIN, PARALLEL 6 /
40 KGR-M66T7-10X HNS, ANT CTRL 3 /
41 KGR-M66V9-11X HNS, FDR. CUNET
1 /
42 $UY8 JOINT 1 /
43
KGA-M37P0-00X VALVE KIT 1
SPARE C
44 KGS-M66W0-00X HNS , INDI , BANK1,4 1 LEFT TYPE /
45 KGS-M66W1-00X HNS , INDI , BANK2,3 1 RIGHT TYPE /
3
3
Feeder Floating Detection 24 (Fiber Type)
Feeder Holder
KGS-1011
1
17
2
4
15
18
9
10
12
13
14
14
11
5
8
7
12
STD
FES
6
16
14
12
19
19
19
13
10
2
4
1
15
9
5
8
14
11
3
3
19
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGS-M3455-10X SENSOR ASSY (L=300) 1 AMP & FIBER B
2 KV7-M3901-00X BRACKET SENSOR 2 1 FRONT TYPE /
3 KGS-M3901-00X BRACKET SENSOR 2 1 REAR TYPE /
4 KG7-M3906-00X BRACKET 6 1 /
5 KV7-M3910-01X BRACKET SENSOR, 1 1 /
6 KGA-M3941-02X BRACKET 4-1, SENSOR R 1 FR RL TYPE /
7 KGA-M3942-02X BRACKET 4-2, SENSOR R 1 FL RR TYPE /
8 KGA-M3951-00X BLOCK, SENSOR 1 /
9 KGA-M3952-00X BRACKET, AMP. 1 /
10 91317-03012 BOLT HEX. SOCKET HEAD 2
11 91317-03020 BOLT HEX. SOCKET HEAD 2
12 91317-04012 BOLT HEX. SOCKET HEAD 6
13 92907-04200 WASHER PLAIN 4
14 92A08-03304 SET SCREW 2
15 98907-03006 SCREW BINDING HEAD 2
16 92A08-05310 SCREW, SET 3
17 KGA-M3943-00X BRACKET 4-3, SENSOR R 1 /
18 90115-02J010 BOLT HEX. SOCKET HEAD 2
19 KGA-M3456-00X FIBER, SENSOR 1 FIBER Only B
