KGS_YG100_rev_Mainte_downsized - 第15页
1 4 X-axis Moving-axis KGS-1 109 39 21 3 33 22 2 31 30 12 3 33 2 21 31 1 23 29 19 8 29 27 25 7 9 9 34 34 22 16 17 40 40 18 14 15 13 8 35 27 10 7 37 25 28 28 4 26 24 26 11 26 26 35 28 28 32 6 24 24 36 24 15 37 37 7 39 1 4…
6
3

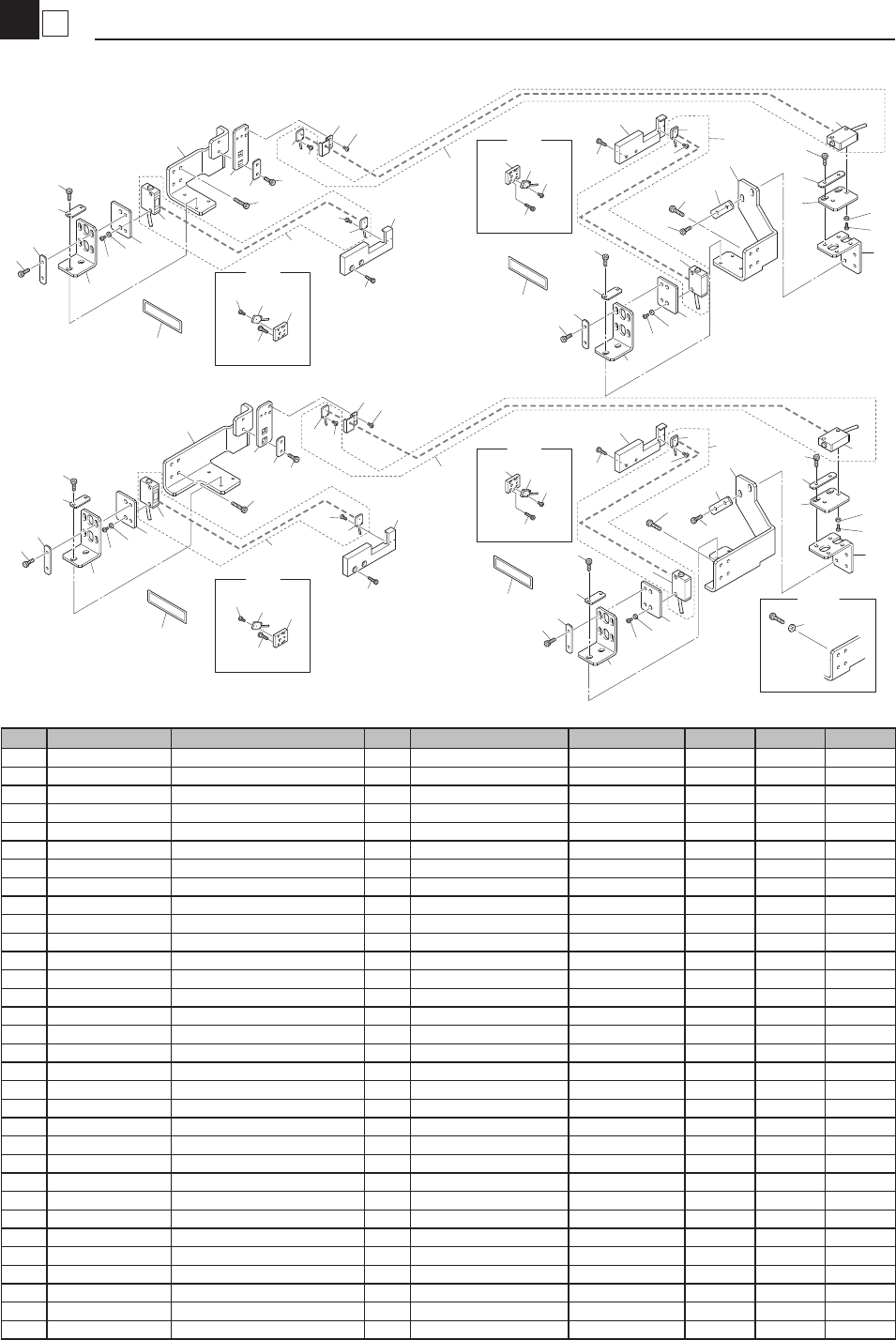

Feeder Floating Detection 24 (Top surface Type)
Feeder Holder
KGS-1210
29
13
21
1
3
8
5
7
10
9
9
10
12
4
11
11
28
18
22
2
28
16
28
16
14
29
21
15
15
24>23
11
12
23
18
22
23
23
23
23
18
22
23
23
6
29
17
20
21
10
9
28
15
11
12
23
18
22
23
8
23
25
26
3
4
11
28
18
22
23
21
29
27
24
9
10
12
11
28
16
15
23
18
22
23
5
7
23
6
29
20
Front
Back
RightLeft
FES
RightLeft
21
24
27
29
FES
24
24
29
13
21
14
29
21
21
29
27
24
FES
21
24
27
29
FES
24
24
21
17
16
24>23
24>23
24>23
OLD
19
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGS-M3971-00X BRKT.SENSOR1 F 1 /
2 KGS-M3972-00X BRKT.SENSOR2 F 1 /
3 KGS-M3973-00X BRKT.SENSOR3 1 /
4 KGS-M3974-00X PLATE,SENSOR 1 /
5 KGS-M3975-00X BRACKET,RECEIVER 1 /
6 KGS-M3976-00X COVER,SENSOR 1 1 /
7 KGS-M3977-00X SQUARE WASHER 1 1 /
8 KGS-M3978-00X SQUARE WASHER 2 1 /
9 KGS-M3951-00X PLATE SENSOR 2 /
10 KGS-M3910-00X BRACKET SENSOR 1 2 /
11 KGS-M3906-00X BRACKET 6 3 /
12 KGS-M3911-00X SQUARE WASHER 2 /
13 KGS-M3941-00X BRACKET 4-1,SENSOR R 1 /
14 KGS-M3942-00X BRACKET 4-2,SENSOR R 1 /
15 KG2-M3903-10X SEAL LASER 2 /
16 KGS-M3961-00X SENSOR,LASER ASSY 2 B
17 KGS-M3961-10X SENSOR,LASER ASSY 1 B
18 92907-03200 WASHER PLAIN 6
19 92907-04200 WASHER PLAIN 8
19-1 Delete (2010/1/29)
20 98907-03005 SCREW BINDING HEAD 2
21 90115-02J005 BOLT,HEX S.H 6
22 91317-03012 BOLT HEX.SOCKET HEAD 6
23 91317-04010 BOLT HEX.SOCKET HEAD 14
23-1 91317-04010 BOLT HEX.SOCKET HEAD 22 (2010/1/29) OK
24 91317-04012 BOLT HEX.SOCKET HEAD 12
24-1 91317-04012 BOLT HEX.SOCKET HEAD 4 (2010/1/29) OK
25 KGS-M3971-10X BRKT.SENSOR1 R 1 /
26 KGS-M3972-10X BRKT.SENSOR2 R 1 /
27 KGS-M3790-00X SENSOR BRACKET 2 /
28 KGS-M3962-00 SENSOR, TRANSMITTER 1 B
29 KGS-M3963-00 SENSOR, RECEIVER 1 B

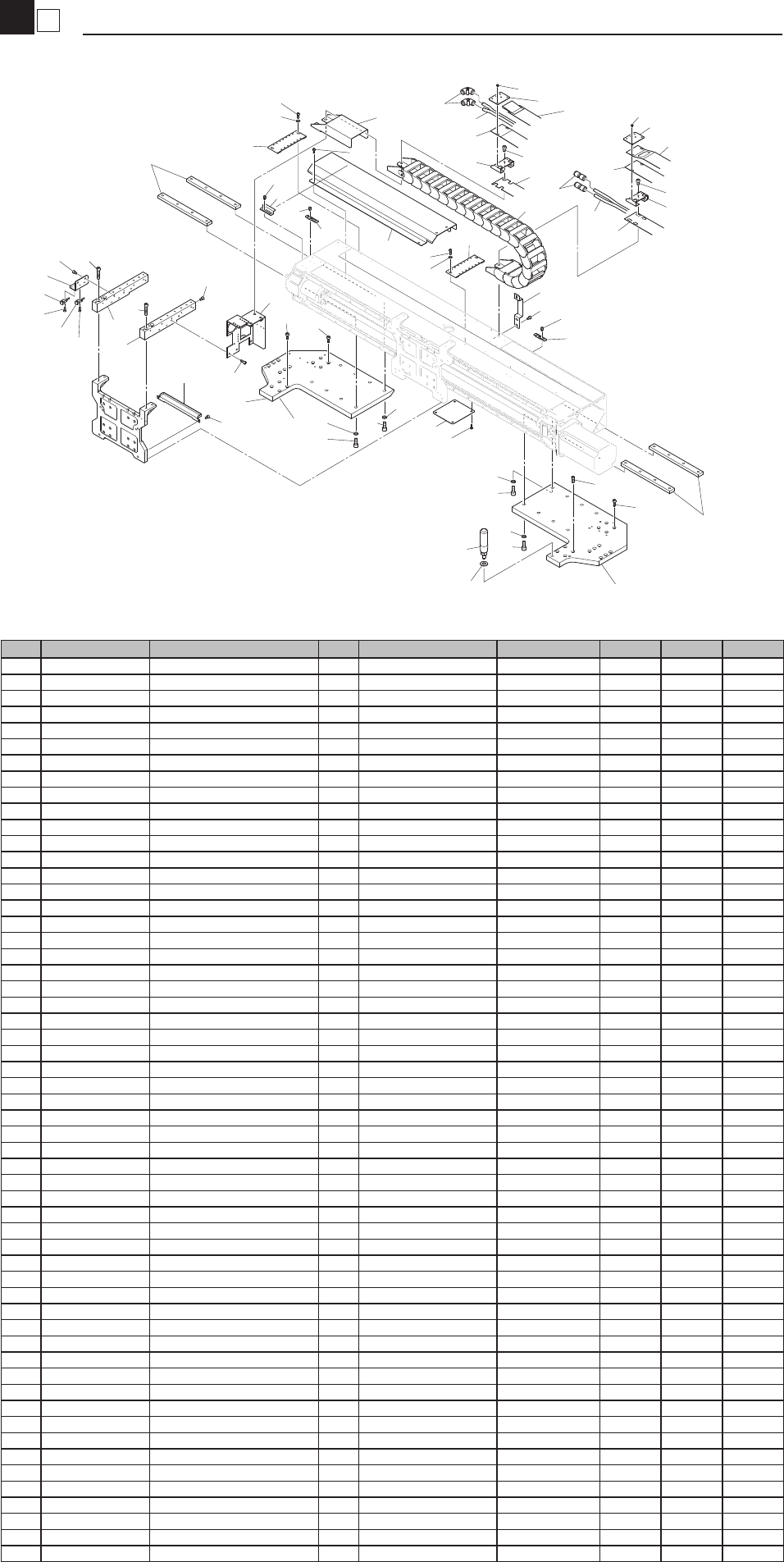

1
4
X-axis
Moving-axis
KGS-1109
39
21
3
33
22
2
31
30
12
3
33
2
21
31
1
23
29
19
8
29
27
25
7
9
9
34
34
22
16
17
40
40
18
14
15
13
8
35
27
10
7
37
25
28
28
4
26
24
26
11
26
26
35
28
28
32
6
24
24
36
24
15
37
37
7
39
1
43
5
42
41
4
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGS-M220A-00X TAPE ,X DUCT 1 /
1-1 KGS-M220A-01X TAPE ,X DUCT 1 (2007/6/5) OK /
2 KGS-M220B-00X TAPE 2, X DUCT 1 /
3 KGS-M220C-00X TAPE 3, X DUCT 1 /
4 KGS-M2213-S1X PLATE A, X AXIS 1 SET /
5 91317-05008 BOLT HEX.SOCKET HEAD 4 /
6 KGS-M2236-00X PLATE A 1 /
6-1 KGS-M2236-01X PLATE A 1 (2007/1/8) OK /
6-2 KGS-M2236-02X PLATE A 1 (2007/1/30) OK /
7 91317-04008 BOLT HEX. SOCKET HEAD 13 /
8 91317-04010 BOLT HEX. SOCKET HEAD 20 /
9 KGS-M2239-00X BRACKET 1 2 /
10 KGS-M2252-00X STOPPER 1 /
11 KGS-M2256-00X GRIP 1 /
12 KGS-M2267-A0X CABLE, DUCT 1 B
13 KGS-M226A-00X COVER CABLE 1 /
14 KGS-M2282-00X DOG, ORG 1 /
15 KGS-M2283-00X DOG, 2ND LIMIT 2 /
16 KGS-M2291-00X BRACKET, SENSOR 1 /
17 KGR-M220A-00X SENSOR, ORG (L=300) 1 B
18 KGR-M220B-00X SENSOR, OT (L=300) 1 B
19 KGT-M221A-A0X COVER, DUCT ASSY 1 /
19-1 KHY-M221A-A0X COVER, DUCT ASSY 1 (2008/12/7)
OK /
20
21 KGT-M2266-10X PLATE, NUT 2 /
22 KGT-M2268-00X BRACKET 1, TAPE 1 /
22-1 KHY-M2268-00X BRACKET 1, TAPE 1 (2008/12/7) OK /
23 KGT-M2269-00X BRACKET 2, TAPE 1 /
24 KM0-M2251-00X NYLOCK BOLT 16 M8X22L /
24-1 90990-01J024 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) OK /
25 KV7-M2231-00X SPACER R, NUT 4 /
26 KV7-M2253-00X WASHER,SPRING 16 /
26-1 90990-38J001 WASHER,SPRING 16 (2008/4/15) OK /
27 KV7-M226B-00X PLATE 2 /
28 KV7-M2663-00X NYLOCK BOLT 16 M5X16 /
28-1 90990-01J030 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) OK /
29 $UL8 JOINT 2 /
30 $US8 JOINT 2 /
31 $2TE8-R URETHANE TUBE 6500 MM /
31-1 $2UB08-2F-R URETHANE TUBE 6500 MM (2008/11/11) OK /
32 91317-05010 BOLT HEX. SOCKET HEAD 6 /
33 91317-06012 BOLT HEX. SOCKET HEAD 8 /
34 91317-06030 BOLT HEX. SOCKET HEAD 4 /
35 92907-04200 WASHER, PLAIN 4 /
36 92907-10200 WASHER, PLAIN 1 /
37 97604-04308 SCREW,PAN HEAD W/W 6 /
37-1 97602-04308 SCREW,PAN HEAD W/W 6 (2006/2/14) OK /
37-2 90990-11J003 SCREW,PAN HEAD W/W 6 (2006/3/13) OK /
38 98707-04008 SCREW,FLAT HEAD (+) 4 /
38-1 98707-04010 SCREW,FLAT HEAD (+) 4 (2005/5/13) OK /
39 98907-03005 SCREW BINDING HEAD 4 /
39-1 98902-03006 SCREW BINDING HEAD 4 (2007/7/9) OK /
40 98907-03010 SCREW BINDING HEAD 2 /
41 KGS-M2278-00X COVER UNDER,GUIDE 1 /
42 91317-05008 BOLT HEX.SOCKET HEAD 4 /
43 KHW-M22C6-00X COVER X FRAME UNDER 1 (2007/6/8) /

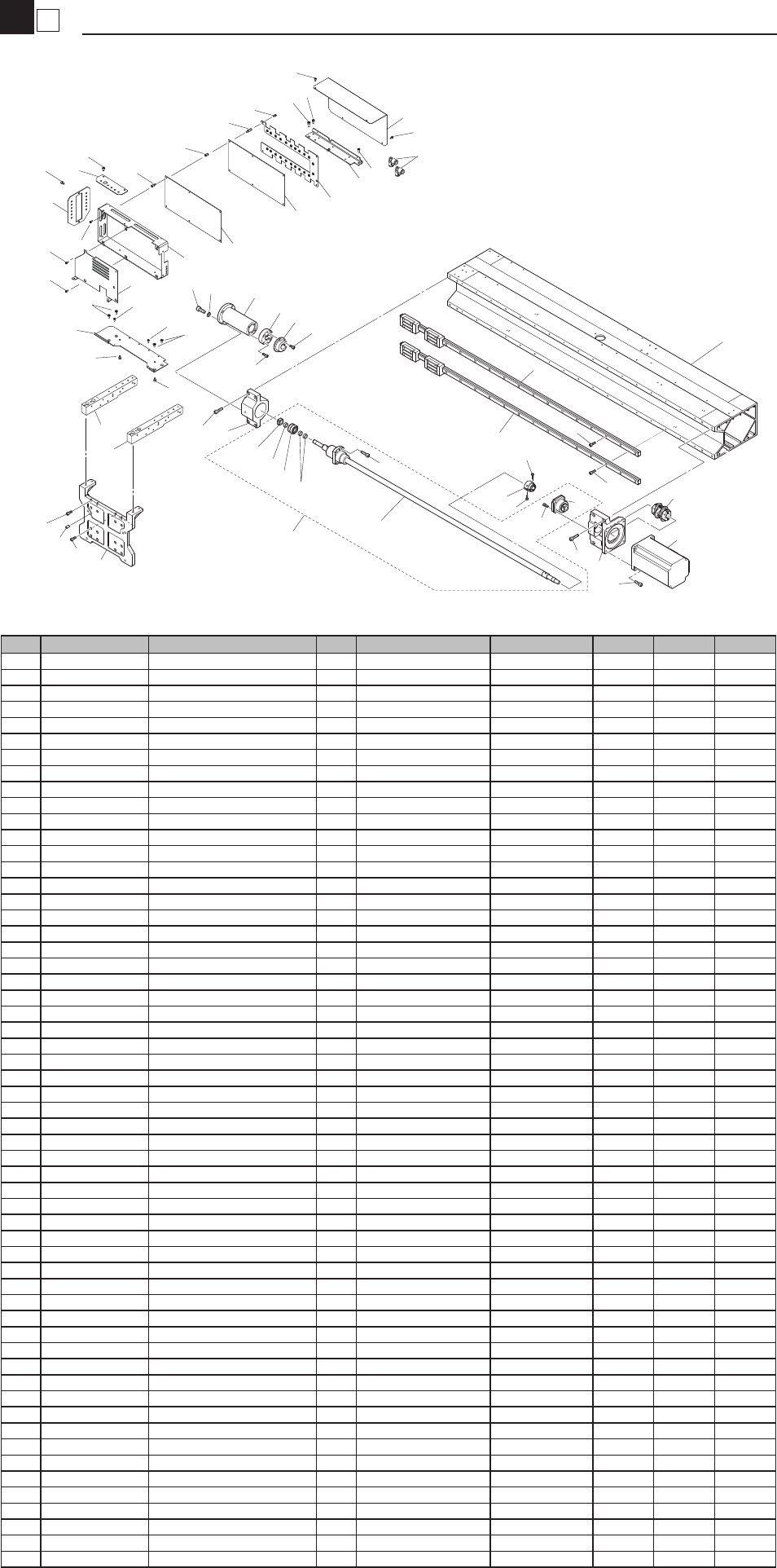

2
4
X-axis sub/Head Servo
Moving-axis
KGS-1109
32
32
6
23
31
23
22
24
28
4
18
17
5
17
26
7
33
14
16
15
30
27
1
27
3
29
25
25
20
24
13
10
13
9
8
2
9
19
37
43
22
46
43
22
12
35
47
48
34
43
42
40
41
39
44
44
38
43
43
43
45
36
43
11
44
43
45
44
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGS-M2211-01X FRAME X AXIS 1 /
2 KM0-M2220-00X COUPLING, X-AXIS 1 /
3 KGS-M2241-00X HOLDER, MOTOR X 1 /
4 KGS-M2242-00X HOLDER, BRG X 1 /
5 KGS-M2245-00X BRG.,ANGULAR 1 A
5-1 90990-26J008 BEARING 1 (2007/12/6) OK A
6 KGS-M2261-00X HOLDER,HEAD 1 /
6-1 KGR-M2261-00X HOLDER,HEAD 1 (2005/4/20) OK /
7 KGS-M2271-00X SCREW BALL X AXIS 1 A
7-1 KGS-M2271-01X SCREW BALL X AXIS 1 (2005/5/12) OK A
7-2 KHW-M2271-00X SCREW BALL, X AXIS 1 (2007/7/19) OK A
8 90K63-511403 AC SERVO MOTOR 1 B
8-1 90K65-511403 AC SERVO MOTOR 1 (2013-11-22) OK B
9 KGS-M2276-S0X X-AXIS GUIDE SET 1 A
10 KGA-M2649-41X DAMPER 24 2 /
11 KGS-M2237-00X PLATE B 1 /
12 KGS-M2238-00X PLATE C 1 /
12-1 KGS-M2238-01X PLATE C 1 (2006/6/21) OK /
13 KGA-M2649-00X NYLOCK BOLT 2 M2.6X10 /
13-1 90990-01J023 BOLT,HEX.SOCKET HEAD 2 (2007/10/29) OK /
14 KGS-M2248-00X
DAMPER 1 /
15 KGS-M2240-00X SLEEVE, BRG. 1 /
16 KGS-M2244-00X COVER, BRG. 1 /
17 KV7-M2648-00X SPACER 3 /
17-1 90990-41J100 COLLAR 3 (2008/4/11) OK /
18 KG2-M9173-00X LOCK NUT 1 /
19 $UL8 JOINT 2 /
20 KV7-M2604-00X SUPPORT UNIT 1 /
21 KGS-M220A-30X TAPE X-AXIS 1 /
22 91317-04008 BOLT HEX. SOCKET HEAD 13
23 91317-04010 BOLT HEX. SOCKET HEAD 20
24 91317-04014 BOLT HEX. SOCKET HEAD 8
25 KV7-M2251-00X NYLOCK BOLT(M4X16) 34
25-1 91317-04016 BOLT HEX.SOCKET HEAD 34 (2005/2/7) OK
26 91317-05018 BOLT HEX. SOCKET HEAD 4
27 91317-06018 BOLT HEX. SOCKET HEAD 8
28 91317-06020 BOLT HEX. SOCKET HEAD 4
29 91317-06025 BOLT HEX. SOCKET HEAD 4
30 92903-06100 WASHER SPRING 4 /
31 99480-06012 PIN, PARALLEL 2 /
32 KGS-M2239-00X BRACKET 1 2 /
33 KGS-M2271-A0X X-AXIS B.S.SUB ASSY 1 Spare parts (2009/4/23) A
34 KGS-M223A-01X FRAME,HEAD SERVO 1 /
35 KGS-M223B-01X COVER,HEAD SERVO 1 /
36 KGS-M223C-01X COVER,HEAD I/O 1 /
37 KGS-M223D-01X COVER,FRAME 1 /
38 KGS-M223E-00X STAY,CABLE 1 /
39 KGS-M223K-00X STAY,CABLE
1 /
40 90562-03J100 SPACER 6 /
41 90563-03J100 SPACER BOLT 6 /
42 90563-23J140 SPACER BOLT 6 /
43 91317-03006 BOLT HEX.SOCKET HEAD 20
44 91317-04006 BOLT HEX.SOCKET HEAD 8
45 98707-04010 SCREW,FLAT HEAD (+) 4
46 91317-05010 BOLT HEX. SOCKET HEAD 1
47 KGS-M5840-00X SERVO BOARD ASSY 1 B
48 KGS-M4570-01X I/O HEAD BOARD ASSY 1 B
