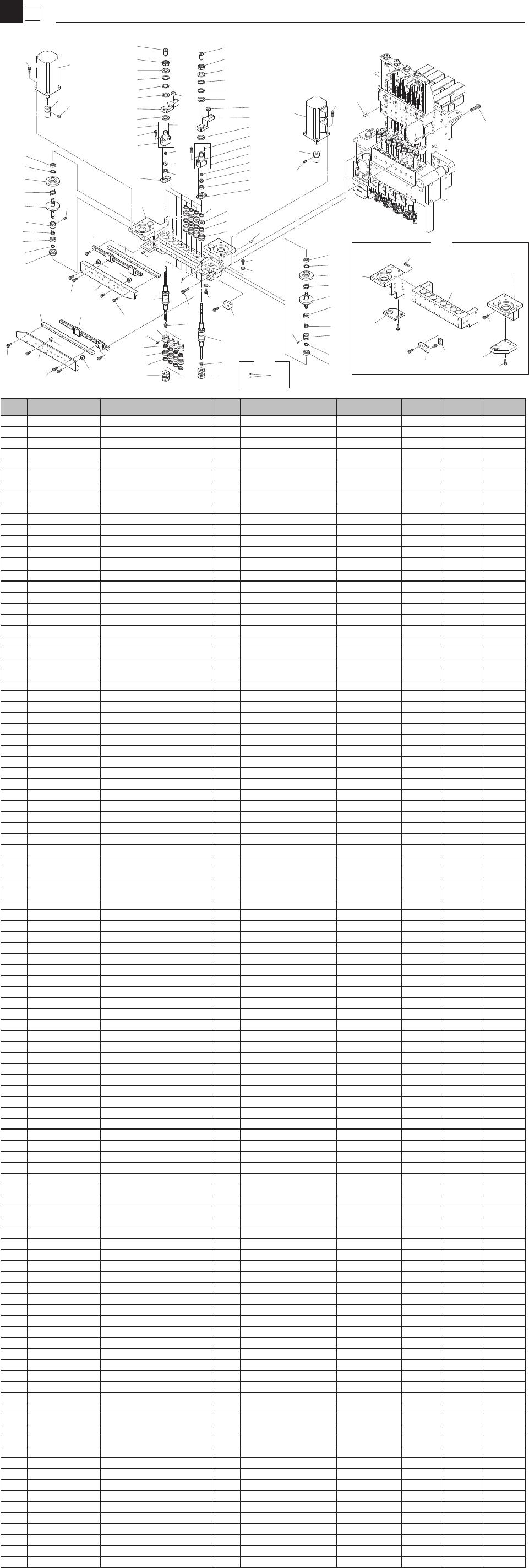

KGS_YG100_rev_Mainte_downsized - 第19页
2 5 R Assy . Head KGS-1 109 1 48 2 2 6 59 59 24 35 29 29 23 23 23 28 28 56 48 49 47 54 53 51 52 52 50 56 49 54 53 51 52 52 57 58 46 3 5 33 3 4 4 20 22 19 21 41 41 38 22 38 19 27 8 17 16 18 13 12 3 5 61 34 33 10 26 18 9 1…
1
5

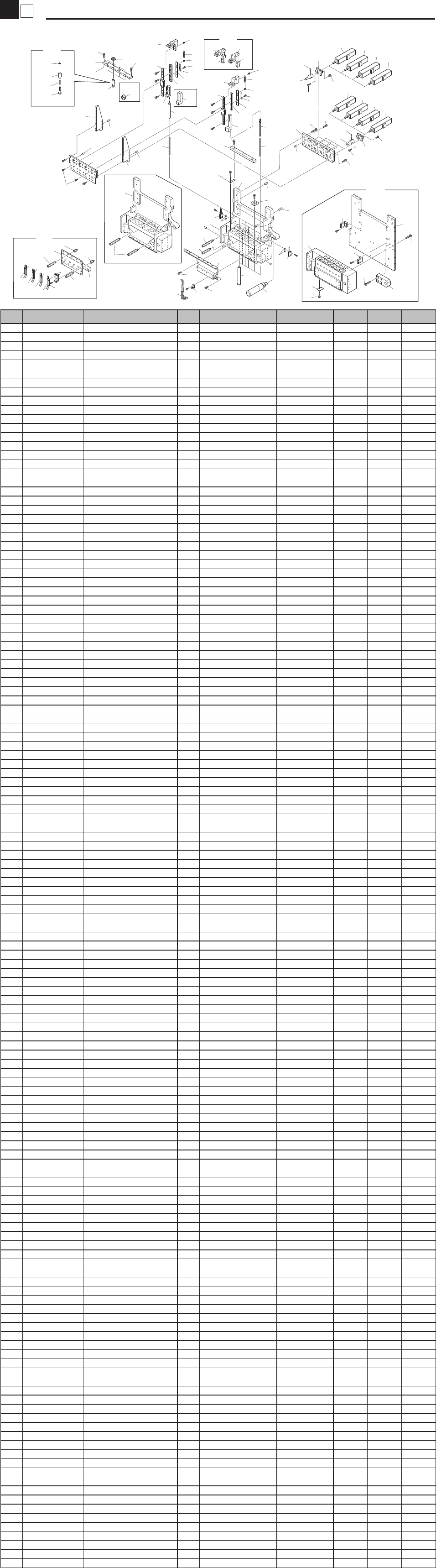

Housing Assy./Z Assy.
Head
KGS-1109
43
44
58
58
26
54
15
15
46
48
50
52
44
45
47
49
51
43
55
55
61
59
59
31
12
13
30
40
40
41
33
4
71
42
89
32
5
20
20
7
7
8
8
11
11
29
31
34
68
30
29
2
24
67
28
56
3
40
40
41
42
88
32
5
35
27
36
37
38
53
59
59
1
14
6
18
87
39
69
66
66
84
54
85
27
54
54
83
86
83
SF
SF
70
79
23
23
24
24
10
9
72
70
78
75
77
74
76
73
25
SF
OLD
OLD
81
81
82
OLD
OLD
89
62
88
63
87
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGS-M7111-02X PLATE,HEAD 1 /
1-1 Delete (2006/8/1)
2 KGS-M7112-02X HOUSING, SHAFT 1 /
2-1 Delete (2006/8/1)
3 KGS-M7113-02X DAMPER, Z DOWN 1 /
4 KGS-M7115-02X SLEEVE,SPRING 8 /
4-1 KGS-M7115-03X SLEEVE,SPRING 8 (2006/8/1) /
5 KGS-M7116-00X SPRING, RETURN 8 /
6 KGS-M711C-00X PLATE, HOUSING 8 /
7 KGS-M7119-00X BLOCK, S SENSOR 2 /
8 KV8-M71VS-00X COLLAR, SENSOR 4 /
8-1 90990-41J066 COLLAR 4 (2008/4/17) OK /
9 KGS-M653H-A0X SENSOR, POS 1-2 ASSY 1 FNC B
9-1 Delete (2006/8/1)
10 KGS-M653J-A0X SENSOR, POS 2-2 ASSY 1 FNC B
10-1 Delete (2006/8/1)
11 KGS-M653A-A0X SENSOR, Z DOWN ASSY 1 FNC, SF (SPARE) B
12 KGS-M711B-00X STAY, HANDLE 1 /
13 KGS-M2256-00X GRIP 1 /
14 99480-04010 PIN PARALLEL: 4X10 6 /
14-1 99480-04010 PIN PARALLEL: 4X10 4 (2006/8/1) /
14-2 99480-04012 PIN,PARALLEL 4 (2007/8/22) OK /
15 99480-04014 PIN, PARALLEL 2 /
16 92907-03200 WASHER PLAIN 1 /
16-1
92907-03200 WASHER PLAIN 11 (2006/8/1) /
16-2 92907-03200 WASHER PLAIN 12 (2006/10/16) OK /
17 91317-03008 BOLT HEX. SOCKET HEAD 1 /
17-1 90115-02J008 BOLT HEX.SOCKET HEAD 4 (2006/8/1) /
18 91317-03006 BOLT HEX. SOCKET HEAD 23 /
19 91317-04040 BOLT HEX. SOCKET HEAD 4 /
20 91317-05016 BOLT HEX. SOCKET HEAD 3 /
21 91317-05008 BOLT HEX. SOCKET HEAD 4 /
22 91317-06018 BOLT HEX. SOCKET HEAD 4 /
23 90563-04J120 SPACER 5 /
23-1 Delete (2006/7/7)
24 90563-04J360 SPACER 3 FNC, SF /
25 KGS-M711J-02X SPACER 2 SF /
25-1 90563-04J480 SPACER 2 SF (2006/7/7) OK /
26 KGS-M7121-02X PLATE, Z MOTOR 1 /
27 KGS-M7122-02X PLATE, Z STAND 2 /
28 KGS-M7123-02X PLATE,Z GUIDE 1 /
28-1 KGS-M7123-03X PLATE,Z GUIDE 1 (2006/8/1) /
29 KGS-M7124-02X GUIDE, Z 8 /
30 KGS-M7125-00X RACK, MAIN Z 8 /
31 KGS-M7126-00X RACK, SUB Z 8 /
32 KGS-M7127-02X SPRING, RACK 8 /
33 KGS-M7129-02X ARM L, Z AXIS 4 /
33-1 KGS-M7129-03X ARM L,Z AXIS 4 (2006/8/1) /
34 KGS-M712A-02X ARM S, Z AXIS 4 FNC /
34-1 KGS-M712A-03X ARM S,Z AXIS 4 FNC (2006/8/1) /
35 KGS-M712B-02X BLOCK, STOPPER Z 1 /
36 KGS-M712C-00X BODY,DAMPER 4 FNC /
36-1 KGS-M712C-01X BODY,DAMPER 4 FNC 2007/2/1 NG /
37 KGS-M712D-00X SHAFT,DAMPER 4 FNC /
37-1 KGS-M712D-01X SHAFT,DAMPER 4 FNC 2007/2/1 NG /
38 KGS-M712E-00X NUT,MOUNT 4 FNC /
38-1 90990-15J011 NUT,HEXAGON 4 FNC (2007/11/21) OK /
39 KGS-M712F-00X SPRING,DAMPER 4 FNC /
39-1 KGS-M712F-01X SPRING,DAMPER 4 FNC 2007/2/1 NG /
40 KGS-M712G-00X POST, SPRING S 16 /
41 KGS-M712H-00X PIN,RACK 16 /
41-1 KGS-M712H-01X PIN,RACK 16 2007/8/28 SET /
41-2 90990-43J006 PIN 16 (2008/6/3) OK /
42 KGS-M712K-02X GUIDE, SPRING 8 /
43 KGS-M712L-00X PINION, Z 8 A
44 KGS-M712M-00X BRACKET, MOTOR 8 /
45 KGS-M4880-00X AC SERVO MOTOR Z1 1 B
45-1 90K6A-012203 AC SERVO MOTOR Z1 1 (2006/10/24) OK B
46 KGS-M4880-10X AC SERVO MOTOR Z2 1 B
46-1 90K6A-01C204 AC SERVO MOTOR Z2 1 (2006/10/24) OK
B
47 KGS-M4880-20X AC SERVO MOTOR Z3 1 B
47-1 90K6A-012205 AC SERVO MOTOR Z3 1 (2006/10/24) OK B
48 KGS-M4880-30X AC SERVO MOTOR Z4 1 B
48-1 90K6A-01C206 AC SERVO MOTOR Z4 1 (2006/10/24) OK B
49 KGS-M4880-40X AC SERVO MOTOR Z5 1 B
49-1 90K6A-012207 AC SERVO MOTOR Z5 1 (2006/10/24) OK B
50 KGS-M4880-50X AC SERVO MOTOR Z6 1 B
50-1 90K6A-01C208 AC SERVO MOTOR Z6 1 (2006/10/24) OK B
51 KGS-M4880-60X AC SERVO MOTOR Z7 1 B
51-1 90K6A-012209 AC SERVO MOTOR Z7 1 (2006/10/24) OK B
52 KGS-M4880-70X AC SERVO MOTOR Z8 1 B
52-1 90K6A-01C210 AC SERVO MOTOR Z8 1 (2006/10/24) OK B
53 90440-10J025 CIRCLIP 4 FNC /
54 99480-03010 PIN, PARALLEL 28 /
55 92A08-04305 SET SCREW M4X5 8 /
55-1 92A08-04304 SET SCREW M4X4 8 (2007/8/8) OK /
56 90115-02J005 BOLT, HEX S. H 32 /
57 90115-2AJ005 BOLT, HEX. SOCKET HEAD 8 /
58 91317-03008 BOLT HEX. SOCKET HEAD 16 /
59 91317-03012 BOLT HEX. SOCKET HEAD 8 /
60
61 91317-04016 BOLT HEX. SOCKET HEAD 4
/
62 KGS-M715B-02X BRACKET, SF ARM 4 /
62-1 Delete (2006/12/13)
63 KGS-M715C-02X BRACKET, FNC ARM 4 /
63-1 Delete (2006/12/13)
64 90115-2AJ012 BOLT,HEX.SOCKET HEAD 24 /
64-1 90115-2AJ010 BOLT,HEX.SOCKET HEAD 24 (2005/7/27) OK /
64-2
90115-2AJ010 BOLT,HEX.SOCKET HEAD 16 (2007/8/22) OK /
65 90115-2AJ015 BOLT, HEX. SOCKET HEAD 8 /
65-1
Delete (2007/8/22)
66 98702-03008 SCREW FLAT HEAD 16 /
67 90563-04J520 SPACER 1 /
68 KGS-M712A-52X ARM SF,Z AXIS 4 SF /
68-1 KGS-M712A-53X ARM SF,Z AXIS 4 SF (2006/8/1) /
69 KGS-M712C-52X BOLT,STOPPER 4 SF /
69-1 90990-33J003 BOLT,STOPPER 4 SF (2008/6/18) OK /
70 KGS-M71C1-02X PLATE,BRACKET AMP 1 /
70-1 KGS-M71C1-03X PLATE,HNS. 1 2006/9/29 NG /
71 KGS-M71C6-00X BLOCK,BRACKET AMP 1 /
71-1 Delete 2006/9/29
72 KGT-M71VD-00X BRACKET,AMP 8 /
72-1 Delete 2006/9/29
73 KGS-M653H-B0X SENSOR, POS 1-4 ASSY 1 APT-N01K(YAMATAKE) B
74 KGS-M653H-C0X SENSOR, POS 1-6 ASSY 1 APT-N02K(YAMATAKE) B
75 KGS-M653H-D0X SENSOR, POS 1-8 ASSY 1 APT-N03K(YAMATAKE) B
76 KGS-M653J-B0X SENSOR, POS 2-4 ASSY 1
APT-N01KF(YAMATAKE) B
77 KGS-M653J-C0X SENSOR, POS 2-6 ASSY 1 APT-N00KF(YAMATAKE) B
78 KGS-M653J-D0X SENSOR, POS 2-8 ASSY 1 APT-N01KF(YAMATAKE) B
73_78-1 Delete (2006/8/1)
79 KGS-M653K-00X SENSOR, POS SPARE 8 E2E-CR6B2-1(OMRON) (2006/7/4) NG B
80
81 91317-04008 BOLT HEX.SOCKET HEAD 6 (2006/8/1) /
81-1 91317-04008 BOLT HEX.SOCKET HEAD 12 (2006/10/16) OK /
81-2 91317-04008 BOLT HEX.SOCKET HEAD 10 (2007/8/22) OK /
82 NK-4N NYLON CLIP 4 /
83 KGS-M7111-03X HOUSING, MAIN 1 /
84 KGS-M711H-00X DAMPER SPARE 4 FNC /
85 KGS-M714T-04X PLATE, STOPPER 4 /
86 KGS-M714U-00X PLATE 2, STOPPER 1 /
87 KGS-M712N-00X SPRING, RACK 8 2007/8/28 SET /
88 KGS-M7154-02X ARM,FNC 4 /
88-1 KGS-M7154-03X ARM,FNC 4 2007/8/21 NG /
89 KGS-M7153-02X ARM,SF 4 /
89-1 KGS-M7153-03X ARM,SF 4 2007/8/21 NG /
90
KGS-M712P-00X SPARE Z AXIS 1
4
SPARE (2012/10/23) C
91
KGS-M712R-00X SPARE Z AXIS 2
4
SPARE (2012/10/23) C
2
5
R Assy.
Head
KGS-1109
1
48
2
2
6
59
59
24
35
29
29
23
23
23
28
28
56
48
49
47
54
53
51
52
52
50
56
49
54
53
51
52
52
57
58
46
3
5
33
3
4
4
20
22
19
21
41
41
38
22
38
19
27
8
17
16
18
13
12
3
5
61
34
33
10
26
18
9
17
13
11
3
62
36
5
61
34
33
16
7
65
14
14
5
67
63
32
55
32
55
50
65
65
40
57
58
33
62
6
31
31
45
37
37
35
64
30
OLD
OLD
6
24
25
43
44
1
68
68
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGS-M7131-01X HOUSING,R AXIS 1 /
1-1 KGS-M7131-02X HOUSING,R AXIS 1 (2005/4/22) /
1-2 KGS-M7131-03X HOUSING,R AXIS 1 (2006/8/1) /
2 KGS-M7132-02X SPLINE,SHAFT 8 C
2-1 KGS-M7132-03X SPLINE,SHAFT 8 (2007/1/23) OK C
3 KGS-M7133-00X GEAR2,R 10 A
3-1 KGS-M7133-01X GEAR2,R 10 (2007/2/20) A
4 KGS-M7134-00X GEAR1,R 8 A
4-1 KGS-M7134-01X GEAR1,R 8 (2007/2/20) A
5 KGS-M7135-00X SPRING,TORSION 10 A
5-1 KGS-M7135-01X SPRING,TORTION 10 (2007/2/20) A
6 KGS-M7139-00X O-RING 16 E
6-1 KGS-M7139-03X PACKING 8 (2006/9/27) OK E
6-2 90990-22J024 PACKING 8 Black (2007/12/4) OK E
6-3 90990-22J027 PACKING 8 White (2014/3/3) OK E
7 KGS-M713B-00X HOLDER, MOTOR RR 1 /
7-1 Delete (2006/8/1)
8 KGS-M713C-02X HOLDER, MOTOR RL 1 /
8-1 Delete (2006/8/1)
9 KGS-M713D-00X PLATE, BRG. R 1 /
9-1 Delete
(2006/8/1)
10 KGS-M713E-00X PLATE, BRG. L 1 /
10-1 Delete (2006/8/1)
11 KGS-M713F-00X RED. GEAR 1R 1 A
12 KGS-M713G-00X RED. GEAR 1L 1 A
13 KGS-M713H-00X RED. GEAR 2 2 A
14 KGS-M713J-00X SPRING, TORSION 2 A
16 90933-03J696 BEARING 2 (2006/8/1) A
17 90933-02J606 BEARING 2 (2006/8/1) A
18 KGS-M713K-00X GEAR, R MOTOR 2 A
19 KGS-M713L-00X RACK, R AXIS 2 A
20 KGS-M713M-00X PLATE,R AXIS R 1 /
20-1 KGS-M713M-03X PLATE,R AXIS R 1 (2006/8/1) /
21 KGS-M713N-02X PLATE,R AXIS L 1 /
21-1 KGS-M713N-03X PLATE,R AXIS L 1 (2006/8/1) /
22 KGS-M713P-00X GUIDE, R 2 A
23 KGS-M713R-00X STOPPER,R 4 /
23-1 KGS-M713R-03X STOPPER,R 4 (2006/8/1) /
24 KGS-M713S-00X HOLDER, DAMPER R 1 /
24-1 KGS-M713S-03X DAMPER R 1 (2006/8/1) /
25 KGS-M713T-00X DAMPER, Z UP 1 /
25-1 Delete (2006/8/1)
26 KGS-M4882-00X AC SERVO MOTOR R1 1 B
26-1 90K6C-025F11 AC SERVO MOTOR R1 1 (2006/10/24) OK B
27 KGS-M4882-11X AC SERVO MOTOR R2
1 B
27-1 90K6C-02E412 AC SERVO MOTOR R2 1 (2006/10/24) OK B
28 $TSH4-M5M JOINT 8 /
29 90990-18J005 PIN PARALLEL 4 /
30 99480-03010 PIN, PARALLEL 8 /
30-1 Delete (2006/8/1)
31 99480-04010 PIN PARALLEL: 4X10 2 /
32 90933-02J604 BEARING 8 A
33 99009-08400 CIRCLIP : 10 /
34 99009-10400 CIRCLIP : 2 /
35 92907-03200 WASHER PLAIN 18 /
35-1 92907-03200 WASHER PLAIN 22 (2006/10/16) OK /
36 90990-02J007 SET,SCREW 16 /
36-1 92A08-03303 SET SCREW M3X3 16 (2006/10/16) /
37 90990-02J008 SET SCREW 4 /
37-1 92A08-04303 SET SCREW 4 (2007/8/22) /
38 90115-02J005 BOLT, HEX S. H 8 /
40 91317-03012 BOLT HEX. SOCKET HEAD 12 /
40-1 Delete (2006/8/1)
41 91317-03014 BOLT HEX. SOCKET HEAD 16 /
43 91317-04014 BOLT HEX. SOCKET HEAD 2 /
43-1 Delete (2006/8/1)
44 91317-04020 BOLT HEX. SOCKET HEAD 4 /
44-1 Delete (2006/8/1)
45 91317-05014 BOLT HEX. SOCKET HEAD 4 /
46 KGS-M7153-02X ARM, SF 4 C
47 KGS-M7154-02X ARM, FNC 4 C
47-1 KGS-M7154-03X ARM, FNC 4 Casting (2006/12/11) NG C
48 KGS-M7155-02X HOLDER 8 H=30mm /
48-1 KGS-M7155-03X HOLDER 8 H=28mm (2006/12/13) Set /
49 KGS-M7156-02X PLATE,BRG. 8 /
49-1 KGS-M7156-03X PLATE,BRG. 8 (2006/12/13) Set /
50 90990-22J009 PACKING 8 E
51 KGS-M715A-02X WAVE WASHER 8 /
52 KGS-M7157-02X SPACER 16 /
52-1 KGS-M7157-03X SPACER 16 (2006/12/13) Set /
52-2 90990-28J045 WASHER,PLAIN 16 (2007/12/20) OK /
53 KGS-M7158-02X WASHER 8 /
53-1 90990-29J033 SHIM 8 (2008/1/17) OK /
54 KGS-M7159-02X PUSH WASHER 8 /
54-1 KGS-M7159-03X PUSH WASHER 8 (2007/10/17) OK /
54-2 90990-28J046 WASHER,PLAIN 8 (2007/12/20) OK /
55 95604-04100 NUT U 8 /
55-1 95602-04100 NUT U 8 (2006/1/10) OK /
55-2 KGS-M713X-00X NUT,NYLON 8 (2006/11/22) OK /
55-3 90990-15J003 NUT,HEXAGON 8 (2007/11/2) OK /
56 90990-16J001 NUT U 8 /
56-1 90990-16J002 NUT,U 8 (2006/2/3) OK
/
57 91609-12006 PIN SPRING 8 /
58 KGS-M713T-00X DAMPER,Z UP 1 /
58-1 KGS-M712J-00X DAMPER,Z UP 8 (2006/8/7) /
59 KGS-M713U-00X COUPLING 8 C
59-1 KGS-M713U-02X COUPLING 8 (2005/9/20) NG C
61 KGS-M713V-01X GEAR, R 2 A
62 92A08-04303 SET SCREW 4 (2006/8/1) /
63 91317-03006 BOLT HEX.SOCKET HEAD 4 (2007/8/22) /
64 91317-03008 BOLT HEX.SOCKET HEAD 26 (2007/8/22) /
65 91317-03010 BOLT HEX.SOCKET HEAD 32 (2006/8/1) /
66 91317-04006 BOLT HEX.SOCKET HEAD 2 (2006/8/1) /
67 91317-05020 BOLT HEX.SOCKET HEAD 4 (2006/8/1) /
68 KGS-M7155-A0X HOLDER 1 Spare (2012/12/13) C
3
5
Shaft Head Sub Assy.
Head
KGS-1109
YG100A
YG100B
9
10
11
8
28
26
1
14
22
14
16,17,18
19
20
27
24
25
25
21
23
6, 7
15
5
2
4
4
3
3
2
KGS-M711S-A0X
FNC SHAFT. SPARE
(No. , , ,
)
KGS-M711S-B0X
FNC SHAFT. SPARE
(circle nozzle)
(No. , , ,
)
KGS-M713S-A1X
SF. SHAFT. SPARE
(No. ~
)
KGS-M713S-A1X
S.T.D SHAFT. SPARE
(No. , , ,
)
5
5
2
4
4
3
3
2
5
9
10
11
8
28
26
1
14
22
14
16,17,18
19
20
27
24
25
25
21
23
6, 7
15
12
12
29
29
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGS-M7141-A0X SHAFT, MAIN ASSY 4 C
2 KG7-M7137-A0X LEAF SPRING 8 E
3 KG7-M7169-00X SCREW 8 E
3-1 90990-08J024 SCREW 8 (2008/12/9) OK E
4 90990-28J002 WASHER PLAIN 8 E
5 KGS-M714W-03X PLATE,SPRING 8 E
6 KV8-M711N-A0X NOZZLE ASSY. 4 C
7 KV8-M712N-A0X NOZZLE ASSY. 4 (circle nozzle) C
8 KGS-M7149-01X HOLDER, BEARING 4 /
9 KGS-M714A-00X COLLAR, BEARING 4 /
10 KGS-M714B-00X BEARING 4 /
10-1 90990-25J011 BEARING 4 (2007/12/4) OK /
11 KGS-M714C-00X SLEEVE, BEARING 4 /
12 KGS-M7141-B1X SHAFT,MAIN ASSY 4 C
13
14 KGS-M714F-00X CAM 2 /
14-1 KHW-M714F-00X CAM 2 (2014/7/23) OK /
15 KV8-M71X1-00X SPG. LOCATE 1 E
16 KV8-M71R1-10X SHAFT 1 1 SEL. C
17 KV8-M71R1-20X SHAFT 1 1 SEL. C
18 KV8-M71R1-30X SHAFT 1 1 SEL. C
19
KV8-M71R2-01X BLOCK, STOPPER 1 /
20 KV7-M71M6-01X SCREW,NOZZLE 2 E
20-1 90990-09J004 SCREW,FLAT HEAD 2 (2007/11/9) OK E
21 KV8-M71R5-02X PIN, LOCATE 1 E
22 KGB-M71RA-00X BEVEL-GEAR 1 1 /
23 KV8-M71RB-10X BEVEL-GEAR 2 ASSY. 1 /
23-1 KV8-M71RB-11X BEVEL-GEAR 2 ASSY. 1 (2007/7/10) OK /
24 KV8-M71RC-00X PIN, CAM 2 E
25 90440-10J008 CIRCLIP 4 E
26 KV8-M71RE-00X WASHER 1 /
26-1 90990-28J077 WASHER,PLAIN 1 (2007/12/18) OK /
27 KV8-M71RH-00X SEAL,INDEX 1 E
27-1 Delete (2008/4/8)
28 99009-12800 CIRCLIP 1 /
29 91317-03010 BOLT HEX. SOCKET HEAD 8 /
