4 7 Stopper (Main) Conveyor KGS-1 109 25 27 30 31 26 26 25 28 27 30 31 1 6 20 2 3 22 22 21 7 8 16 18 4 9 9 17 5 10 17 19 19 14 15 15 15 14 13 11 19 19 Main Stopper OLD 12 32 32 12 11 32 25 27 31 30 26 28 29>28 9 9 9 N…
3
7

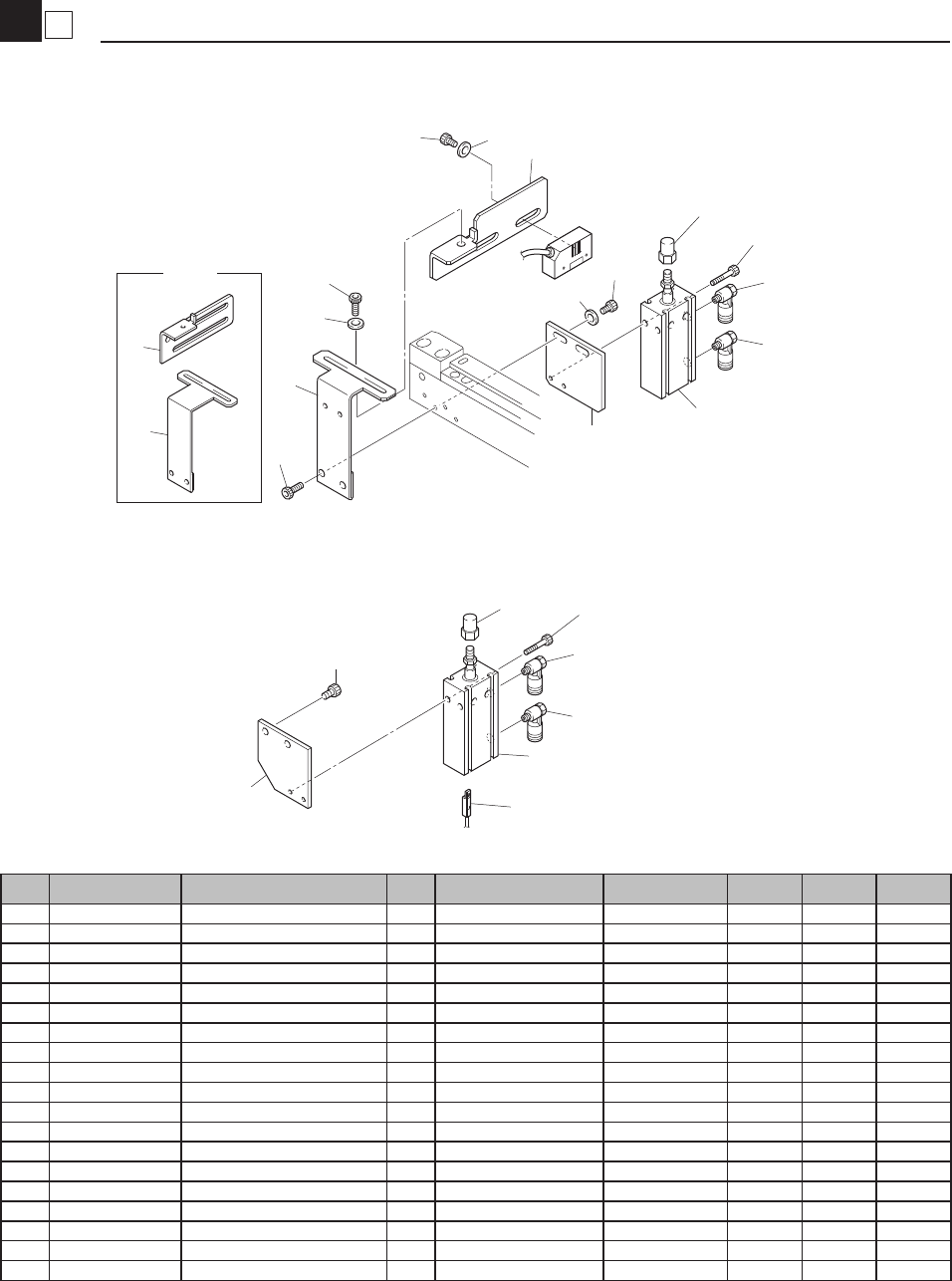

Stopper(Exit/Sub,Fixed)
Conveyor Unit
KGS-1109
9
2
16
8
7
10
Sub Stopper, Fixed
EXIT Stopper
6
5
10
12
11
1
3
4
4
9
2
13
14
1415
4
4
5
6
OLD
L type and the R type are the same parts
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGS-M9271-00X PLATE,STOPPER 1 /
2 KV7-M9282-00X STOPPER,SUB 2 /
3 KV7-M9283-00X CYL.,YMDA16X35 1 B
4 $SL4-M5 JOINT 4 /
5 KGS-M9144-00X BRACKET 3,SENSOR 1 /
5-1 KGS-M9144-01X BRACKET 3,SENSOR 1 2007/6/27 NG /
6 KG7-M912A-00X BRACKET,SENSOR 1 /
6-1 KGS-M912A-00X BRKT.,SENSOR 1 2007/6/27 NG /
7 KGS-M9281-01X PLATE,STOPPER 1 /
7-1 KGS-M9281-02X PLATE,STOPPER 1 (2006/3/2) OK /
8 KGS-M928B-00X SENSOR.,SUB 9 B
9 91317-04035 BOLT HEX.SOCKET HEAD 4 M4X35 /
10 91317-04010 BOLT HEX.SOCKET HEAD 4 M4X10 /
11 91317-04008 BOLT HEX.SOCKET HEAD 2 M4X8 /
12 91317-03006 BOLT HEX.SOCKET HEAD 1 M3X6 /
13 92907-04200 WASHER PLAIN 2 M4 /
14 92907-03200 WASHER PLAIN 3 M3 /
15 91317-03010 BOLT HEX.SOCKET HEAD 2 M3X10 /
16 KGS-M9283-00X CYL., YMDAS16X35 1 B
4
7

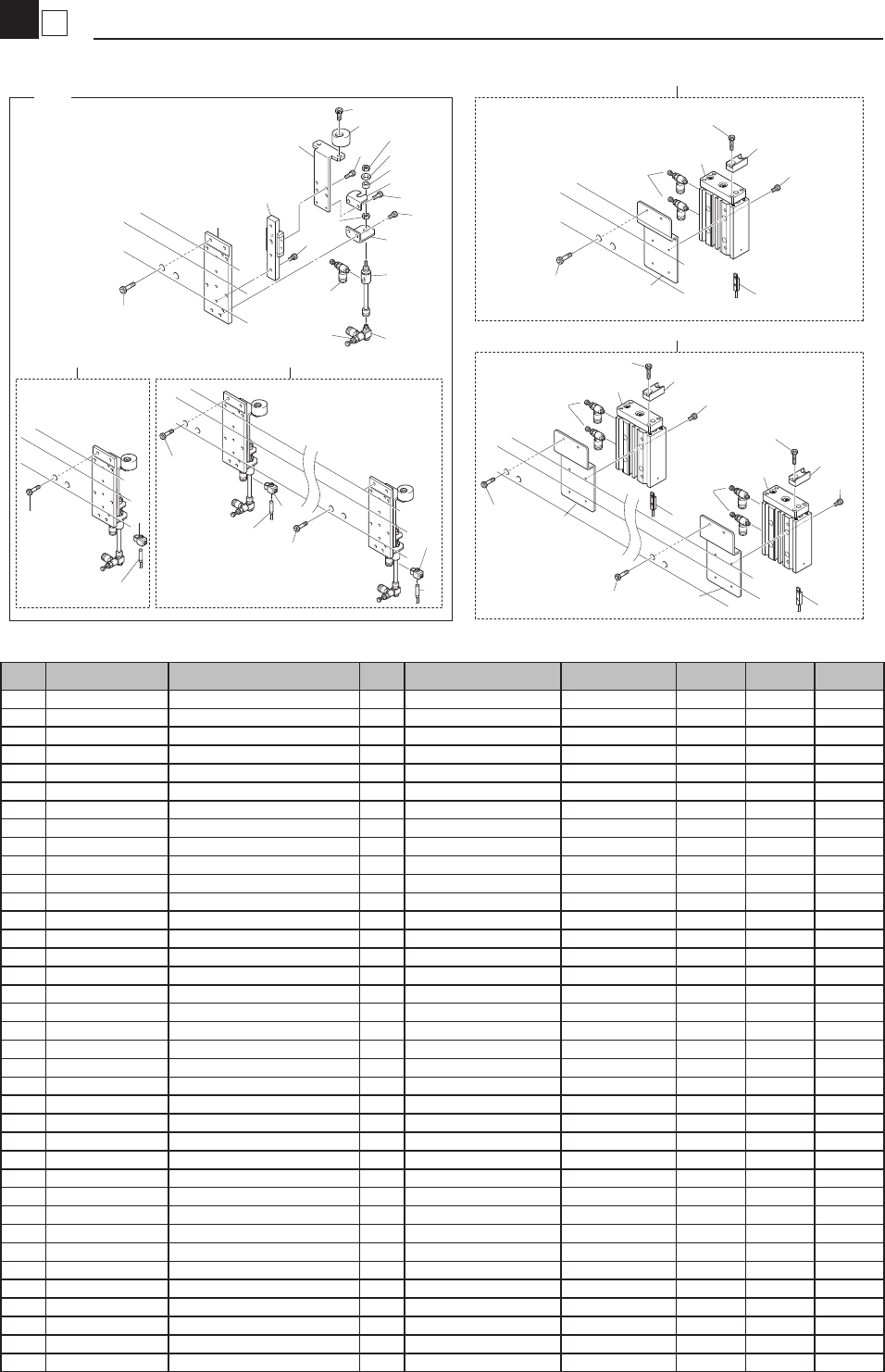

Stopper (Main)
Conveyor
KGS-1109
25
27
30
31
26
26
25
28
27
30
31
1
6
20
2
3
22
22
21
7
8
16
18
4
9
9
17
5
10
17
19
19
14
15
15
15
14
13
11
19
19
Main Stopper
OLD
12
32
32
12
11
32
25
27
31
30
26
28
29>28
9
9
9
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KV7-M9161-00X PLATE,STOPPER 1 /
2 KV7-M9162-01X BRKT.,STOPPER 1 /
3 KV7-M9163-00X STOPPER 1 /
4 KV7-M9164-00X BRKT.,CYLINDER 1 /
5 KV7-M9165-01X CYLINDER:PDAS6X40 1 B
5-1 KV7-M9165-02X CYLINDER 1 (2005/11/3) OK B
6 KV7-M9166-00X GUIDE (LWL9 R80B) 1 A
7 KU0-M9179-00X RING 1 /
8 KV7-M9169-00X BRKT.,CYL.2 1 /
9 $SC4-M5A SPEED CONTROLLER 2 /
10 $UEF JOINT 1 /
11 KGS-M9160-10X MAIN STOPPER SR ASSY 1 Single R>L B
11-1 KGS-M9160-11X MAIN STOPPER SR ASSY 1 Single R>L 2006/4/14 B
12 KGS-M9160-00X MAIN STOPPER ASSY.R 1 Double R>L B
12-1 KGS-M9160-01X MAIN STOPPER ASSY.R 1 Double R>L 2006/4/14 B
13 KGS-M916A-00X SENSOR CYLINDER 1 1 B
14 KGS-M916B-00X SENSOR,CYLINDER 2 1 B
15 KV7-M9179-00X SENSOR BAND, CYL. 1 /
16 91317-03005 BOLT HEX.SOCKET HEAD 7 M3X5 /
17 91317-03008 BOLT HEX.SOCKET HEAD 4 M3X8 /
18 91317-04006 BOLT HEX.SOCKET HEAD 2 M4X6 /
19 91317-04020 BOLT HEX.SOCKET HEAD 8 M4X20 /
20 91317-05010 BOLT HEX.SOCKET HEAD 2 M5X10 /
21 92907-03200 WASHER PLAIN 2 M3 /
22 95304-03600 NUT,HEXAGON 2 /
22-1 95302-03600 NUT HEXAGON 2 (2006/1/16) OK /
25 KGS-M9161-00X PLATE, MAIN STOPPER 2 2006/4/14 /
26 KGS-M9162-00X STOPPER 2 2006/4/14 /
27 KGS-M9165-000 CYLINDER 2 CYLINDER only B
28 KGS-M916A-01X SENSOR, CYLINDER1 1 B
28-1 KGS-M9165-C00 SENSOR 1 (spare) (2006/3/17) OK B
29 KGS-M916B-01X SENSOR, CYLINDER2 1 B
29-1 Delete (2006/3/17) OK
30 91317-03025 BOLT HEX.SOCKET HEAD 8 M3X25 2006/4/14 /
31 91317-04012 BOLT HEX.SOCKET HEAD 4 M4X12 2006/4/14 /
32 91317-04015 BOLT HEX.SOCKET HEAD 4 /
32-1 91317-04014 BOLT HEX.SOCKET HEAD 4 (2008/2/1) OK /
5
7

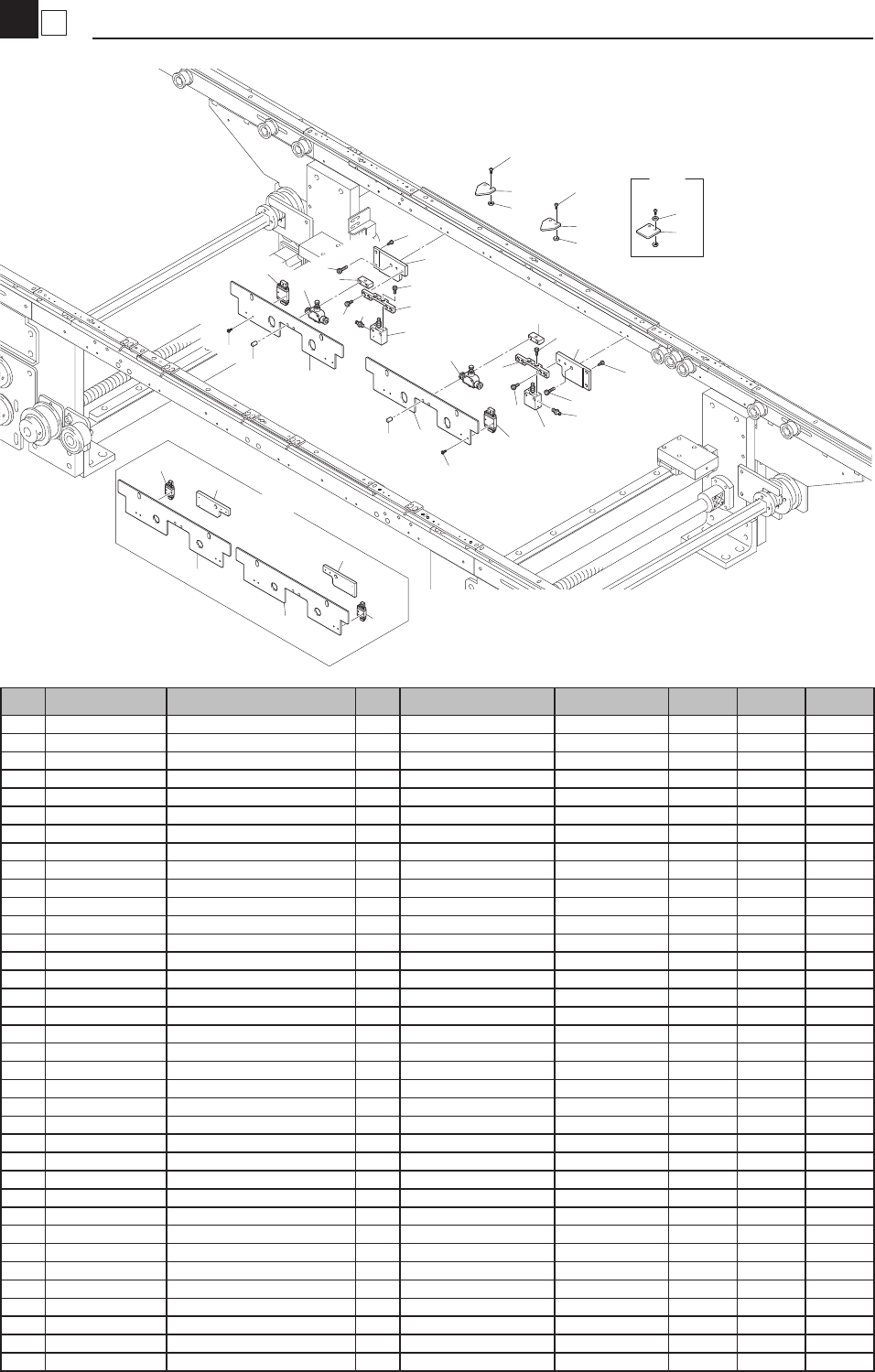

Clamp Board
Conveyor Unit
KGS-1109
2
2
11
12
5
19
3
3
10
11
10
8
8
4
4
6
6
7
7
9
9
1
1
18
18
15
17
13
16
2
5
5
1
1
12
2
OLD
14
OLD
15
13
16
20
20
R>L,L>R the same parts
No. Part No. Part Name Q'ty Remarks Date of change Compati. RANK LEVEL
1 KGS-M9262-00X PLATE,BOARD CLAMP 4 /
1-1 KGS-M9262-01X PLATE,BOARD CLAMP 4 2005/11/11 NG /
2 KGK-M9267-01X GUIDE 8 LWLC-5 A
2-1 KGS-M9261-00X GUIDE 8 LWLFC-10 2005/11/11 NG A
3 KGS-M9266-01X BRKT.,PLATE 4 /
4 KGS-M9265-01X CYLINDER(MBDA10X6) 4 B
5 KGS-M926H-01X PLATE 1 8 /
5-1 KGS-M926H-02X PLATE 1-1 4 2005/11/11 NG /
6 $BF4-M3 JOINT 8 /
7 KV7-M9268-00X PIN 8 /
7-1 KV7-M9268-01X PIN 8 (2007/6/18) OK /
7-2 90990-18J017 PIN,PARALLEL 8 (2007/11/30) OK /
8 KGS-M9267-00X PLATE,CONNECTION 4 /
8-1 KGS-M9267-01X PLATE,CONNECTION 4 (2007/2/21) OK /
9 91317-02005 BOLT HEX.SOCKET HEAD 16 /
9-1 91317-02003 BOLT HEX.SOCKET HEAD 16 M2x3L (2004/7/29) OK /
9-2 KGS-M9263-00X BOLT HEX.SOCKET HEAD 16 M2.5x3L 2005/11/11 NG /
9-3 90116-2AJ003 BOLT,HEX.SOCKET HEAD 16 M2.5x3L (2007/10/29) OK /
10 91317-03005 BOLT HEX.SOCKET HEAD 8 /
10-1 91317-03005 BOLT HEX.SOCKET HEAD 24
(2005/8/25) OK /
10-2 91317-03005 BOLT HEX.SOCKET HEAD 8 (2005/11/2) OK /
11 91317-03006 BOLT HEX.SOCKET HEAD 16 /
12 91317-04014 BOLT HEX.SOCKET HEAD 8 /
13 KGM-M9135-00X PLATE,EDGE 2 8 /
13-1 KGM-M9135-00X PLATE,EDGE 2 16 (2008/10/2) OK /
14 KG7-M9136-00X PLATE,EDGE 3 8 /
14-1 Delete (2008/10/2)
15 98907-03005 SCREW BINDING HEAD 32 /
15-1 98902-03005 SCREW BINDING HEAD 32 (2007/4/16) OK /
16 95304-03700 NUT HEXAGON 32 /
16-1 95302-03700 NUT HEXAGON 32 (2006/1/16) OK /
17 92907-03600 WASHER PLAIN 32 /
17-1 Delete (2007/4/16)
18 $SSU4 SPEED CONTROLLER 8 /
19 KGS-M926H-52X PLATE 1-2 4 2005/11/11 /
20 91317-03004 BOLT HEX.SOCKET HEAD 16 /
