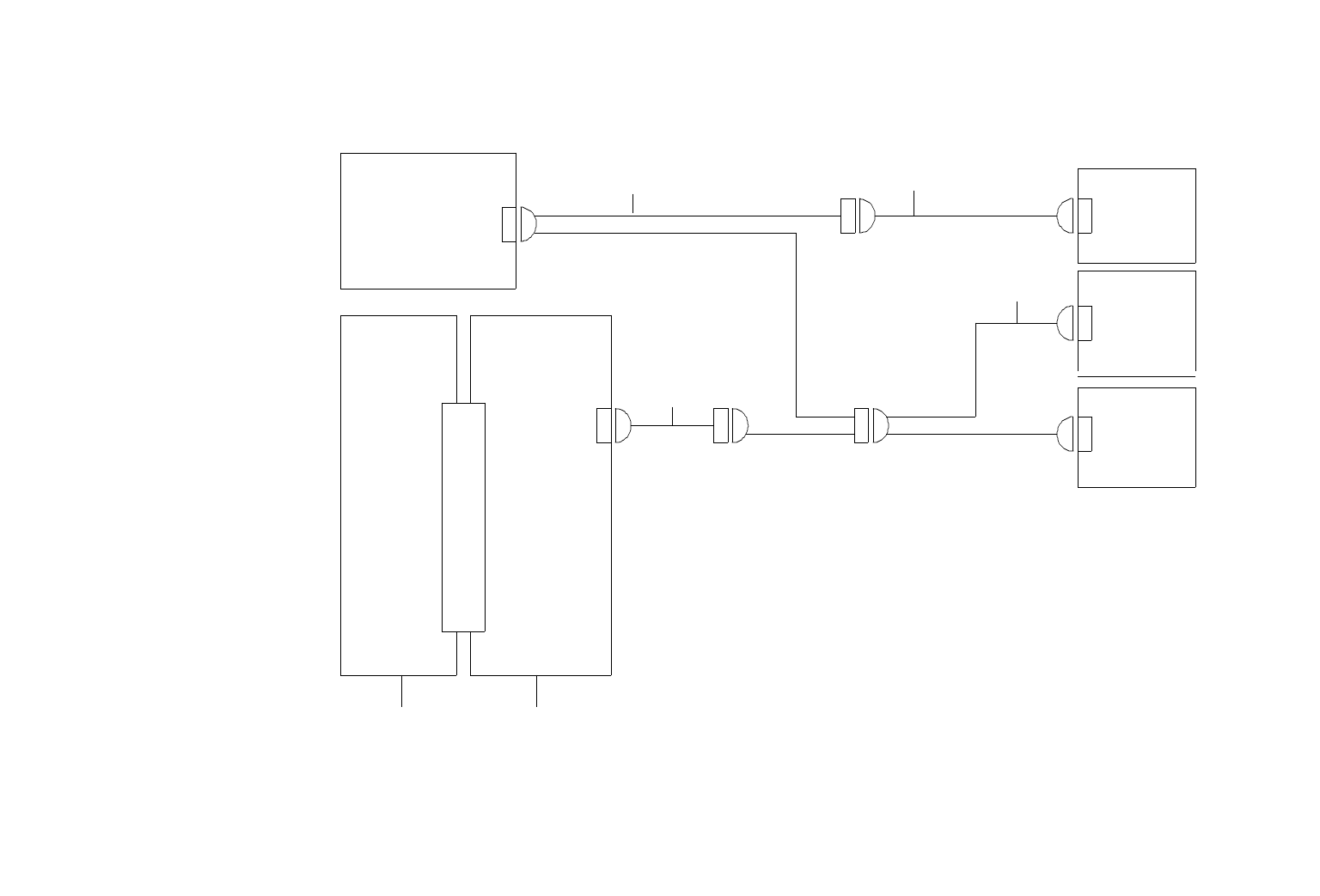

79.SYSTEM DIAGRAM (OCC)
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＯＣＣ）
CN824
CN4
OCC-C
OCC-A
LIGHT RLY
OCC A LIGHT2
OC C A LIG HT1
OCCC(L)
LIGHT-CTRL
CN1CN10
OCC RELAY PCB
(STANDARD)
RECONSTRUCTION
HEAD MAIN PCB
*WARNING
RECONSTRUCTION
HMS5 PCB ASM
*WARNING
1
2
5
6
4
3
OCC-C
LIGHT
PCB
(STANDARD)
OCC-A
LIGHT
PCB
(BOTTOM)
OCC-A
LIGHT
PCB
(STANDARD)
- 156 -
REF.NO NOTE PART NO D E S C R I P T I O N
品 名
Qty
1 400-46250 OCC LIGHT (L) RELAY CABLE ASM
ＯＣＣ ライト（Ｌ）中継ケーブル組
1
2 400-48676 OCC C (L) LIGHT CABLE ASM
ＯＣＣ Ｃ（Ｌ）ライトケーブル組
1
3 400-50574 RECONSTRUCTION HEAD MAIN PCB ASM
ヘッドメイン基板改造組
1
4 400-50575 RECONSTRUCTION HMS5 PCB ASM
ＨＭＳ ５基板改造組
1
5 400-50577 OCC A LIGHT-HMS CABLE ASM
ＯＣＣ Ａ ライト− ＨＭＳ ケーブル組
1
6 400-50576 OCC A LIGHT CABLE ASM ＯＣＣ Ａ ライトケーブル組 1
- 157 -
80.MACHINE REVISION CHART
マシン Ｒｅｖ 管理表
/ Note
/ After
/ Obsolete
*
Rev
Ref.
No. Part Number
Page
No.
M/C
Rev
Rev / Machine Revision chart
Page
No. Part Number
Ref.
No.
*
*:Remark A:ADD D:Delete
40033446D4726L10
CX-1
*
10 L 26 50 D 40033343
10 L 26 51 D 40033344
40102599A4726
*
DUST CONTROL CAP
BNCRCA CONVERSION CONNECTOR
8 4 LCD MONITOR(CE)
CRT MONITOR POWER CABLE ASM(ST)
10 K 32 70 A 40082729 P-RAIL SUPPORT COVER
10 K 32 71 A 40001306 CABLE PROTECTOR SHEET
10 K 32 72 A SL6041092TN SCREW
10 K 56 14 A 40030513 RECONSTRUCTION HEAD MAIN PCB ASM
10 K 56 63 A E2117802000 TUBE CLAMP
10 K 56 67 D PJ304040504 56 67 A PJ305040502 T-UNION
10 K 56 69 D PJ304085101 56 69 A PJ304085104 UNIVERSAL ELBOW
10 K 56 78 D 40001934 56 78 A 40030515
RECONSTRUCTION HEAD SENSOR
PCB Z1/2 AXIS
10 K 56 92 A SM1020501SC SCREW
10 K 56 93 A 40030529 ELBOW JOINT
10 K 56 94 A PJ304040001 ELBOW
56 95 A 40030516
RECONSTRUCTION HEAD SENSOR
PCB Z3/4 AXIS
10 K 58 1 A 40082789 SLIGHTLY BLOW ASM
10 K 122 11 D PJ304085101 122 11 A PJ304085104 UNIVERSAL ELBOW
10 K 122 27 D 40001265 122 27 A 40031707 EJECTOR BASE CX-1
122 30 A PJ305040502 T-UNION
10 K 122 31 A PJ304040001 ELBOW
10 K 122 32 A 40030529 ELBOW JOINT
10 K 122 33 A 40030516
RECONSTRUCTION HEAD SENSOR
PCB Z3/4 AXIS
122 34 A E2117802000 TUBE CLAMP
122 35 A SM1020501SC SCREW
10 K 122 36 A 40030515
RECONSTRUCTION HEAD SENSOR
PCB Z1/2 AXIS
K 134 21 A 40030514
L1 SOLENOID VALVE RELAY
CABLE ASM.
10 K 134 22 A 40083482 SOLENOID VALVE CABLE ASM
10 K 154 7 D 40002182 154 7 A 40030517 Z34 SENSOR RELAY CABLE ASM
10 L 26 52 D 40033345
56 14 D 40001926
10 K
10 K
10 K
10 K
10
10 K 32 56 A SL6061292TN SCREW
