10
www.techcon.com
www.techcon.com www.techcon.com
TS-M Metal
Dispensing Tips
This series consists of a stainless steel cannula
and aluminium hub. Sold in bulk quantity of 500.
TS-SS Metal
Dispensing Tips
High precision and tolerance for use in automated applica-
tions. With stainless steel cannula and nickel plated brass hub.
Length of 1/2” (12.7mm). Sold in packs of 12.
TS Series
Dispensing Tips
TS Series
Dispensing Tips
The TS Series Dispensing Tips offer a variety of dispensing
performance and flexibility options. Stainless steel tubing is
cut to precise lengths and ground to be burr-free. Cut tub-
ing is crimped into aluminum locking insert, then molded into
polyethylene hubs. Molded hub colors correspond to gauge
size. All TS Series tips secure to Techcon Systems syringe bar-
rels and correspond to the Luer lock specification.
Single
Thread
Luer Lock
Molded Hub
Locking
Insert
Stainless Steel
Cannula
Part Number International
Hub Color
Gauge I.D.
(inches)
I.D.
(mm)
Length
(inches)
Length
(mm)
TS18-1/2-1000 Pink 18 0.033 0.838 0.5 12.7
TS18-1-1000 Pink 18 0.033 0.838 1.0 25.4
TS19-1/2-1000 Brown 19 0.028 0.711 0.5 12.7
TS19-1-1000 Brown 19 0.028 0.711 1.0 25.4
TS20-1/2-1000 Yellow 20 0.024 0.609 0.5 12.7
TS20-1-1000 Yellow 20 0.024 0.609 1.0 25.4
TS21-1/2-1000 Green 21 0.020 0.508 0.5 12.7
TS22-1/2-1000 Black 22 0.016 0.406 0.5 12.7
TS22-1-1000 Black 22 0.016 0.406 1.0 25.4
TS23-1/4-1000 Blue 23 0.013 0.330 0.25 6.35
TS23-1/2-1000 Blue 23 0.013 0.330 0.5 12.7
TS25-1/2-1000 Blue 25 0.010 0.254 0.5 12.7
TS27-1/4-1000 Grey 27 0.008 0.203 0.25 6.35
TS30-1/4-1000 Lavender 30 0.006 0.152 0.25 6.35
TS30-5/16-1000 Lavender 30 0.006 0.152 0.31 7.94
TS30-1/2-1000 Lavender 30 0.006 0.152 0.5 12.7
Part Number Gauge Length (inches) Length (mm)
TS14-1/2M-500 14 0.5 12.7
TS14-1M-500 14 1.0 25.4
TS14-2M-500 14 2.0 50.8
TS15-1/2M-500 15 0.5 12.7
TS15-1M-500 15 1.0 25.4
TS15-1-1/2M-500 15 1.5 38.1
TS16-1M-500 16 1.0 25.4
Part Number Gauge I.D. (inches) I.D. (mm)
TS12SS-1/2PK 12 0.087 2.21
TS13SS-1/2PK 13 0.077 1.95
TS14SS-1/2PK 14 0.061 1.54
TS15SS-1/2PK 15 0.056 1.43
TS16SS-1/2PK 16 0.048 1.22
TS17SS-1/2PK 17 0.044 1.11
TS18SS-1/2PK 18 0.033 0.83
TS19SS-1/2PK 19 0.028 0.72
TS20SS-1/2PK 20 0.024 0.62
TS21SS-1/2PK 21 0.021 0.54
TS22SS-1/2PK 22 0.017 0.42
TS23SS-1/2PK 23 0.013 0.34
TS25SS-1/2PK 25 0.011 0.27
TS26SS-1/2PK 26 0.010 0.25
TS27SS-1/2PK 27 0.008 0.21
TS28SS-1/2PK 28 0.007 0.17
www.techcon.com
www.techcon.com www.techcon.com
11

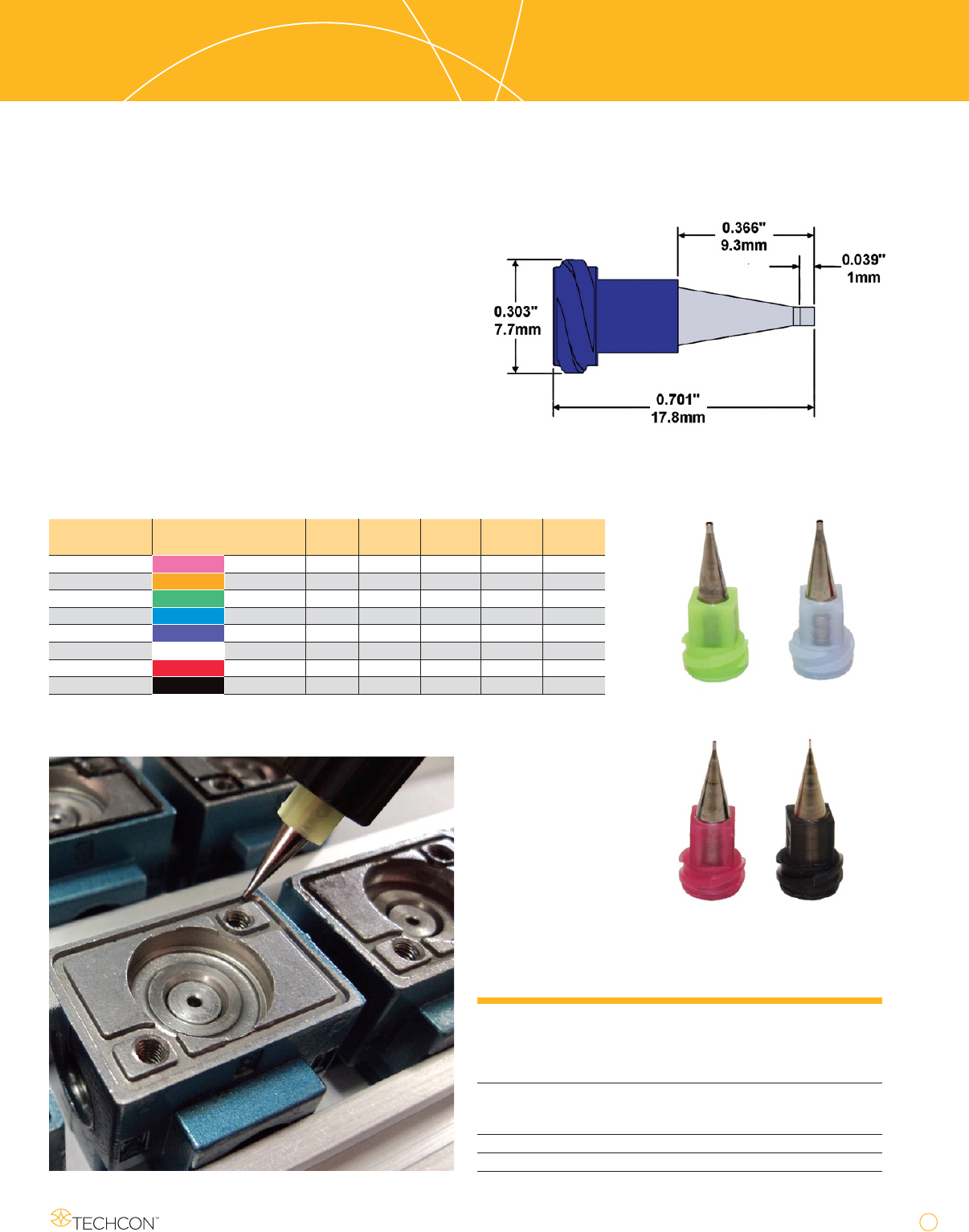

MT Series
Dispensing Tips
MT Series
Dispensing Tips
The MT Series precision metal tapered tips deliver the best in
high fluid flow rates, which are ideal for high speed dispensing
at a fraction of the cost of comparable precision tips in the
market. The smooth internal conical fluid flow path increases
performance, reduces clogging and back pressure allowing for
higher flow rates.
The Phosphor-Bronze metal construction with Electroless
Nickel plating makes the MT Series ideal for use in robotic ap-
plications or whenever precision counts. The thin walled de-
sign at the tip enhances dispensing accuracy while at the same
time reduces fluid tailing and stringing. Available from 18 to 30
gauge, the MT Series tips are color coded for easy identifica-
tion. Sold individually.
Key Features
• Smoothinternaluidpath
Reduces turbulent fluid flow
Reduces back pressure
Increases fluid flow rates
Reduces air entrapment and fluid dripping
• Metalconstruction
Provides accurate positioning
Ideal for automatic dispensing applications
• Thinwalls–Reducesuidtailingandstringing
• Clogresistant–idealforlleduids
Part Number Hub Color Gauge I.D.
(inches)
I.D.
(mm)
OD
(inches)
OD
(mm)
MT18-PBN Pink 18 0.040 1.019 0.050 1.260
MT19-PBN Orange 19 0.033 0.839 0.042 1.079
MT20-PBN Green 20 0.026 0.661 0.035 0.899
MT21-PBN Blue 21 0.023 0.590 0.033 0.830
MT23-PBN Purple 23 0.021 0.544 0.026 0.655
MT25-PBN White 25 0.016 0.417 0.021 0.528
MT27-PBN Red 27 0.012 0.315 0.017 0.426
MT30-PBN Black 30 0.008 0.214 0.013 0.325
12
www.techcon.com
www.techcon.com www.techcon.com
TSR2000
Bench-Top Dispensing Robot
Key Features
• Easytoprogramandsimpletooperate
• Programmableinterfaceviateachpendant
• Fast,increaseproductivity
• CompatiblewithallTechconSystemssyringes,valves
and Jet dispensing systems
• Suitableforwiderangeofuiddispensingapplications
• Ruggedandreliableconstruction
• Smallfootprint
• Availablein3platforms,from200mmto400mm
TSR2000 Series
Bench-Top Dispensing Robot
with Teach Pendant
Techcon bench-top dispensing robots are easy to program,
simple to operate and compatible with all valve types and
controllers. These versatile dispensing platforms deliver con-
sistent, high performance dispensing results at an affordable
price.
Designed and configured specifically for fluid dispensing ap-
plications, Techcon robots provide total control over fluid
placement, from beads, arcs and circles to repeated timed
dots. Programming is simple via teach pendant.
From a general assembly manufacturer looking to automate
an existing dispensing application to an engineer designing
a production process from scratch, Techcon dispensing ro-
bots offers unsurpassed value in automated precision fluid
dispensing.
Typical Applications
Dispense dots of solder paste, Form-in-place,
gasket, Filling, Potting, Encapsulation, Bond-
ing, Coating
TSR2201 - Bench-Top Dispensing Robot
Teaching
Pendant
Specifications - Dispensing Robot Series
TSR2201 TSR2301 TSR2401
Power Supply 100V
~
240V AC
Power Consumption 80W
Number of Controllable Axis 3 axis
Moving Range X axis 200mm 300mm 400mm
Y axis 200mm 300mm 400mm
Z axis 100mm 100mm 100mm
Speed Range X/Y axis 0.1
~
600 mm/sec
Z axis 0.1
~
200 mm/sec
Repeatability Accuracy X/Y/Z axis 0.02mm
Resolution X/Y/Z axis 0.01mm
Loading Weight Base 5 Kg 7 Kg 7 Kg
Head 4 Kg 4 Kg 4 Kg
Working Ambient Temperature 0
~
40°C℃
Relative Humidity 20% - 90% (no condensation)
Dimension (W x D x H) 303 x 377 x 521 mm 418 x 513 x 521 mm 518 x 613 x 521 mm
General Purpose I/O 4 inputs / 4 outputs (Available option: 16 I/O)
Bench-Top Dispensing Robot Platforms
TSR2201 200mm x 200mm working area
TSR2301 300mm x 300mm working area
TSR2401 400mm x 400mm working area
All systems include Teach Pendant
Accessories (Light Beam safety cover for each model is available)
TSR2200-SC Safety cover for TSR2201
TSR2300-SC Safety cover for TSR2301
TSR2400-SC Safety cover for TSR2401
