TSR2000 Series

Smart Dispensing Robot

Bench-Top Dispensing Robot Platforms

TSR2201 200mm x 200mm working area

TSR2301 300mm x 300mm working area

TSR2401 400mm x 400mm working area

TSR2000

Smart Dispensing Robot

The TSR2000 series smart dispensing robot is designed spe-

ciﬁcally for precise ﬂuid dispensing applications and it is com-

patible with all valve types and controllers. The user-friendly

smart PC-based software makes the robot easy to program

and simple to operate.

Smart features include intuitive software with touch screen

programing capability and CAD/DXF ﬁle import. The vision

system allows the robot to automatically correct part misalign-

ment and shorten programing time via its pattern recognition

feature. The laser height sensor allows the robot to automati-

cally adjust Z height to compensate for both surface height

changes and part variation.

Smart Features Add-On Kits

TSR-STVHKIT Software, Touch Screen, Vision, Height Sensor Kit

TSR-STVKIT Software, Touch Screen, Vision, Kit

TSR-STHKIT Software, Touch Screen, Height Sensor Kit

TSR-SVKIT Software, Vision, Kit

TSR-SHKIT Software, Height Sensor Kit

TSR-SKIT Software Kit

Key Features

Friendly User Interface

 • PCbasedsoftware

 • Touchscreenprogramming

 • CAD/DFXconversion

Smart Vision

 • CMOScolorcamera

 • Automaticalignment

 • Patternrecognition

Laser Height Sensor

 • Pinpointaccuracywithintegratedlaserheightsensing

 • Detectsvariationsonthesurfaceofaproductand

automatically adjusts the tip dispensing height

 • Preventsunevendepositsandtiporworkpiecedamage

TSR2301 - Smart Dispensing Robot

Features Teach Pendant Robot Robot with Smart Add-On Features

Operating System Teach Pendant Smart SBC based Software with Touch Screen Interface

Storage for teaching les 999 les or 60,000 bytes 9,000 les min. or 9.5GB

Storage for processing les 255 les 9,000 les min. or 9.5GB Working Temperature 0 - 40°C

Touch Screen Interface none 1920 x 1080 (Optimal Resolution)

Camera Type none CMOS (2048 x 1536 Resolution, 3.2 Megapixels)

Height Sensor none Laser Sensor Resolution: 7μm; Detection Range: 100 - ±35mm

Then choose the Smart features which are available

as add-on kits:

First choose the Dispensing Robot series from the

available 3 platforms:

Smart Dispensing Robot Benefits

Simple to program, Quicker learning curve; more visual

Precise and accurate dispensing; Improved product quality

Increase productivity; less production line downtime

Plug and play, easy integration into existing production line

Reduced production, material, and ownership costs

TSR2301 - Smart Robot close-up

www.techcon.com

www.techcon.com www.techcon.com

TS9200D

Jet Tech

TS9200D Series

Jet Tech

The TS9200D Jet Tech is a non-contact dispense valve capa-

ble of jetting ﬂuid viscosities to 400,000 Cps. Jet Tech offers

a fast jetting action producing hundreds of precise droplets

in less than one second.

The main feature of the valve is a single, easily replaceable

diaphragm to eliminate dynamic ﬂuid seals found in other jet

valves. No longer is it necessary to disassemble, clean and

replace worn seals, which translates into saving time and

money. The diaphragm also allows fast cycle rates because of

its very small mass. There is no large sliding valve system that

slows down the process. With this novel diaphragm design,

the energy needed to eject a drop can be adjusted providing

a wider process window.

It’s Fast – 300 drops/sec continuous duty. 50% increase in

throughput over conventional Jet valves.

It’s Simple to Clean–only2partscontacttheuid.Conven-

tional Jet valves can have as many as 8 parts requiring clean-

ing. With only two parts to clean, cleaning the TS9200D takes

only minutes and there is no need to remove the Jet valve

from the robot. A diaphragm and nozzle plate can be installed

immediately without the need to carefully calibrate the Jet

valve saving valuable production time and no special off-line

cleaner is required.

It’s Capable–theTS9200Dgeneratesaveryhighdropveloc-

ity allowing a wide range of ﬂuids and applications. In addi-

tion, the drop velocity can be easily changed to help ﬁne tune

the process and achieve a high process capability and wide

process window.

It’s Cool –theadvancedelectronicdriveprovidespowerwhen

required and reduces power when idle. The internal air ﬂow

cools the Jet body so it runs cool even during high-speed,

continuous operation. The integral nozzle heater heats only

the ﬂuid in the nozzle plate and is thermally isolated from the

jet body.

It’s Easy to Integrate – In combinationwith the standalone

TS920 controller, a single trigger line is all that is needed to

start dispensing complex programs.

Key Features

• NoncontactJettingtechnology

• Accurateandprecisedispensing

• Highspeed,up300drops/sec

• Repeatable drop size as small as 10 nl

• Jetuidupto400KCps

• Nouidsealstocleanorreplace

• Integralheaterwithminimaluidheated

• Quickandsimplesetup

• Lowtotalcostofownership

Typical Applications

Jetting silver epoxies for die bonding pro-

cesses, Jetting silicone phosphor in the

LED assembly process, Jetting under-ﬁll in

micro-electronic package applications on

PCBA, Jetting micro dots of UV adhesive in

medical device applications

TS9200D - Jet Tech Dispense Valve

Jet Valve System Specifications

Size Width 2.00" (50.8mm)

Size Depth 3.69" (93.8mm)

Size Height 3.50" (88.9mm)

Weight 348g (0.77lb)

Speed Up to 300Hz Continuous Duty

Syringe Capacity 5, 10, 30 and 55cc

Minimum Shot Size 10nl

Viscosity Range 1 to 400K Cps.

Fluid Pressure 40 psi (2.76bar)

Jet Pressure 35psi to 70psi (2.41 to 4.8bar)

Operating Temperature 10 to 50°C

www.techcon.com

www.techcon.com www.techcon.com

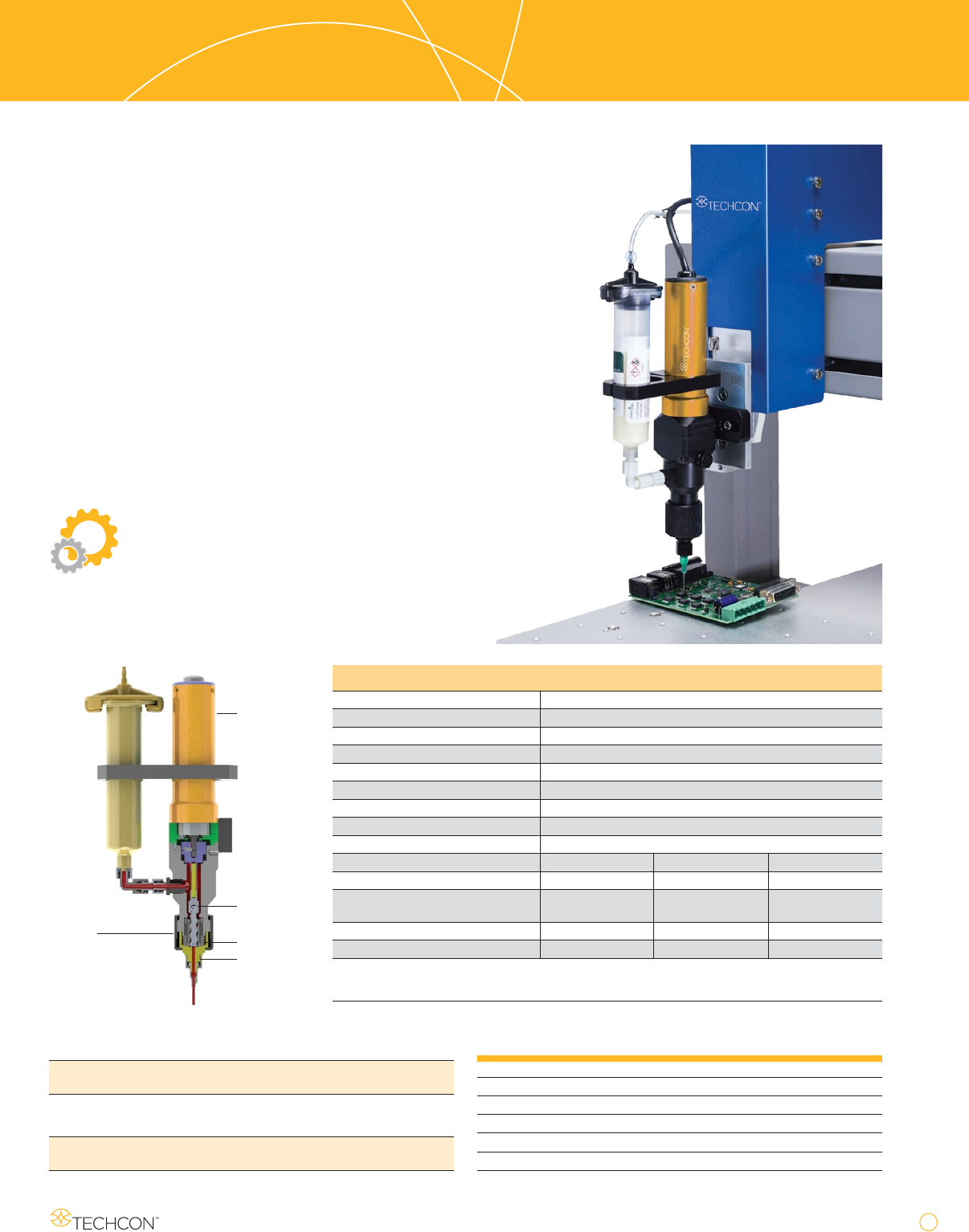

TS8100

PC Pump

TS8100

Positive Displacement

PC Pump

The TS8100 Series Positive Displacement Pump is a continu-

ously volumetric dispense pump based on Progressive Cavity

(PC) technology. The pump is designed to dispense a wide

range of ﬂuids, from low viscosity coatings to high viscosity

greases.

Techcon’s PC Pump uses a special stator and rotor design to

provide consistent dispensing output.

The turning rotor moves the ﬂuid in tightly sealed cavities

through the stator’s ﬂuid chambers to create a volumetric ﬂuid

ﬂow that does not change the shape or size of the ﬂuid. Due

to the PC Pump’s unique dispensing technology, accuracy and

repeatability of ±1%isachievable.

Key Features

• Volumetric,positivedisplacement

• Accurateandrepeatableupto

±1%

• Nodrippingwithanyviscosityuid

• Compatiblewithabrasivematerials

• Doesnotdamageorbreakllers

• Easytoclean

Typical Applications

Under ﬁlling PCBA components, Encapsula-

tion and Potting applications, Applying lubri-

cation on Automotive parts, Dispensing pastes

and ﬂux

Specifications

Size 8.07" (205mm) L x 1.3" (34mm) W

Weight 13.4 oz. (380g)

Wetted Part Delrin

(Acetal), PFE, Stainless Steel, UHMWPE

Fluid viscosity 1-300K (Cps or m.Pa.s)

Precision, absolute (1)

±1%

Self-sealing (2) 2 bar

Material inlet port 1/8 NPT

Material outlet port Male Luer lock

Direct mount material reservoir 3 to 55cc

Part number TS8100-100 TS8100-200 TS8100-300

Dispense volume per rotation 0.012 ml average 0.047 ml average 0.07 ml average

Flow rate range 0.15 – 1.04

ml/min.

0.47 – 4.46

ml/min.

0.74 – 6.7

ml/min.

Max ow rate recommended (3) 0.65 ml/min. 3.38 ml/min. 5.06 ml/min.

Minimum dispense amount 0.001 ml 0.0045 ml 0.0068 ml

(1) Volumetric dispensing as absolute deviation per complete revolution and also depends on dispensing uid.

(2) For uid with viscosity of 1000 Cps or lower. The pump can handle up to 5.5 bar for 300K Cps viscosity uid.

(3) This is the maximum ow rate that does not shorten the stator work life

Accessories

XYZ Robot: Techcon’s Bench-Top Dispensing Robots makes it

easy to automate uid dispensing.

Fluid reservoirs: The pump can be fed from the TS1254 (1.8 litre)

or TS1258 (5 litre) Pressure Tank, or from any size syringe barrel

or cartridge.

Digital Controller: Techcon’s TS580R Digital Controller is

designed specically for the TS8100 PC Pump.

Motor

Syringe Bracket

Rotor

Stator

Luer Taper

& Cap

Fluid Inlet

Collar
