24
www.techcon.com
www.techcon.com www.techcon.com
Part Number: TS560R
Size
(
Imperial
)
: 11.4' W x 8.3'' L x 3.9'' H
Size
(
Metric
)
: 290mm x 211mm x 99mm
Wei
g
ht: 6.8 lb
(
3100
g)
Pressure Ran
g
e: 0 to 100psi
(
0-6.9 bar
)
Displa
y
: Touch Screen
Timin
g
Ran
g
e: 0.008 – 99.9 seconds
Timin
g
Tolerance: +/- 0.001%
Input Volta
g
e: 100 – 240 VAC
C
y
cle Rate: 900/min.
C
y
cle Modes: Timed, Interrupt, Teach, Pur
g
e
Connectivit
y
: Ethernet, WIFI
Certification: CE, TUV-GS
TOUCH
SCREEN
AIR OUTPUT B
AIR OUTPUT A
WIFI ANTENNA
POWER
SWITCH
AIR INLET
AIR OUTLET
UNREGULATED
FOOT
SWITCH
PORT
POWER
INLET
IO PORT
INTERNET
PORT
USB PORT
GROUNDING
TS550R
10800 Valley View Street
Cypress, CA 90630, USA
Tel: 1-714-230-2398
E-mail: oemorders@okinternational.com
Eagle Close, Chandler’s Ford Industrial Estate,
Eastleigh, Hampshire, SO53 4NF, UK.
Tel: +44 2380 489 100
E-mail: europe-orders@okinternational.com
Or visit www.techcon.com

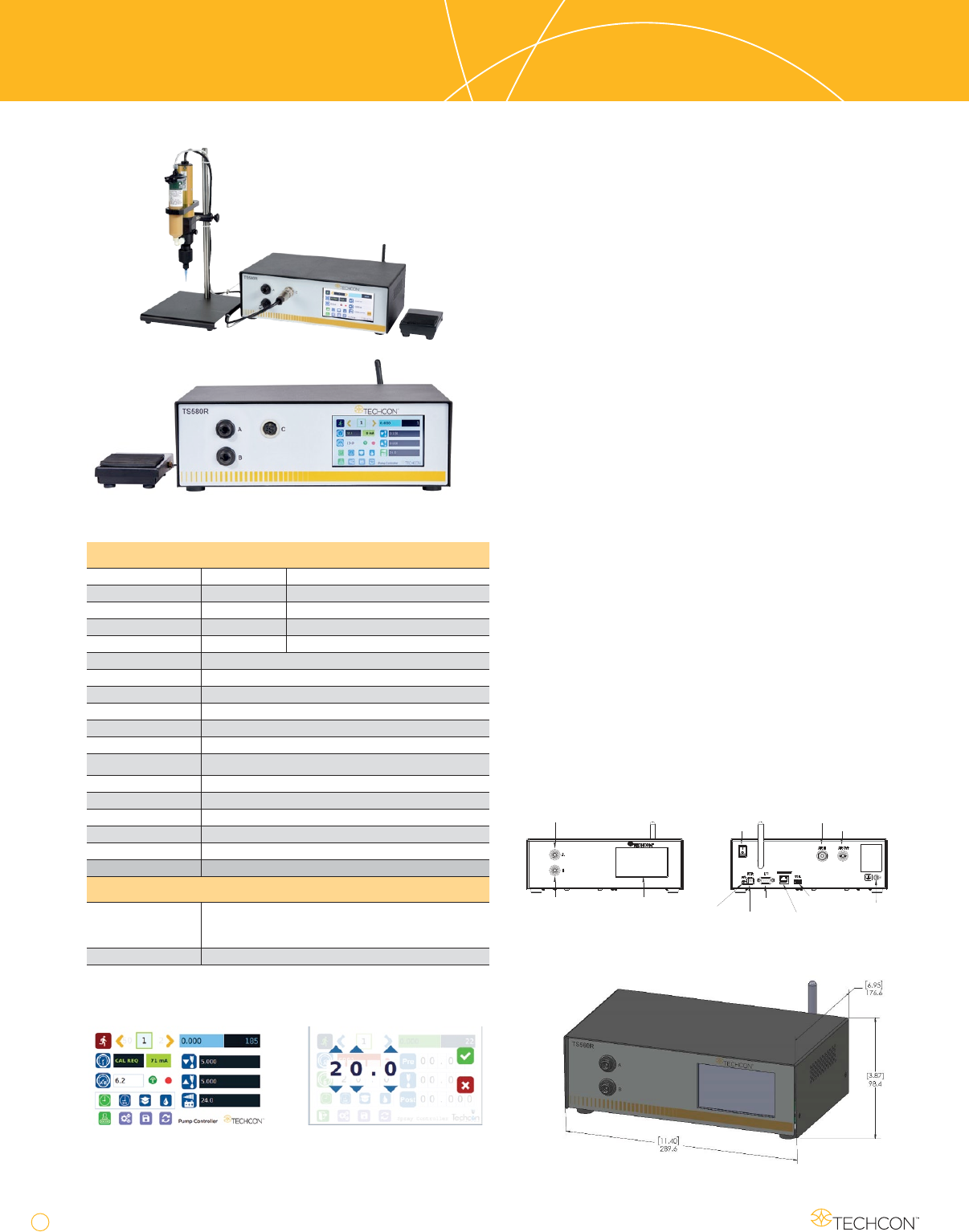

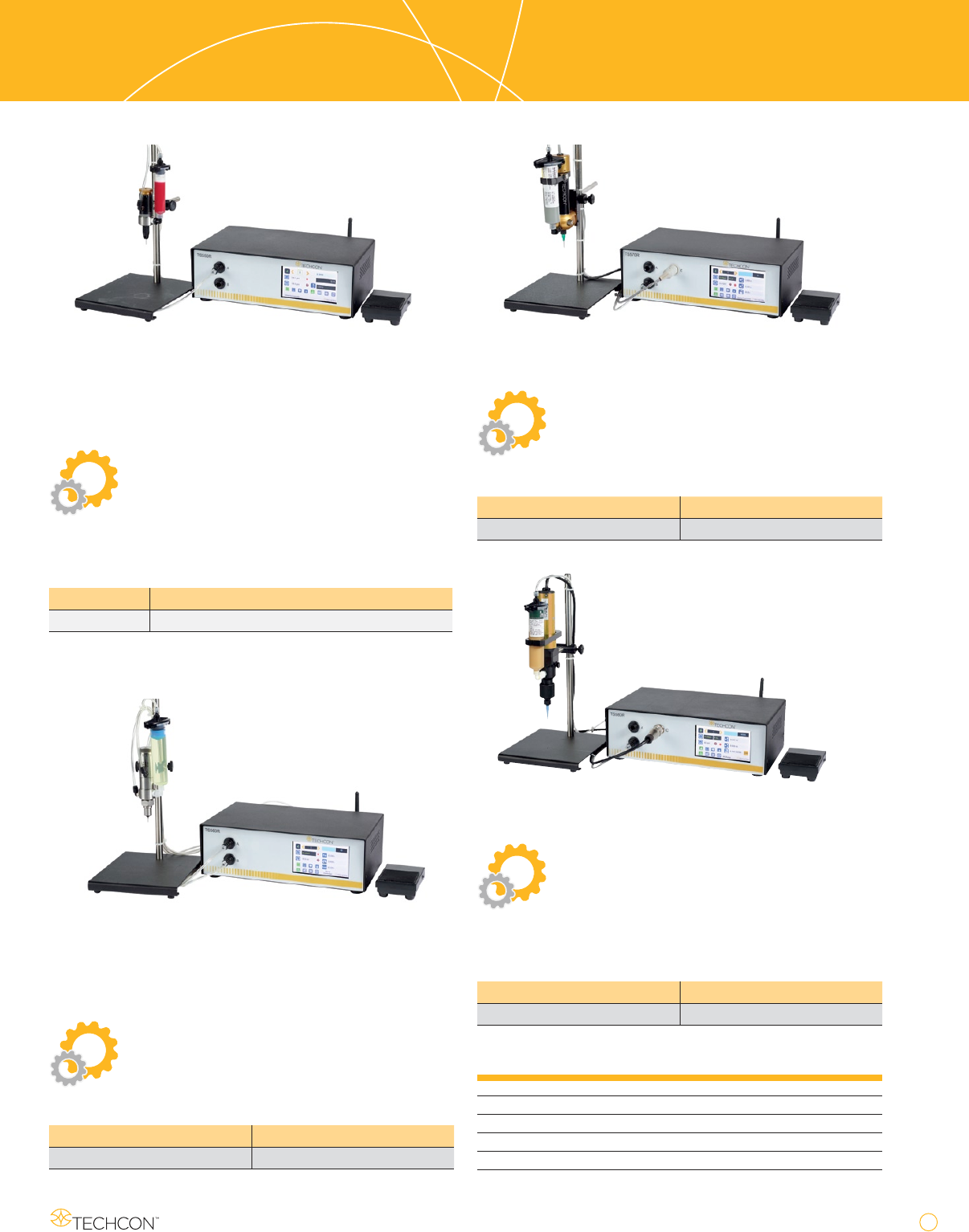

TS500 Series
Smart Valve Controllers
TS500 Series
Smart Valve Controllers
We are pleased to introduce our new series of smart valve con-
trollers: the TS550R, TS560R, TS570R and TS580R that will
control our complete line of precision valves. Equipped with
a universal power supply, the new smart valve controllers are
fully “plug-and-play” and can be used immediately anywhere
in the world.
All of our smart valve controllers feature an intuitive touch-
screen interface for easy setup and operation. Dispensing
parameters can be precisely configured directly on the touch
screen or remotely through the networking options.
First in their class, the smart valve controllers are equipped
with Ethernet and WiFi interfaces to allow users to configure
the exact parameters and monitor and control the process
from anywhere in the world. This feature complies with Smart
Factory requirements on Industry 4.0.
Additional advance features include digital timer to provide
accurate and repeatable spray time, and a digital pressure reg-
ulator with dual-unit display to allow precise pressure control.
The friendly user interface provides an option to program up to
50 varied, sequenced or individual shots. These systems have
a user programmable “purge,” “timed” dispense cycle settings
and a "teach mode" for determining the dispensing time.
Integration into semi-automatic and automatic machinery is
made easy with the I/O interface connector that can be used to
initiate and stop the dispense cycle with feedback to the host
machine for the next cycle. A low-pressure warning feature is
also included to help maintain uninterrupted dispensing.
(
)
(
)
g
(
g)
g
(
)
y
g
g
g
g
y
y
g
y
TS580R - PC Pump Controller
Specifications
Parameters Part Number Description
TS550R
Smart Pneumatic Valve Controller
TS560R Smart Spray Valve Controller
TS570R Smart Auger Valve Controller
TS580R Smart PC Pump Controller
Size (Imperial) 11.4" W x 8.3" L x 3.9" H
Size (Metric) 290mm x 211mm x 99mm
Weight 6.8 lb. (3100g)
Pressure Range 0 to 100psi (0-6.9 bar)
Display Touch Screen
Timing Range 0.008 – 99.9 seconds
Timing Tolerance +/- 0.001%
Input Voltage 100 – 240 VAC
Cycle Rate 900/min.
Cycle Modes Timed, Interrupt, Teach, Purge
Connectivity Ethernet, WiFi
Certication CE, TUV-GS
Accessories
Fluid reservoirs The controller can be used in combination with
the TS1254 or TS1258 Pressure Tank (See page
26)
Dispensing Tips Suitable for use with all tip series. (See page 6)
Setup for TS570R
Input voltage controls the motor speed (RPM). Higher input
voltage will increase motor speed and vice versa, lower input
voltage will decrease motor speed. Recommended input voltage
range = 5-24VDC.
•Touch the Input Voltage Icon to enter setup screen
•Touch Up and Down arrow Icon to set desired input voltage
TS570R - Set-Up Screen
www.techcon.com
www.techcon.com www.techcon.com
25
TS500 Series
Smart Valve Controllers
Smart Valve Controllers - Key Features
• TouchScreeninterfaceforeasysetupandoperation
• Industry4.0for“SmartFactory”integration
• Universalpowersupplyforworldwideuse
• Digitalpressureregulatorforprecisecontrol
•
Digital timing control for repeatable output
The TS550R Smart Valve Controller is capable of controlling all
Techcon pneumatic valve series including: TS1212 Pinch Tube
Valve, TS941/TS5322 Spool Valve, TS5420/TS5440 Needle
Valves and TS5620/TS5622 Diaphragm Valves.
The TS560R Smart Spray Valve Controller is capable of control-
ling all Techcon TS5520 and TS5540 Spray Valves.
The TS570R Smart Auger Valve Controller is capable of con-
trolling all Techcon TS5000 and TS7000 Auger Valves.
The TS580R Smart PC Pump Controller is capable of control-
ling all Techcon TS8100 series PC Pumps.
Typical Applications
Conformal coating, lubrication and
marking application.
Typical Applications
Solder paste dispensing, encapsulation
and potting applications.
Typical Applications
Underfilling PCBA components,
encapsulation and potting applications,
applying lubrication on automotive parts,
and dispensing pastes and flux.
Part Number Description
TS560R Smart Spray Valve Controller
Part Number Description
TS570R Smart Auger Valve Controller
Part Number Description
TS550R Smart Pneumatic Valve Controller
Typical Applications
Control diaphragm valve for bonding applica-
tion, control mini-spool valve for form-inplace
gasket, and control needle valve for precision
filling process.
Part Number Description
TS580R Smart PC Pump Controller
26
www.techcon.com
www.techcon.com www.techcon.com

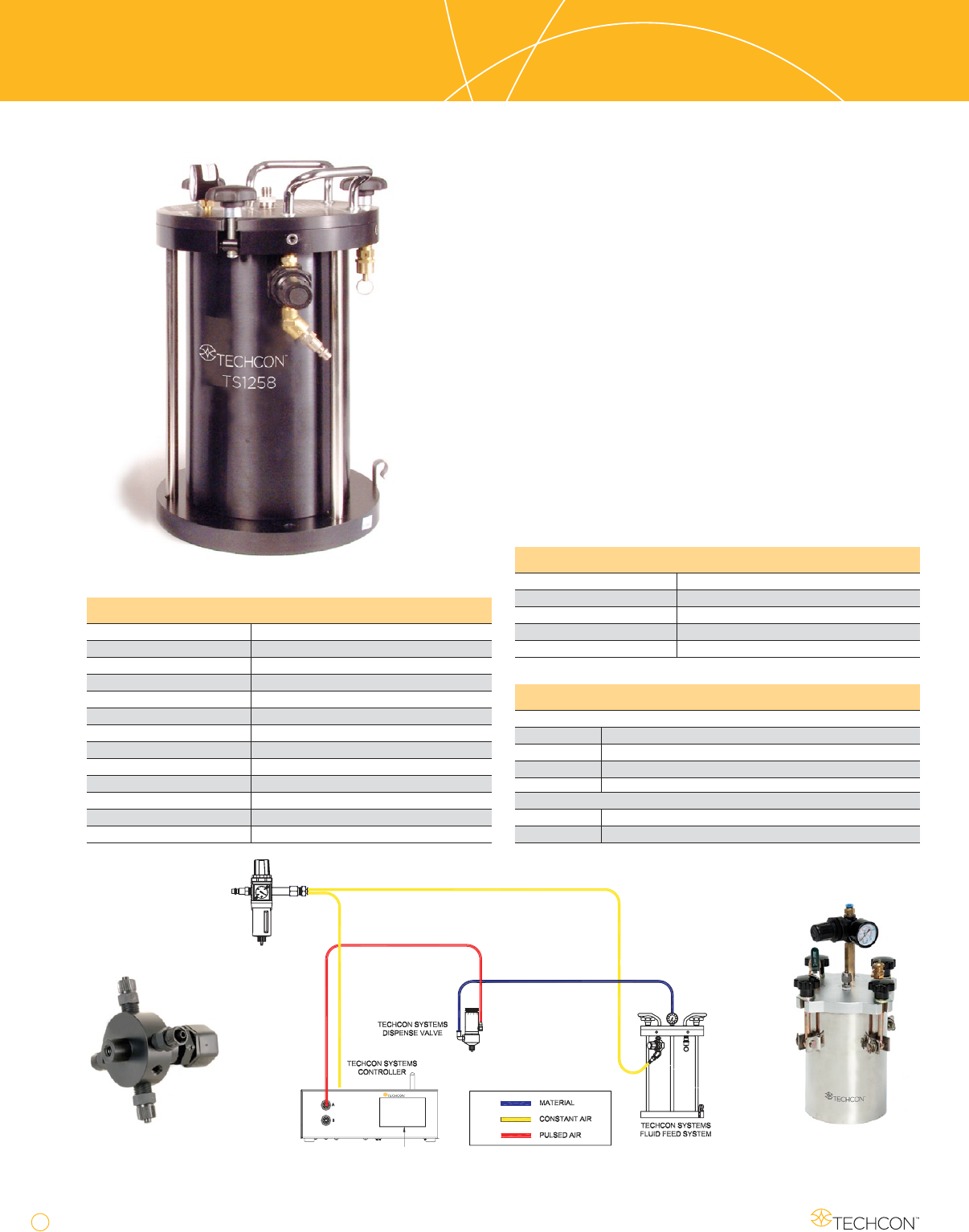

TS1254/1258
Pressure Pot
TS1254 - Pressure potTS918-46 - Four-way Manifold
TS1258 - Pressure pot
Specifications - Pressure Pot
TS1258
Size 10" x 15.1" (254 x 383mm)
Chamber 6.1" I.D. x 11.0" (155 I.D. x 280mm)
Weight 21 lb. (9.5 kg)
Max Operating Pressure 100 psi (6.9 bar)
Internal Volume 5 liters
TS1254
Size 7.5" x 12.5" (190 x 318mm)
Chamber 4.75" I.D. x 6.5" (121 I.D. x 165mm)
Weight 10.4 lb. (4.7 kg)
Max Operating Pressure 70 psi (4.8 bar)
Internal Volume 1.8 liters
TS1254/1258
Pressure Pot
The Pressure Pot is designed to accommodate low to medium
viscosity fluid including solvents, adhesives, as well as CAs and
UVs. The fluid feed line is located in the center of the unit for a
direct and continuous feed path from the reservoir to the dis-
pensing valve. The TS1258 is shipped with a 1/4" tubing and the
TS1254 is shipped with a 6mm tubing. For use with the TS1212 or
TS1201 valve, a TS1252-4MM Fluid Line kit is needed.
TS918
Four-way Manifold
Designed to provide equal flow for up to four fluid paths, the
TS918-46 is used whenever precision fluid flow to multiple sta-
tions is required. The Manifold works with the TS1258 Pressure
Pot (TS1258-375 Hose Kit required to use TS918-46 and TS1258
together). Made from Delrin® and suitable with UV materials.
The manifold can be used with any Techcon Systems Valve.
Specifications - TS918-46 Four-way Manifold
Size 2.6" x 2.2" (66 x 56mm)
Inlet Port
1/4" NPT (3/8” O.D. tube tting is included)
Outlet Port
1/8" NPT (4 Luer Lock ttings are included)
Max Operating Pressure 100 psi (6.9 bar)
Mounting 1/4”-20UNC-2B (x2)
Available Fluid Line Kits (Includes clear and black tubing)
For the TS1258 Pressure Pot
TS1252-4MM
4mm O.D. tube (required for TS1212 and TS1201 connection)
TS1258-250 1/4" O.D. tube
TS1258-375 3/8" O.D. tube
For the TS1254 Pressure Pot
TS1252-4MM
4mm O.D. tube (required for TS1212 and TS1201 connection)
254-250PE 6mm O.D. tube PE
TOUCH
SCREEN
TS550R
Typical Valve Set Up
