Fluid Line Assemblies
Luer Lock Fittings
All TSD931 Series fittings are moulded and have good chemical
resistance to solvents, acids and resin fluids. The locking end
accepts all standard dispensing tips and moulded fitting used
on the TSD126 Series hose assemblies. For a complete list, con-
tact your local representative.
Compression Fittings & Tubes
Compression fittings and tubes provide secure connection and
increase fluid flow.
Dispensing
Accessories
Fluid Line Assemblies
Part Number Size Connection Material
TSD126-118PK
0.100" (2.54mm) x 18" (457mm)
Male Luer/open Natural PE
TSD126-124PK
0.100" (2.54mm) x 24" (610mm)
Male Luer/open Natural PE
TSD126-136PK
0.100” (2.54mm) x 36” (914mm)
Male Luer/open Natural PE
TSD126-218PK
0.100" (2.54mm) x 18" (457mm)
Female Luer/open Natural PE
TSD126-224PK
0.100" (2.54mm) x 24" (610mm)
Female Luer/open Natural PE
TSD126-236PK
0.100" (2.54mm) x 36" (914mm)
Female Luer/open Natural PE
TSD126-318PK
0.100" (2.54mm) x 18" (457mm)
Male Luer/female Luer Natural PE
TSD126-318BPK
0.100" (2.54mm) x 18" (457mm)
Male Luer/female Luer Black PE
TSD126-324PK
0.100" (2.54mm) x 24" (610mm)
Male Luer/female Luer Natural PE
TSD126-324BPK
0.100" (2.54mm) x 24" (610mm)
Male Luer/female Luer Black PE
TSD126-336PK
0.100" (2.54mm) x 36" (914mm)
Male Luer/female Luer Natural PE
TSD126-336BPK
0.100" (2.54mm) x 36" (914mm)
Male Luer/female Luer Black PE
TSD126-360BPK
0.100" (2.54mm) x 60" (1524mm)
Male Luer/female Luer Black PE
TSD126-418PK
0.100" (2.54mm) x 18" (457mm)
Female Luer/female Luer Natural PE
TSD126-424PK
0.100" (2.54mm) x 24" (610mm)
Female Luer/female Luer Natural PE
TSD126-436PK
0.100" (2.54mm) x 36" (914mm)
Female Luer/female Luer Natural PE
TSD126-524PK
0.100" (2.54mm) x 24" (610mm)
Male Luer/male Luer Natural PE
Luer Lock Fittings
Part Number Description Material
TSD931-5 1
Male Luer Lock to 5/16"-28
White Acetal
TSD931-6 2
Male Luer Lock to 1/8" NPT
White Acetal
TSD931-7 3
Male Luer Lock to 1/4" NPT
White Polypropylene
TSD931-8 4
Male Luer Lock to 1/4"-32
White Acetal
TSD931-9 5
Female Luer Lock to 1/4"-32
White Acetal
TSD931-13 6
Female Luer Lock to Hose Barb
White Acetal
TSD931-14 7
Male Luer Lock to 1/4" NPT
Black Polypropylene
TSD931-15 8
Female Luer Lock to 1/4" NPT
Black Nylon/Acetal
TSD931-17 9
Male Luer Lock to Hose Barb
White Acetal
TSD931-28 10
Female Luer Lock to Female
Luer Lock
Natural
Polypropylene
Compression Fittings & Tubes
Part Number Description Material
TSD1003-16
1/8" NPT to 1/4" O.D. tube, 90°
tting
Black Polypropylene
TSD1002-17
1/8" NPT to 3/8" O.D. tube tting
Black Polypropylene
TSD1002-18
1/8" NPT to 1/4" O.D. tube tting
Black Polypropylene
TSD1002-38
1/4" NPT to 1/4" O.D. tube tting
Black Polypropylene
TSD1566-5
1/4" NPT to 3/8" O.D. tube tting
Black Polypropylene
TSD1099-22
3/8" O.D. x 1/4" I.D. tube
Black Polyethylene
TSD1099-23
3/8" O.D. x 1/4" I.D. tube
Clear Polyethylene
TSD1099-24
1/4" O.D. x 1/8" I.D. tube
Clear Polyethylene
TSD1099-25
1/4" O.D. x 1/8" I.D. tube
Black Polyethylene
TSD1099-45
6mm O.D. x 4mm I.D. tube
Clear Polyethylene
TSD1099-46
6mm O.D. x 4mm I.D. tube
Black Polyethylene
1 3 5 7 9
2 4 6 8 10
Fluid Line Assemblies
Each polyethylene hose assembly is provided with a moulded Luer lock fitting on one or both ends. The assembly can be
used with other standard Luer lock connectors and will handle up to 100 psi (6.9 bar) working pressure.
30
www.techcon.com
www.techcon.com www.techcon.com
Cartridges
& Accessories
Cartridges
& Accessories
These dependable, high quality products are designed for the rigors of manufacturing and have undergone continuous improvement to
keep pace with the exacting requirements of this challenging field.
Disposable plastic cartridges and nozzles provide a clean, efficient and low-cost method to meet all types of production requirements.
Plungers with a wiper leading edge clean each cartridge thoroughly. Caps and plugs for both ends of the cartridge are available, making
the system ideal for prepackaged materials as well as pre-mixed and frozen material handling.
Cartridges
Cartridges are available in 2 1/2, 6, 8, 12, and 20 ounce as well as 1/10 gallon capacities. Each size can be used with hand or bench mounted
air powered dispensing tools or manual dispensing tools. Cartridges are moulded in either standard or low density polyethylene. Custom
colors are available. Sold in bulk packages.

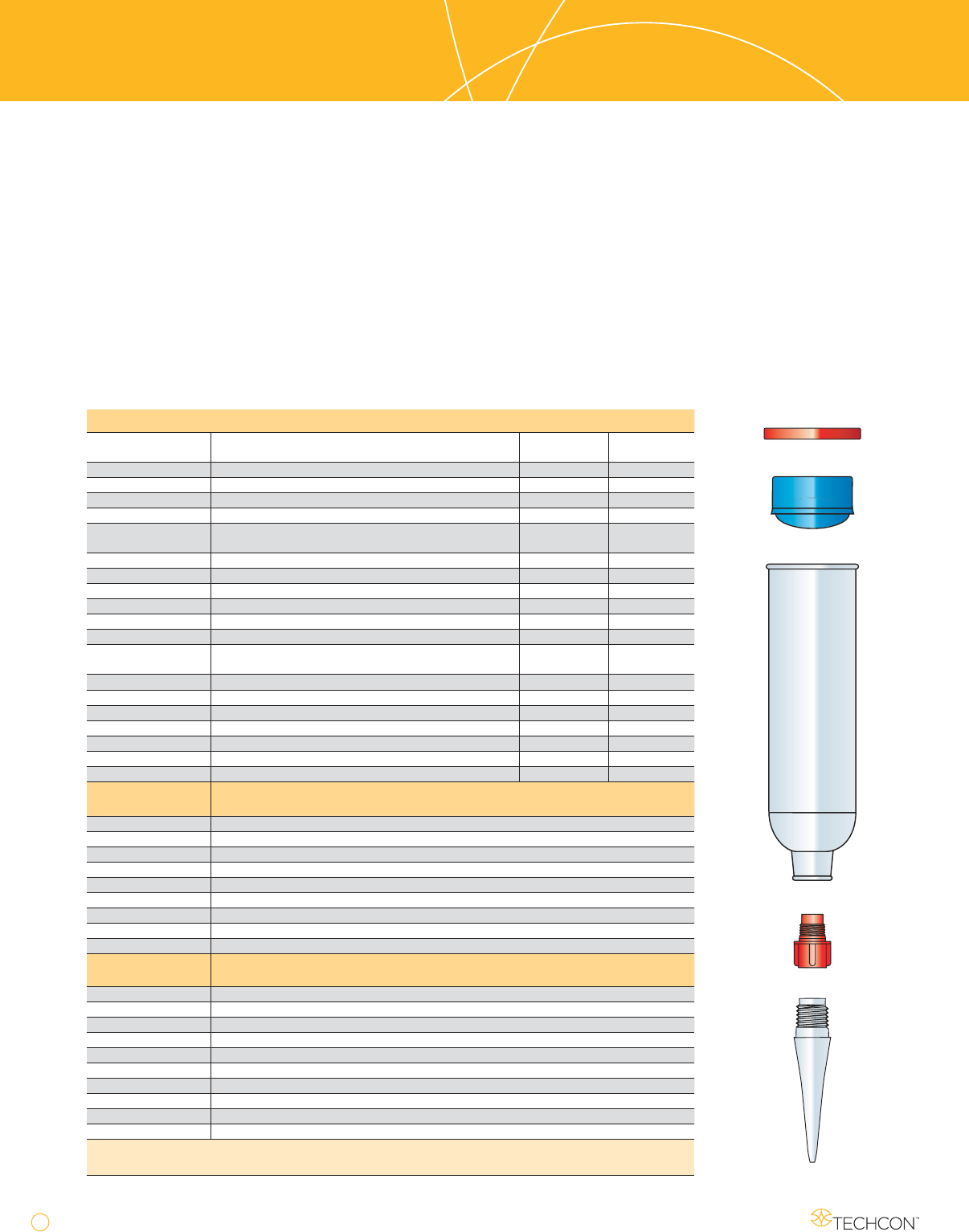

Cartridge
Plunger
Cap
Tip Cap
Nozzle
Cartridges
Part Number Description Length
Inches/mm
Diameter
Inches/mm
TS25C-500 2.5 oz. (74ml) Natural HDPE 4.00/101.6 1.59/40.4
TS25C-LD-500 2.5 oz. (74ml) Natural LDPE 4.00/101.6 1.59/40.4
TS60C-500 6 oz. (177ml) Natural HDPE 7.11/180.6 1.59/40.4
TS60C-
BLACK-500
6 oz. (177ml) Black HDPE 7.11/180.6 1.59/40.4
TS60C-LD-500 6 oz. (177ml) Natural LDPE 7.11/180.6 1.59/40.4
TS80C-250 8 oz. (237ml) Natural HDPE 8.92/226.6 1.59/40.4
TS80C-LD-250 8 oz. (237ml) Natural LDPE 8.92/226.6 1.59/40.4
TS120C-250 12 oz. (355ml) Natural HDPE 12.34/313.4 1.59/40.4
TS120C-
BLACK-250
12 oz. (355ml) Black HDPE 12.34/313.4 1.59/40.4
TS120C-LD-250 12 oz. (355ml) Natural LDPE 12.34/313.4 1.59/40.4
TS110C-250 1/10 Gallon (325ml) Natural HDPE 8.99/228.3 1.85/47.0
TS110C-LD-250 1/10 Gallon (325ml) Natural LDPE 8.99/228.3 1.85/47.0
TS20C-100 20 oz. (591ml) Natural HDPE 10.3/254.8 2.57/65.3
TS20C-BLACK-100 20 oz. (591ml) Black HDPE 10.3/254.8 2.57/65.3
Plungers
Wiper Plungers incorporate a modied or extended front wiper edge. Sold in
bulk packages.
Part Number Description
TS1P-SR-1000 2.5, 6, 8, 12 oz., Blue Wiper LDPE
TS1PB-SR-1000 2.5, 6, 8, 12 oz., Black Wiper LDPE
TS1WP-1000 2.5, 6, 8, 12 oz., Natural Extended Wiper LDPE
TS3WP-MD-1000 2.5, 6, 8, 12 oz., Natural Reduced Wiper MDPE
TS2PW-1000 1/10 Gallon White Extended Wiper LDPE with EVA
TS2P-BLACK-1000 1/10 Gallon Black Wiper LDPE
TS20P-100 20 oz. White Wiper MDPE
TS20PLD-100 20 oz. Natural Wiper LDPE
Caps
Top and bottom Caps provide a choice of methods to seal the neck and base
of the cartridge. Sold in bulk packages.
Part Number Description
TS2C-1000 2.5, 6, 8, 12 oz. Red LDPE Flange Cap
TS4C-1000 1/10 Gallon Red LDPE Flange Cap
TS6C-1000 20 oz. Red LDPE Flange Cap
TS3P-1000 Threaded Tri Seal Red PE Cap
TS4P-1000 Threaded Square Red PE Cap
TS5P-1000 Snap On Tri Seal Red PE Cap
TS6P-BLACK-1000 Threaded Black PE Cap
TS6P-RED-1000 Threaded Red PE Cap
TS9X-1000 Push On Red PE Cap
LD = Low Density, HD = High Density, EVA = Ethylene Vinyl Acetate, MD = Medium Density,
PE = Polyethylene
www.techcon.com
www.techcon.com www.techcon.com
31
Disposable Nozzles & Tip Adapters
Disposable Nozzles
and Dispensing Tip Adapters
Nozzles and dispensing tip adapters provide a wide range of
application capabilities. Standard nozzles may be cut back to
increase orifice size.
Dispensing Tip Adapters
These tip adapters have standard 1/4” NPT male threads on
one end to fit all Techcon Systems cartridges or equivalent and
standard male Luer lock threads on opposite side to fit all Luer
lock dispensing tips.
Standard Nozzles
Standard nozzles are precision moulded from natural poly-
ethylene and have 1/4" NPT male threads to fit all Techcon
cartridges or equivalent. Color nozzles are available upon re-
quest. Part numbers below are sold in bulk package of 1000.
Bent Nozzles
Below is the list of standard bent nozzles. Special bent nozzles
available upon request. Part numbers below are sold in bulk
package of 1000.
Part Number Description
TS416-HO-LD-B30/1-1000 Bent 30° at 1" (25.4mm)
TS416-HO-LD-B30/2-1000 Bent 30° at 2" (50.8mm)
TS416-HO-LD-B40/1-1000 Bent 40° at 1" (25.4mm)
TS418-HO-LD-B30/1-1000 Bent 30° at 1" (25.4mm)
TS618-HO-LD-B30/2-1000 Bent 30° at 2" (50.8mm)
Specialty Nozzles
Specialty nozzles are precision moulded from natural poly-
ethylene and have 1/4” NPT male threads to fit all Techcon
cartridges or equivalent. Part numbers below are sold in
bulk package of 1000.
Part Number Description
TSD931-7 Dispensing Tip Adapter White Polypropylene
TSD931-14 Dispensing Tip Adapter Black Polypropylene
918-006-000 Dispensing Tip Adapter Metal
Part Number Description
TS216-1000 2" (50.8mm) x 1/16" (1.6mm), HDPE
TS218-1000 2" (50.8mm) x 1/8" (3.2mm), HDPE
TS218-LD-1000 2" (50.8mm) x 1/8" (3.2mm), LDPE
TS416-HO-HD-1000 4" (101.6mm) x 1/16" (1.6mm), HDPE
TS416-HO-LD-1000 4" (101.6mm) x 1/16" (1.6mm), LDPE
TS418-HO-LD-1000 4" (101.6mm) x 1/8" (3.2mm), LDPE
TS432-HO-HD-1000 4" (101.6mm) x 1/32" (0.8mm), HDPE
TS432-HO-LD-1000 4" (101.6mm) x 1/32" (0.8mm), LDPE
TS490-HO-LD-1000 4" (101.6mm) x 3/32" (2.4mm), LDPE
TS616-HO-LD-1000 6" (152.4mm) x 1/16" (1.6mm), LDPE
TS618-HO-LD-1000 6" (152.4mm) x 1/8" (3.2mm), LDPE
