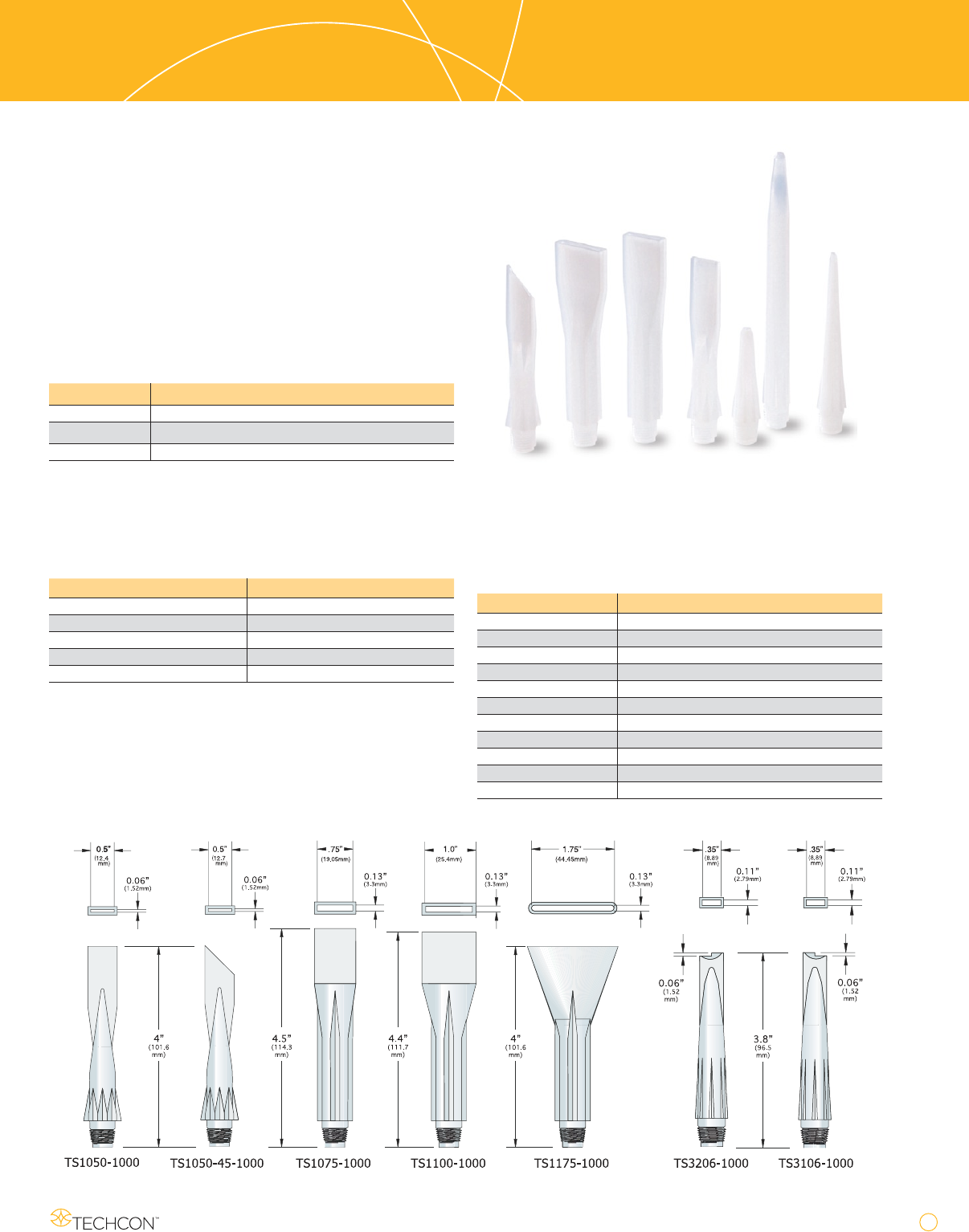

Disposable Nozzles & Tip Adapters
Disposable Nozzles
and Dispensing Tip Adapters
Nozzles and dispensing tip adapters provide a wide range of
application capabilities. Standard nozzles may be cut back to
increase orifice size.
Dispensing Tip Adapters
These tip adapters have standard 1/4” NPT male threads on
one end to fit all Techcon Systems cartridges or equivalent and
standard male Luer lock threads on opposite side to fit all Luer
lock dispensing tips.
Standard Nozzles
Standard nozzles are precision moulded from natural poly-
ethylene and have 1/4" NPT male threads to fit all Techcon
cartridges or equivalent. Color nozzles are available upon re-
quest. Part numbers below are sold in bulk package of 1000.
Bent Nozzles
Below is the list of standard bent nozzles. Special bent nozzles
available upon request. Part numbers below are sold in bulk
package of 1000.
Part Number Description
TS416-HO-LD-B30/1-1000 Bent 30° at 1" (25.4mm)
TS416-HO-LD-B30/2-1000 Bent 30° at 2" (50.8mm)
TS416-HO-LD-B40/1-1000 Bent 40° at 1" (25.4mm)
TS418-HO-LD-B30/1-1000 Bent 30° at 1" (25.4mm)
TS618-HO-LD-B30/2-1000 Bent 30° at 2" (50.8mm)
Specialty Nozzles
Specialty nozzles are precision moulded from natural poly-
ethylene and have 1/4” NPT male threads to fit all Techcon
cartridges or equivalent. Part numbers below are sold in
bulk package of 1000.
Part Number Description
TSD931-7 Dispensing Tip Adapter White Polypropylene
TSD931-14 Dispensing Tip Adapter Black Polypropylene
918-006-000 Dispensing Tip Adapter Metal
Part Number Description
TS216-1000 2" (50.8mm) x 1/16" (1.6mm), HDPE
TS218-1000 2" (50.8mm) x 1/8" (3.2mm), HDPE
TS218-LD-1000 2" (50.8mm) x 1/8" (3.2mm), LDPE
TS416-HO-HD-1000 4" (101.6mm) x 1/16" (1.6mm), HDPE
TS416-HO-LD-1000 4" (101.6mm) x 1/16" (1.6mm), LDPE
TS418-HO-LD-1000 4" (101.6mm) x 1/8" (3.2mm), LDPE
TS432-HO-HD-1000 4" (101.6mm) x 1/32" (0.8mm), HDPE
TS432-HO-LD-1000 4" (101.6mm) x 1/32" (0.8mm), LDPE
TS490-HO-LD-1000 4" (101.6mm) x 3/32" (2.4mm), LDPE
TS616-HO-LD-1000 6" (152.4mm) x 1/16" (1.6mm), LDPE
TS618-HO-LD-1000 6" (152.4mm) x 1/8" (3.2mm), LDPE
32
www.techcon.com
www.techcon.com www.techcon.com
G Series

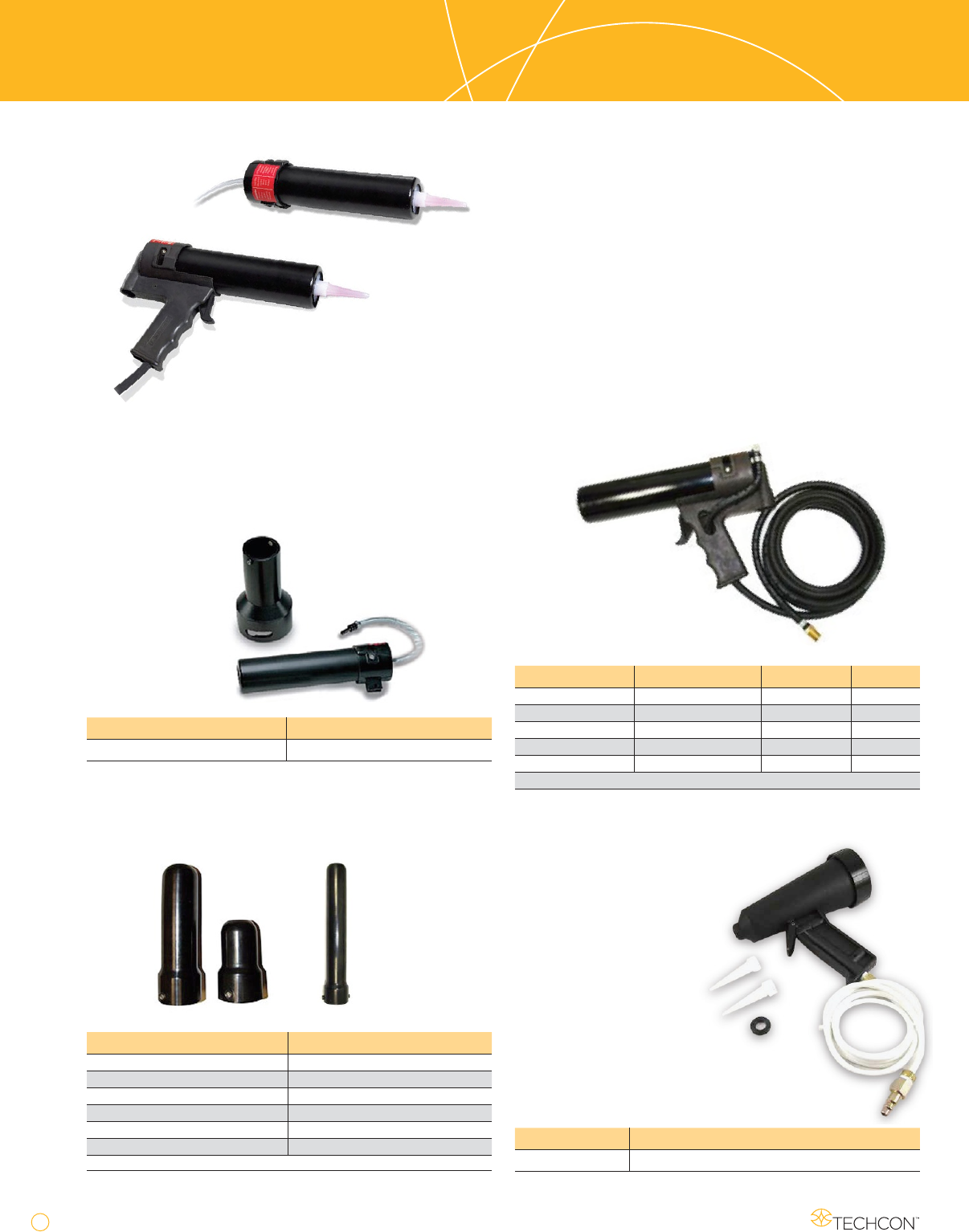

Dispensing Guns and Components
G Series
Dispensing Guns
and Components
Techcon Systems G Series guns and components are de-
signed to accommodate standard 1/10 gallon cartridges, such
as Techcon’s TS110C. Techcon also provides metal retainers
that adapt the G Series handle assemblies for use with the
smaller diameter cartridges. A 20 oz. retainer with adapter is
available to accommodate the 20 oz. cartridge.
G Series Gun Assemblies
This pneumatic pistol grip G Series gun provides infinite con-
trol of line or dot dispensing and can withstand up to 100 psi
(6.9 bar) pressure. Shipped complete with a 10-foot air hose.
Part Number Size Handle Retainer
G-110 1/10 gal. (325ml) 110-1-10 110-2
G110-25 2.5 oz. (74ml) 110-1-10 101-25R
G110-60 6 oz. (177ml) 110-1-10 101-60R
G110-120 12 oz. (355ml) 110-1-10 101-120R
G110-20* 20 oz. (591ml) 110-1-10 101-20R
*101-20A Adapter included.
Part Number Description
918-000-036 G Series Retainer Cap
Part Number Size
TS910 3 to 5 uid oz. (89 -148ml)
G Series Retainer
The G Series retainers provide up to 100 psi (6.9 bar)
air pressure.
Part Number Size
110-2 1/10 gal. (325ml)
101-25R 2.5 oz. (74ml)
101-60R 6 oz. (177ml)
101-120R 12 oz. (355ml)
101-20R* 20 oz. (591ml)
101-20A 20 oz. Adapter (591ml)
*101-20A Adapter is required for 20 oz.
G Series Retainer Cap
The G Series retainer cap provides a leak-proof connection
between the dispenser and G Series retainers. Shipped com-
plete with air hose assembly, and can withstand up to 70 psi
(4.8 bar) pressure.
TS910 Tube Dispense Gun
The TS910 gun is ideal for dispensing
RTV silicones, grease or other ma-
terial that contain in collapsible
tube. Shipped complete with
5 foot (1.5 meters) air hose,
quick connect fitting, nozzle
and locking nut.
www.techcon.com
www.techcon.com www.techcon.com
33
TS Series
Dispensing Guns & Components
Key Features
• Easy to assemble & operate
• Adjustable retainer to fit 2.5oz., 6oz. & 8oz. cartridges
• Light-weight
• Pistol version features adjustable air regulator
• Compatible with all aerospace sealant manufacturers
Part Number Size
918-030-000 2.5 oz. (74ml)
918-031-000 6 oz. (177ml)
918-034-000 8 oz. (237ml)
918-032-000 12 oz. (355ml)
TS Retainers
The TS Series retainers are durable, lightweight and can with-
stand up to 100 psi (6.9 bar) pressure.
TS Series
Dispensing Guns
and Components
TS Series dispensing guns and components are designed to
accommodate Techcon Systems extensive line of cartridges
and Techkits.
TS950 Sealant Gun
The TS950 is a versatile, pneu-
matic sealant gun designed to
accommodate all TS Series retain-
ers. Complete assembly includes
palm grip gun with pistol grip
handle attached. Shipped without air hose, the 1000-12
ten-foot hose assembly can be ordered separately.
Pistol Grip
Sealant Gun
Size Palm Grip
Assembly
Pistol Grip
Handle
Retainer
TS950-25-HA
2.5 oz.
(74ml)
TS950-75 TS950-3 918-030-000
TS950-60-HA
6 oz.
(177ml)
TS950-75 TS950-3 918-031-000
TS950-80-HA
8 oz.
(237ml)
TS950-75 TS950-3 918-034-000
TS950-120-HA
12 oz.
(355ml)
TS950-75 TS950-3 918-032-000
TS16 Manual Gun Assemblies
The lightweight TS16 Series man-
ual gun assembly is ideal for
field applications where com-
pressed air is unavailable.
Gun Size Handle Retainer
TS16-25 2.5 oz. (74ml) TS16 918-030-000
TS16-60 6 oz. (177ml) TS16 918-031-000
TS16-80 8 oz. (237ml) TS16-2 918-034-000
TS16-120 12 oz. (355ml) TS16-2 918-032-000
TS Retainer Cap
The TS Series retainer cap provides a leak-
proof connection between the dispenser and
TS Series retainers. Quick connector and air
hose assembly are available separately and
can withstand up to 100 psi (6.9 bar) pressure.
Part Number Description
918-001-004 TS Series Retainer Cap
918-000-002 Air Hose Assembly
534 Connector with Shut-off
534A Connector without Shut-off
TS2560 Series Applicator Guns
Lightweight Cartridge Applicator
These palm and pistol grip applicator guns allow for the process-
ing of Techcon and standard sealant cartridges with ease. The
TS2560 series dispensing gun is ideal for dispensing silicones,
grease or other materials that come in standard cartridges.
A unique, light-weight, adjustable retainer fits cartridge sizes
of 2.5oz., 6oz. & 8oz.
With a maximum
working pressure
of 5.5 bar (80psi), the
guns are ideally suited for a
multitude of aerospace and other
industrial applications.
Part Number Handle Style
TS2560-PG Palm Grip
TS2560-HG Pistol Grip
