TS Series
Dispensing Guns & Components
Key Features
• Easy to assemble & operate
• Adjustable retainer to fit 2.5oz., 6oz. & 8oz. cartridges
• Light-weight
• Pistol version features adjustable air regulator
• Compatible with all aerospace sealant manufacturers
Part Number Size
918-030-000 2.5 oz. (74ml)
918-031-000 6 oz. (177ml)
918-034-000 8 oz. (237ml)
918-032-000 12 oz. (355ml)
TS Retainers
The TS Series retainers are durable, lightweight and can with-
stand up to 100 psi (6.9 bar) pressure.
TS Series
Dispensing Guns
and Components
TS Series dispensing guns and components are designed to
accommodate Techcon Systems extensive line of cartridges
and Techkits.

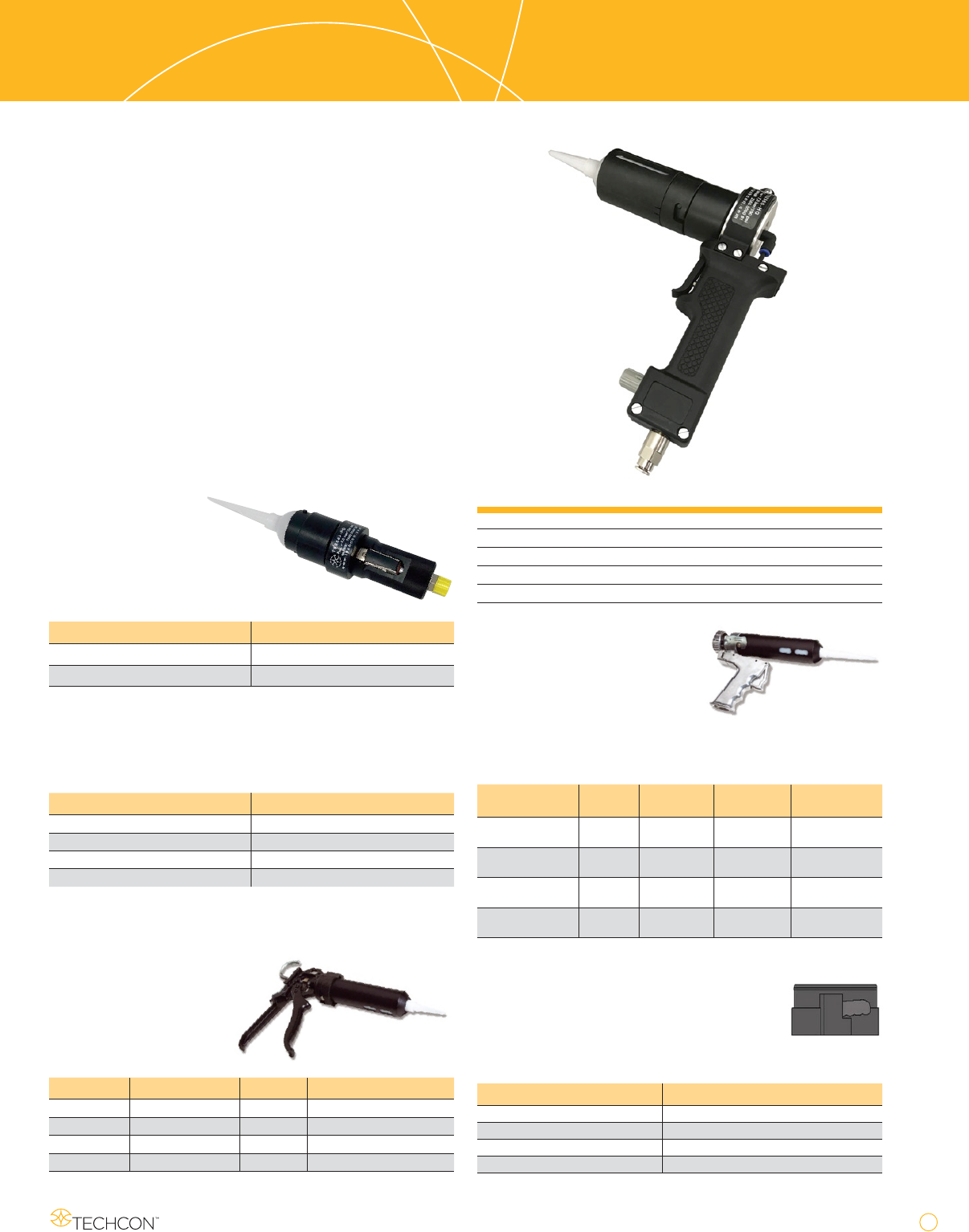

TS950 Sealant Gun
The TS950 is a versatile, pneu-
matic sealant gun designed to
accommodate all TS Series retain-
ers. Complete assembly includes
palm grip gun with pistol grip
handle attached. Shipped without air hose, the 1000-12
ten-foot hose assembly can be ordered separately.
Pistol Grip
Sealant Gun
Size Palm Grip
Assembly
Pistol Grip
Handle
Retainer
TS950-25-HA
2.5 oz.
(74ml)
TS950-75 TS950-3 918-030-000
TS950-60-HA
6 oz.
(177ml)
TS950-75 TS950-3 918-031-000
TS950-80-HA
8 oz.
(237ml)
TS950-75 TS950-3 918-034-000
TS950-120-HA
12 oz.
(355ml)
TS950-75 TS950-3 918-032-000
TS16 Manual Gun Assemblies
The lightweight TS16 Series man-
ual gun assembly is ideal for
field applications where com-
pressed air is unavailable.
Gun Size Handle Retainer
TS16-25 2.5 oz. (74ml) TS16 918-030-000
TS16-60 6 oz. (177ml) TS16 918-031-000
TS16-80 8 oz. (237ml) TS16-2 918-034-000
TS16-120 12 oz. (355ml) TS16-2 918-032-000
TS Retainer Cap
The TS Series retainer cap provides a leak-
proof connection between the dispenser and
TS Series retainers. Quick connector and air
hose assembly are available separately and
can withstand up to 100 psi (6.9 bar) pressure.
Part Number Description
918-001-004 TS Series Retainer Cap
918-000-002 Air Hose Assembly
534 Connector with Shut-off
534A Connector without Shut-off
TS2560 Series Applicator Guns
Lightweight Cartridge Applicator
These palm and pistol grip applicator guns allow for the process-
ing of Techcon and standard sealant cartridges with ease. The
TS2560 series dispensing gun is ideal for dispensing silicones,
grease or other materials that come in standard cartridges.
A unique, light-weight, adjustable retainer fits cartridge sizes
of 2.5oz., 6oz. & 8oz.
With a maximum
working pressure
of 5.5 bar (80psi), the
guns are ideally suited for a
multitude of aerospace and other
industrial applications.
Part Number Handle Style
TS2560-PG Palm Grip
TS2560-HG Pistol Grip
34
www.techcon.com
www.techcon.com www.techcon.com
Barrier Type
For compounds with
a Minimum demand
of 23ml Hardener the
catalyst and base are
separated by an alu-
minum barrier formed
over the mixing head
Barrier/Injection Type
For three component com-
pounds, components of
both Injection and Barrier
are combined.
Injection Type
For compounds with
a Maximum demand
of 12.5ml or less the
catalyst is contained
inside the valved mix-
ing rod while the base
is in the cartridge.
TS6500 Series

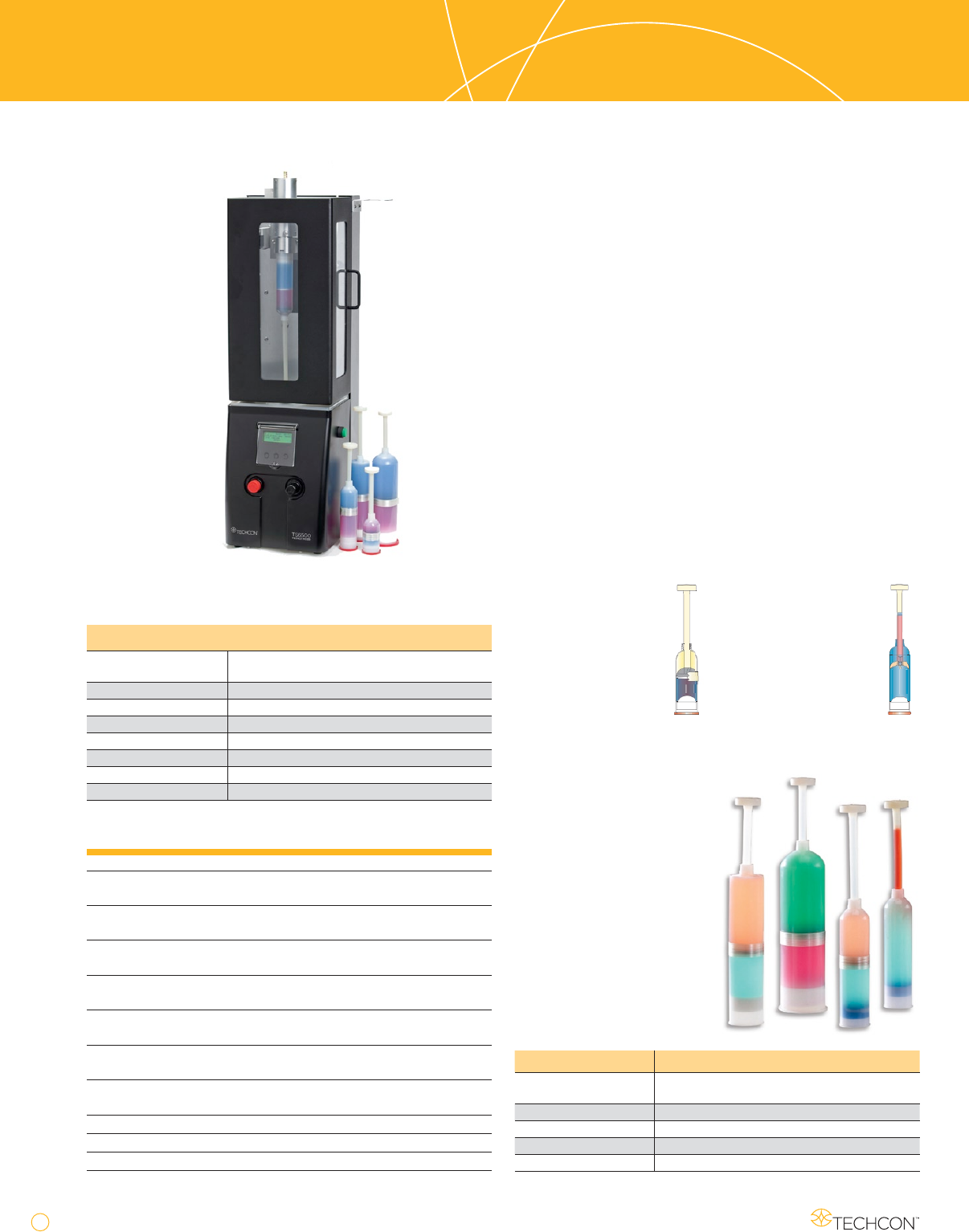

Techkit Cartridge Mixers
TS6500 Series
Techkit Cartridge Mixers
The TS6500 Series cartridge mixer provides complete auto-
matic mixing of two-component material filled in a cartridge
kit. The feature rich TS6500 Series accommodates all standard
size cartridge kits ranging from 2.5 oz. (74ml) to 20 oz. (591ml)
and is immediately usable anywhere in the world with its ac-
companying tools, accessories and universal power supply.
Techkits
Two Component Cartridge Packaging and Mixing Kits
The Techkit is a compact and simple method of packaging two
or three component resin systems into a 2 1/2, 6, 8, 20 ounce
or 1/10 gallon cartridge. The kit mechanically separates the
base and hardener until they are ready to be used. An internal
mixing head provides a thorough blend for all types of com-
pounds. When the job has been completed, the entire package
is disposed of: no clean up or physical contact with the resin.
Reliability is increased with accurate compound ratios, com-
plete mixing and proper application techniques.
Three types of kits are available:
Key Features
• Universalpowersupplyforworldwideuse
• Automaticuidlevelsensingdeviceforallkitsizes–No
need to set stroke length
• Automaticallyinjectshardenerintoresintoprovide
uniform mixed material
• Robust,hightorquemotortohandlehighviscosity
material
• Safetyfeaturesincludesafetyenclosure,emergency
stop button and two-hand start
• Userprogrammablemanualandautomaticmixingcycle
settings
• 10programmablememoriesforstoringandrecalling
most frequently used mix cycle
• Quickandeasytoreplacecartridgeholderandplunger
- No tool needed
• Userfriendlyrmwareforeasysetup
• Robustandsturdyplatformforheavyindustrialused
• RoHS,WEEEcompliance,CEcertied
TS6500 - Cartridge Mixer
Specifications
Size 15.7"W x 21.2"D x 40.6"H
398mm x 538mm x 1032mm
Weight 80 lb. (36kg)
Internal Voltage 120-230VAC, 50-60 Hz, 2 Amp
Motor Speed 139 RPM
Air Inlet 80 psi (5.5 Bar) Min.
Stroke Speed 33 Strokes/minute (fully extended)
Meets or exceeds CE, cTUV-us
Warranty 1 year
Part number Description
TS6500CIM-6 Cartridge Mixer for 2.5 (74ml), 6 oz.
(177ml), 8 oz. (237ml) kit
TS6500CIM-20 Cartridge Mixer for 20 oz. (591ml) kit
CK6500-6 Conversion Kit for 2.5, 6, 8 oz. kit
CK6500-10 Conversion kit for 1/10 gal kit
CK6500-20 Conversion kit for 20 oz. kit
www.techcon.com
www.techcon.com www.techcon.com
35
Techkits

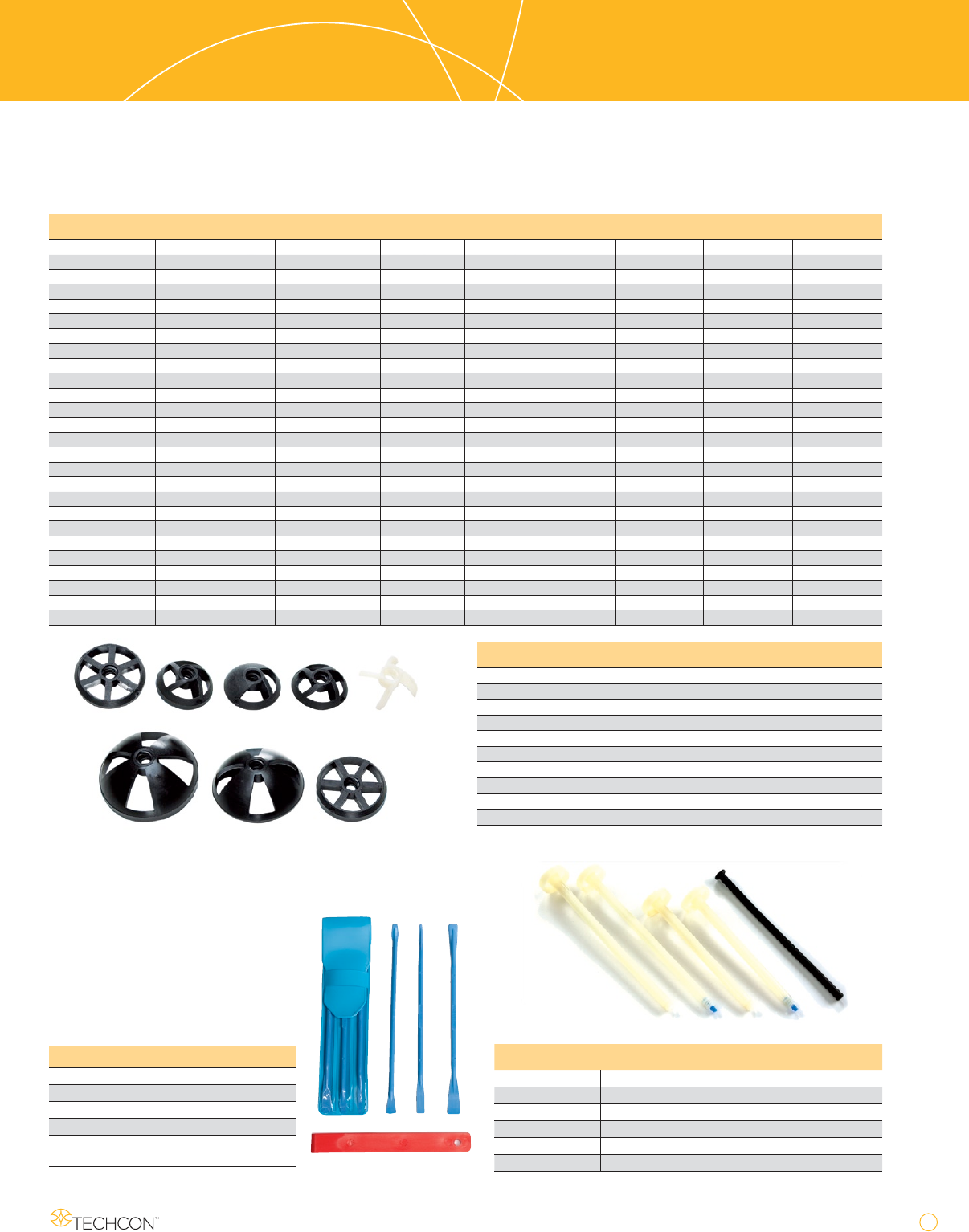

Techkit Components
