www.techcon.com www.techcon.com www.techcon.com 35 T ec h kit s T ech kit Com po nen ts T e c h kit Co m pon e n ts 110-350 600-300 600-330 600-310 600-200 600-360 600-370 110-340 Sealant Smoothing and Removal Tools T ec…
34
www.techcon.com
www.techcon.com www.techcon.com
Barrier Type
For compounds with
a Minimum demand
of 23ml Hardener the
catalyst and base are
separated by an alu-
minum barrier formed
over the mixing head
Barrier/Injection Type
For three component com-
pounds, components of
both Injection and Barrier
are combined.
Injection Type
For compounds with
a Maximum demand
of 12.5ml or less the
catalyst is contained
inside the valved mix-
ing rod while the base
is in the cartridge.
TS6500 Series
Techkit Cartridge Mixers
TS6500 Series
Techkit Cartridge Mixers
The TS6500 Series cartridge mixer provides complete auto-
matic mixing of two-component material filled in a cartridge
kit. The feature rich TS6500 Series accommodates all standard
size cartridge kits ranging from 2.5 oz. (74ml) to 20 oz. (591ml)
and is immediately usable anywhere in the world with its ac-
companying tools, accessories and universal power supply.
Techkits
Two Component Cartridge Packaging and Mixing Kits
The Techkit is a compact and simple method of packaging two
or three component resin systems into a 2 1/2, 6, 8, 20 ounce
or 1/10 gallon cartridge. The kit mechanically separates the
base and hardener until they are ready to be used. An internal
mixing head provides a thorough blend for all types of com-
pounds. When the job has been completed, the entire package
is disposed of: no clean up or physical contact with the resin.
Reliability is increased with accurate compound ratios, com-
plete mixing and proper application techniques.
Three types of kits are available:
Key Features
• Universalpowersupplyforworldwideuse
• Automaticuidlevelsensingdeviceforallkitsizes–No
need to set stroke length
• Automaticallyinjectshardenerintoresintoprovide
uniform mixed material
• Robust,hightorquemotortohandlehighviscosity
material
• Safetyfeaturesincludesafetyenclosure,emergency
stop button and two-hand start
• Userprogrammablemanualandautomaticmixingcycle
settings
• 10programmablememoriesforstoringandrecalling
most frequently used mix cycle
• Quickandeasytoreplacecartridgeholderandplunger
- No tool needed
• Userfriendlyrmwareforeasysetup
• Robustandsturdyplatformforheavyindustrialused
• RoHS,WEEEcompliance,CEcertied
TS6500 - Cartridge Mixer
Specifications
Size 15.7"W x 21.2"D x 40.6"H
398mm x 538mm x 1032mm
Weight 80 lb. (36kg)
Internal Voltage 120-230VAC, 50-60 Hz, 2 Amp
Motor Speed 139 RPM
Air Inlet 80 psi (5.5 Bar) Min.
Stroke Speed 33 Strokes/minute (fully extended)
Meets or exceeds CE, cTUV-us
Warranty 1 year
Part number Description
TS6500CIM-6 Cartridge Mixer for 2.5 (74ml), 6 oz.
(177ml), 8 oz. (237ml) kit
TS6500CIM-20 Cartridge Mixer for 20 oz. (591ml) kit
CK6500-6 Conversion Kit for 2.5, 6, 8 oz. kit
CK6500-10 Conversion kit for 1/10 gal kit
CK6500-20 Conversion kit for 20 oz. kit
www.techcon.com
www.techcon.com www.techcon.com
35
Techkits
Techkit Components
Techkit
Components
110-350 600-300 600-330 600-310 600-200
600-360 600-370 110-340
Sealant Smoothing and Removal Tools
Techcon Systems plastic sealant tools
are ideal for spreading, smoothing and
removing sealants or adhesives. Ap-
proved for use in aerospace industry,
these tools are designed to prevent
damage to delicate substrates. Spatulas
made from Nylon. Smoothing tool made
from Celcon
®
.
Mix Heads
Part Number Description
110-340 1/10 gal. (325ml) Mix Head
110-350 1/10 gal. (325ml) Foiled Mix Head
600-200 Open Mix Head
600-300 Wheel Mix Head
600-310 Foiled Wheel Mix Head
600-320 Half Closed Circle Mix Head
600-330 Foiled Half Closed Circle Mix Head
600-360 20 oz. (591ml) Wheel Mix Head
600-370 20 oz. (591ml) Foiled Wheel Mix Head
600-380 20 oz. (591ml) Spoked Wheel Mix Head
Complete Techkits
Part Number Size Type Cartridge Plunger Cap Mix Head Rod Ram Rod
110-80 1/10 gal. (325ml) Injection TS110C TS2PW TS4C 110-340 810-100A 600-080
110-81 1/10 gal. (325ml) Barrier TS110C TS2PW TS4C 110-350 800-100
110-81T 1/10 gal. (325ml) Taped Barrier TS110C TS2PW TS4C 110-350 800-100
250-60 2 1/2 oz. (74ml) Injection TS25C TS1WP TS2C 600-200 610-100A 600-080
250-61 2 1/2 oz. (74ml) Barrier TS25C TS1WP TS2C 600-310 600-100
250-61T 2 1/2 oz. (74ml) Taped Barrier TS25C TS1WP TS2C 600-310 610-100
250-80 2 1/2 oz. (74ml) Injection TS25C TS1WP TS2C 600-200 810-100A 600-080
250-81 2 1/2 oz. (74ml) Barrier TS25C TS1WP TS2C 600-310 800-100
250-81T 2 1/2 oz. (74ml) Taped Barrier TS25C TS1WP TS2C 600-310 800-100
600-60 6 oz. (177ml) Injection TS60C TS1WP TS2C 600-200 610-100A 600-080
600-61 6 oz. (177ml) Barrier TS60C TS1WP TS2C 600-310 600-100
600-61T 6 oz. (177ml) Taped Barrier TS60C TS1WP TS2C 600-310 600-100
600-80 6 oz. (177ml) Injection TS60C TS1WP TS2C 600-200 810-100A 600-080
600-81 6 oz. (177ml) Barrier TS60C TS1WP TS2C 600-310 800-100
600-81T 6 oz. (177ml) Taped Barrier TS60C TS1WP TS2C 600-310 800-100
800-80 8 oz. (237ml) Injection TS80C TS1WP TS2C 600-200 810-100A 600-080
800-81 8 oz. (237ml) Barrier TS80C TS1WP TS2C 600-310 800-100
800-81T 8 oz. (237ml) Taped Barrier TS80C TS1WP TS2C 600-310 800-100
200-80 20 oz. (591ml) Injection TS20C TS20P TS6C 600-360 810-100A 600-080
200-81 20 oz. (591ml) Barrier TS20C TS20P TS6C 600-370 800-100
200-81T 20 oz. (591ml) Taped Barrier TS20C TS20P TS6C 600-370 800-100
Part Number Description
1275-000-001 4 Spatula, Large
1275-000-002 3 Spatula, Medium
1275-000-003 2 Spatula, Small
TS1275-KP 1 Spatula Kit
TS1275-4 5 Smoothing tool,
Red Celcon
®
Rods
Part Number Description
600-080 1 8” (203.2mm) Ram Rod
600-100 2 6” (152.4mm) Plugged Rod
610-100A 3 6” (152.4mm) Valved Rod with Piston
800-100 4 8” (203.2mm) Plugged Rod
810-100A 5 8” (203.2mm) Valved Rod with Piston
1 2 3 4
5
4 5 2 3 1
36
www.techcon.com
www.techcon.com www.techcon.com

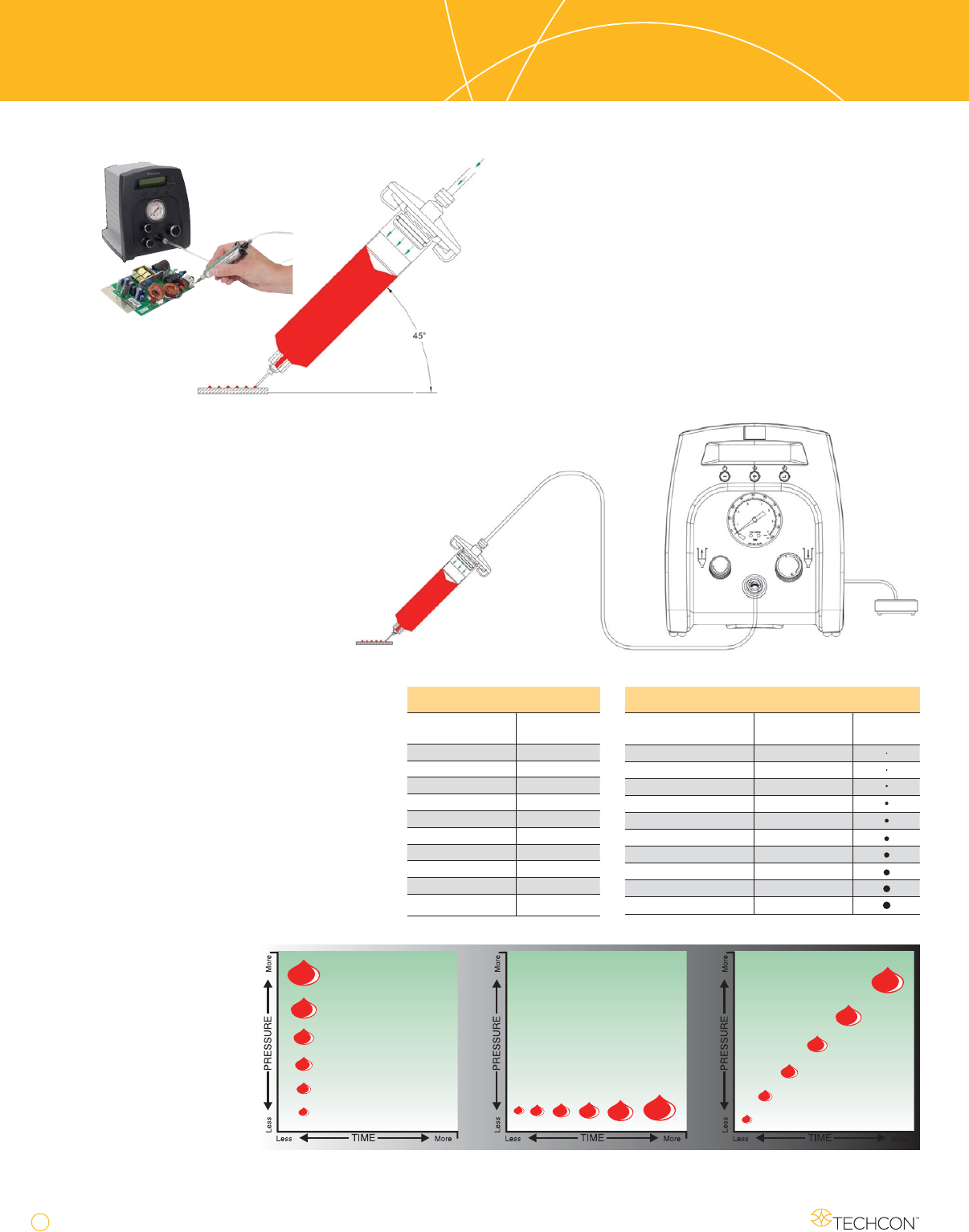

Tutorial
Time-Pressure Dispensing
Tutorial
Time-Pressure Dispensing
Time pressure dispensing is the most common dispensing
method used today. Its popularity stems from the need for
process control and the fact that it is possible to dispense
from disposable containers without the need for cleaning.
Our time-pressure dispensers deliver a measured amount of
air pressure, for a measured amount of time, to a pre-filled sy-
ringe barrel. This controlled shot of air pressure forces mate-
rial out of the delivery end of the barrel, through a dispensing
tip and out to the application surface.
Shot Size Chart
Dot Diameter Dot Volume Dot Size
(actual)
0.010" (0.25mm) 0.0000043 cc
0.020" (0.51mm) 0.00003 cc
0.030" (0.76mm) 0.0001 cc
0.040" (1.02mm) 0.0003 cc
0.050" (1.27mm) 0.0005 cc
0.060" (1.52mm) 0.0009 cc
0.070" (1.78mm) 0.0015 cc
0.080" (2.03mm) 0.0022 cc
0.090" (2.29mm) 0.0031 cc
0.100" (2.54mm) 0.0043 cc
Viscosity Chart
Material Viscosity
(Centipoise)
Water 1
Milk 3
Castor Oil 1000
Maple Syrup 5000
Honey 10000
Chocolate Syrup 25000
Ketchup 50000
Sour Cream 100000
Peanut Butter 250000
Shortening 1200000
Basic Dispensing Guidelines
• Small Shot Size = small dispensing tip,
low fluid pressure, short dispense time
• Large Shot Size = larger dispensing
tip, higher fluid pressure, longer dis-
pense time
• Low Viscosity Fluid = small dis-
pensing tip, low pressure, time
as required
• High Viscosity Fluid = larger dis-
pensing tip (tapered dispensing tip
recommended), high pressure, time
as required
• Positionsyringebarrelat45°angle
• Positionthedispensingtipclosetothe
work surface then activate the dispense
cycle and keep the syringe barrel in the
same position until the cycle is completed
• Ifvacuum“suck-back”isneeded,useonly
enough vacuum to draw back fluid into
the dispense tip. Excessive vacuum could
draw air into the fluid and also could draw
fluid into the dispenser.
Factors Affecting Dispensing
• Pressure: Increas-
ing fluid pressure will
increase dot size and
vice versa
• Time: Increasing
dispense time will
increase dot size
and vice versa
• Dispensing Tip Size:
Larger inside diameter
(orifice) needle results
in bigger dot size
