Page HANWHA TECHWIN 16 EXCEN EXCEN Feeder 12mm (2/2) 37 A 9 33 34 69 26 48 18 50 62 12 E 14 41 13 8 37 49 41 17 F 63 35 43 6 72 26 65 36 11 19 54 20 60 4 16 73 28 38 15 23 55 58 35 70 26 28 67 64 27 68 64 39 27 39 71 D C
Page
HANWHA TECHWIN
15
EXCEN

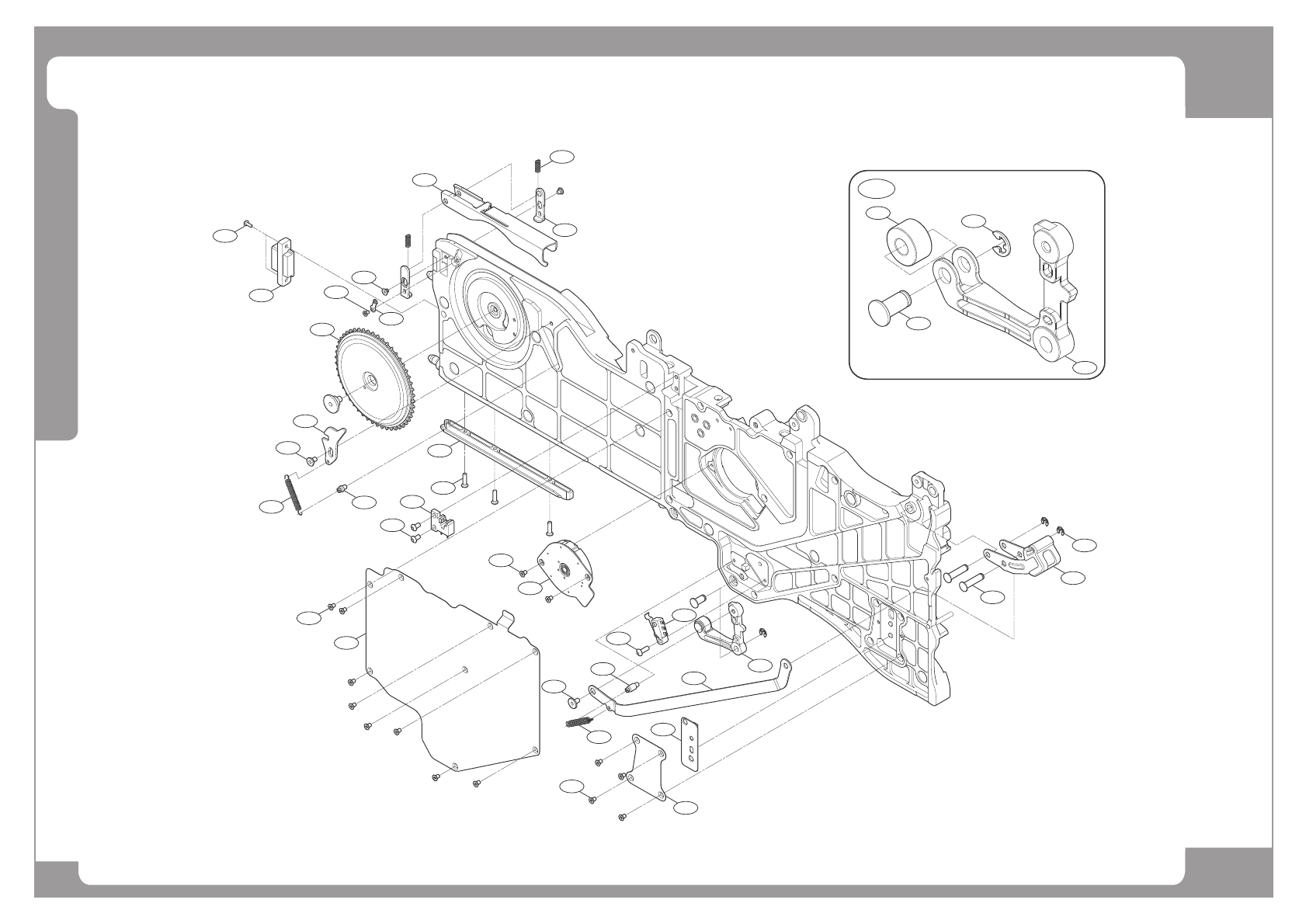

EXCEN Feeder 12mm (1/2)
5
53
51
28
B
57
10
28
3
1
22
45
24
47
21
59
25
52
74
2
26
30
40
76
41
61
56
75
42
29
44
66
26
G
G-1
G-4
G-2
G-3
G
OLD TYPE
NEW TYPE
Page
HANWHA TECHWIN
16
EXCEN

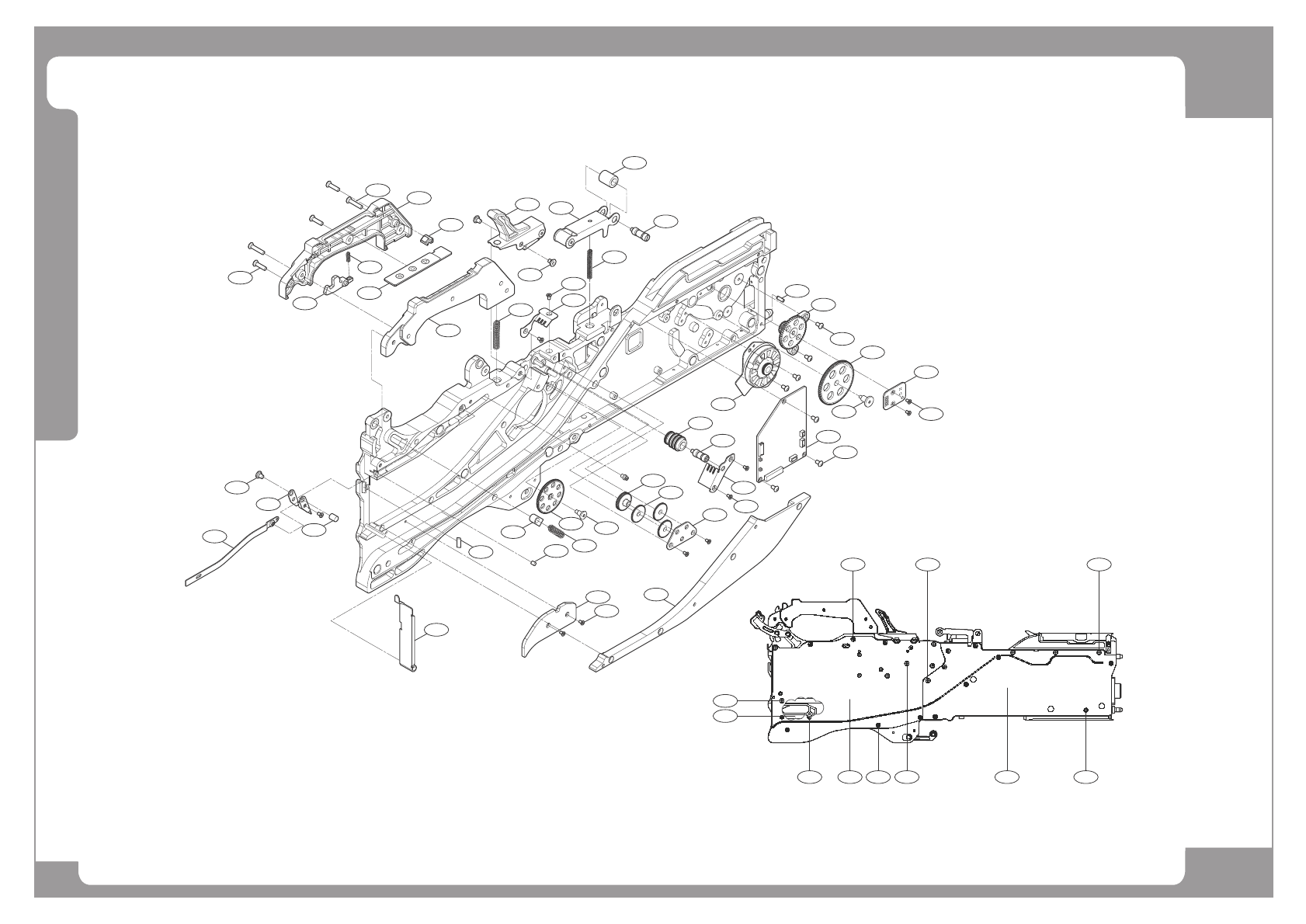

EXCEN Feeder 12mm (2/2)
37
A
9
33
34
69
26
48
18
50
62
12
E
14
41
13
8
37
49
41
17
F
63
35
43
6
72
26
65
36
11
19
54
20
60
4
16
73
28
38
15
23
55
58
35
70
26
28
67 64 27 68 64
39 27 39
71
D
C
Page
HANWHA TECHWIN
17
EXCEN
EXCEN Feeder 12mm
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A AM03-003847B ASSY,TAPE FEEDER-V SECOND GEAR ASSY-L 1
분해 / 조립 시 기어열조정 필요
B AM03-003845A V SPROCKET ASSY-L 1
분해/조립시
Mapping
필요
C AM03-003840A V D-FOLLOWER ASSY 12 1
D AM03-003839A V D-TENSIONER ASSY 12 1
E AM03-003752A INDEX SENSOR ASSY VL 1
분해/조립시
Mapping
필요
F AM03-003749B ASSY,ETC,IMS-UI ASSY VL 1
G AM03-001557C ASSY,TAPE FEEDER-CLAMP V ASSY 1 NEW TYPE
G-1 J70653554A CLAMP BLOCK SHAFT 1 OLD TYPE
G-2 J70653553A CLAMPING ROLLER 1 OLD TYPE
G-3 FC18-901343 E-RING [DIA5 (SUS)] 1 OLD TYPE
G-4 FC07-000294A CLAMP BLOCK 1 OLD TYPE
1 AM03-000613A CLAMP SWITCH HARNESS ASSY VL 1
2 MC19-000194A V CLAMP SPRING SHAFT-L 1
3 MC19-000193B SHAFT-V LOCKER FRONT SHAFT-L 2
4 MC19-000192C SHAFT-V D-STAGE GEAR1 SHAFT-L 1
5 FC38-000044B SPRING,COM-V LOCKER FRONT SPRING-L;PW-2 2
6 MC19-000190C SHAFT-V MOTOR GEAR SHAFT-L 1 MC19-000190A
분해 / 조립 시 기어열조정 필요
7 MC19-000189A V SPROCKET SHAFT-L 1
분해/조립시
Mapping
필요
8 MC19-000182B SHAFT-V D-GEAR SHAFT 1216 1
9 MC19-000179A V D-TENSIONER HINGE 1216 1
10 MC19-000171B V LOCKER LEVER SHAFT-L 1 MC19-000171A
11 MC11-000244B GEAR-V DRAIN STAGE GEAR3-L 1
12 MC11-000243B GEAR-V MOTOR GEAR-L 1
분해 / 조립 시 기어열조정 필요
13 MC11-000233D GEAR,DRAIN-V DRAIN GEAR 1216 1
14 AM03-017154B ASSY,BOARD-MF MAIN BOARD REV 6.5 VL 1
교체 시 센서초기화 및
Mapping
필요
15 AM03-003846A ASSY,TAPE FEEDER-V D-BOX LINK2 ASSY-L 1
16 J70652749A VINYL CUTTER 1
