Page HANWHA TECHWIN 34 EXCEN EXCEN Feeder 32mm (2/2) 68 11 19 27 66 18 C F 50 9 86 1 48 6 34 12 8 62 37 40 84 26 79 4 84 27 80 76 73 73 85 49 53 91 42 14 41 29 56 89 51 88 3 15 67 36 25 D 87 78 81 43 A 82 75 55 36 29 77 …

100%1 / 68
Page
HANWHA TECHWIN
33
EXCEN

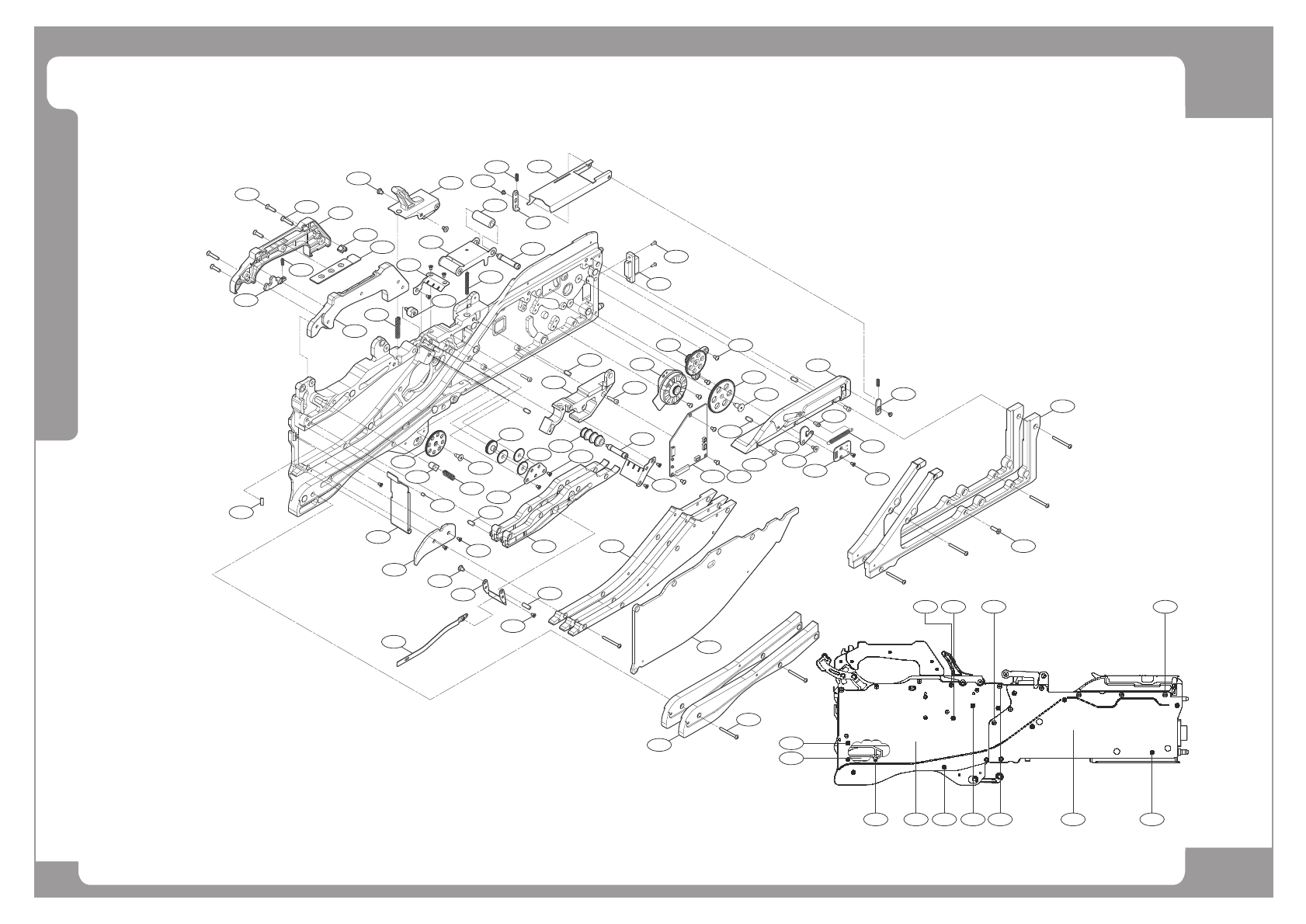

EXCEN Feeder 32mm (1/2)
Page
HANWHA TECHWIN
34
EXCEN

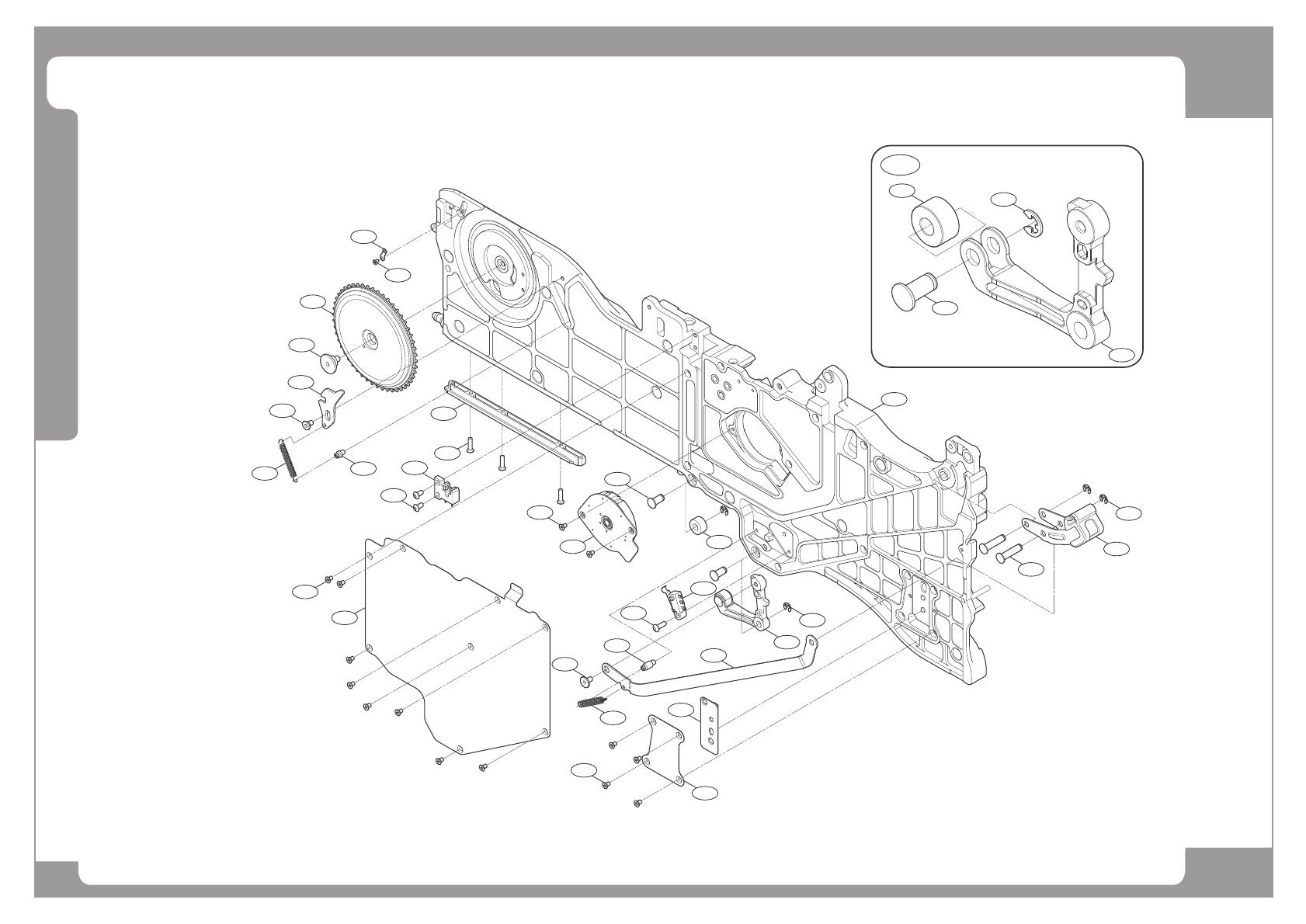

EXCEN Feeder 32mm (2/2)
68
11
19
27
66
18
C
F
50
9
86
1
48
6
34
12
8
62
37
40
84
26
79
4
84
27
80
76
73
73
85
49
53
91
42
14
41
29
56
89
51
88
3
15
67
36
25
D
87
78
81
43
A
82
75
55
36
29
77
10
E
57
40
61
69
54
16
20
23
17
13
61
29
59
71 68 28 39 72 68
2960
28 39
74
Page
HANWHA TECHWIN
35
EXCEN
EXCEN Feeder 32mm
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A AM03-003847B ASSY,TAPE FEEDER-V SECOND GEAR ASSY-L 1
분해 / 조립 시 기어열조정 필요
B AM03-003845A V SPROCKET ASSY-L 1
분해/조립시
Mapping
필요
C AM03-003844A V D-FOLLOWER ASSY 32 1
D AM03-003843A V D-TENSIONER ASSY 32 1
E AM03-003752A INDEX SENSOR ASSY VL 1
분해/조립시
Mapping
필요
F AM03-003749B ASSY,ETC,IMS-UI ASSY VL 1
G AM03-001557C ASSY,TAPE FEEDER-CLAMP V ASSY 1
G-1 J70653553A CLAMPING ROLLER 1
G-2 J70653554A CLAMP BLOCK SHAFT 1
G-3 FC18-901343 E-RING [DIA5 (SUS)] 1
재사용하지 말 것
G-4 FC07-000294A CLAMP BLOCK 1
1 MC19-000197A V DRAIN HANDLE SHAFT 32 1
2 MC19-000194A V CLAMP SPRING SHAFT-L 1
3 MC19-000193B SHAFT-V LOCKER FRONT SHAFT-L 2
4 MC19-000192C SHAFT-V D-STAGE GEAR1 SHAFT-L 1
5 AM03-000613A CLAMP SWITCH HARNESS ASSY VL 1
6 MC19-000190C SHAFT-V MOTOR GEAR SHAFT-L 1 MC19-000190A
분해 / 조립 시 기어열조정 필요
7 MC19-000189A V SPROCKET SHAFT-L 1
분해/조립시
Mapping
필요
8 MC19-000184B SHAFT-V D-GEAR SHAFT 32 1
9 MC19-000181A V D-TENSIONER HINGE 32 1
10 MC19-000171B V LOCKER LEVER SHAFT-L 2 MC19-000171A
11 MC11-000244B GEAR-V DRAIN STAGE GEAR3-L 1
12 MC11-000243B GEAR-V MOTOR GEAR-L 1
분해 / 조립 시 기어열조정 필요
13 MC11-000235D GEAR,DRAIN-V DRAIN GEAR 32 1
14 AM03-017154B ASSY,BOARD-MF MAIN BOARD REV 6.5 VL 1
교체 시 센서초기화 및
Mapping
필요
15 AM03-003846A ASSY,TAPE FEEDER-V D-BOX LINK2 ASSY-L 1
16 J70652749A VINYL CUTTER 1
