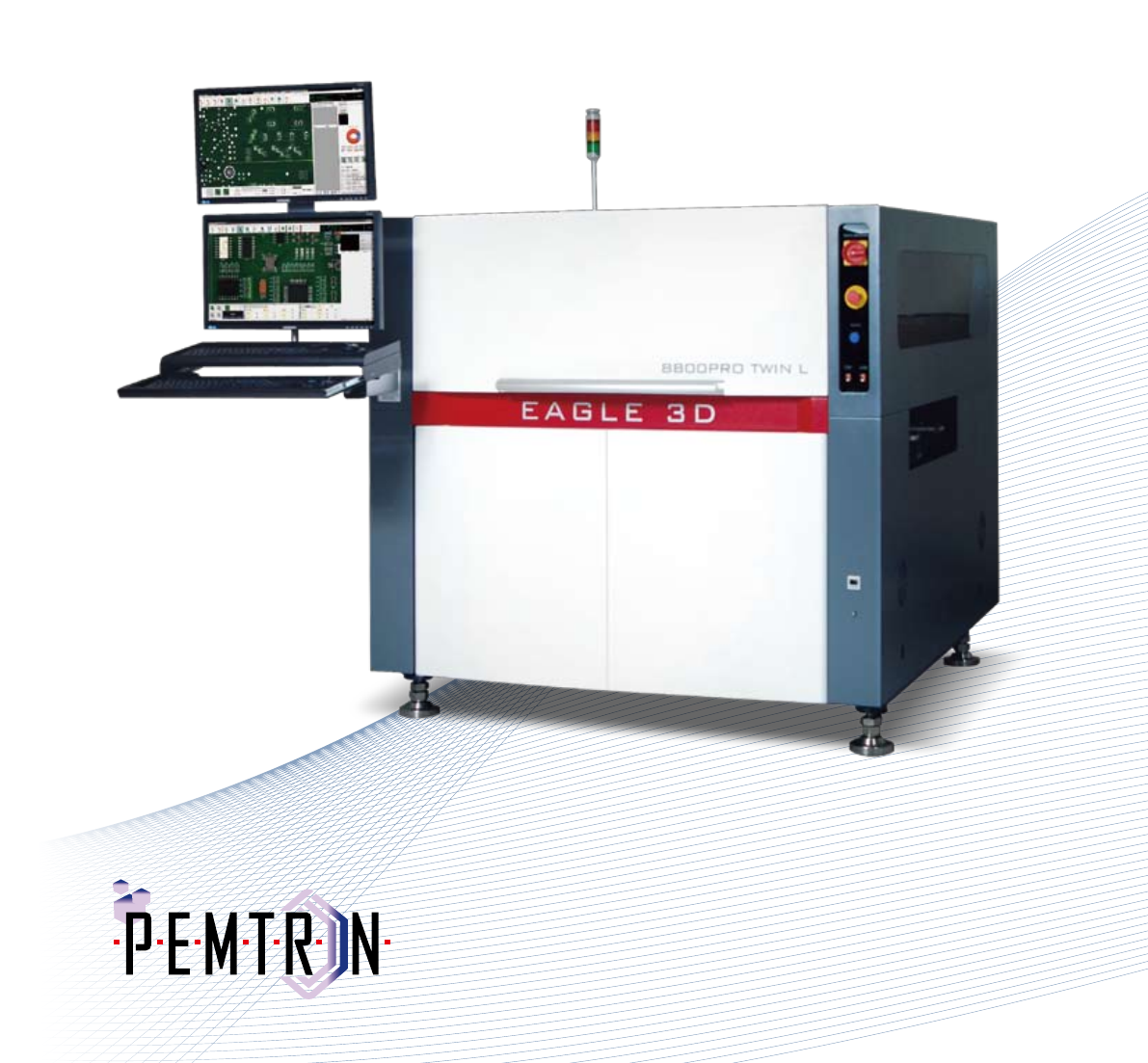

ww w .pemtron.com 3D Automated Optical Inspection system EAGLE 3D 8800 TWIN EA GLE 3D 8800 T WIN Top/Bottom Double Sided simultaneous inspection
www.pemtron.com
3D Automated Optical Inspection system
EAGLE 3D 8800 TWIN
EAGLE 3D 8800 TWIN
Top/Bottom Double Sided simultaneous inspection
Technology and Features
•
Simultaneous Top / Bottom double sided Inspection
•
No time loss
•
Full performance Full speed
•
Multi-congurable
- AOI + AOI / AOI + THT / THT + AOI / THT + THT
•
Advanced High Speed Inspection and Measurement Technology
- 8 way / 10 way Projection + 3 Stage RGB
- 3D simultaneous algorithm
- Telecentric Lens for optimal accuracy
•
Lean & Ecient full line control capability
•
Proven world best 3D imaging quality
•
Absolute world most innovative & exible solutions
•
Unique 3D technology not possible anywhere else
•
4-Way Side Camera (Option)
- Possible to detect Connector inside area
- Convenient Teaching by using existing Algorithm.
Top & Bottom Camera Head Gantry Type

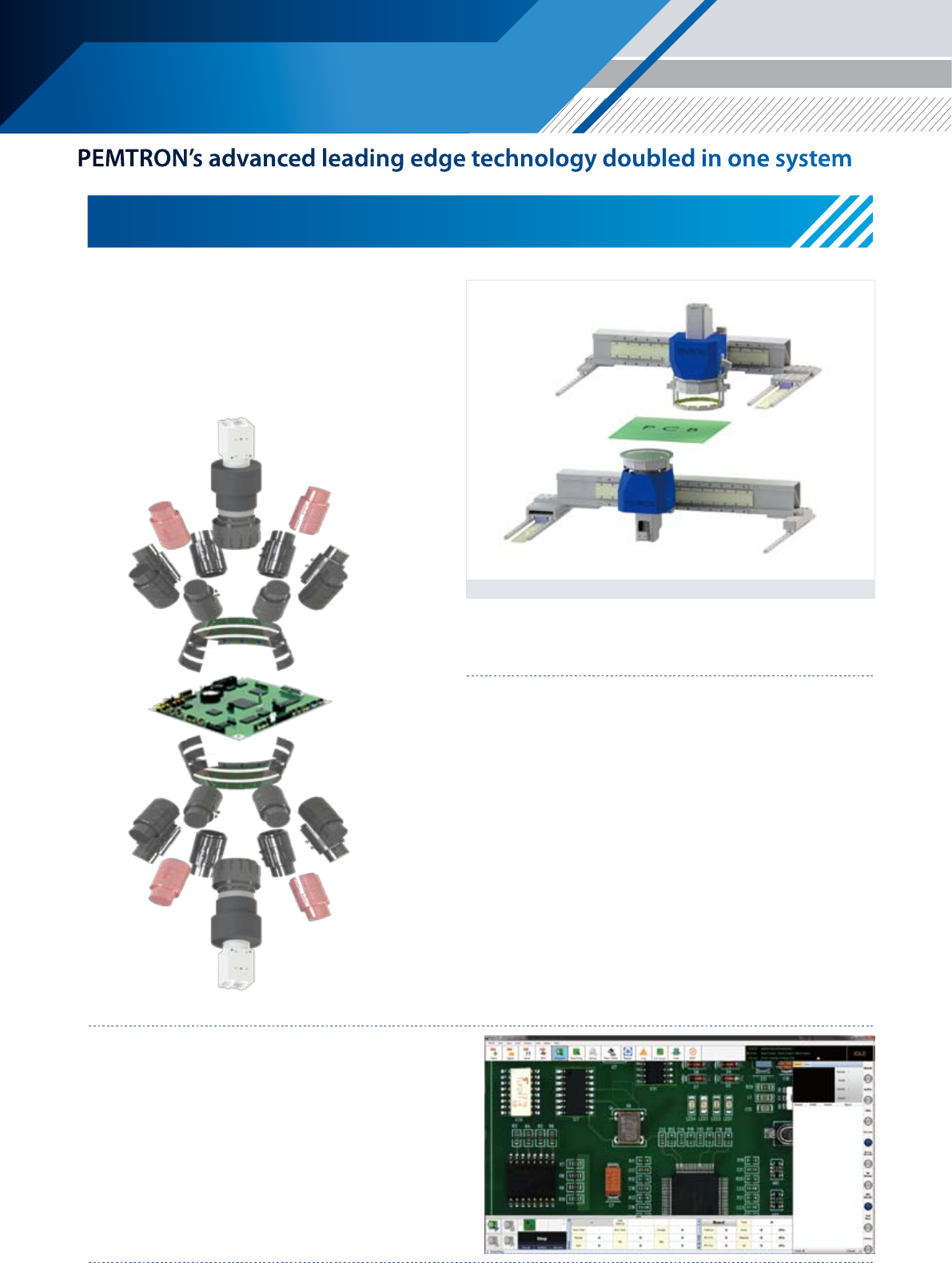

PEMTRON’s advanced leading edge technology doubled in one system
EAGLE 3D AOI 8800 TWIN Series
Simple & Intuitive User Interface
Same UI conguration of AOI allows existing users to use easily
Simultaneously display of all results of both sides.
Both the TOP / BOTTOM can set AOI and TH inspection.
3D Automated Optical
Inspection system
Technology and Features
Real Time Process and Quality Control Solutions
•
TROI SPI & EAGLE 3D AOI closed loop function -
Real time defect conrm
Accurate defect position and Clear image

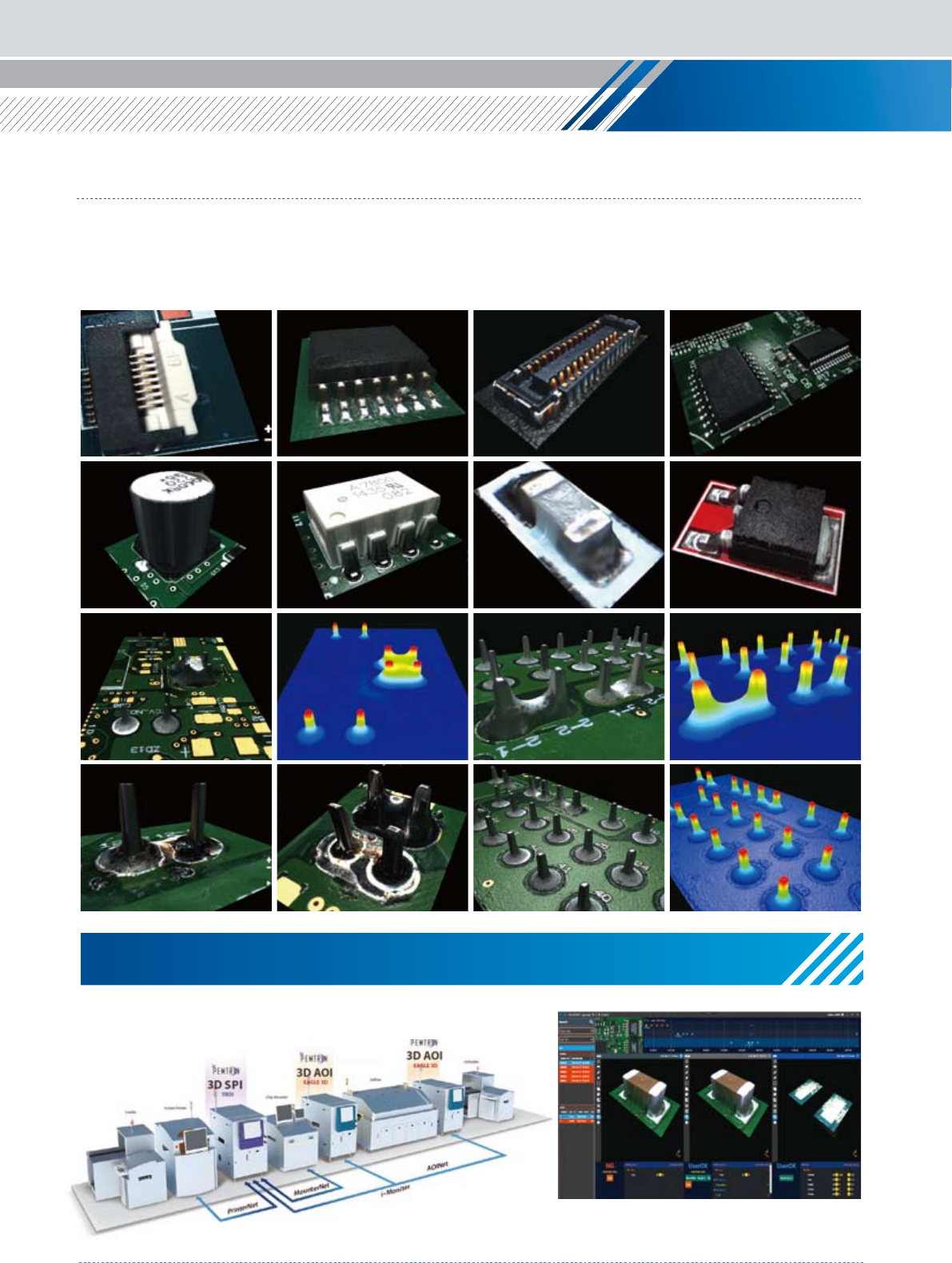

Best available 3D Images – “This is the best”
1μm height resolution – always crisp and clear
No limit to component x,y size – Seamless & fast acquisition
Inspection Result Information Auto Sync.
