– 107 – POSITI ON IN G S EC TIO N No. Part No. Part Name Qty . Detail Y amaha Hitachi 401 KY A-M3J0U-00 0916D20Q TUBE_D8 2 402 KYB-M8517-00 1005AB0Y PIPE_FITTINGS 1 403 KYC-M185P-00 0921D302 TUBE_D6 2 404 KYB-M8515-00 10…

100%1 / 176
– 106 –
E4
5 Air Piping
1509-002
402
404
403
405
406
401
403
See Fig E4-3
Key No.212-02
See Fig E4-4
Key No.312-03
See Fig E4-4
Key No.312-02
See Fig E4-4
Key No.313
See Fig E4-3
Key No.213
to cutter unit
To cutter unit
406
403
406
– 107 –
POSITIONING SECTION
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
401 KYA-M3J0U-00 0916D20Q TUBE_D8 2
402 KYB-M8517-00 1005AB0Y PIPE_FITTINGS 1
403 KYC-M185P-00 0921D302 TUBE_D6 2
404 KYB-M8515-00 1005AB0W PIPE_FITTINGS 2
405 KYB-M919J-00 0917C302 TUBE_D6 2
406 KYA-M3J10-00 1005BJ34 TUBE_D6_Y 2
1509-002
– 108 –

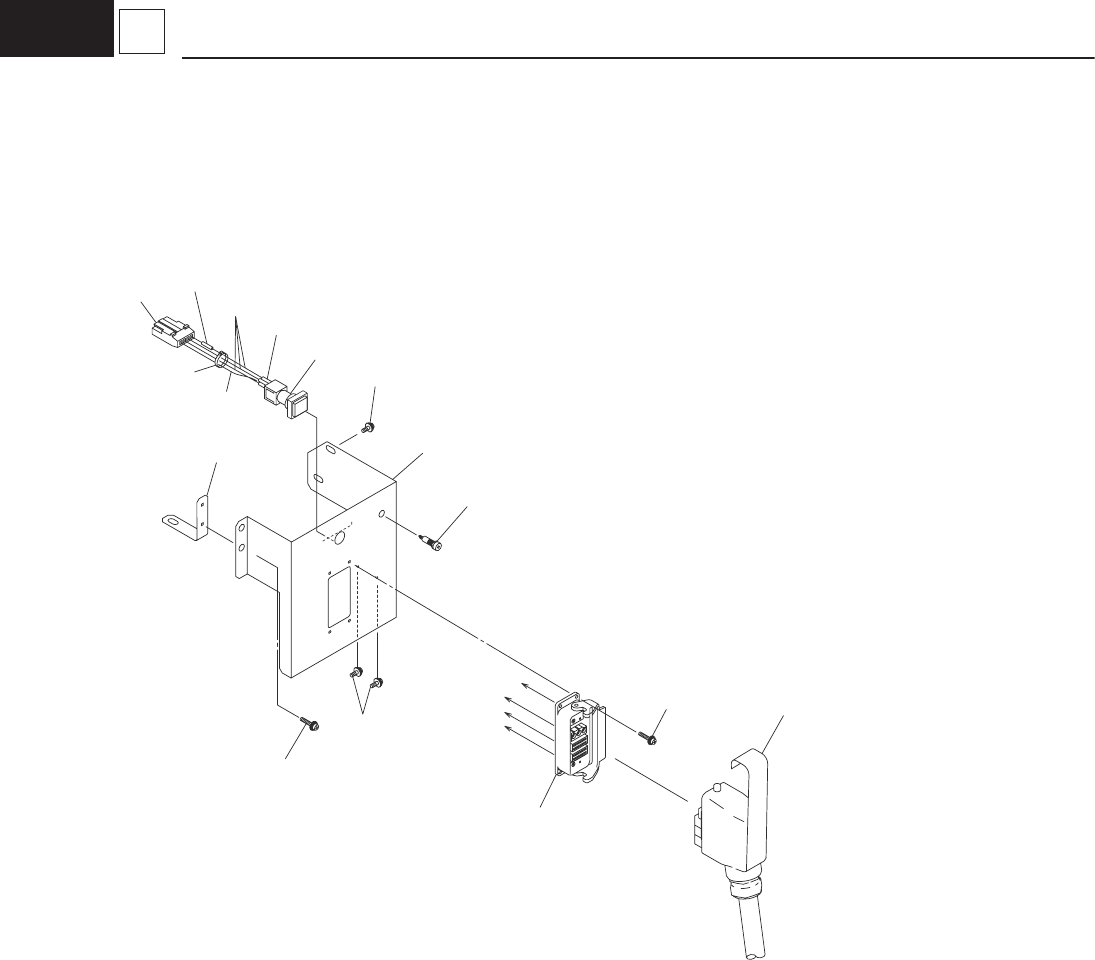

E5
1 I/F Connector
1509-002
E5 ELECTRICAL SECTION (Surroundings)
1
2
3
7
8
9
6
16
17
19
14
15
18
13
20
10
13
11
11
5
X1300B
X1300C1
X1300C2
X1300C3
X300
S111
See Fig C1-1
Key No.4
