– 149 – SIN GLE C ONVEY OR SE C TI ON 1509-002 No. Part No. Part Name Qty . Detail Y amaha Hitachi 200 KY A-M9102-00 1007220J ASSY_DRIVE 201 KY A-M914T -00 10072206 ASSY_IDLER 1 202 KY A-M91 12-00 1007A06W BLOCK 1 203 KY…
– 149 –

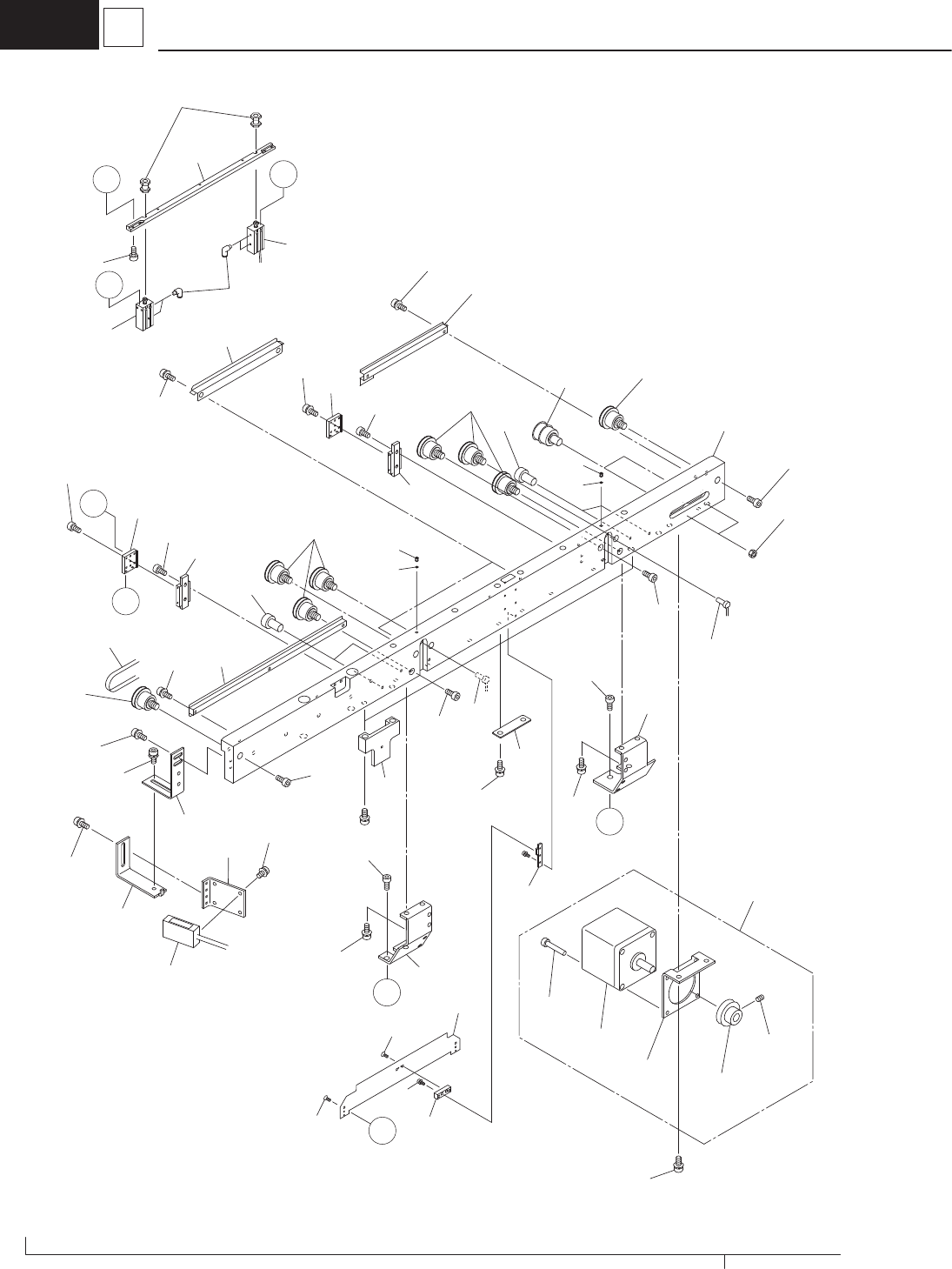

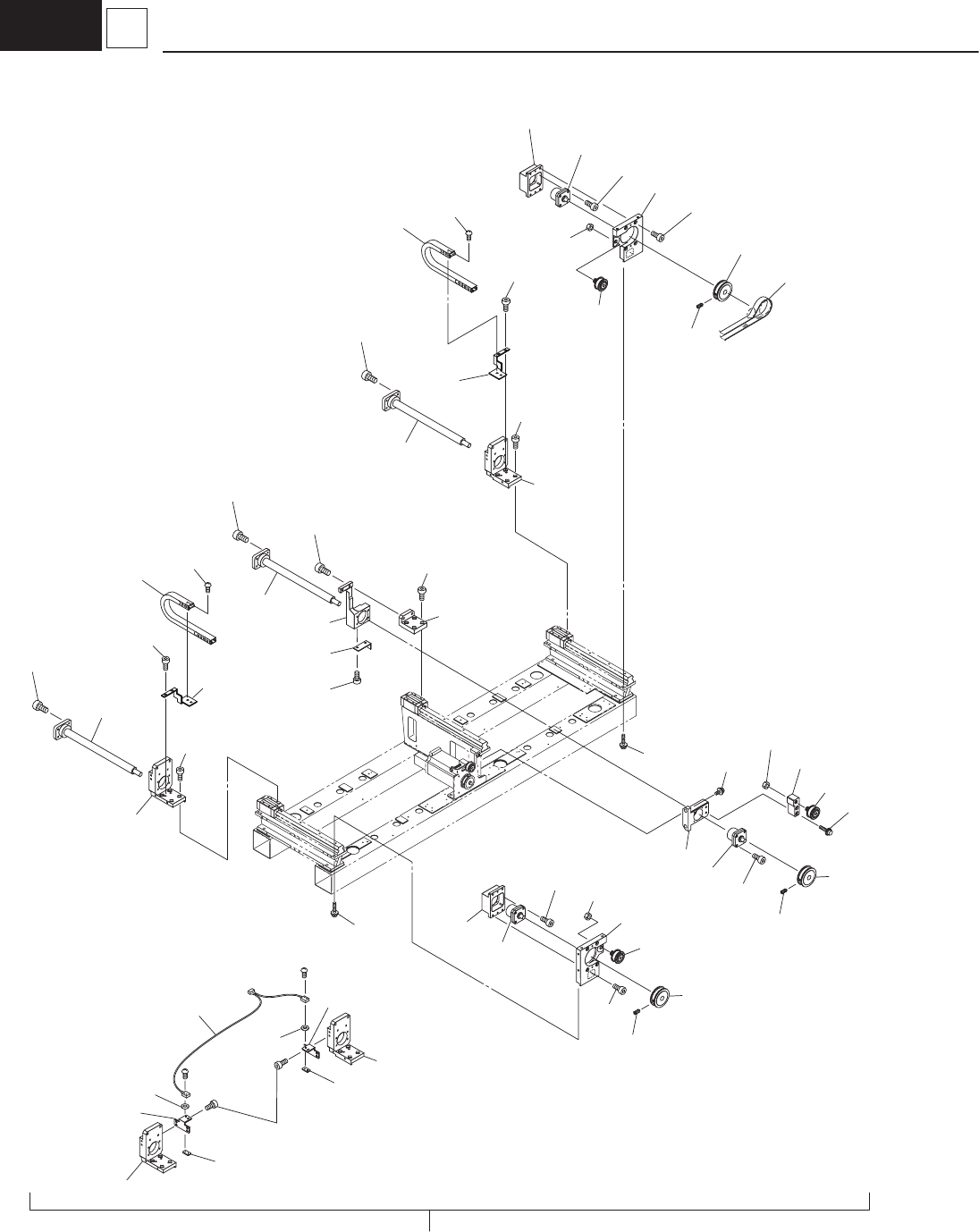

SINGLE CONVEYOR SECTION
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
200 KYA-M9102-00 1007220J ASSY_DRIVE
201 KYA-M914T-00 10072206 ASSY_IDLER 1
202 KYA-M9112-00 1007A06W BLOCK 1
203 KYA-M9113-00 1007A06X BLOCK 1
204 KYA-M9133-00 1007A06J BALL_SCREW 3
205 KYA-M9157-00 1007A06K SUPPORT_UNIT 3
206 KYA-M915R-00 1007A08R PULLEY_TIMING 3
207 KYA-M915C-00 1007A06Z HOLDER 1
208 KYA-M9159-00 1007A06Q BLOCK 1
209 KYA-M914W-00 1007A00L BELT_TIMING 1
210 KYA-M9139-00 1007A070 HOLDER 2
211 KYA-M9110-00 1007A06R BLOCK 2
212 KYA-M915D-00 1007A071 BLOCK_MV_C 1
213 KYA-M9136-00 1007A06P BLOCK 1
214 KYA-M915J-00 1007A07Y BRACKET 1
215 KYA-M913J-00 1007A07Q BRACKET 1
216 KYA-M913K-00 1007A07R BRACKET 1
217 KYA-M912V-00 1007A01A CABLE_VEYOR 2
218 KYA-M912W-00 1007A01B CABLE_VEYOR 2
219 KYA-M912X-00 1007A01C CABLE_VEYOR 2
220 KYA-M9127-00 10072A0W ASSY-BU-PIN-SENSOR 1 B136, 136T
221 KYA-M915F-00 1007A07U BRACKET_SENSOR 2
222 KYA-M915H-00 1007A07W NUT 2
231 91312-06016 221AA043 BOLT,HEX.SOCKET HEAD 2
232 91312-05016 221AA031 BOLT,HEX.SOCKET HEAD 10
233 91312-05014 221AA120 BOLT,HEX.SOCKET HEAD 4
234 91312-05010 221AA029 BOLT,HEX.SOCKET HEAD 2
235 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 28
236 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 4
237 91312-03010 221AA007 BOLT,HEX.SOCKET HEAD 12
238 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2
239 98702-04006 221DA113 SCREW,FLAT HEAD 8
240 95302-08600 221FA013 NUT,HEXAGON 2
241 90990-02J027 221CA045 SCREW,SET 6
242 90171-02J026 221HA101 WASHER,PLAIN 4
φ 2 用
