P-327-002_SIGMA-F8 - 第64页

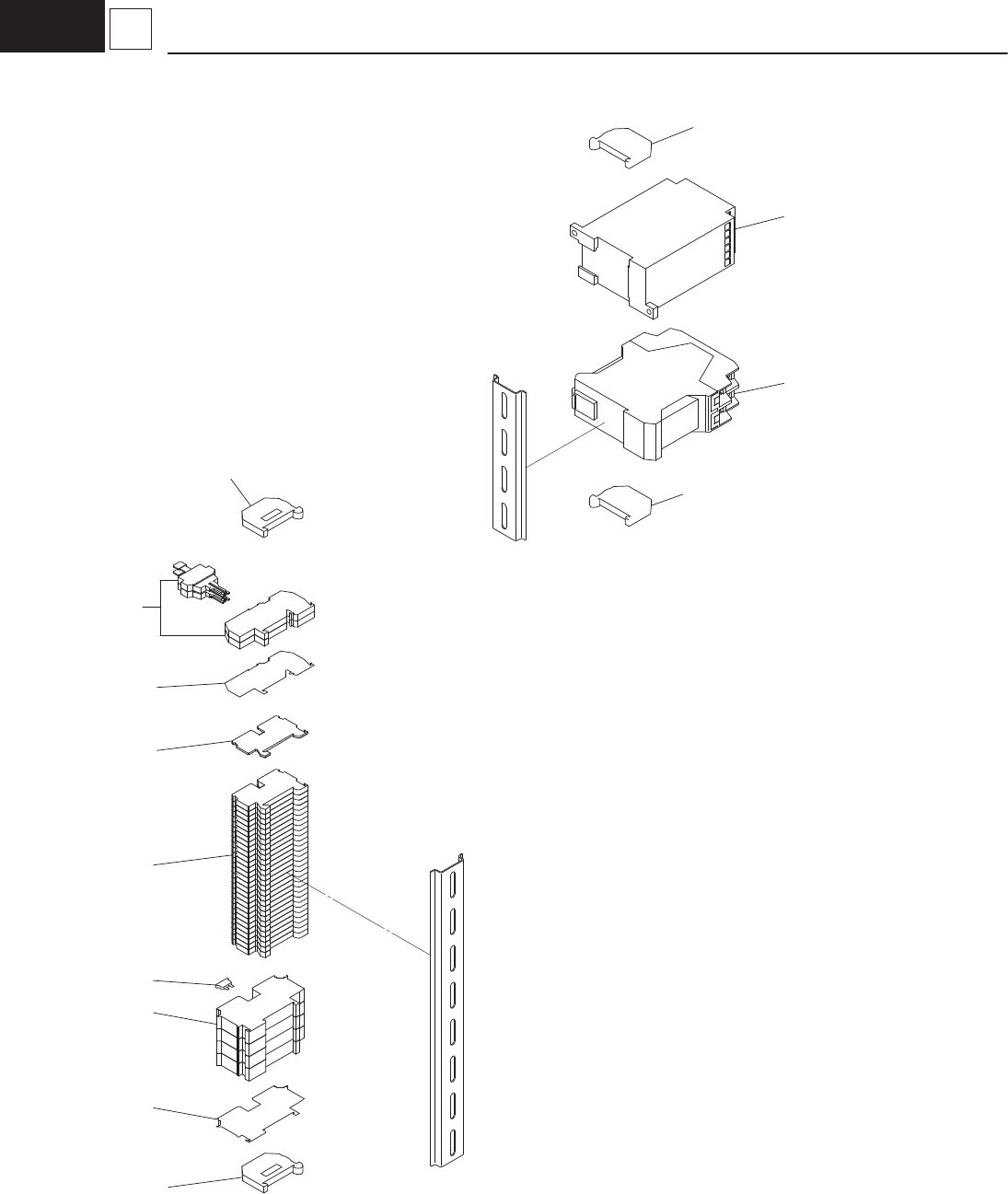

– 58 – D3 3 DC T erminal 1509-002 272 275 277 278 279 280 284 276 285 281 282 292 294 294 291 283 273 283 K4 F002 F007 K3 274
– 57 –
ELECTRICAL SECTION 2
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
102 KYA-M6566-00 4J320271 TERMINAL 6
103 KYA-M655V-00 1005BA5V TERMINAL 2
104 KYA-M6564-00 23N30716 ACCESSORY-WIRING 1
105 KYA-M6565-00 23N30718 ACCESSORY-WIRING 3
106 KYB-M65BC-00 4J320187 TERMINAL 8
107 KYB-M941P-00 23N30519 ACCESS-WIRING 3
108 KYB-M65BD-00 4J320241 TERMINAL 2
109 KYB-M6587-00 23N10027 TERMINAL 2
110 KYB-MD726-00 0949A01R NAME PLATE 1
– 59 –
ELECTRICAL SECTION 2
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
272 KYA-M6566-00 4J320271 TERMINAL 4
273 KYA-M6564-00 23N30716 ACCESSORY-WIRING 1
274 KYA-M6565-00 23N30718 ACCESSORY-WIRING 2
275 KYB-M65BC-00 4J320187 TERMINAL 29
276 KYB-M65BD-00 4J320241 TERMINAL 1
277 KYB-M941P-00 23N30519 ACCESS-WIRING 6
278 KYA-M6561-00 23N30520 ACCESSORY 2
279 KYA-M6562-00 23N30521 ACCESSORY 2
280 KYA-M6563-00 23N30522 ACCESSORY 1
281 KYB-MD723-00 0914B30E FUSE HOLDER 2
282 KYB-M65BN-00 4S300023 FUSE-250V-6.3A 2 F002, 007
283 KYB-M6587-00 23N10027 TERMINAL 2
284 KYB-MD726-00 0949A01R NAME PLATE 1
285 KYB-MD72N-00 0980A214 END PLATE 1
291 KYB-M65BK-00 4S200121 RELAY 1 K3
292 KYB-M6562-00 0914B307 SWITCH-CONTROLLER 1 K4
294 KYB-MD72N-00 0980A214 ENDPLATE 2
