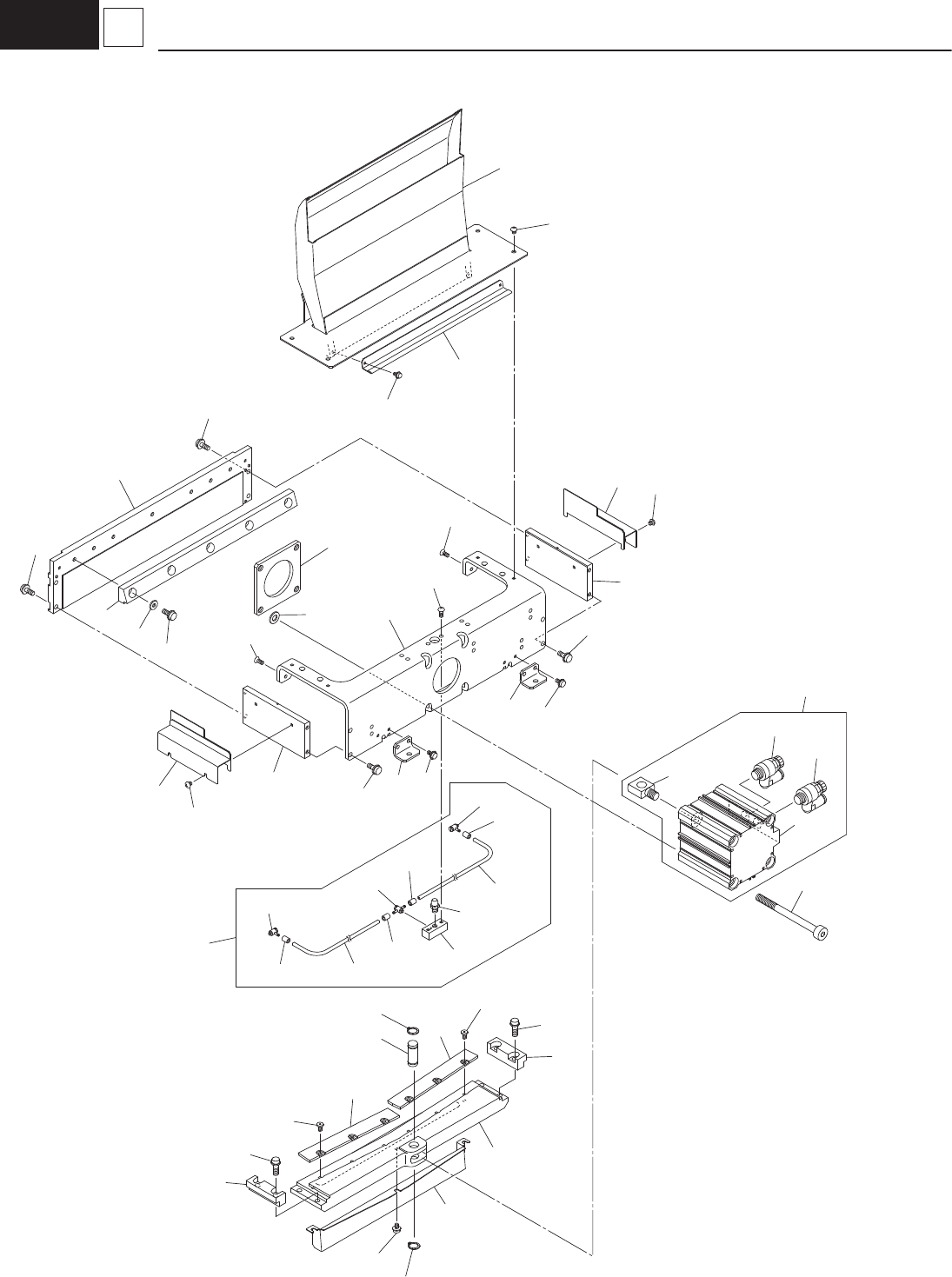

BEAM SECTION
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
204 KYA-M2208-00 1005DC1M COVER_X_GREASE 1
206 KYA-M2207-01 1006D70E HEAD_BOX23C 1
207 KYA-M220S-00 1005DC2W HEAD_PLATE_CA 1
208 KYA-M220K-00 1005DC2U X_SCALEBKT_CA 1
209 KYA-M220D-00 1005DC10 X_URETHANE_L 1
211 KYA-M222N-00 10053C6C ASSY,LINEAR MOTOR X 1
212 KYA-M220M-00 1005DC08 X_MAGNET1 1
213 KYA-M220N-00 1005DC09 X_MAGNET2 1
214 KYA-M220P-00 1005DC38 X_GUIDEA 2
215 KYA-M220E-00 1005DC33 X_SCALE01 2
217 KYA-M220T-00 1005DC8G BEAM_ASSY_23_YG 1
218 91312-03010 221AA007 BOLT,HEX.SOCKET HEAD 2
219 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 30
220 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 3
221 91312-04020 221AA021 BOLT,HEX.SOCKET HEAD 13
222 91312-05006 221AA027 BOLT,HEX.SOCKET HEAD 4
223 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 6
226 91312-05030 221AA034 BOLT,HEX.SOCKET HEAD 1
228 90990-11J018 221DA052 SCREW,PAN HEAD WW 1
229 92902-05200 221HA105 WASHER,PLAIN 6
230 92902-04600 221HA204 WASHER,PLAIN 20
233 91380-05012 221A1042 BOLT,HEX.SOCKET HEAD 2
234 91380-05016 221A1045 BOLT,HEX.SOCKET HEAD 18
235 KYA-M220G-00 10063206 ASSY,NAME PLATE 1
236 KYB-M65AW-00 23N30632 WIRING 2
237 90990-11J017 221DA062 SCREW,PAN HEAD WW 2
238 KYB-M131T-00 1010FG03 EDGING 2
239 KYB-M65AB-00 226J0373 MOUNTING_BASE 6
240 90990-11J016 221DA053 SCREW,PAN HEAD WW 9
243 92902-04200 221HA104 WASHER,PLAIN 2
245 KYA-M220U-00 1005A0A7 URETHANE_SHEET 1
250 KYA-M730A-00 10053C63 ASSY_KCAMERAF_2 2
251 KYB-M731C-00 221E0456 BOLT 3
252 KYB-M730A-00 0914G0AA P_RCG_LIGHT 1
253 KYB-M730B-00 0914G0AB P_RCG_SCOPE 1
255 KYB-M730N-00 1010DC2Z CMR_BLOCK 1
256 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 3
257 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 1
