Setting a pitch from each station
The following describes the procedure for setting a tape feed pitch using the temporary tape set station or
power station for the off-line setup.
1
Check the tape feed pitch of the feeder.
The tape feed pitch is indicated on the display as shown below.

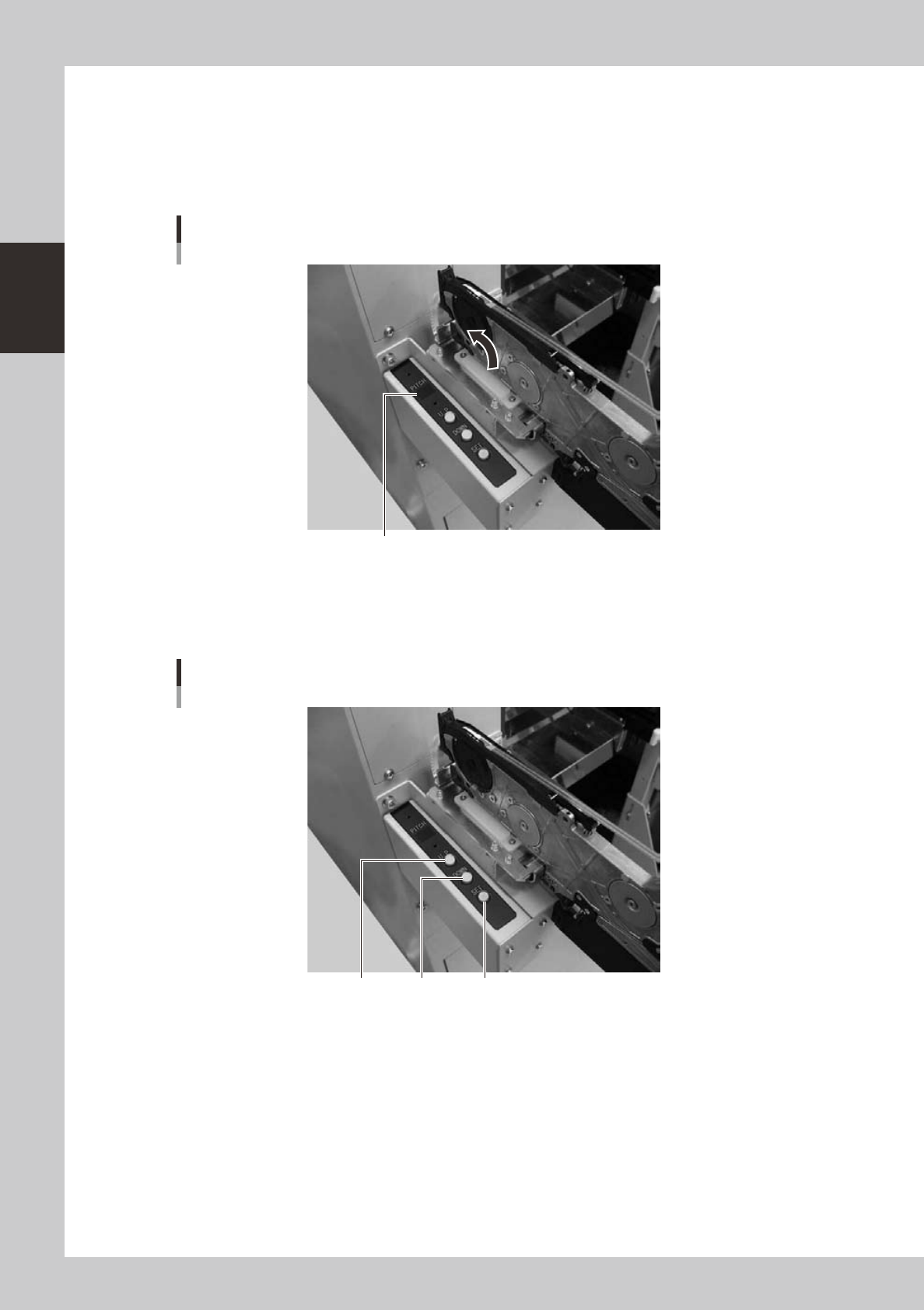

Checking the tape feed pitch
Display
23213-L4-00
2
Set the tape feed pitch.
Press the [UP] or [DOWN] button to set the feed pitch that matches the components in the feeder, and
then press the [SET] button to determine the setting.
Setting the tape feed pitch
[SET][UP] [DOWN]
23214-L4-00
2-37
2
asic operation
3
Check the tape feed operation.
Press the [FEED] button on the feeder body to check that the tape is fed at the correct pitch.
c
advance the carrier tape.
TIP
• The feed pitch will always be 2 mm each time the [FEED] or [BACK] button on the feeder body is pressed,
regardless of the pitch setting. Holding down either of these buttons feeds the tape continuously.
• Use the [FUNC]+[FEED] buttons to feed the tape at the feed pitch that was set.

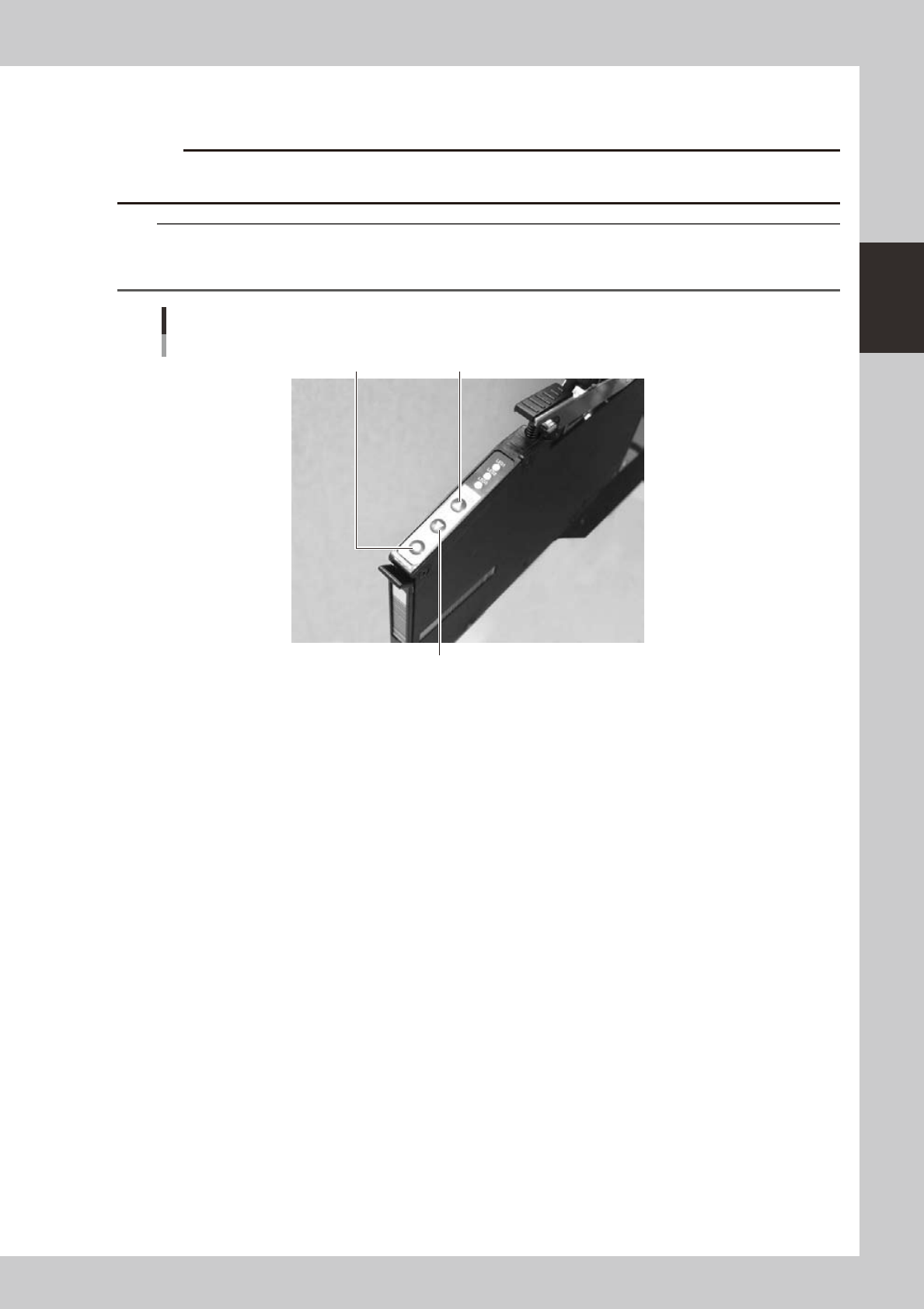

Checking the feed pitch
[BACK] button
[FEED] button[FUNC] button
23215-L4-00
2-38
2
asic operation
4.1.3 Installation on a mounter
Observe the following instructions for installing the tape feeder on a mounter.
e
1
Press the emergency stop button and then open the cover.
Press the emergency stop button on the mounter to stop mounter operation.
c
it.
2
Clean the surface of the feeder bank.
Parts or debris caught in the machine will tilt the feeder, interfering with stable pickup.
3
Place the tape reel in position of the reel holder.
Tape reels can be placed alternately in the upper and lower reel holders.
4
Set the feeder.
Raise the handle, align the target mark to the feeder installation position, and slide the feeder on the
rail to insert it to the location pin hole.

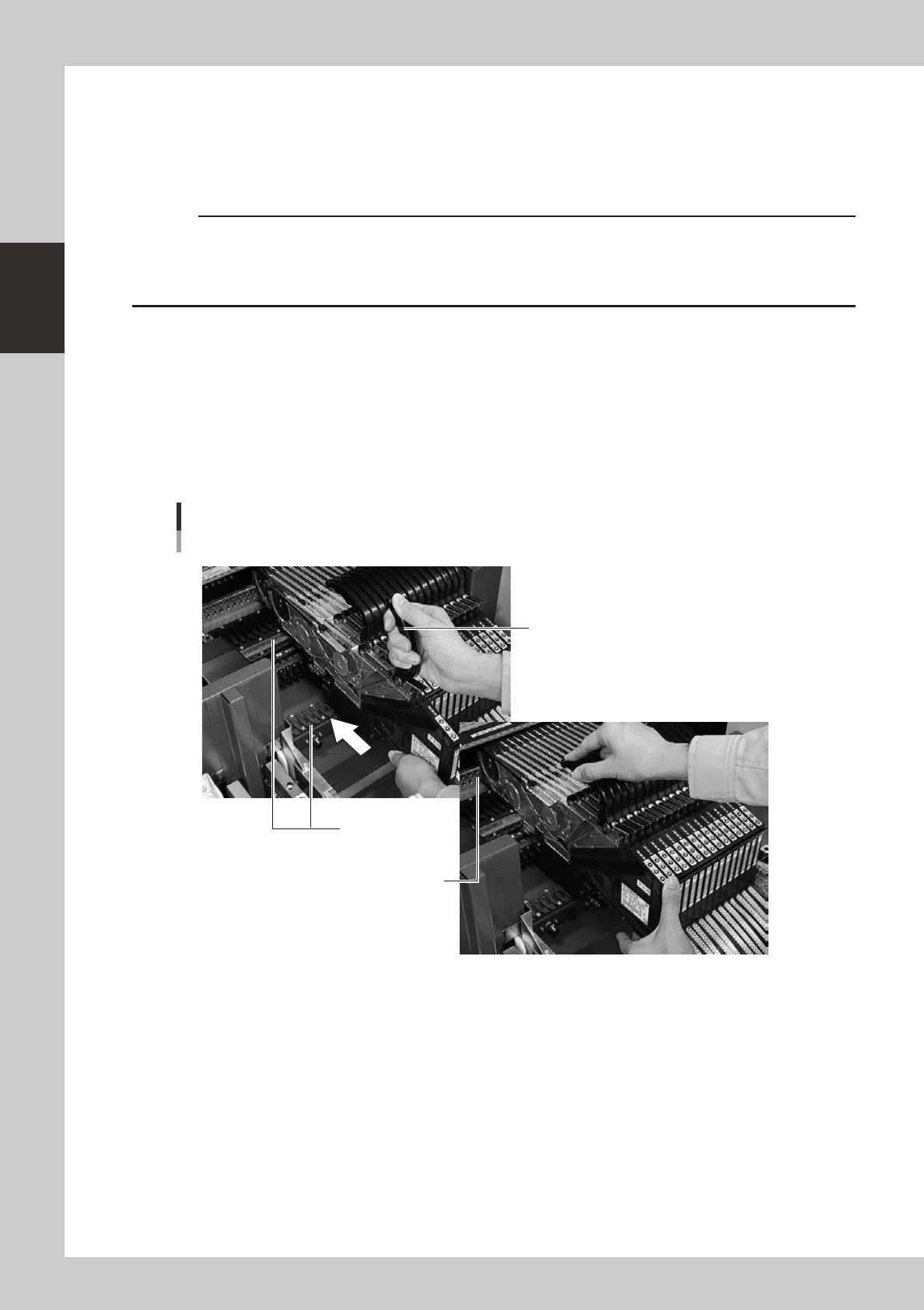

Attachment of the feeder
Tape feeder
Handle part
Rail
Location pin hole
22226-L4-00
5
Check the following points to make sure that the feeder is properly installed.
• Top tape is no loose.
• Feeder is properly inserted all the way.
