2-45
2
asic operation
4.3.2. Setting the pallet in the magazine
1
Place the magazine on a flat and level surface.
2
Open the pallet retainer door.
Open the pallet retainer door while depressing the latch levers.
Pallet retainer door
Latch levers
Pallet retainer door
23230-L4-00
3
Insert the pallet.
While keeping the pallet level, insert it into the correct magazine shelf. The pallet pullout piece should
be on the inner side. Insert it gently inwards until it contacts the pallet retainer rod on the opposite side.
(If replacing a pallet, first extract the previous (used) pallet from the magazine before inserting the new
pallet inside.)
Inserting the pallet
23231-L4-00
2-46
2
asic operation
4

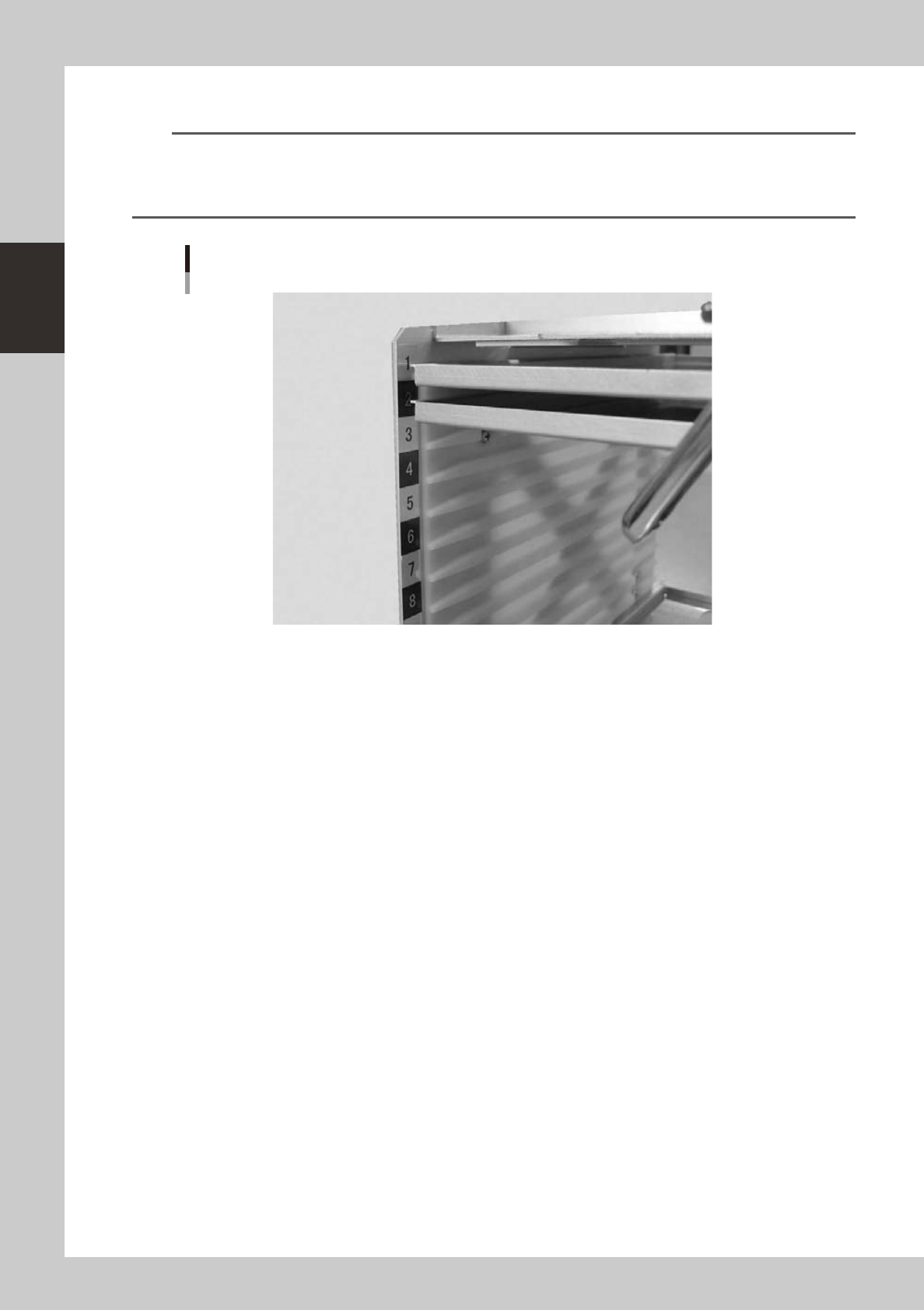

Insert all the required pallets into the correct magazine shelves.
n
NOTE
• Labels with black and silver numbers are afxed to both sides of the magazine to show the shelf number and
prevent inserting a pallet into the wrong position.
• Insert the pallet into the shelf that was set in the "Pallet No. Start" and "Pallet No. End" parameters in the [Parts] - [Tray]
information.
Pallet insertion shelf number
23232-L4-00
5
Close the pallet retainer door.
Close the door while depressing the latch levers.
2-47
2
asic operation
4.3.3 Replacing a magazine or pallets
The sATS
II
should be servo-ON when replacing a magazine or pallets. Even during automatic operation, you
can replace a magazine which is not currently being used or pallets in that magazine. This section explains
how to replace a magazine and pallets.

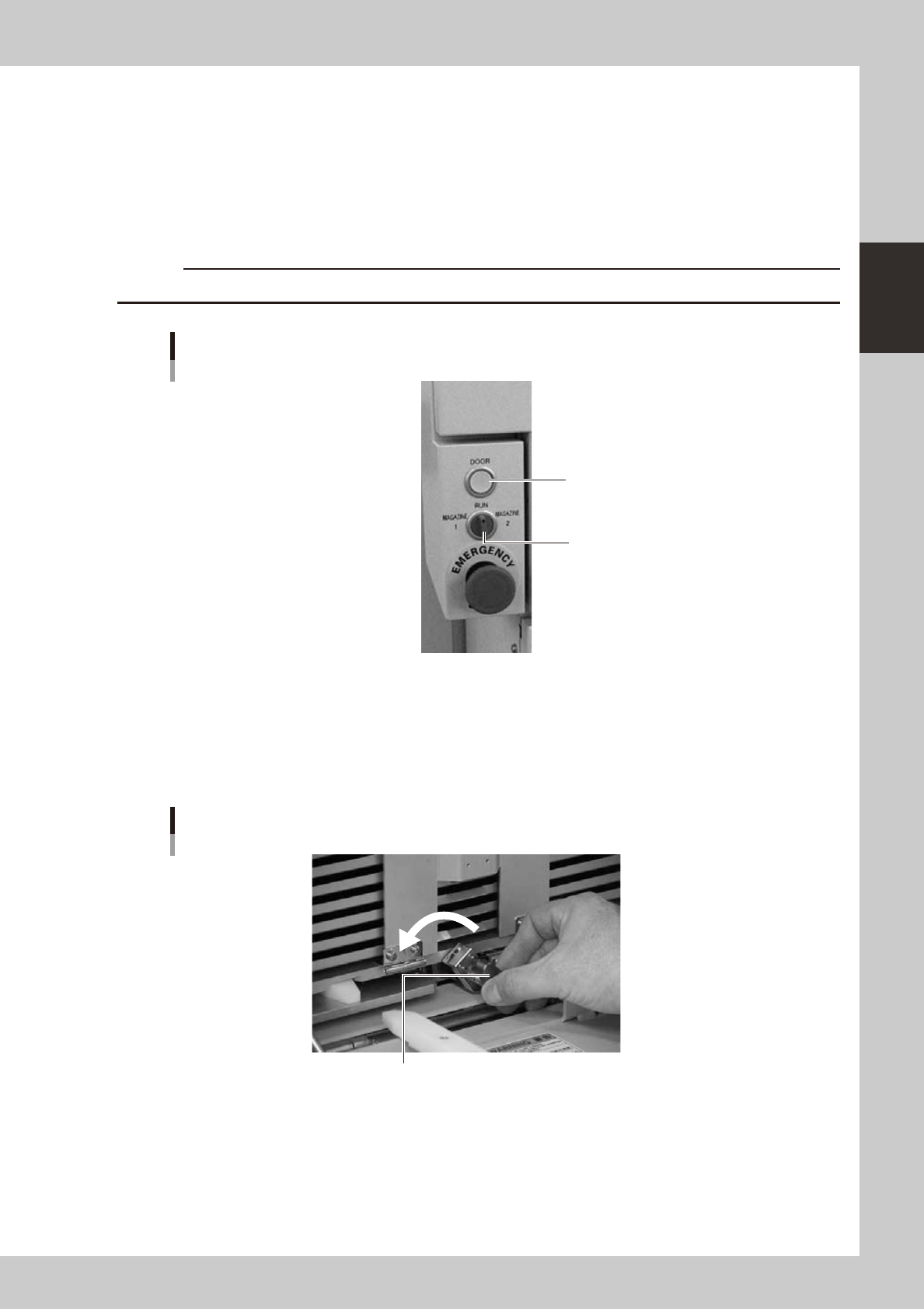

1
Select the magazine.
Set the DOOR switch to "MAGAZINE 1" or "MAGAZINE 2". The selected magazine moves up or down to
standby position. The magazine door then unlocks and the DOOR indicator lamp turns off.
c

Automatic operation stops due to an error if you select a magazine for the pallet currently in use.
DOOR switch
DOOR indicator lamp
DOOR switch
23233-L4-00
2
Open the magazine door.
Pull down the handle to open the magazine door.
3
Unclamp the magazine.
Turn the clamp lever to the left while pulling it.
Magazine clamp
Turn the clamp lever to the left to unclamp the magazine.
23234-L4-00
