2-49 2 asic operation 5. Settings on the mounter side After installing the tape feeders and the tray changer in the surface mounter , you must make settings for the mounter . 5.1 Setting the "Package" paramet…
2-48
2
asic operation
4
Replace the pallets (when replacing pallets only).
Proceed to step 6 when exchanging the magazine.
1. Open the pallet retainer door.
Open the pallet retainer door while depressing the latch levers.
2. Replace the pallets.
3. Return the pallet retainer door to the original position.
5

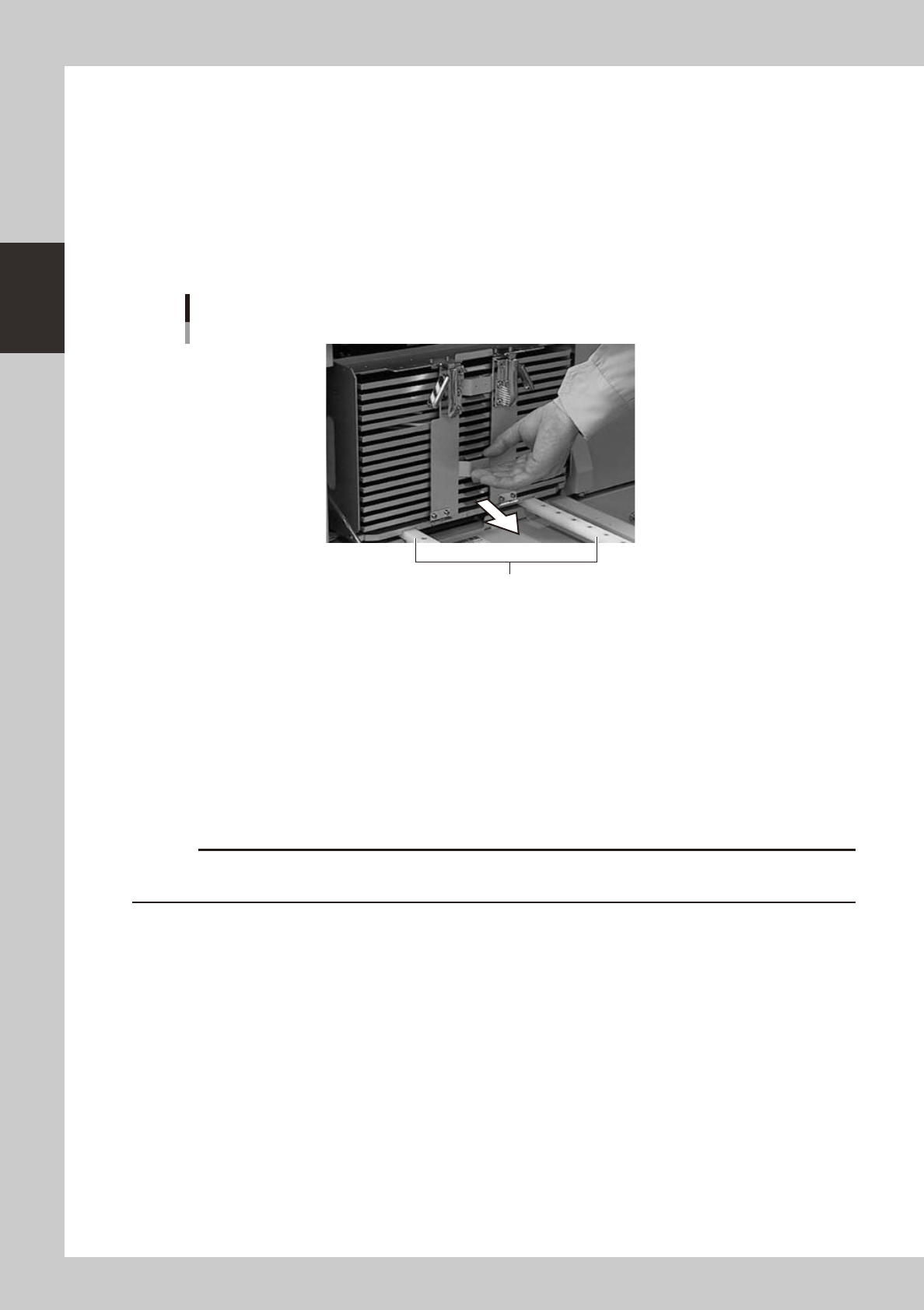

Pull out the entire magazine.
Holding the handle on the pallet retainer door, slowly pull the magazine straight out.
Pulling out the magazine
Guide
23235-L4--00
6
Insert the new magazine.
Align the grooves in the bottom of the magazine with the guides on the inner side of the magazine door,
and slowly insert in until the magazine stops.
7
Clamp the magazine.
While pulling the clamp lever, turn it to the right to clamp the magazine.
8
Close the magazine door.
9
Return the DOOR switch to "RUN".
The magazine door is closed and the DOOR indicator lamp lights up.
c
Automatic operation stops due to an error if an instruction to replace the currently used pallet is issued while you are
exchanging a magazine or pallets
2-49
2
asic operation
5. Settings on the mounter side
After installing the tape feeders and the tray changer in the surface mounter, you must make settings for the
mounter.
5.1 Setting the "Package" parameter.
Tape feeder :
Set the "Package", "Tape Type" and "Feed Pitch" parameters.
Wide multi-stick feeder :
Set the "Package", "Feeder Type", and "Feed Timer Offset" parameters.
Tray changer :
Set the "Package" and "Feed Type" parameters.
1
Open the "Board data select" screen.
On the Setup screen, press the [Board] to open the "Board data select" screen.
Setup screen
[Board] button
[Board] button
24223-L4-00
2
Select the board data.
Select the board data in the list and press the [Select] button.
In dual-lane machines, press the lane select button to display the lane to be used for production and
then select the board data. (When producing boards using both lanes, select "Lane combination".)
Select the board data. Lane select button
"Board data select" screen
Example of Dual-lane
24224-L4-10
2-50
2
asic operation
3
Open the Parts screen.
Press the [Parts] button to open the Parts screen and select the component from the upper list.
Parts screen
24225-L4-00
4
Display the basic parameters.
Select the [Basic] tab to display the basic parameters.
5
Set the "Package" parameter.
Double-click the "Package" parameter field and select an appropriate package from the drop-down
list.
• Tape components: Tape
• Stick components: Stick
• Tray components: Tray
[Parts]-[Basic] screen
"Package" parameter
"D Package"
24226-L4-00
