Appendix Appendix Contents A1. Specifications A- 1
3-29
3
Starting and ending production
n
What is "watch-and-wait" mode?
When "watch-and-wait" mode is entered by pressing the [Current Check] or [All Check] button, the abnormal pickup rate
at that point is stored and the color of "red" row(s) changes to "pink" temporarily. If the pickup rate then improves or
deteriorates from that point onward, the color of the row(s) changes to report the new state to the operator.
For example, after an abnormal pickup rate is stored in "watch-and-wait" mode, if the problem is eliminated and
operation resumed, and the pickup rate improves, then the color of the row(s) changes from "pink" to "yellow" to show
an improvement has been made. Conversely, if the pickup rate becomes even worse, then the color changes from "pink"
back to "red" to show the troubleshooting was ineffective.
The colors in the following graph show changes in the pickup rate, using an example when "caution (yellow)" is set to
99.00% and "warning (red)" to 95.00%.

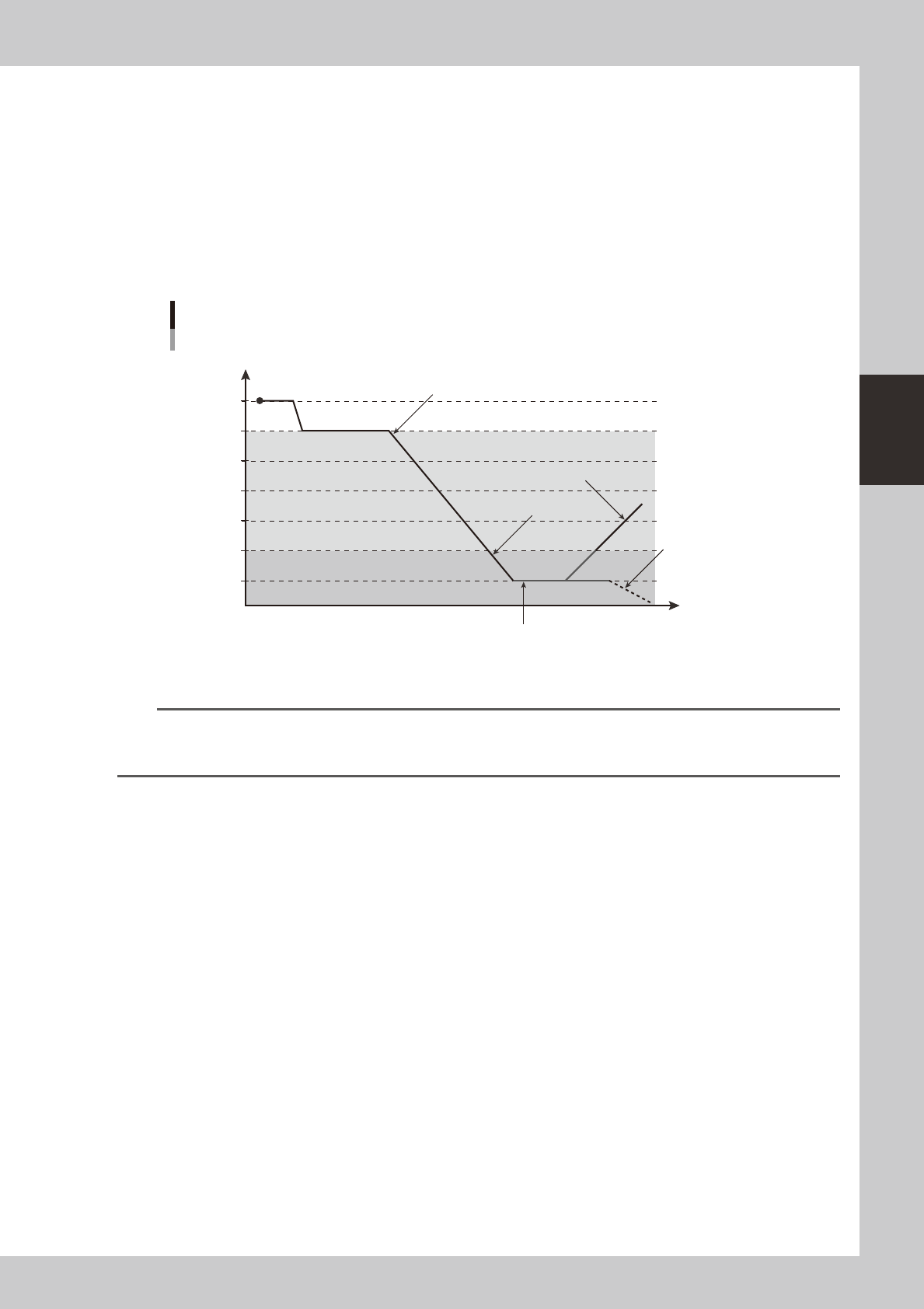

Color transitions per changes in pickup rates
100
99
98
97
96
95
94
Pickup rate %
Time
Changes to yellowStart (white)
Changes to yellow (better pickup rate)
Changes to red
Changes to red
(worse pickup rate)
Pressing the [Current Check] or [All Check] button enables
"watch-and-wait" mode and changes the color of "red" row(s) to
"pink".
23303-L4-00
TIP
When "watch-and-wait" mode is enabled, the color of the "red" row(s) showing an abnormal pickup rate changes to
"pink" and the pickup rate at that point is stored. The "pink" color then changes according to changes in the pickup
rate from that point onward.
A-1
Appendix
A1. Specifications
n
YS24X specifications
Item Specifications
Operating ambient temperature
Function guaranteed: 15 to 35°C
Accuracy guaranteed: 20 to 28°C
Operating ambient humidity 20 to 90% (no condensation), optimal range: 50 to 60%
Noise level Under 78dB
Power requirement (voltage and frequency) 3-phase AC 200/208/220/240/380/400/416 V ± 10%, 50/60 Hz
Average power consumption 2.0kW
Power cable (conductor cross-section area) 5.5 mm
2
or more
Overvoltage category *
1
Category III
Pollution degree *
1
Degree 2
Supply air pressure *
2
0.45MPa
Air flow rate *
6
260 Nl/min., Instantaneous maximum flow rate: 420 Nl/min.
Board transport height *
3
900 mm ± 10 mm
Data
Number of mounting points *
4
10,000 points
Number of part types 255 types per board
Number of fiducial marks *
5
128 sets per board
*1: Conforms to IEC60664-1.
*2: Clean, dry air passed through an air dryer and filter.
*3: Distance from the floor surface to the upper surface of conveyor belt.
*4: Decreases with the number of boards, blocks and fiducial marks.
*5: When using 2-point fiducial mode.
*6: Shows the standard air flow rate of the machine with the tape cutter. (This includes an air flow rate of 10 Nl for tape
cutter.)
c
Conveyor's board sensors may fail to detect a production board if it has a slit or cutout.
n
NOTE
For more detailed information not listed above, please refer to specification sheets.
