xxiv Safety instructions n Label positions W arning/caution labels Rear (YS24X+sA TS II ) N Open/close cover N Open/close cover N Cutter section N Cutter inner side 93203-L4-10
xxiii
Safety instructions
n
Label positions
Warning/caution labels

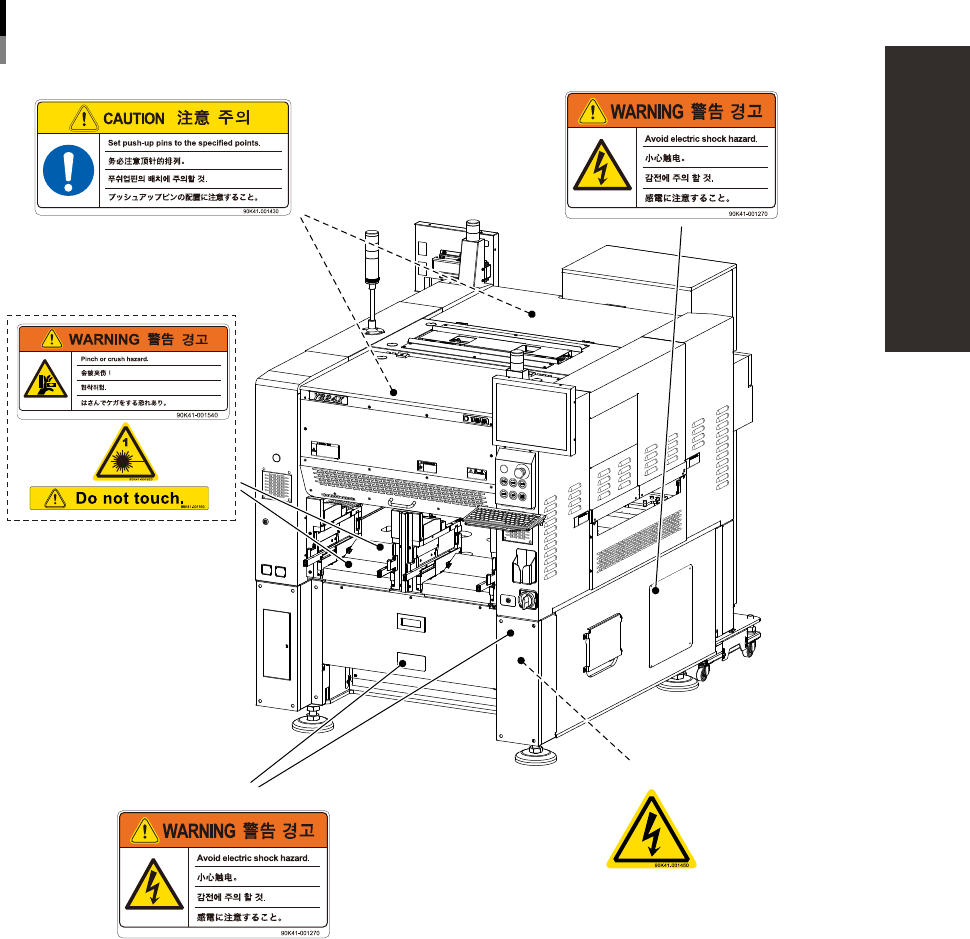

Front 2
N X axis frame section inner side (front and rear sides)
N Feeder setup section
(2 locations each on front and rear sides)
N Right and left sides
N Lower panels
(front and rear sides)
N Panel inner side
93202-L4-10
xxiv
Safety instructions
n
Label positions
Warning/caution labels

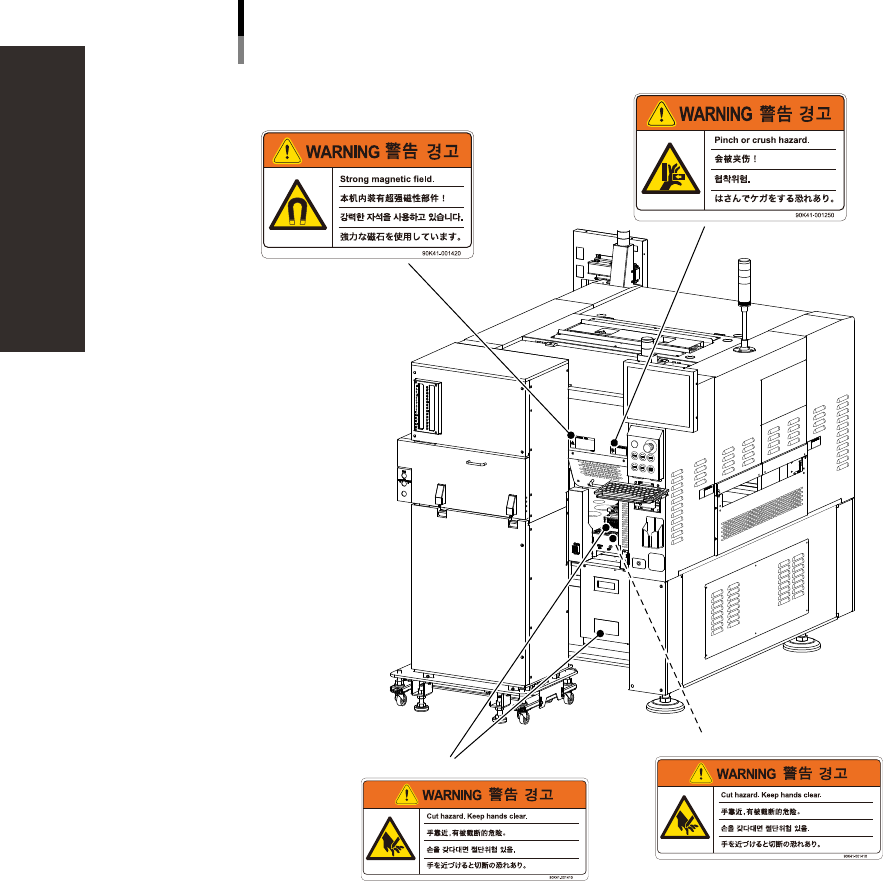

Rear (YS24X+sATSII)
N Open/close cover
N Open/close cover
N Cutter section
N Cutter inner side
93203-L4-10
xxv
Safety instructions
n
Label positions
Warning/caution labels

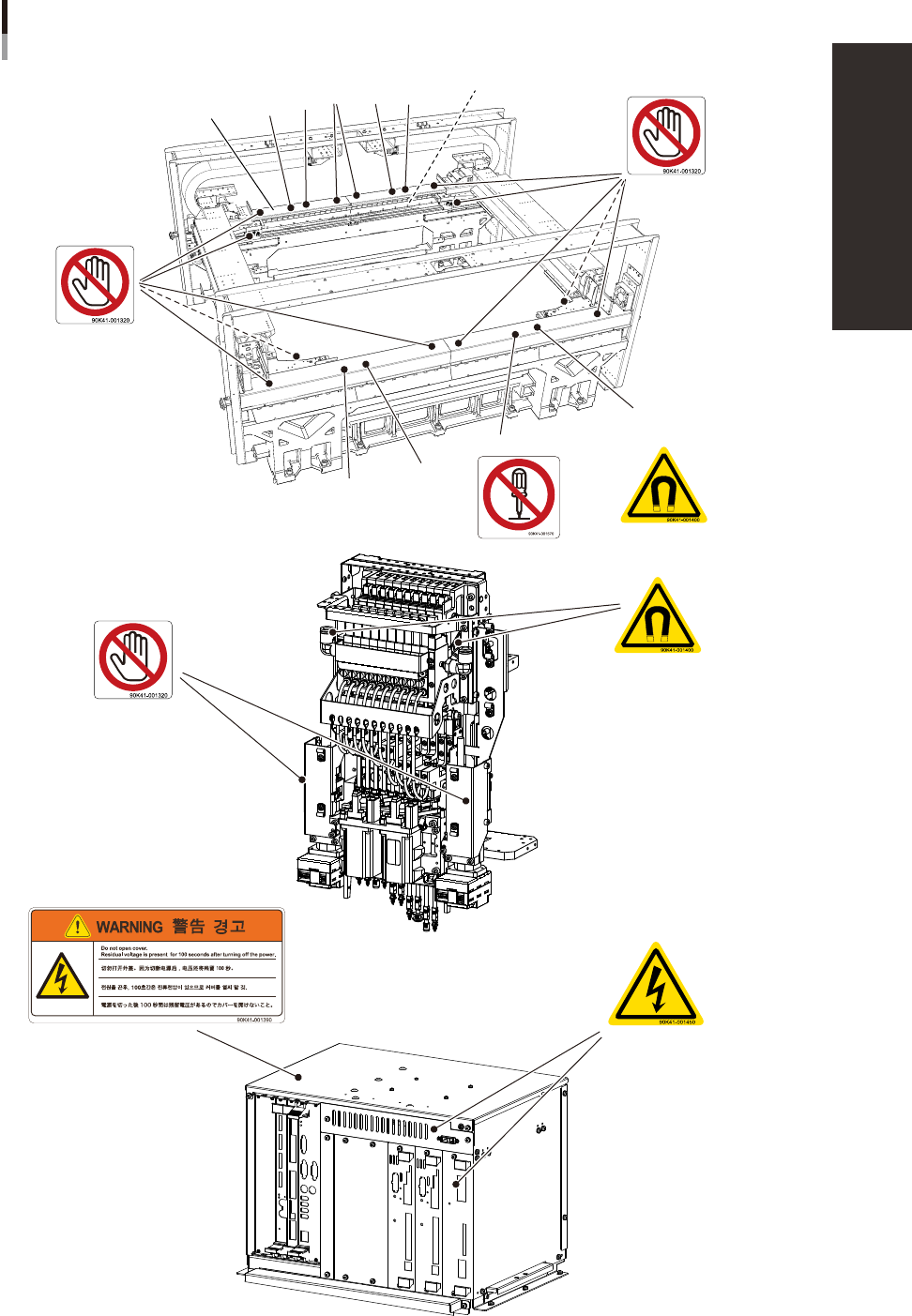

N Camera unit
N Z-axis linear scale section
N Top of controller
N Controller front panel
N Controller
N Head assembly
N Y axis linear scale
3
3
2
2
3
2
1
1. Never touch.
1. Never touch.
2. Disassembly prohibited.
3. Caution on strong
magnetic fields
Linear cover
Linear motor
93204-L4-20
