1-9 1 Part names and functions 3.3 Nozzle station (option) T he nozzle station accommodates various nozzles for automatic change. T he drawings below sho w the nozzle station No. and the allotted head No. and mating nozz…
1-8
1
Part names and functions
n
Narrow adjacent type

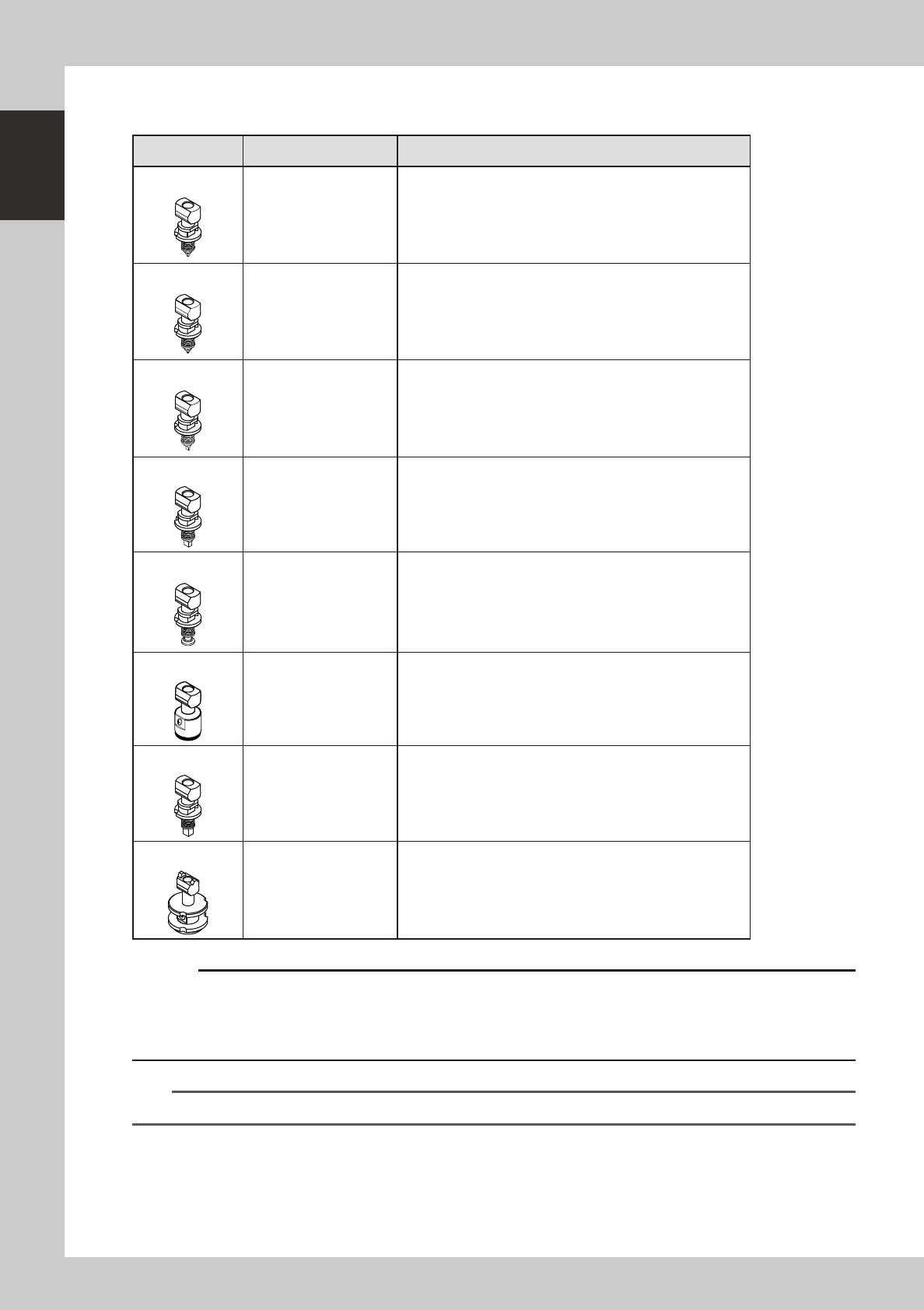

Eight types of narrow adjacent nozzles can be chosen and attached to each head.
Nozzle type Head No. Typical Components
Type 310A
1 to 10 0402 size components, etc.
Type 311A
1 to 10 0603 size components
Type 312A
1 to 10 1005 to 1608 size components
Type 313A
1 to 10 2012 to 3225 size components
Type 314A
1 to 10 4532 to 7343 size components, SOP, etc.
Type 315A
1 to 10 QFP, etc.
Type 317A
1 to 10 Cylindrical chip (Melf type) components only
Type 318A
3, 8 32x32mm to 45x45mm size components
c
other machines.
Type 318A nozzle can only be attached to heads 3 and 8 with a custom nozzle holder. The maximum nozzle diameter
n
NOTE
For detailed information on component types and size, refer to the specification sheets that come with the machine.
1-9
1
Part names and functions
3.3 Nozzle station (option)
The nozzle station accommodates various nozzles for automatic change.
The drawings below show the nozzle station No. and the allotted head No. and mating nozzle type.
16
32
172021222324252627282930 1831 19
64
49525354555657585960616263 5051
96
81
848586878889909192939495 8283
131415 1112 910 5678 1234
48
454647 4344 4142 37383940 33343536
80
777879 7576 7374 69707172 65666768
Custom nozzle pockets
Nozzle station (right-to-left flow with no sATSII)
Standard type
Front of machine
Rear of machine
23107-L4-00
No. Table Head No. Nozzle Type No. Table Head No. Nozzle Type No. Table Head No. Nozzle Type
1 B HEAD1 TYPE302A 33 B HEAD1
Custom nozzle
65 A HEAD10 TYPE301A
2 HEAD2 34 HEAD1 66 HEAD9
3 HEAD3 35 HEAD2 67 HEAD8
4 HEAD4 36 HEAD3 68 HEAD7
5 HEAD5 37 HEAD4 69 HEAD6
6 HEAD6 38 HEAD5 70 HEAD5
7 HEAD7 39 HEAD6 71 HEAD4
8 HEAD8 40 HEAD7 72 HEAD3
9 HEAD8 TYPE304A 41 HEAD8 73 HEAD2 TYPE304A
10 HEAD9 TYPE302A 42 HEAD9 74 HEAD2 TYPE301A
11 HEAD10 43 HEAD10 75 HEAD1
12 HEAD2 TYPE303A 44 HEAD7 76 HEAD10
Custom nozzle
13 HEAD4 45 HEAD8 77 HEAD9
14 HEAD6 46 HEAD9 78 HEAD8
15 HEAD8 47 HEAD10 79 HEAD2 TYPE303A
16 HEAD8
Custom nozzle
48 HEAD3 TYPE307A 80 HEAD3
Custom nozzle
17 HEAD1 TYPE301A 49 A HEAD10
Custom nozzle
81 HEAD10 TYPE302A
18 HEAD2 50 HEAD10 82 HEAD9
19 HEAD3 51 HEAD9 83 HEAD8
20 HEAD2 TYPE304A 52 HEAD8 84 HEAD8 TYPE304A
21 HEAD4 TYPE301A 53 HEAD7 85 HEAD7 TYPE302A
22 HEAD5 54 HEAD6 86 HEAD6
23 HEAD6 55 HEAD5 87 HEAD5
24 HEAD7 56 HEAD4 88 HEAD4
25 HEAD8 57 HEAD3 89 HEAD3
26 HEAD9 58 HEAD2 90 HEAD2
27 HEAD10 59 HEAD1 91 HEAD1
28 HEAD1
Custom nozzle
60 HEAD7 92 HEAD10 TYPE303A
29 HEAD3 61 HEAD5 93 HEAD8
30 HEAD5 62 HEAD3 94 HEAD6
31 HEAD10 TYPE303A 63 HEAD1 95 HEAD4
32 HEAD3
Custom nozzle
64 B HEAD8 TYPE307A 96 HEAD8
Custom nozzle
1-10
1
Part names and functions
16
32
17 20 21 22 23 24 25 26 27 28 29 3018 3119
64
49 52 53 54 55 56 57 58 59 60 61 62 6350 51
96
81
84 85 86 87 88 89 90 91 92 93 94 95
82 83
13 14 1511 129 105 6 7 81 2 3 4
48
45 46 4743 4441 4237 38 39 4033 34 35 36
80
77 78 7975 7673 7469 70 71 7265 66 67 68
Custom nozzle pockets
Nozzle station (right-to-left or left-to-right flow with sATSII, left-to-right flow with no sATSII)
Standard type
Front of machine
Rear of machine
23130-L4-00
No. Table Head No. Nozzle Type No. Table Head No. Nozzle Type No. Table Head No. Nozzle Type
1 B HEAD1 TYPE302A 33 B HEAD1
Custom nozzle
65 A HEAD10 TYPE301A
2 HEAD2 34 HEAD1 66 HEAD9
3 HEAD3 35 HEAD2 67 HEAD8
4 HEAD4 36 HEAD3 68 HEAD7
5 HEAD5 37 HEAD4 69 HEAD6
6 HEAD6 38 HEAD5 70 HEAD5
7 HEAD7 39 HEAD6 71 HEAD4
8 HEAD8 40 HEAD7 72 HEAD3
9 HEAD8 TYPE304A 41 HEAD8 73 HEAD2 TYPE304A
10 HEAD9 TYPE302A 42 HEAD9 74 HEAD2 TYPE301A
11 HEAD10 43 HEAD10 75 HEAD1
12 HEAD2 TYPE303A 44 HEAD7 76 HEAD10
Custom nozzle
13 HEAD4 45 HEAD8 77 HEAD9
14 HEAD6 46 HEAD9 78 HEAD8
15 HEAD8 47 HEAD10 79 HEAD2 TYPE303A
16 HEAD8
Custom nozzle
48 HEAD3 TYPE307A 80 HEAD3
Custom nozzle
17 HEAD1 TYPE301A 49 A HEAD10
Custom nozzle
81 HEAD10 TYPE302A
18 HEAD2 50 HEAD10 82 HEAD9
19 HEAD3 51 HEAD9 83 HEAD8
20 HEAD2 TYPE304A 52 HEAD8 84 HEAD8 TYPE304A
21 HEAD4 TYPE301A 53 HEAD7 85 HEAD7 TYPE302A
22 HEAD5 54 HEAD6 86 HEAD6
23 HEAD6 55 HEAD5 87 HEAD5
24 HEAD7 56 HEAD4 88 HEAD4
25 HEAD8 57 HEAD3 89 HEAD3
26 HEAD9 58 HEAD2 90 HEAD2
27 HEAD10 59 HEAD1 91 HEAD1
28 HEAD1
Custom nozzle
60 HEAD7 92 HEAD10 TYPE303A
29 HEAD3 61 HEAD5 93 HEAD8
30 HEAD5 62 HEAD3 94 HEAD6
31 HEAD10 TYPE303A 63 HEAD1 95 HEAD4
32 HEAD3
Custom nozzle
64 B HEAD8 TYPE307A 96 HEAD8
Custom nozzle
