YS24X_Ope_E - 第61页
1-24 1 Part names and functions n Dual-lane Plus direction Minus direction W2 axis Axis configuration Example of RL (Right-to-left flow) when viewed from the front of the machine RA1 axis RB1 axis RA2 axis RB2 axis N Hea…
1-23
1
Part names and functions
n
Single-lane
Plus direction
Minus direction
YB axis
YA axis
XA axis
XB axis
W1 axis
Axis configuration
Example of RL (Right-to-left flow) when viewed from the front of the machine
RA1 axis
RB1 axis
RA2 axis
RB2 axis
N Head axes
N Main axes
N Transfer axes
A table Head unit
B table Head unit
ZB1ZB10 ZB6 ZB5
ZA10ZA1 ZA5 ZA6
PU axis
23117-L4-00
n
Function of each axis
Axis Function
XA, XB Moves the head assembly above the table in parallel with the board flow on the conveyor.
YA, YB Moves the head assembly perpendicular to the board flow on the conveyor.
RA1, RA2, RB1, RB2 Rotates the nozzle shaft of each head.
ZA1 to ZA10, ZB1 to ZB10 Moves the component pick-and-place head of each head vertically.
W Changes the conveyor width.
PU Moves the push-up plate vertically.
1-24
1
Part names and functions
n

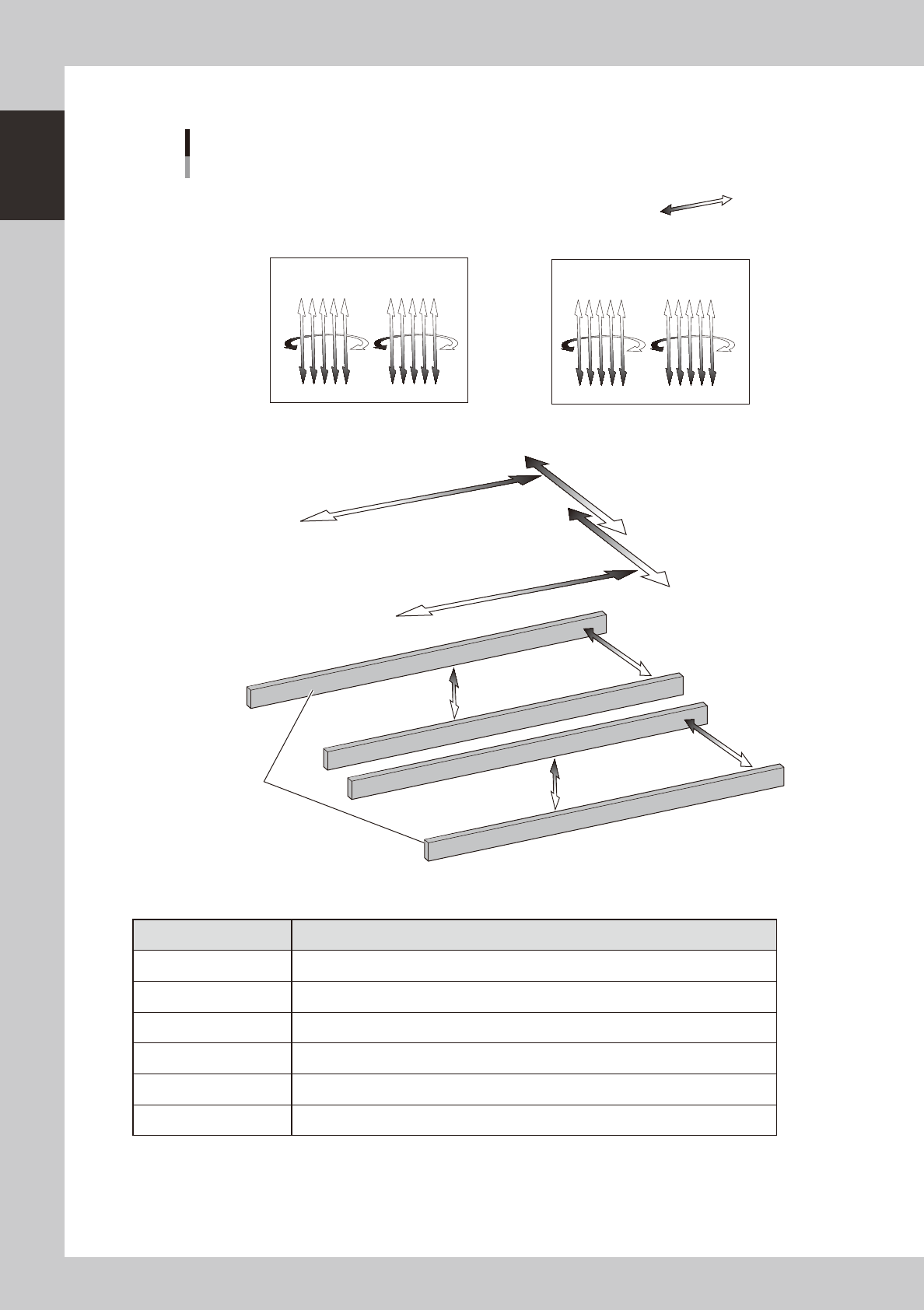

Dual-lane
Plus direction
Minus direction
W2 axis
Axis configuration
Example of RL (Right-to-left flow) when viewed from the front of the machine
RA1 axis
RB1 axis
RA2 axis
RB2 axis
N Head axes
N Main axes
A table Head unit
B table Head unit
ZB1ZB10 ZB6 ZB5
ZA10ZA1 ZA5 ZA6
Fixed
conveyor rail
Lane 1
Lane 2
W1 axis
PU1 axis
PU2 axis
YB axis
YA axis
XA axis
XB axis
N Transfer axes
23133-L4-00
n
Function of each axis
Axis Function
XA, XB Moves the head assembly above the table in parallel with the board flow on the conveyor.
YA, YB Moves the head assembly perpendicular to the board flow on the conveyor.
RA1, RA2, RB1, RB2 Rotates the nozzle shaft of each head.
ZA1 to ZA10, ZB1 to ZB10 Moves the component pick-and-place head of each head vertically.
W1, W2 Changes the conveyor width.
PU1, PU2 Moves the push-up plate vertically.
1-25
1
Part names and functions

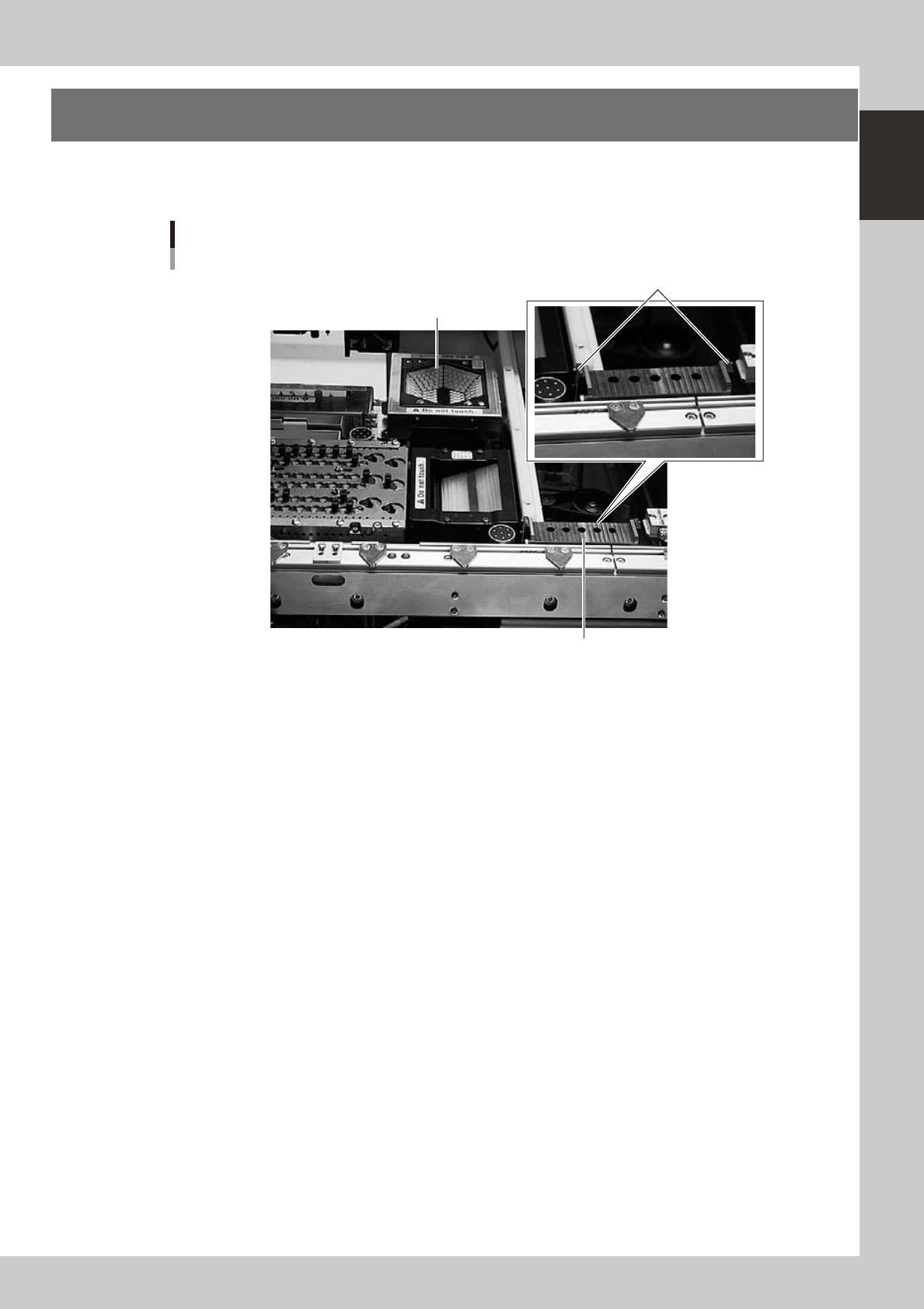

7. Blow station
The blow station blows high-pressure air internally through the nozzles and shafts to blow away dust and grit
and clean the nozzles.
Sensor for detecting
nozzles left on blow station
Multi-vision camera (standard)
Blow station
Blow station
23118-L4-00
